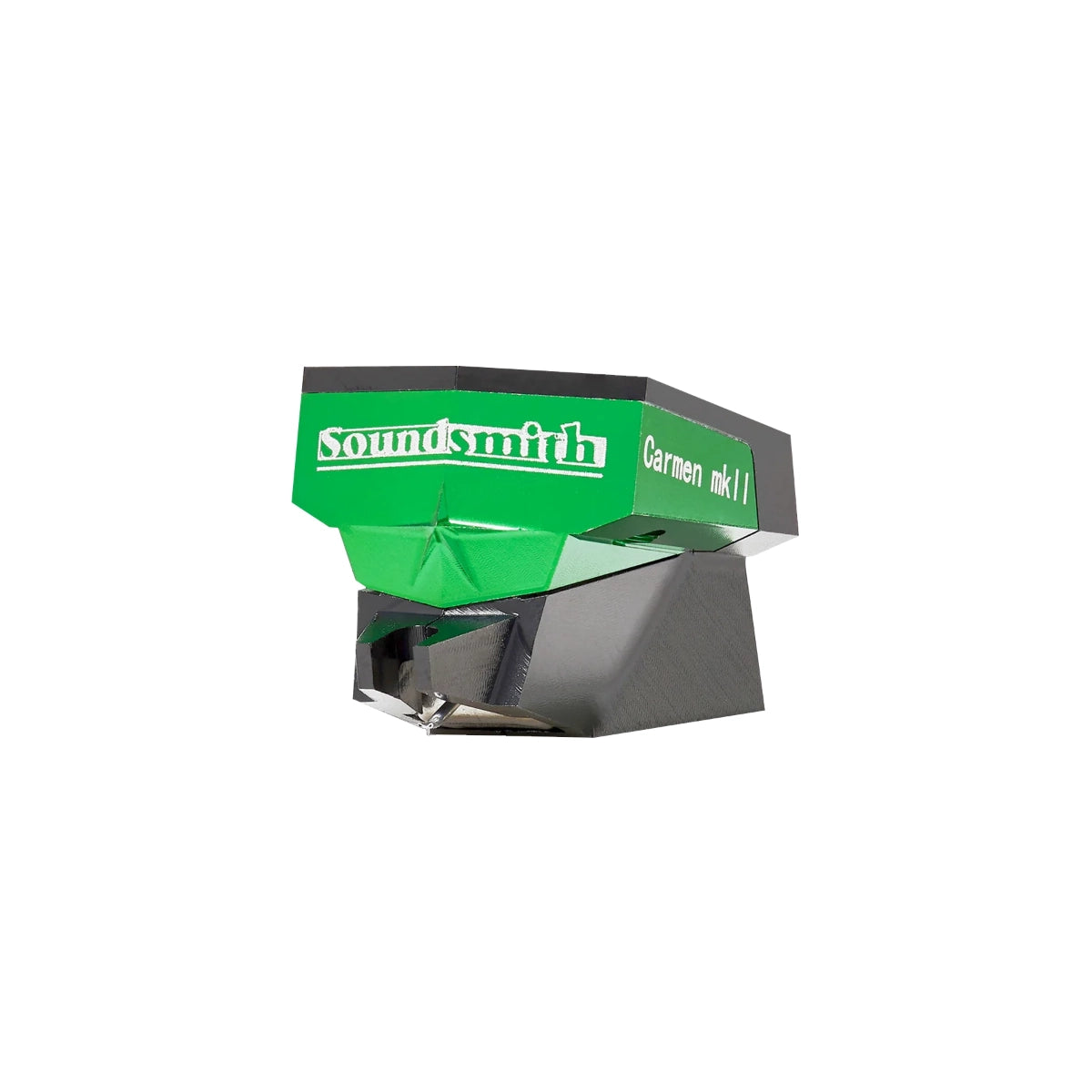

Soundsmith Carmen MKII Cartridge

Soundsmith Carmen MKII High-Output HiFi Turntable Cartridge: What Sets It Apart for Vinyl Buyers

What makes the Soundsmith Carmen MKII different from a typical moving iron cartridge?

The Soundsmith Carmen MKII is a high-output moving iron design built around Soundsmith's Fixed Coil construction. In a conventional moving coil cartridge, the coils move with the cantilever and stylus, which adds mass to the moving system and lets generated signal current pass back through the coil itself. The Fixed Coil approach keeps the coil stationary and lets only the magnetic structure move with the stylus, which mitigates noise being returned to the record and reduces stylus jitter. This is the mechanical basis for the clarity and detail Soundsmith associates with the design, and it's the main reason buyers comparing cartridges in this price bracket would shortlist the Carmen MKII over a standard moving coil alternative.

Will the Carmen MKII work with my existing tonearm and phono stage?

The Carmen MKII uses a standard half-inch mount, so it fits any tonearm headshell built to the common four-point mounting standard rather than requiring a proprietary fitting. Because it's a high-output design, with output voltage above 2.12 mV at 5 cm/sec, it suits a moving magnet phono input rather than a dedicated moving coil stage, and Soundsmith recommends a preamp gain of 38 to 44 dB to match this signal level correctly. The recommended load resistance is 47 kΩ or higher, which aligns with the standard moving magnet loading found on most phono stages, so system matching doesn't usually call for extra loading boxes or step-up transformers. At 9.20 grams, the cartridge also needs a tonearm rated for that mass class; pairing it with an arm and counterweight suited to medium-mass cartridges keeps the tracking geometry within its design parameters.

How do you set the tracking force and check alignment after fitting the Carmen MKII?

Soundsmith specifies a tracking force of 1.3 to 1.6 grams for the Carmen MKII, reflecting its medium compliance of 22 µm/mN. Compliance describes how readily the cantilever flexes in response to the stylus tracing the groove, and a medium-compliance design like this one needs a tonearm with matching effective mass to avoid the resonance issues that arise when compliance and arm mass are mismatched. Setting tracking force within the stated range, alongside correct azimuth and overhang during fitting, keeps the elliptical stylus properly seated in the groove walls and supports the channel separation figures the cartridge is designed to achieve.

Who is the Carmen MKII suited to as a turntable upgrade?

The Carmen MKII is positioned by Soundsmith as a step up from its Otello model, aimed at vinyl listeners who want a meaningful jump in resolution without moving into the cost of moving coil designs priced well above it. Its medium compliance and standard mounting make it a practical match for turntables already fitted with a conventional tonearm, rather than a specialist or high-mass arm, which keeps the upgrade path straightforward for an existing system. As a high-output cartridge with no need for additional gain stages, it also suits owners who want to add a capable cartridge to a system without reworking their phono stage.

How do the stylus and cantilever shape the cartridge's tracking performance?

The Carmen MKII fits an elliptical nude diamond stylus, cut and polished into a hyper-elliptical profile with a radius of curvature of 6 by 17 microns. Mounting the diamond directly to the cantilever, rather than bonding it into a metal sleeve, lowers the effective tip mass to 0.35 mg, and a lower tip mass lets the stylus follow high-frequency groove modulations more accurately because there's less inertia for the suspension to overcome. The cantilever itself is an aluminium alloy, which keeps the moving assembly light while still being rigid enough to transmit groove motion to the Fixed Coil generator without flexing. Together, the low tip mass and the Fixed Coil generator are what Soundsmith credits with the cartridge's resolution advantage over moving coil designs that cost considerably more.

What is the Carmen MKII's body made from and how does that affect ownership?

The Carmen MKII is housed in a handmade solid ebony case rather than a moulded plastic or composite body. Ebony is dense and resists internal resonance, which matters for a cartridge body because unwanted body vibration can be picked up by the generator and add coloration to the signal independent of the stylus and coil assembly. As a hand-finished natural material, it also means each cartridge body has its own grain pattern, so owners get a degree of individual variation that a moulded synthetic housing wouldn't offer. The cartridge is part of Soundsmith's wider Fixed Coil range, made at the company's Peekskill, New York factory, alongside models such as the Otello and Zephyr series that share the same generator principle at different points in the line-up.
