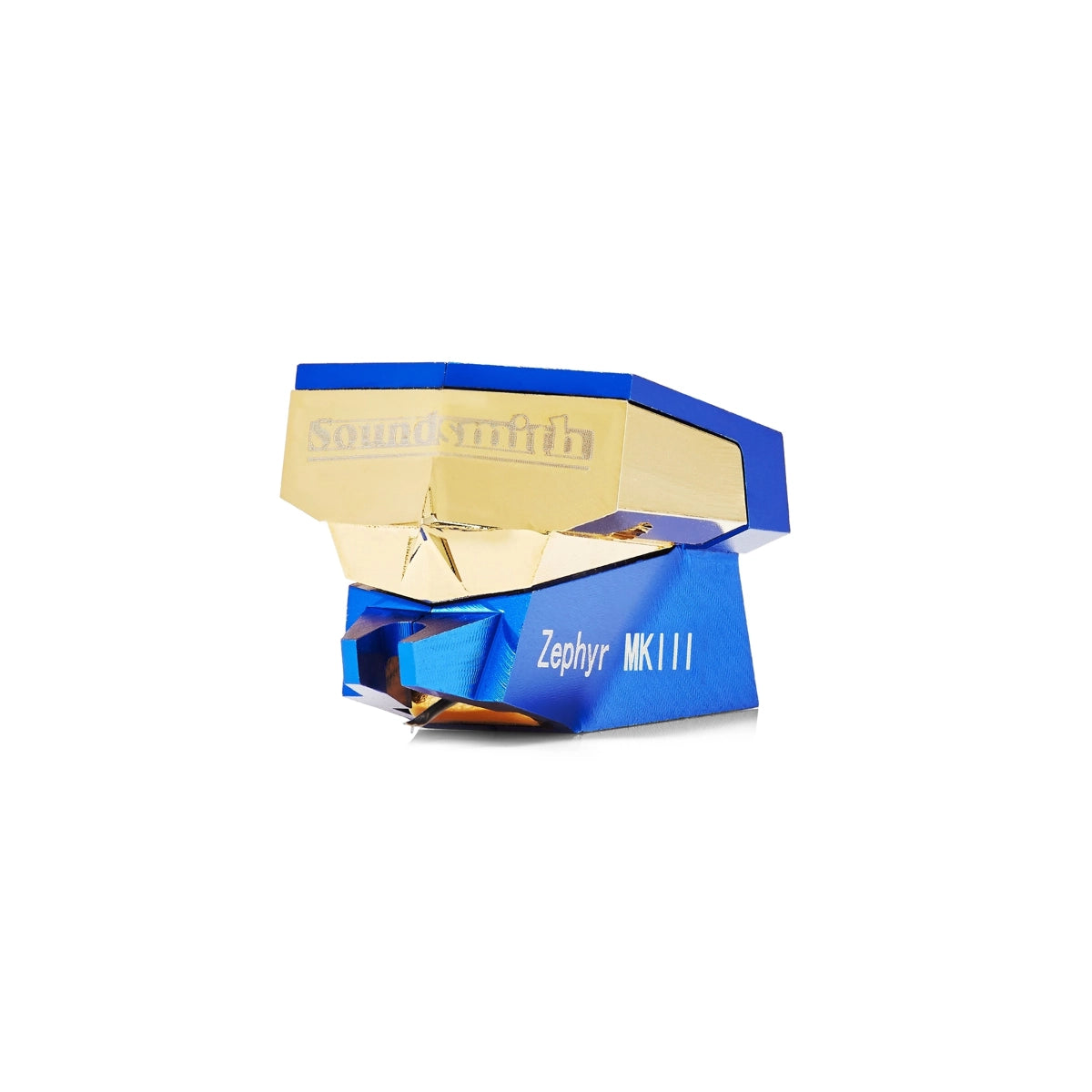

Soundsmith Zephyr MKIII Cartridge

Why the Soundsmith Zephyr MKIII Suits a System Built Around Detail and Separation

What sets the Soundsmith Zephyr MKIII apart from other mid-range cartridges?

The Soundsmith Zephyr MKIII is a fixed coil, high-output cartridge that sits in the middle of Soundsmith's range while carrying over engineering from the company's higher-priced models. It fits an ultra low mass nude stylus ground in the Line Contact shape, the same profile used on the cutting heads that originally inscribe vinyl records, so the stylus tip follows the groove wall more closely than a conventional spherical or elliptical tip. Soundsmith builds the Zephyr MKIII as part of its Fixed Coil family, where the coils stay stationary and only the cantilever and stylus move; this keeps moving mass low and reduces the stray noise and "stylus jitter" that a moving-coil or moving-magnet design can introduce into the groove tracing. The cartridge also inherits Soundsmith's Dynamic Energy Management System, a damping arrangement first developed for the company's high-end Sussurro cartridge, which channels vibrational energy away from the stylus assembly and disperses it through the cartridge body rather than letting it feed back into the signal path.

Will the Zephyr MKIII match your turntable and phono stage?

The Zephyr MKIII uses a standard half-inch mounting, so it fits the headshell or tonearm hardware found on the majority of turntables without an adaptor. Soundsmith specifies a recommended tracking force of 1.8 to 2.2 grams, a range most tonearms with adjustable counterweights can accommodate. Its high output voltage, rated above 2.40mV at 5cm/sec, suits a standard moving-magnet phono input rather than requiring a dedicated moving-coil stage or additional gain, and Soundsmith suggests a preamp gain of 38 to 44dB alongside a load resistance of 47kΩ or greater, with no load capacitance requirement. DC resistance of 680Ω and coil inductance of 190mH per channel are the figures a buyer matching the cartridge against their phono stage's input impedance would need to check against those load recommendations.

How does the Zephyr MKIII's stylus geometry affect set-up and alignment?

The High Profile Contact Line diamond fitted to the Zephyr MKIII traces more of the groove wall than a standard contact line stylus, which normally makes azimuth alignment more demanding to get right. Soundsmith has designed this particular stylus to avoid the alignment sensitivity that usually comes with a high profile contact line shape, giving more forgiveness during set-up than the geometry would typically allow. An effective tip mass of 0.28mg and compliance of 10µm/mN are the figures a buyer would use to judge how the cartridge pairs with a given tonearm's effective mass, since a mismatch between cartridge compliance and arm mass affects how well the stylus settles into and tracks the groove.

Who is the Zephyr MKIII intended for?

The Zephyr MKIII is positioned for listeners building a turntable system who want separation and imaging closer to Soundsmith's high-end models without the cost of one. Soundsmith hand-builds the cartridge at its Peekskill, New York factory, and it carries a 24-month warranty. Its composite body and Dynamic Energy Management System are intended to let a moderately priced cartridge deliver the kind of channel separation and image stability more commonly associated with higher-tier designs, making it a step-up purchase for an owner upgrading from an entry-level cartridge rather than a first cartridge on a budget system.

What do the cartridge's separation and frequency figures tell a buyer about its performance?

The Zephyr MKIII is specified at greater than 28dB of channel separation at 1000Hz and greater than 25dB across 50 to 15,000Hz, with a channel difference below 1.0dB between left and right. These figures describe how distinctly the cartridge keeps the two stereo channels apart, which is what produces a stable, well-defined sound stage rather than the channels blurring into each other. Frequency response is rated at 15 to 45,000Hz within ±2.0dB, a wider window than the audible range, which leaves margin either side of typical hearing limits so the in-band response stays flatter and more even.

What materials make up the Zephyr MKIII's cantilever and stylus assembly?

The Zephyr MKIII uses a newly developed aluminium alloy cantilever, the same alloy Soundsmith introduced on its Paua MKII. Soundsmith engineered this alloy to combine two properties that usually work against each other: enough stiffness to transmit groove information accurately, and damping placed specifically where it is needed across the critical part of the audible frequency range. Mounted to that cantilever is the ultra low mass nude High Profile Contact Line diamond, ground with a radius of curvature of 6 x 17 microns, the dimension that determines how the stylus tip contacts the groove wall.
