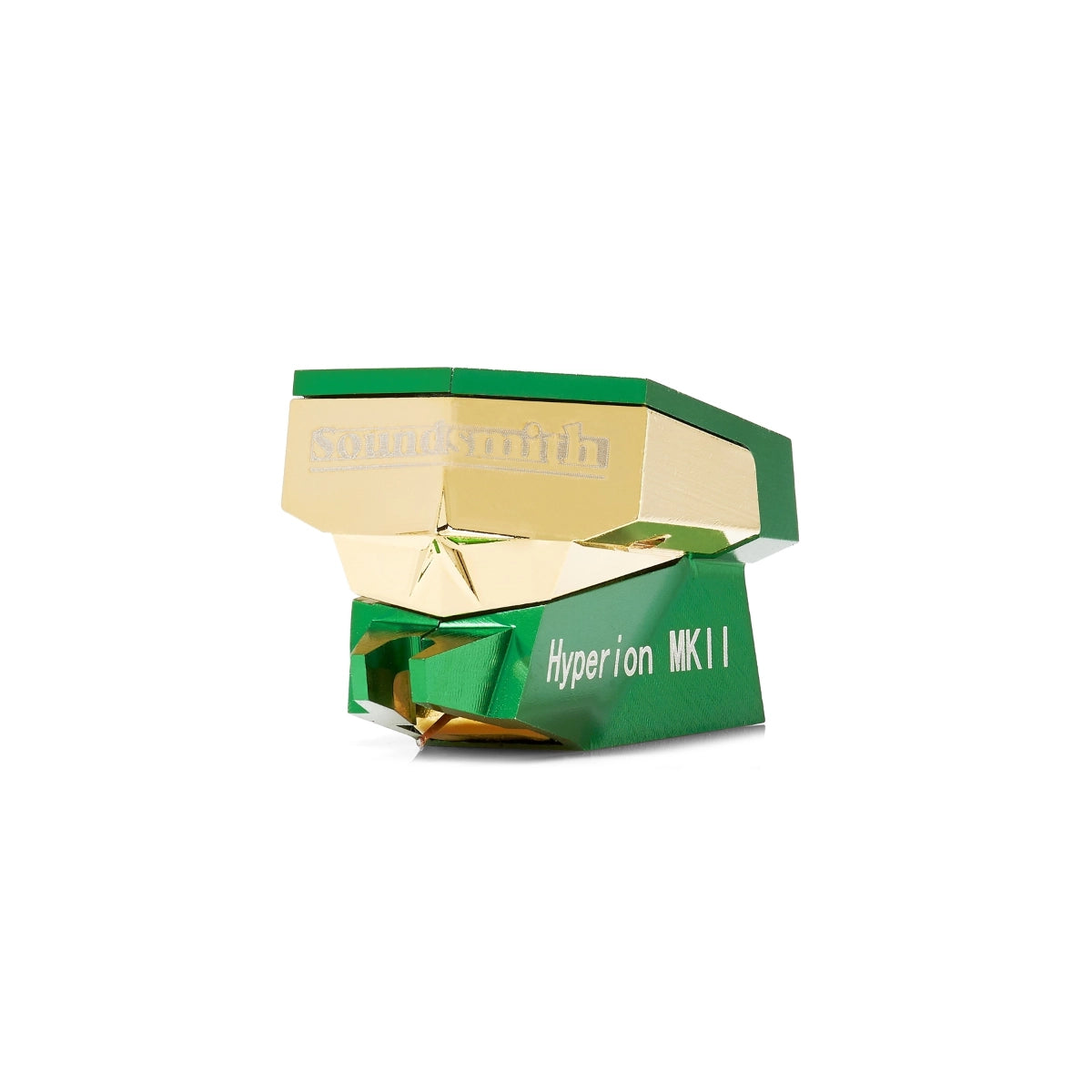

Soundsmith Hyperion MKII Low-Output HiFi Turntable Cartridge

What makes the Soundsmith Hyperion MKII Low-Output HiFi Turntable Cartridge the right choice for a high-resolution analogue front end?

The Soundsmith Hyperion MKII is the top-of-the-line low-output cartridge in Soundsmith's range, built around a hand-formed cactus spine cantilever and a Fixed Coil generator. Soundsmith positions the Hyperion MKII as the cartridge equipment manufacturers reach for when they need their turntable, amplifier or speaker systems to perform at their best, which places it firmly in the high-end bracket for buyers assembling or upgrading a serious vinyl playback chain. The combination of cantilever design, generator type and stylus profile separates the Hyperion MKII from typical moving coil or moving magnet cartridges in this category, and each of these elements affects a different part of the buying decision: tracking behaviour, system matching and long-term ownership.

What sets the Soundsmith Hyperion MKII apart from other low-output cartridges?

The Soundsmith Hyperion MKII's cantilever is hand formed and treated from a selected cactus spine rather than the boron, aluminium or sapphire rods used in most cartridges. A cactus spine has a naturally tapered shape and stacked columnar fibres, and Soundsmith desiccates and resin-damps each one before fitting it. That combination gives the cantilever low mass, extreme rigidity, internal damping and considerable strength at the same time, four properties that are normally traded off against each other in a single material. Low mass and high rigidity let the cantilever respond quickly to groove modulations, while the internal damping controls resonance, so the stylus stays in constant contact with the groove walls rather than skating or skipping across difficult passages.

The Hyperion MKII also uses Soundsmith's Fixed Coil design, classified as a moving iron type rather than a conventional moving coil. Because the coil itself does not move with the cantilever, less mechanical noise gets returned into the vinyl record through the stylus-groove interface, and stylus jitter, the small high-frequency vibration that can blur fine detail, is largely eliminated. This generator design is shared across Soundsmith's low-output range, so buyers comparing models within that range are evaluating differences in cantilever and stylus rather than generator type.

Which tonearms and phono stages will the Hyperion MKII work with?

The Soundsmith Hyperion MKII fits any tonearm that uses the standard half-inch mounting pattern, which covers the great majority of tonearms sold for hi-fi turntables. Compliance, the cartridge's flexibility under the stylus, sits at 12 μm/mN vertically and 7 μm/mN horizontally, figures a buyer should check against tonearm effective mass to keep the resulting tonearm-cartridge resonance within the 8 to 12 Hz range that most arms are designed around. At 12.2 g, the cartridge body sits within typical tonearm headshell weight limits for medium to medium-high mass arms.

On the electrical side, the Hyperion MKII outputs more than 0.40 mV at 5 cm/sec, which is low output in cartridge terms, so it needs a moving-coil-capable phono stage rather than a standard moving-magnet input. Soundsmith specifies a suggested preamp gain of 58 to 64 dB and a recommended load resistance of 470 Ω or higher, both of which a buyer should confirm their phono stage can provide before purchase. Load capacitance is not applicable to this design, which removes one variable that buyers of moving-coil cartridges usually have to tune.

How should tracking force be set once the cartridge is fitted?

Soundsmith recommends a tracking force of between 1.8 and 2.2 g for the Hyperion MKII, a range that reflects the effective tip mass of 0.30 mg and the compliance figures above. Setting force within this window keeps the diamond stylus properly seated in the groove without adding unnecessary downforce that would accelerate record or stylus wear. Because the cactus spine cantilever already manages resonance internally, the cartridge does not demand unusually fine-grained adjustment beyond getting azimuth, overhang and tracking force within the manufacturer's stated tolerances, the same setup steps any standard half-inch mount cartridge requires.

What stylus options does the Hyperion MKII offer, and how does the shape affect record contact?

The Hyperion MKII uses a nude diamond stylus in a 0.10 mm square Contact Line profile, available as either a standard Contact Line or an Optimised Contact Line cut. Both shapes are engineered to follow the profile of the cutting stylus used to master vinyl records as closely as possible, so the playback stylus contacts more of the groove wall than a simpler elliptical or spherical tip would. Wider contact across the modulated groove wall translates into more accurate retrieval of the information actually cut into the record, particularly at high frequencies where groove modulations are smallest. Choosing between the Contact Line and Optimised Contact Line options lets a buyer match the stylus profile to their priorities around tracing accuracy and stylus longevity.

Who builds the Soundsmith Hyperion MKII, and what does that mean for ownership?

Every Hyperion MKII is handmade in the United States by Peter Ledermann, President and Chief Engineer of Soundsmith, at the company's Peekskill, New York factory. Soundsmith has worked exclusively in speciality audio since 1972 and built its reputation in large part on cartridge restoration and on developing its own Strain Gauge and Fixed Coil cartridge technologies, so the engineering behind the Hyperion MKII draws on five decades of work specific to phono cartridges rather than a broader consumer electronics catalogue. A ten-year warranty backs the Hyperion MKII, a length of cover that is unusual for a moving-iron cartridge and relevant to anyone weighing the cost of ownership over a long-term vinyl system build.
