Brand: Soundsmith

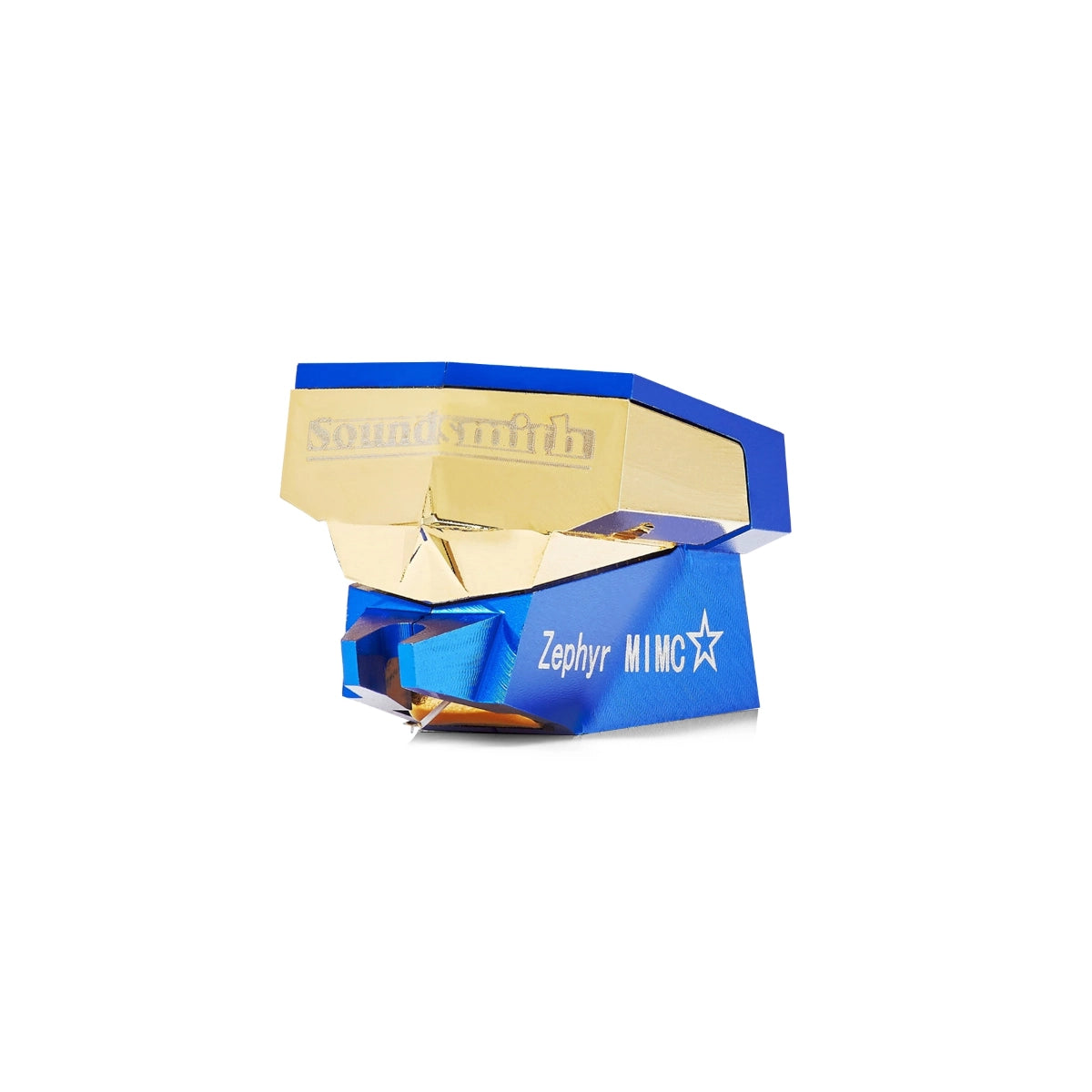

Soundsmith Zephyr MIMC Star Cartridge

$3,650.00 AUD

The Soundsmith Zephyr MIMC is a low-output moving-iron phono cartridge that brings Soundsmith's Fixed Coil design to its entry-level model. Fixed Coil construction reduces stylus jitter and limits energy returned to the record, supporting a steadier signal path. A laser-drilled sapphire cantilever carries a nude Contact Line diamond stylus, a shape that mirrors the cutting stylus used to master vinyl and maximises groove contact. The cartridge mounts on a standard ½-inch fitting, suiting tonearms that accept that mount, and outputs 0.4mV for use with MC-compatible phono stages. Buyers choosing the Zephyr MIMC get several features from Soundsmith's higher-tier cartridges, including the Paua and Sussurro, within a sub-$4,000 price point.

Quantity:

✓ Australian Retailer
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support

Specifications

Soundsmith Zephyr MIMC Star Cartridge

Specification	Value
Type	Fixed Coil / Moving Iron
Mount	Standard ½”
Cartridge height	WITHOUT ALUMINA inserts = .675” top to stylus tip – with two half round alumina pieces for ground isolation add .010”; WITH center slot full round Alumina (use for azimuth adjustment if your arm does NOT allow such) = .733”
Stylus	Contact Line, Nude, 0.10 mm square; Selected Contact Line low mass Nude Stylus
Radius of curvature	6 x 17 µm
Cantilever	Laser Drilled Sapphire
Recommended tracking force	1.8 - 2.2 g
Effective tip mass	0.32 mg
Compliance	10 µm/mN
Frequency response	15 - 45,000 Hz ± 2.0 dB
Channel separation @ 1000 hz	> 28 dB, N/A (Mono version)
Channel separation @ 50 - 15,000 hz	> 25 dB, N/A (Mono version)
Channel difference	< 1.0 dB, < 0.5 dB (Dual Mono w/optimal VTF setting)
Output voltage @ 5cm/sec	> 0.40 mV (LOW)
Dc resistance (dcr)	10Ω
Coil inductance per channel	2.75 mH
Suggested preamp gain	58 - 64 dB
Cartridge weight	12.2 g (ES series)
Recommended load resistance	≥ 470Ω
Recommended load capacitance	n/a

Product Details

Soundsmith Zephyr MIMC Low-Output HiFi Turntable Cartridge

The Soundsmith Zephyr MIMC Low-Output HiFi Turntable Cartridge is the brand's entry point into its moving-iron, low-output design family, carrying across construction principles found in the costlier Paua, Sussurro and Hyperion models. Soundsmith builds the Zephyr MIMC by hand at its Peekskill, New York factory, and the cartridge targets vinyl listeners who want access to the company's Fixed Coil engineering and Line Contact stylus geometry without moving into the higher-output tiers of the range.

Why choose the Soundsmith Zephyr MIMC for your turntable

What makes the Soundsmith Zephyr MIMC different from typical entry-level cartridges?

The Soundsmith Zephyr MIMC uses Fixed Coil construction rather than a conventional moving-coil or moving-magnet layout. In a Fixed Coil cartridge the coils stay stationary while a small iron armature moves with the stylus, which reduces stylus jitter and limits the amount of energy reflected back into the record groove. This translates into measurable channel performance: separation exceeds 28dB at 1kHz and stays above 25dB across 50Hz to 15,000Hz, with channel difference held below 1.0dB. Soundsmith positions the Zephyr MIMC as the model that brings this Fixed Coil behaviour, along with the laser-drilled sapphire cantilever and nude Contact Line diamond stylus used on its higher-end cartridges, into the sub-£2,000 category.

Which phono stage and tonearm suit the Soundsmith Zephyr MIMC?

The Soundsmith Zephyr MIMC is a low-output moving-iron cartridge, producing 0.40mV at 5cm/sec, so it needs a phono stage capable of delivering 58 to 64dB of gain rather than the lower gain typically used for moving-magnet cartridges. Soundsmith specifies a recommended load resistance of 470Ω or above, paired with a DC resistance of 10Ω at the cartridge itself, figures a buyer can use to check compatibility with their existing or planned phono preamp before ordering. The cartridge fits a standard half-inch mount, which covers the great majority of tonearm headshells without an adapter, and it weighs 12.2g, a figure worth checking against the tonearm's effective mass range to keep the arm-cartridge resonance within a usable range.

How do you set up tracking force and cartridge loading?

Soundsmith recommends a tracking force of 1.8 to 2.2g for the Zephyr MIMC, giving the installer a working range to fine-tune against their particular tonearm and turntable combination rather than a single fixed figure. Compliance sits at 10µm/mN, a medium value that pairs well with tonearms of moderate effective mass and helps the stylus stay seated in the groove at the recommended tracking weight. Getting tracking force and loading right at installation protects the diamond tip from excess wear and keeps channel separation and frequency response within the cartridge's quoted figures.

Why does the stylus use a Line Contact profile?

The stylus fitted to the Zephyr MIMC is a selected, low-mass nude Contact Line diamond with a radius of curvature of 6 x 17µm. Soundsmith shapes this stylus to closely match the profile of the cutting stylus originally used to engrave vinyl masters, so it makes contact with more of the groove wall than a simpler elliptical or spherical tip. A low effective tip mass of 0.32mg keeps the moving mass at the contact point small, which helps the stylus follow high-frequency groove modulation and supports the cartridge's quoted frequency response of 15Hz to 45,000Hz within ±2.0dB.

What does the laser-drilled sapphire cantilever contribute to tracking?

The cantilever on the Zephyr MIMC is laser-drilled sapphire, a harder and stiffer material than the aluminium typically used in cartridges at this price point. A stiffer cantilever resists unwanted flex as it transmits groove movement from the stylus tip to the generator system, which keeps the signal reaching the Fixed Coil mechanism closer to what's actually cut into the groove. Soundsmith pairs this sapphire cantilever with the nude Contact Line stylus specifically to extend the precision tracking normally reserved for its higher-end cartridges down into the Zephyr MIMC.
