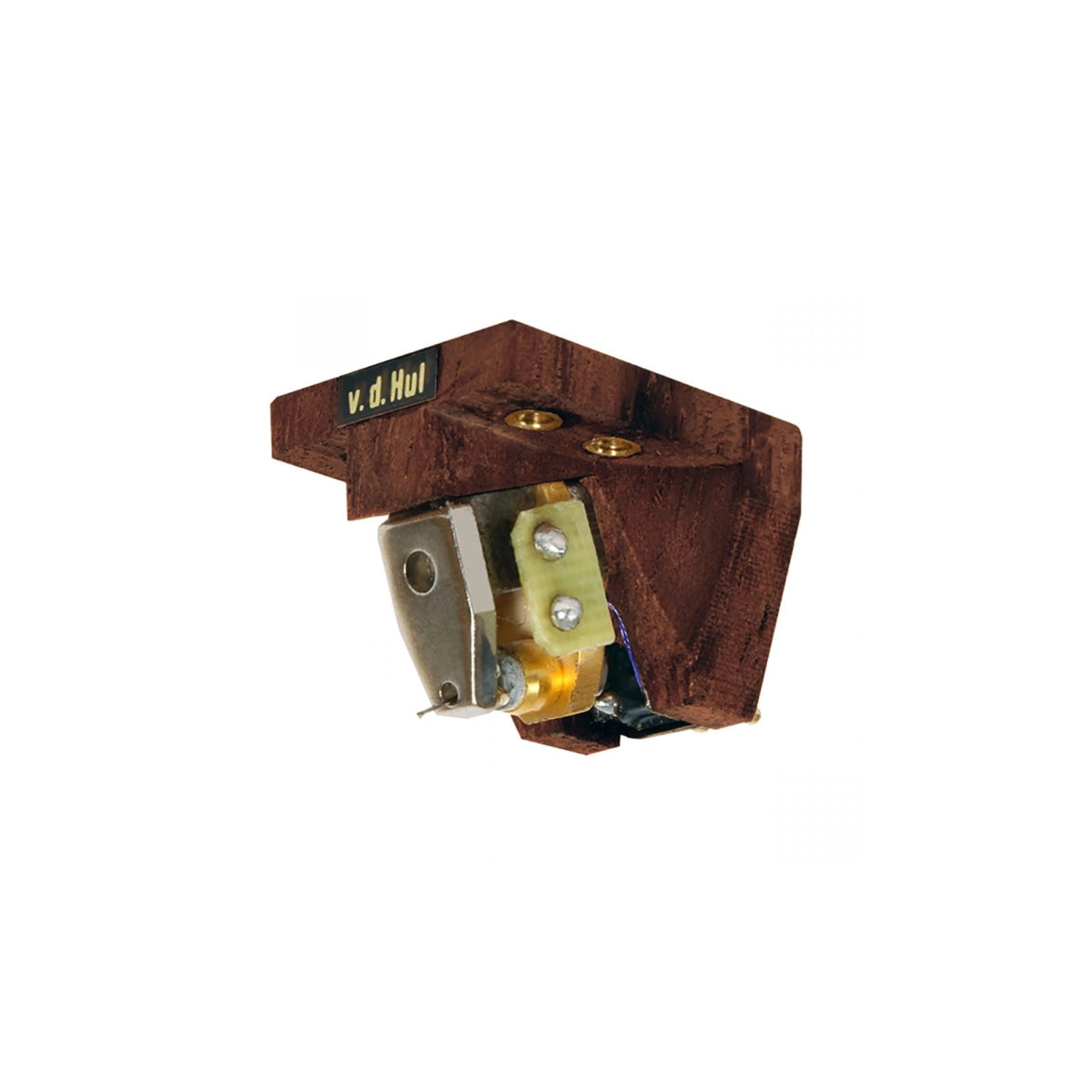

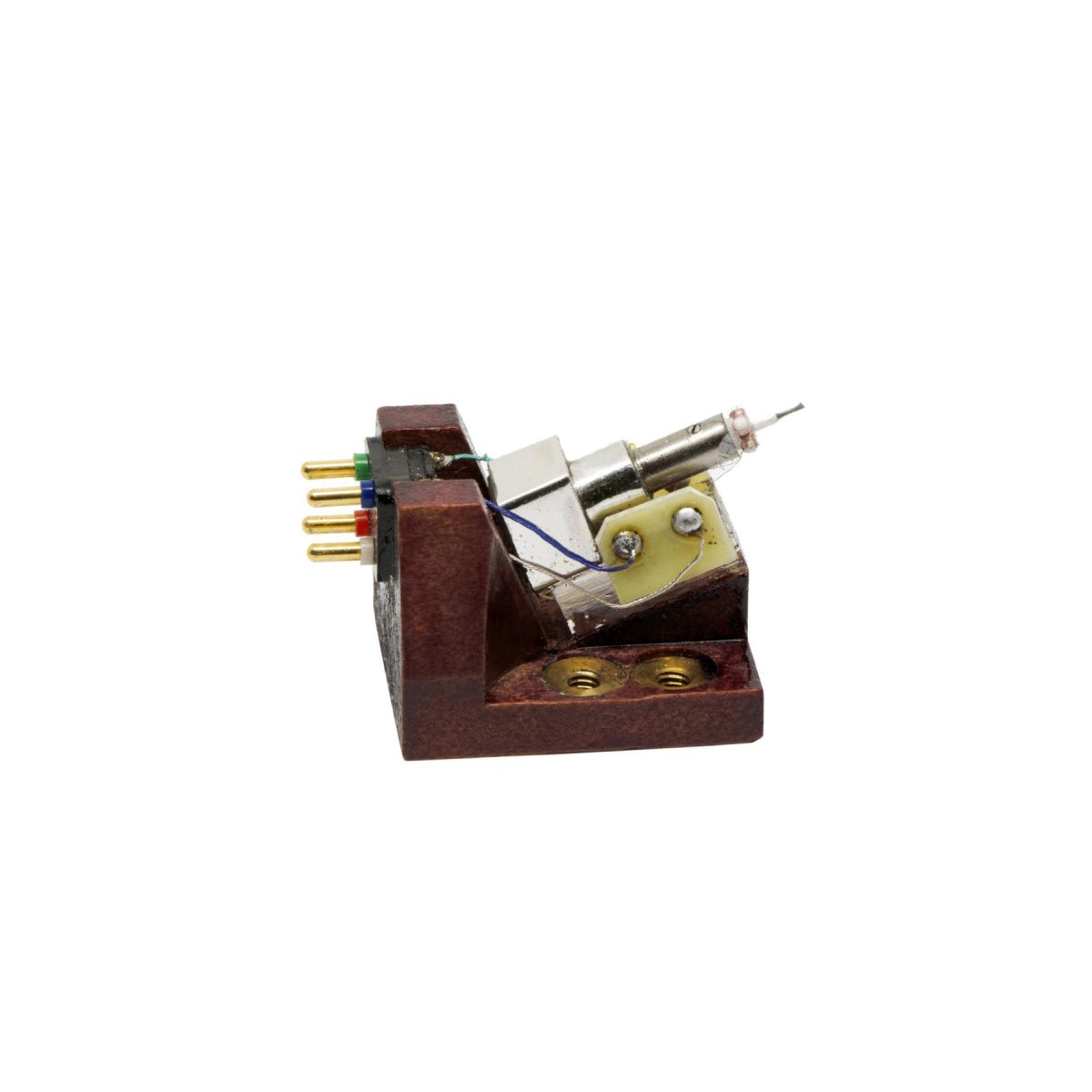

Van Den Hul Colibri XGW Stradivarius Phono Cartridge
The Colibri XGW ‘Stradivarius’ Phono Cartridge delivers unparalleled analogue audio performance with its pau ferro wooden body and advanced engineering. Designed by A.J. van den Hul, it features matched crystal copper or gold coils for tailored output options, ranging from 0.30mV to 0.65mV, to suit diverse musical genres. Its minimalist magnetic design reduces distortion and noise, offering exceptional clarity and detail. The VDH-1S stylus, with a tracking range of 1.35-1.5g and 70-micron tracking ability, ensures precision across a wide frequency response of 5–65,000 Hz. Customisable to your audio system, this handcrafted masterpiece is the epitome of audiophile excellence.
Specifications
Van Den Hul Colibri XGW Stradivarius Phono Cartridge
Specification | Value |
---|---|
Model |
Colibri XGW 'Stradivarius' |
Body material |
Pau ferro wooden body |
Output level |
0.60mV at 5.6cm/s (optional: 0.30mV to 1.1mV) |
Body types |
-W (Wooden body), -P (Carbon plastic body), -M (Metal body), -A (Amber body) |
Stylus shape |
VDH - 1S |
Stylus radius |
2 x 85 Micron |
Frequency range |
5 - 65,000 Hz |
Tracking force range |
1.35-1.5g (13.5-15 mN) |
Static compliance |
35 Micron/mN |
Dynamic compliance |
20 Micron/mN |
Tracking ability |
70 Micron |
Output voltage options |
A) 0.38 mV RMS, B) 0.30 mV RMS, C) 0.65 mV RMS |
Channel unbalance |
< 0.5 dB |
Channel separation |
> 35 / > 30 dB |
Stylus tip mass |
0.24 Milligram |
System weight |
See extra info (*4) |
Vertical tracking angle |
22 Degrees |
Load capacitance |
Non critical |
Load impedance |
20-47,000 Ohm (Advisable: 50-600 Ohm); XC-Version: 20-47,000 Ohm (Advisable: 20-600 Ohm); X-HO-Version: 20-47,000 Ohm (Advisable: 50-600 Ohm) |
Effective tone arm mass |
See extra info (*3) + (*4) + (*5) |
Moving coil resistance options |
A) 36 Ohm +/- 10%, B) 21 Ohm +/- 10%, C) 96 Ohm +/- 10% |
