Audiobyte SuperHead Headphone Amp / Preamp

What Makes the SuperHEAD Different from Other Headphone Amplifiers?

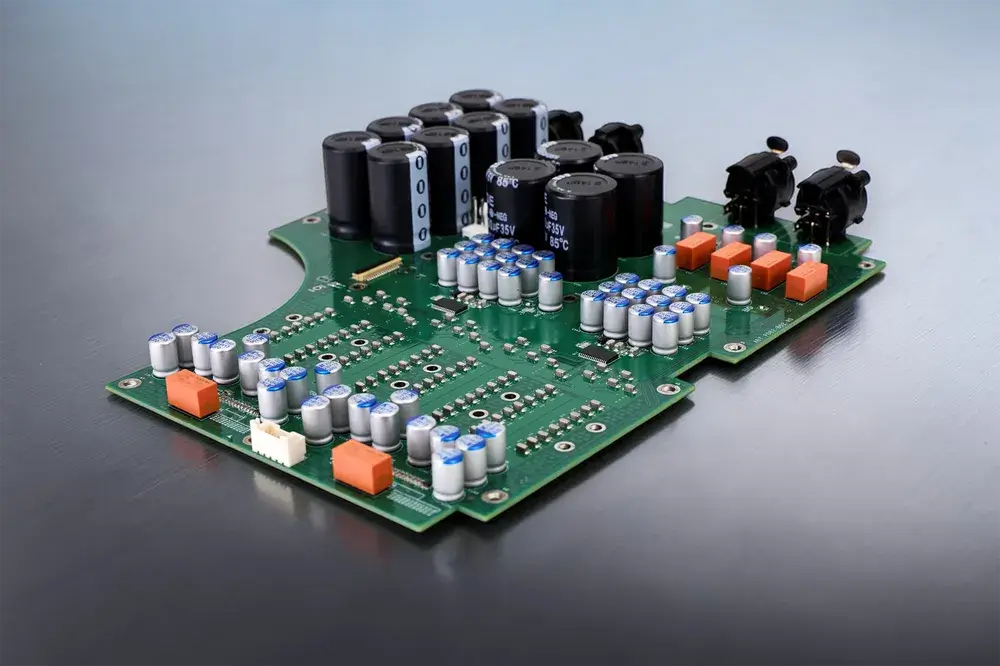

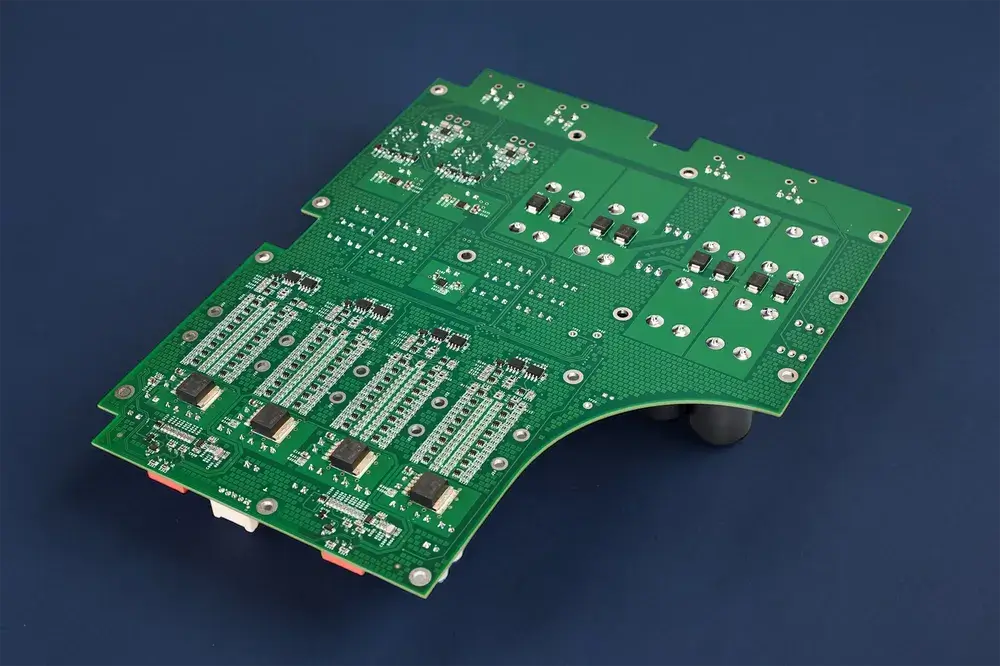

The SuperHEAD is Audiobyte's first dedicated headphone amplifier, built after twelve years of digital audio engineering within the Super Series. Its signal path stays deliberately short: fewer stages and shorter traces reduce the number of components a signal passes through, and each additional stage is a potential source of coloration, so a shorter path keeps the output closer to the original recording. The active components inside the SuperHEAD were chosen for complementary technical characteristics rather than for individual quality alone, so each device contributes a distinct strength to the overall circuit. Instead of relying on large power transistors, the output stage uses an array of smaller, high-precision devices working together, which gives a more linear, better-controlled output across headphone loads, from low-impedance planar magnetic designs to high-impedance dynamic drivers. This focus on control rather than raw output figures means the SuperHEAD is engineered to preserve micro-dynamics and harmonic detail at all volume levels, rather than to maximise power output alone.

Is It Compatible with Balanced and Unbalanced Headphones and Sources?

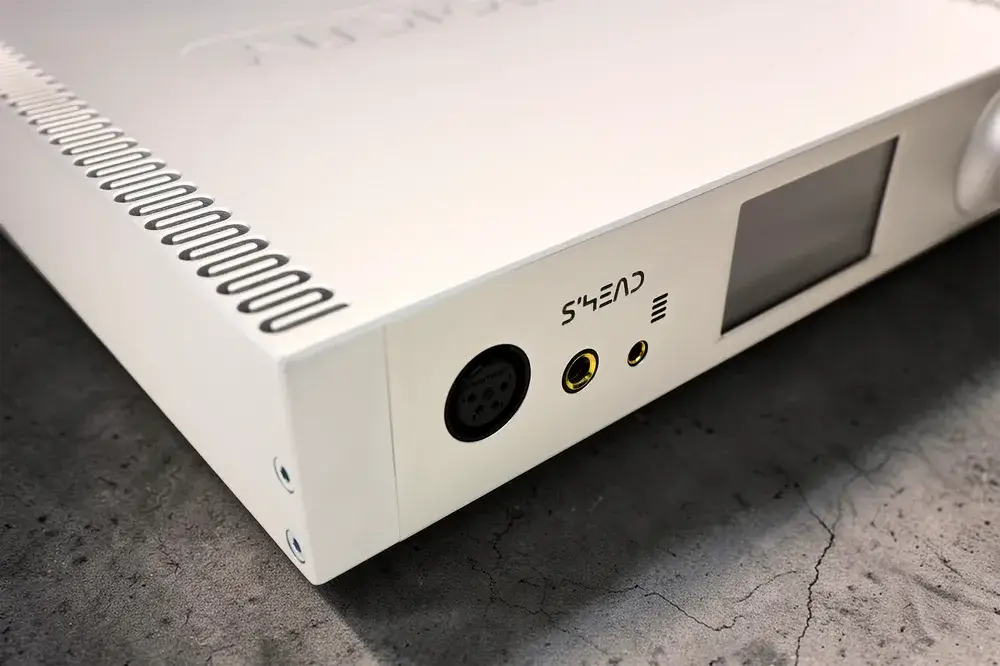

The SuperHEAD is compatible with balanced and unbalanced headphones and sources through three separate outputs: 4-pin XLR balanced, 4.4 mm balanced, and 6.3 mm unbalanced. On the line side, it accepts XLR balanced and RCA unbalanced inputs and offers the same pairing on its outputs, so it sits within either a fully balanced system or a mixed balanced and unbalanced setup without an adapter. A maximum output of 17 V RMS into 100 Ω, together with consistent THD performance across loads from 16 Ω to 100 Ω, shows an amplifier built to maintain composure whether driving low-impedance planar headphones or high-impedance dynamic models.

Can the SuperHEAD Also Serve as a Line Preamplifier?

The SuperHEAD is capable of operating equally as a dedicated headphone amplifier and as a line preamplifier, letting it integrate into an existing analogue chain rather than requiring a separate preamp stage. Gain is adjustable from 0 to 20 dB in 0.5 dB steps, with attenuation down to −90 dB, giving fine control over level matching with downstream amplifiers or active speakers. A bandwidth of DC to 800 kHz (−3 dB) at unity gain supports this dual role without constraining the frequency range available to either function.

How Does It Fit into a Wider Audiobyte Super Series System?

The SuperHEAD is designed alongside the SuperHUB streamer and SuperVOX DAC, closing the analogue stage of that chain. Dimensions, aluminium finish, and panel height are matched across all three units, so the SuperHEAD shares the exact footprint of the SuperHUB and SuperVOX and seats directly into the SuperRACK alongside them. Buyers assembling a complete Super Series system, rather than pairing the unit with unrelated equipment, get a chain in which every component was engineered in dialogue with the others.

What Do Buyers Need to Know Before Installing This Amplifier?

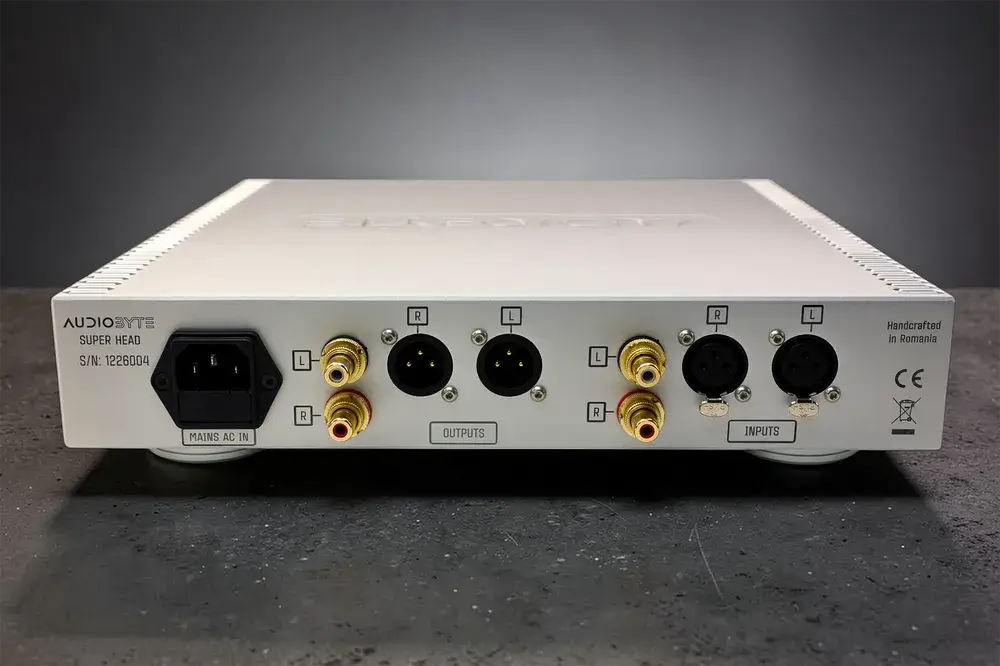

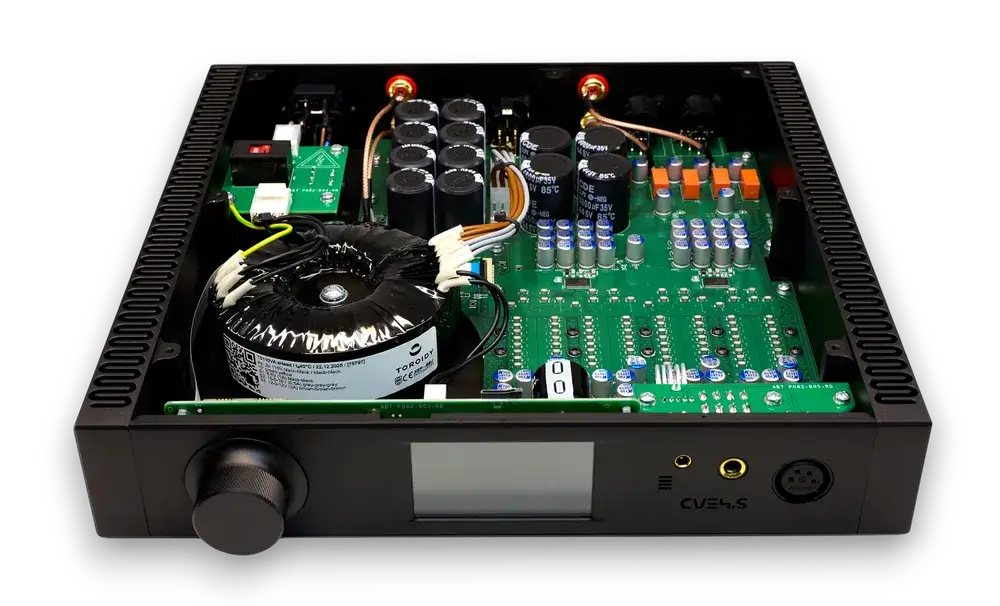

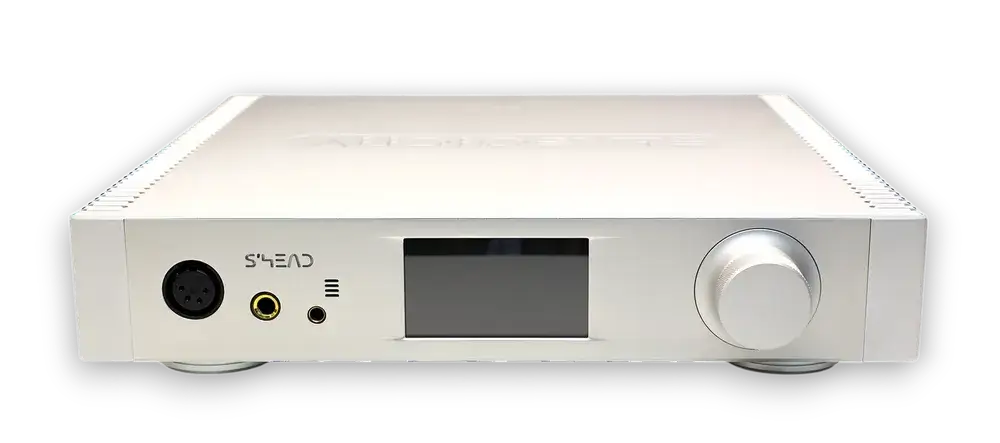

The SuperHEAD is fitted with an internal linear power supply rated at 40 VA, so it needs a standard mains connection but no external power brick. Line connections are made via XLR or RCA, and headphone connections via 4-pin XLR, 4.4 mm, or 6.3 mm jacks, covering most existing cable terminations without adapters. Volume, input selection, and operating mode are controlled from a capacitive touchscreen combined with a rotary encoder, which keeps front-panel setup straightforward once the unit is wired in. At 300 × 290 × 60 mm and 5.5 kg, it needs a stable surface, and buyers assembling a Super Series rack should plan shelf space matching the SuperHUB and SuperVOX so the shared footprint lines up.

Who Should Choose the SuperHEAD Headphone Amp/Preamp?

The SuperHEAD is best suited to buyers who want an uncoloured signal path over raw power output, since its component selection and output array were built to preserve micro-dynamics and harmonic texture rather than to post large power figures. It suits listeners running both low-impedance planar magnetic headphones and high-impedance dynamic headphones from the same unit, given its balanced and unbalanced outputs and consistent performance across that impedance range. Because it doubles as a line preamplifier, it also suits buyers who want one unit to cover both headphone listening and a preamp stage for powered speakers or a downstream power amplifier, rather than running two separate devices.

How Is the Chassis Built, and Why Does That Matter for Ownership?

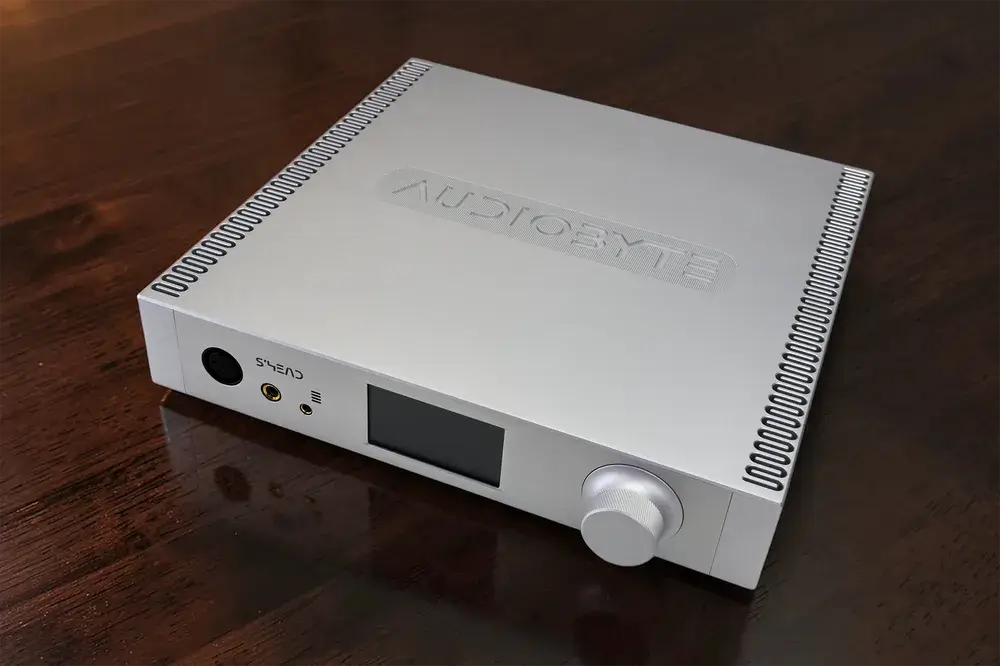

The chassis is machined from a solid block of aluminium and CNC-milled to tolerances intended to eliminate resonance and maintain structural rigidity, protecting the internal circuit from vibration-induced noise over the life of the unit. Its bead-blasted and anodized surface gives a matte finish that resists fingerprints and marks, available in matte black or matte silver, so buyers can match the unit to their existing equipment or room. Because the chassis shares its footprint and panel height with the SuperHUB and SuperVOX, it stacks into a SuperRACK without additional fitting.

Where Does the SuperHEAD Sit Within Audiobyte's Range and the Wider Market?

The SuperHEAD is Audiobyte's first dedicated headphone amplifier, extending a Super Series that previously covered streaming through the SuperHUB and DAC conversion through the SuperVOX, but not headphone or preamp duties. Buyers already running a SuperHUB and SuperVOX have the clearest reason to choose it, since matched dimensions, shared finish, and SuperRACK compatibility let the three units form a single physical and electronic chain rather than a mix of unrelated components. Buyers who need only a standalone headphone amplifier, without an interest in the Super Series ecosystem or its shared aesthetic, may find the dual-mode preamp function and system-matching design less relevant than a simpler single-purpose amplifier, and should weigh the balanced and unbalanced flexibility and preamp mode against their actual system requirements before deciding.
