Audiobyte SuperVox Dac

What makes the Super VOX different from a conventional DAC?

The Super VOX is a multibit DSD D/A converter built around a proprietary multi-level delta sigma architecture rather than a conventional off-the-shelf conversion chip or a costly resistor-ladder design. It's built on an AMD 7-series Artix FPGA, the most powerful field-programmable gate array AudioByte has fitted to a device, running custom hardware-defining code alongside a dual cluster of high-performance switches. This lets the Super VOX move past the sonic limits of commercial conversion chips without the expense of a true ladder DAC, so buyers get a distinct conversion architecture rather than a variation on a standard platform.

How does this DAC control intersymbol interference?

The Super VOX is engineered around a specific answer to intersymbol interference, a distortion mechanism found in every DAC. Reconstruction filters smooth discrete digital samples into a continuous analogue waveform, and imperfect filtering or timing mismatches let earlier samples leak into later ones. The Super VOX counters this with high-performance arrays of equal-valued elements that look like ladder networks but work differently, keeping noise floors low without leaning on aggressive filtering. Buyers who want low distortion without heavy filtering, and without the cost of a discrete ladder DAC, get that outcome through this array design.

Which sources and outputs will it connect to?

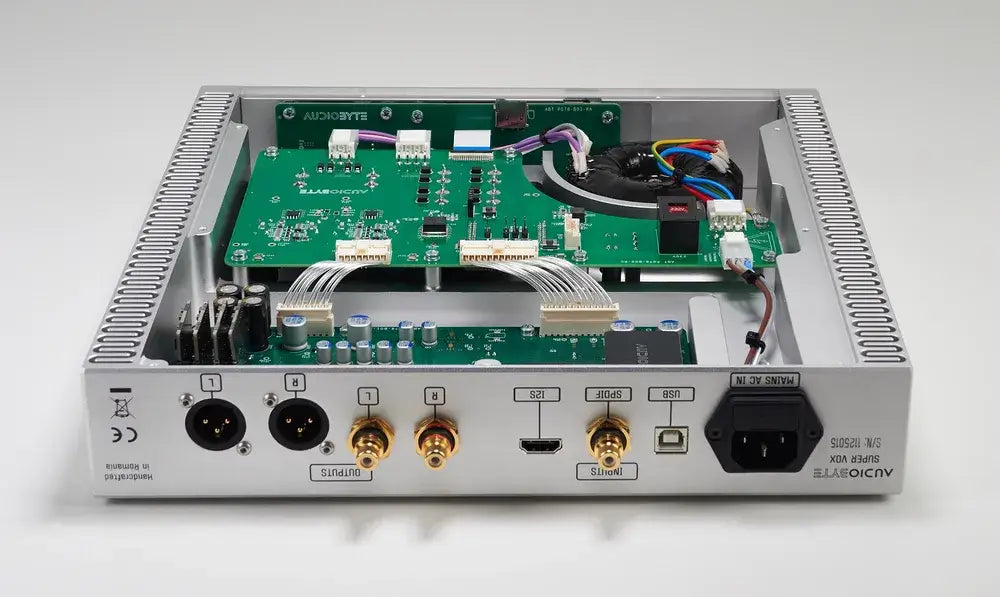

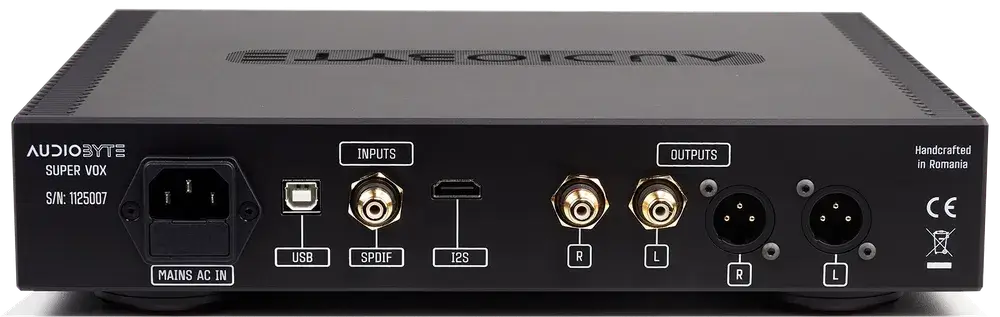

The Super VOX is fitted with USB, I2S (via LVDS over HDMI), and SPDIF digital inputs, covering the transport options used by computer audio sources, streamers, and transports with an HDMI-based I2S output. Its output runs through XLR and RCA connectors, so it'll suit both balanced and single-ended preamplifiers or integrated amplifiers. Because the design is fully balanced from input through to the output stage, buyers running a balanced XLR chain don't need an extra conversion stage that could add noise or reduce headroom.

Can the Super VOX replace a separate preamplifier?

The Super VOX is equipped with a bypassable high-precision digital volume control offering 256 steps of 0.5 dB attenuation per step. This lets it connect directly to a power amplifier, working as a preamp-DAC and removing a separate line stage from the signal path, or it can be bypassed if a buyer would rather keep an external preamplifier's gain stage and volume control. The 0.5 dB step resolution supports precise level matching for anyone building a minimal, single-component digital source into their system.

Who is the Super VOX built for?

The Super VOX is aimed at buyers moving between desktop and high-end system contexts, since AudioByte positions it to narrow the gap between elite-tier luxury audio engineering and desktop-scale affordability. Its balanced XLR outputs, selectable upsampling filters, and volume-controlled preamp-DAC function suit owners building a compact system around one central digital source, and its measured performance figures give buyers a specification-level basis for comparison against other DACs.

What keeps timing accurate through playback?

The Super VOX relies on an advanced Femtovox clock manager alongside dual loop element error mitigation, which combines noise-shaped and minimum activity selection patterns to control timing. Femtosecond-level clocking reduces jitter, the small timing errors between digital samples that show up as distortion in the reconstructed analogue signal, so this clock management works alongside the array-based conversion stage to keep distortion low. Its discrete output stage is engineered to achieve full transparency through the final part of the signal path. Measured performance includes total harmonic distortion of 110 dB at 0 dB output, improving to 120 dB at -12 dB, a dynamic range of 120 dB, and a maximum output amplitude of 2.9 V RMS. Power comes from a low-noise linear supply feeding high-quality silver-plated copper internal cabling, chosen to limit noise contribution from the wiring itself.

What's the chassis made from?

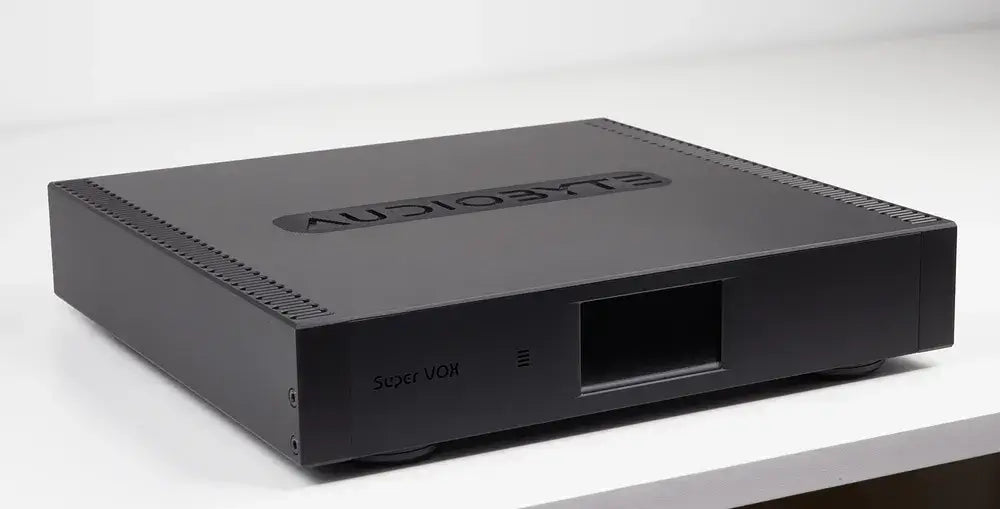

The Super VOX is housed in a full aluminium chassis machined from a solid block, CNC-cut, bead-blasted, and anodised, and it's available in matt black or matte silver. This construction is shared across AudioByte's Super line-up and measures 310 x 290 x 64 mm at 3.8 kg.

How does it compare to other DACs on the market?

The Super VOX sits within AudioByte's Super tier, sharing chassis construction with the rest of the line-up while setting itself apart electrically through its FPGA-based multi-level delta sigma architecture and Intersymbol Interference Mitigation array design. Buyers weighing it against conventional multibit or ladder DACs are choosing a lower-cost architecture engineered to approach ladder-level precision through custom array design, rather than the higher component cost typically tied to discrete ladder conversion. Buyers comparing it against simpler USB-only or single-ended DACs should note its three-input digital front end, fully balanced XLR output stage, and onboard stepped volume control, features built for anyone assembling a balanced, minimal-component system rather than adding a DAC into an existing preamp-led chain. Buyers who need a discrete resistor-ladder architecture specifically, or who need input formats beyond USB, I2S, and SPDIF, won't find them here.
