Esoteric E-02 Reference Stereo Phono Pre-amplifier

Balanced Phonostage Preamplifier Delivers Fully Balanced Audio Signal Reproduction

Balanced Phonostage Preamplifier E-02 is a reference-class, fully balanced phonostage designed by Esoteric to faithfully capture and express the intricate musicality of vinyl recordings. Built for discerning analogue purists, the E-02 phonostage preamplifier embodies the Master Sound Works philosophy, revealing the full emotional and spatial depth of original master tapes. By maintaining a fully balanced signal path from input to output, the E-02 ensures exceptionally low noise performance and maximal signal purity—particularly vital for low-output moving coil (MC) cartridges.

Esoteric’s dual-mono architecture further enhances this sonic purity. Each channel in the E-02 phonostage is powered by its own dedicated transformer, power supply board, and amplification circuit, providing symmetrical signal handling with extreme channel separation. The result is a soundstage that breathes with dimensionality, dynamic depth, and micro-detail, creating a near-holographic listening experience that reproduces every nuance of the performance.

Fully Balanced Circuit Design Optimised for Low-Output MC Cartridges

Balanced Phonostage Preamplifier E-02 is engineered to handle the most delicate low-level signals from MC cartridges with precision and authority. The fully balanced circuit topology across the entire signal path dramatically reduces susceptibility to external noise and electromagnetic interference. By maintaining symmetrical signal flow, the E-02 achieves a stable, low-impedance output capable of rendering delicate tonal shades while preserving transient speed and spatial cues.

The head amplifier and RIAA equalisation stages are both fully balanced, minimising distortion and maximising linearity. Designed specifically to complement the tonal character and output characteristics of MC cartridges, this configuration provides audiophiles with a deeply immersive, high-resolution analogue experience.

Dual Mono Construction Ensures Absolute Channel Independence

Balanced Phonostage Preamplifier E-02 is built around a purist dual mono design, reflecting Esoteric’s dedication to achieving the highest fidelity. Each channel operates independently, with identical transformers, power regulators, and amplification stages—eliminating crosstalk and ensuring a robust, lifelike stereo image. This symmetrical architecture delivers not only superior imaging but also the dynamic headroom needed for faithful reproduction of complex orchestral passages and subtle acoustic textures.

The ultra-clean, isolated signal pathways ensure that the left and right channels remain untouched by mutual interference, enabling pinpoint imaging and instrument placement across an expansive soundstage.

Advanced Head Amplifier and Precision RIAA Stage Offer Exceptional Linearity

Balanced Phonostage Preamplifier E-02 incorporates a high-performance MC head amplifier and a newly developed NF-CR type RIAA equalisation stage. Esoteric's low negative feedback design ensures that dynamic fidelity is preserved across the frequency spectrum, while the RIAA curve accuracy—maintained within a remarkable ±0.2dB tolerance—ensures precision tonal balance across all playback levels.

The inclusion of a high-voltage power supply extends dynamic range and avoids signal clipping, even with demanding high-output recordings. This design delivers both finesse and force, with deep, taut bass and delicate upper harmonics fully realised.

HCLD Output Buffers Deliver Fast, High-Current Signal Transmission

Balanced Phonostage Preamplifier E-02 incorporates Esoteric’s proprietary High Current Line Driver (HCLD) technology. Borrowed from the flagship Grandioso C1 preamplifier, the HCLD buffers deliver an exceptionally fast slew rate of 2,000V/μs, ensuring instantaneous signal transmission with zero lag. Each channel utilises dual buffers—separately driving hot and cold phases in balanced XLR mode, and operating in unison for single-ended RCA output.

This dual-role configuration guarantees linearity and energy regardless of the output mode, producing a high-speed, super-dynamic signal that preserves the full emotional and rhythmic energy of the recording.

ES-LINK Analog Output Enables Ultra-High-Speed Current Transmission

Balanced Phonostage Preamplifier E-02 adds flexibility with its support for ESOTERIC's proprietary ES-LINK Analog current transmission system. In addition to conventional RCA and XLR outputs, ES-LINK Analog allows direct current-mode transmission of signal from source to compatible preamplifiers, maximising the potential of the HCLD output stage. This approach eliminates voltage conversion loss and extends signal integrity across the entire system chain.

For listeners building an all-Esoteric signal path, this output method represents a transformative gain in clarity and transient realism.

Multiple Inputs and Configurable Cartridge Settings Enhance System Integration

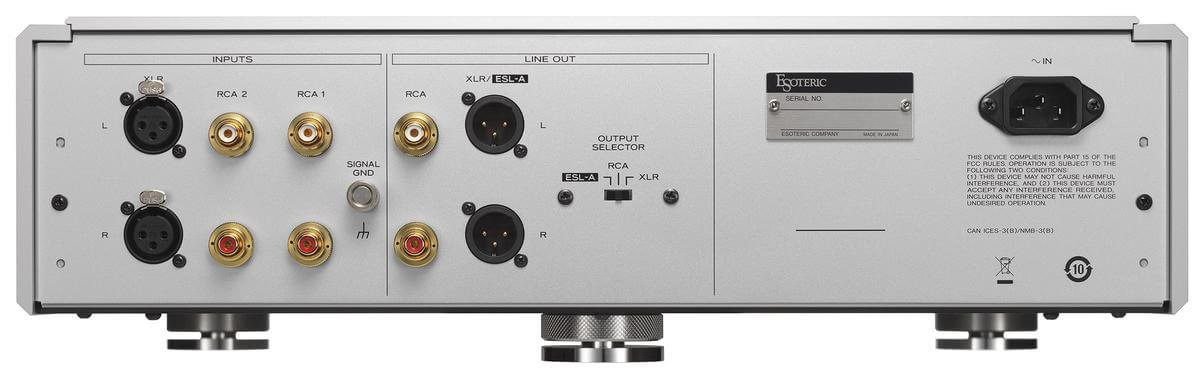

Balanced Phonostage Preamplifier E-02 accommodates a wide range of cartridge and tonearm configurations. It features one dedicated XLR input for MC cartridges and two RCA inputs that are fully balanced internally. Each input supports user-defined presets, allowing cartridge impedance, mono/stereo operation, and filter settings to be stored and recalled per input—streamlining cartridge comparisons or tonearm switching.

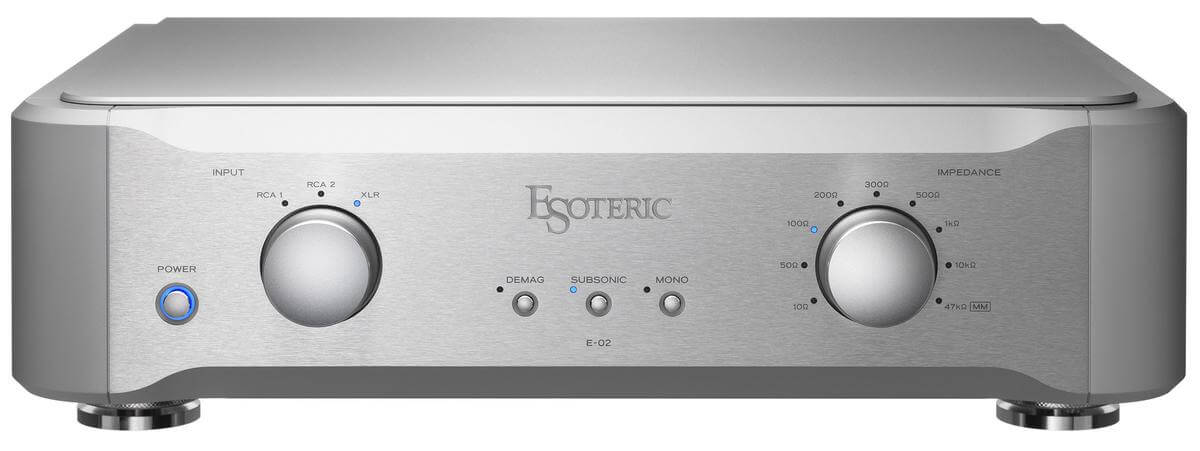

The precision dial on the front panel provides fast, tactile control over all input-related parameters, making it easy to fine-tune playback to suit a range of vinyl pressings and system setups.

Impedance Load Switching Unlocks Cartridge Performance Potential

Balanced Phonostage Preamplifier E-02 empowers users to match load impedance precisely to their cartridge’s design characteristics. It offers nine selectable load positions: 10Ω, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 10kΩ for MC cartridges and 47kΩ for MM types. This degree of precision enables listeners to tailor the phono stage's electrical interface for optimal synergy, yielding noticeable improvements in tonal balance, transient response, and harmonic integration.

Whether refining a low-output coil or a high-impedance MM cartridge, the E-02 makes fine-tuning intuitive and repeatable.

Subsonic Filter, DEMAG Mode, and MONO Switching Add Practical Utility

Balanced Phonostage Preamplifier E-02 includes a suite of essential control functions that enhance playback consistency and protect downstream equipment. The subsonic filter (17Hz, -6dB/octave) suppresses ultra-low frequency rumble caused by warped records or tonearm resonance. The MONO switch ensures correct summation for monaural records, eliminating phase anomalies and improving tonal focus.

The DEMAG function effectively neutralises residual magnetisation in MC coils or transformers with a 30-second playback cycle, restoring the cartridge’s full dynamic potential without physical intervention.

High-Rigidity Chassis Minimises Vibration-Induced Noise

Balanced Phonostage Preamplifier E-02 is housed in a precision-engineered aluminium chassis that isolates the delicate internal circuitry from environmental vibrations. The base of the chassis features a slit structure that breaks up resonances, while Esoteric’s patented pinpoint feet (JP4075477) further dampen unwanted mechanical energy.

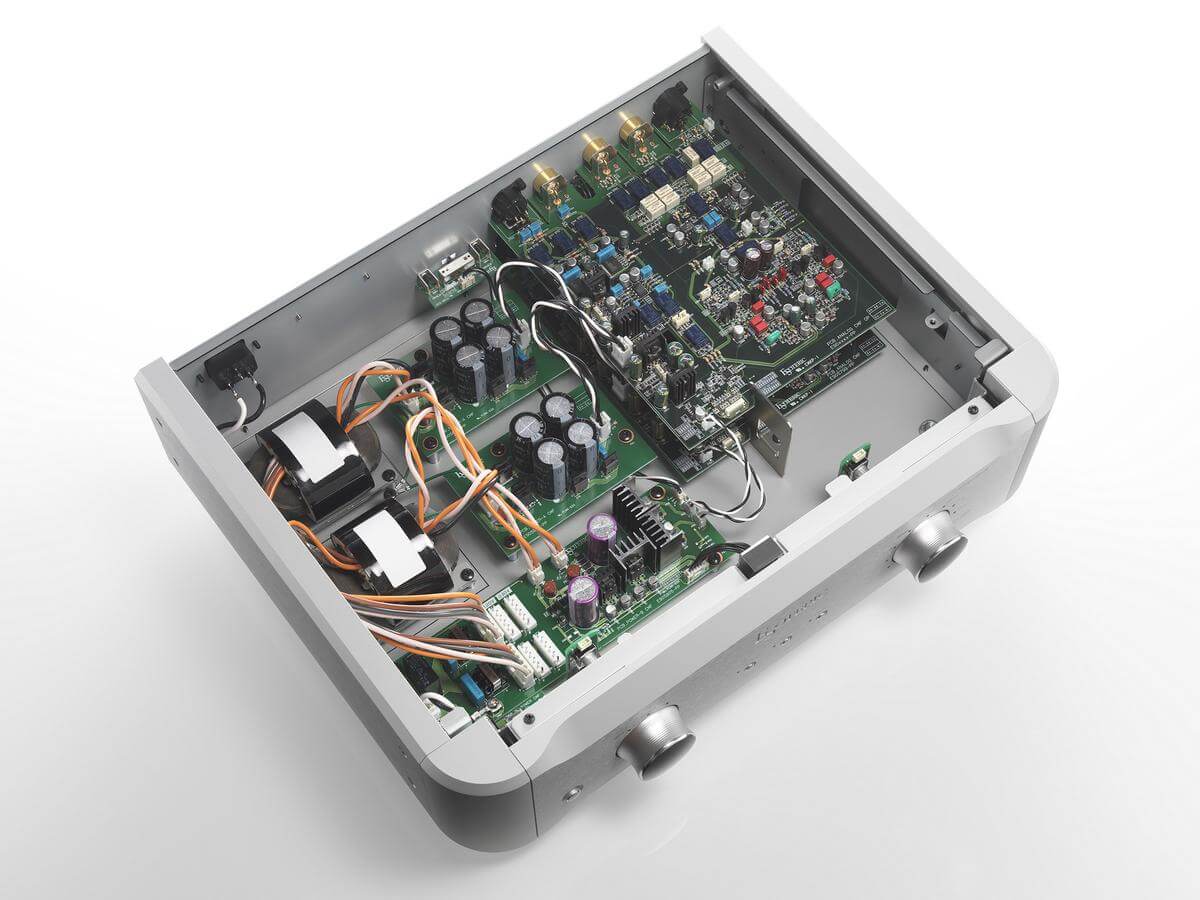

Internally, component layout is meticulously planned to minimise electromagnetic and mechanical interference. This high-mass, rigid construction ensures absolute sonic purity by shielding the signal path from even the subtlest forms of vibrational noise.

High-End Components and Craftsmanship Ensure Longevity and Sonic Excellence

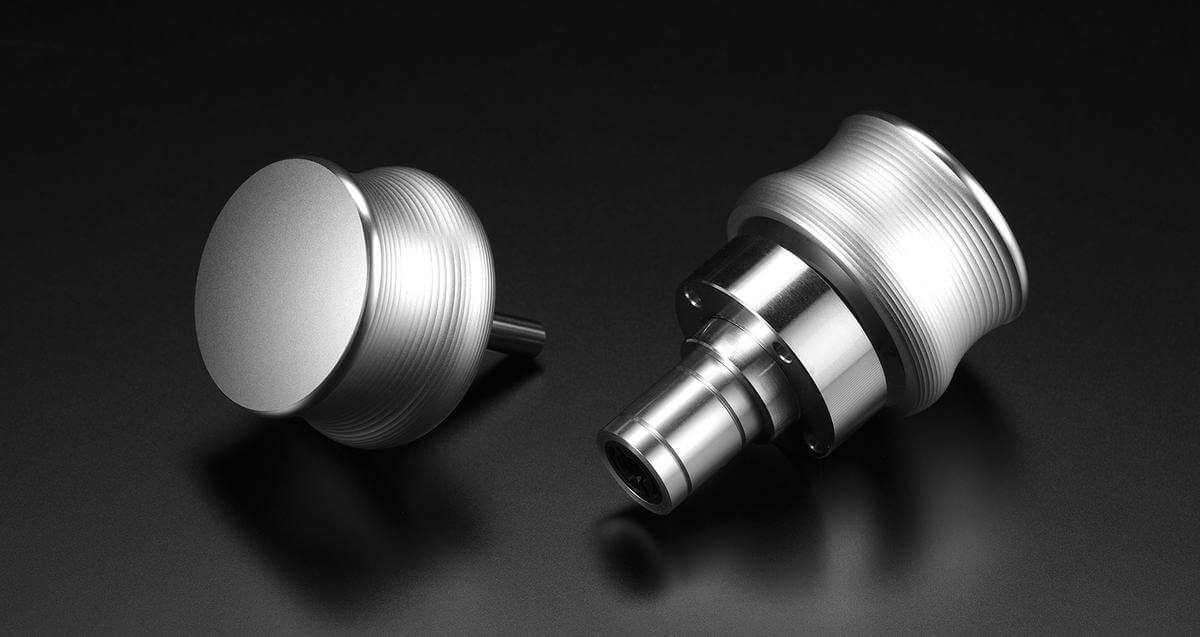

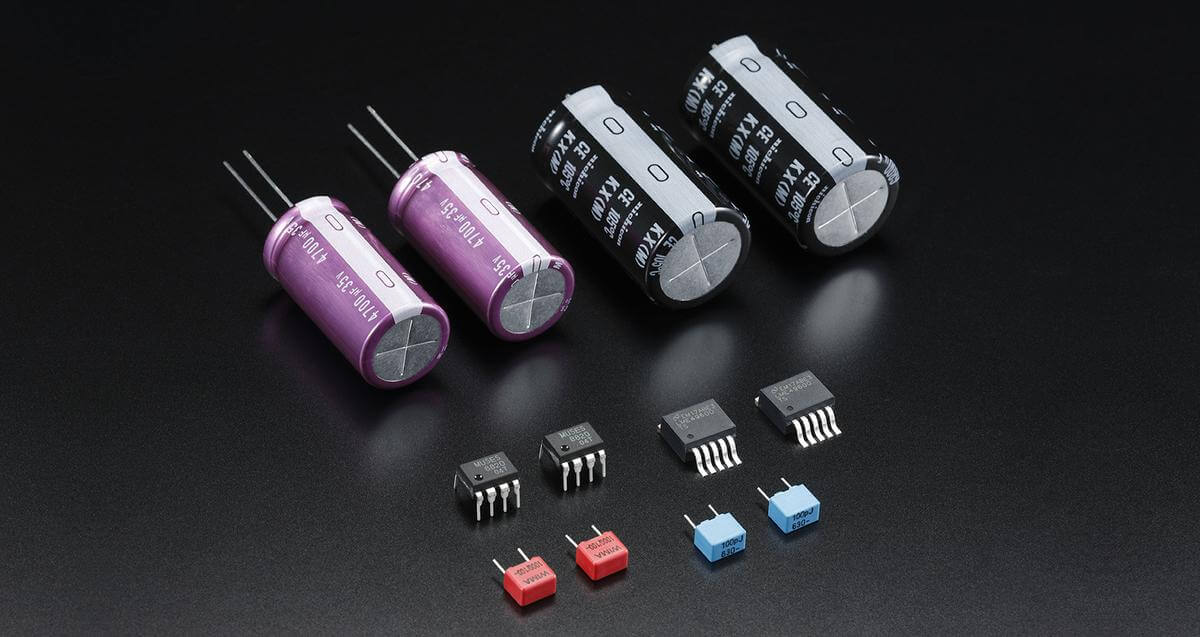

Balanced Phonostage Preamplifier E-02 is built with only the finest components available. Custom-spec capacitors in the power supply provide stability and transparency, while thick, gold-plated RCA terminals ensure a clean, corrosion-resistant signal path. The machined aluminium control knobs are mounted using a high-tolerance ball-bearing system adapted from Esoteric’s acclaimed VRDS transport mechanisms, offering a satisfyingly smooth, tactile response.

Every design choice reflects Esoteric’s commitment to audio excellence, durability, and aesthetic refinement—making the E-02 not just a component, but a centrepiece in any high-end vinyl playback system.
