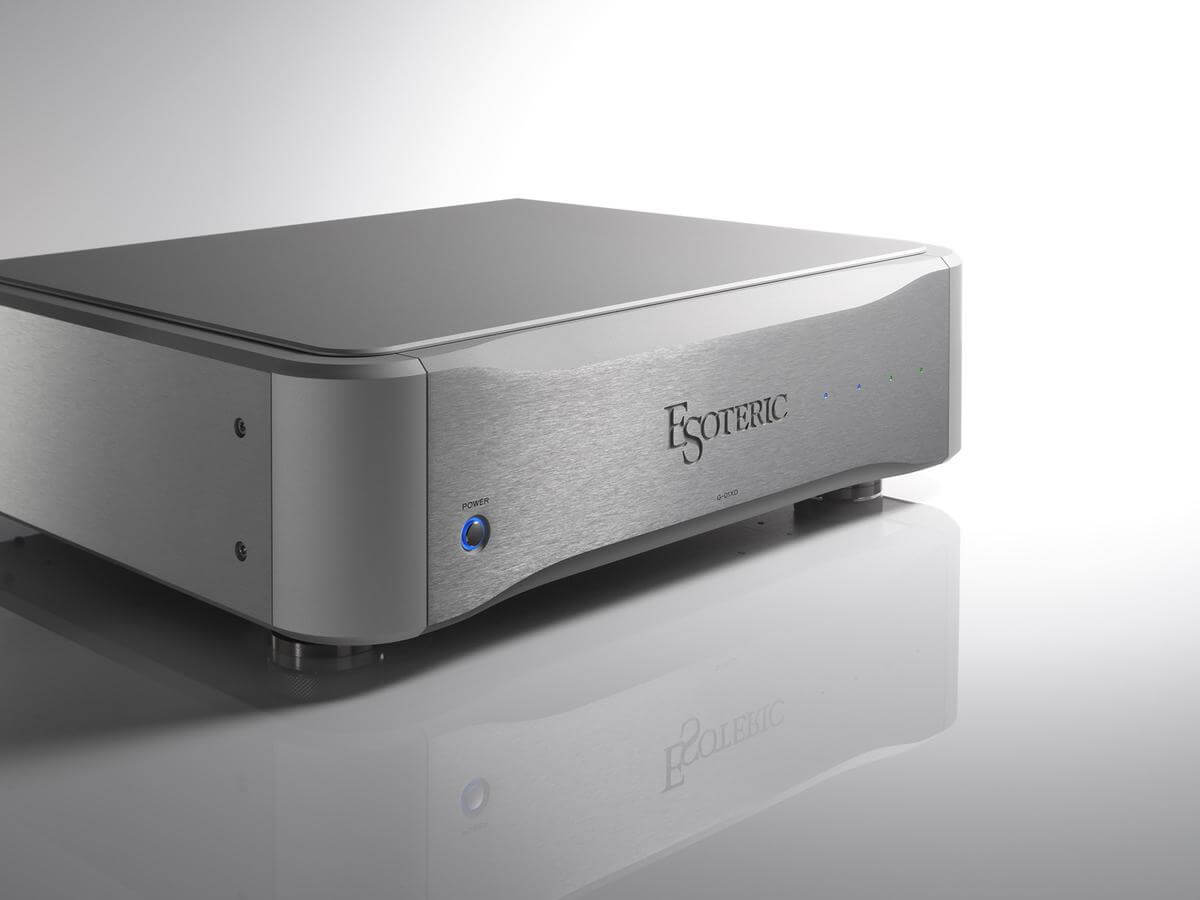

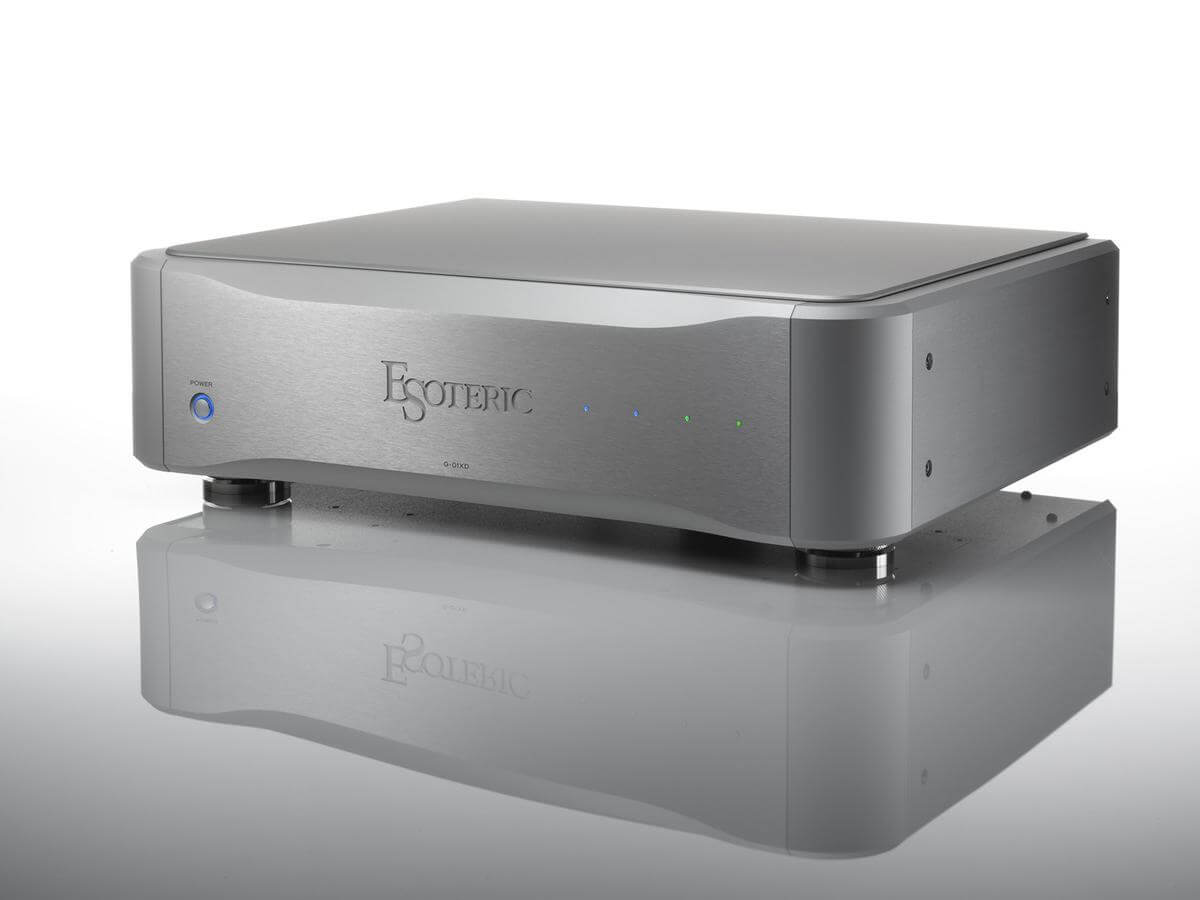

Esoteric G-01XD Reference Master Clock Generator

Master Clock Generator G-01XD Enhances Digital Audio Precision

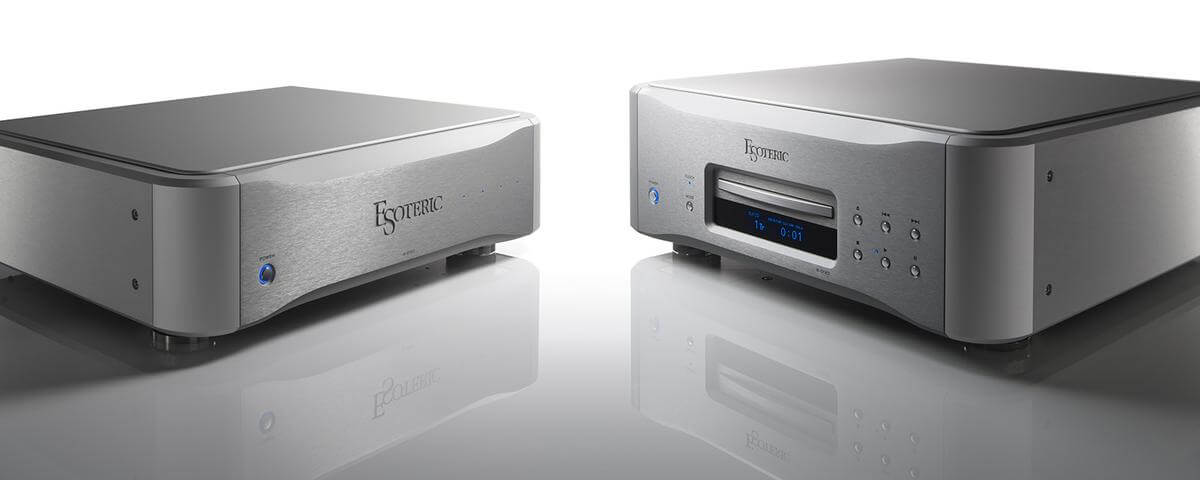

Master Clock Generator G-01XD is an advanced reference timing device engineered to extract the highest possible musical expression from high-end digital audio systems. Developed by Esoteric, this premium master clock generator is built around the Master Sound Discrete Clock, a proprietary OCXO (Oven Controlled Crystal Oscillator) architecture that delivers unprecedented accuracy and tonal clarity. Designed to synchronise with the Esoteric K-01 and N-01 Series digital players, the G-01XD also provides ultra-precise 10 MHz signal output compatibility with a broad range of high-resolution digital sources.

G-01XD Master Clock Generator Features a Proprietary Discrete OCXO

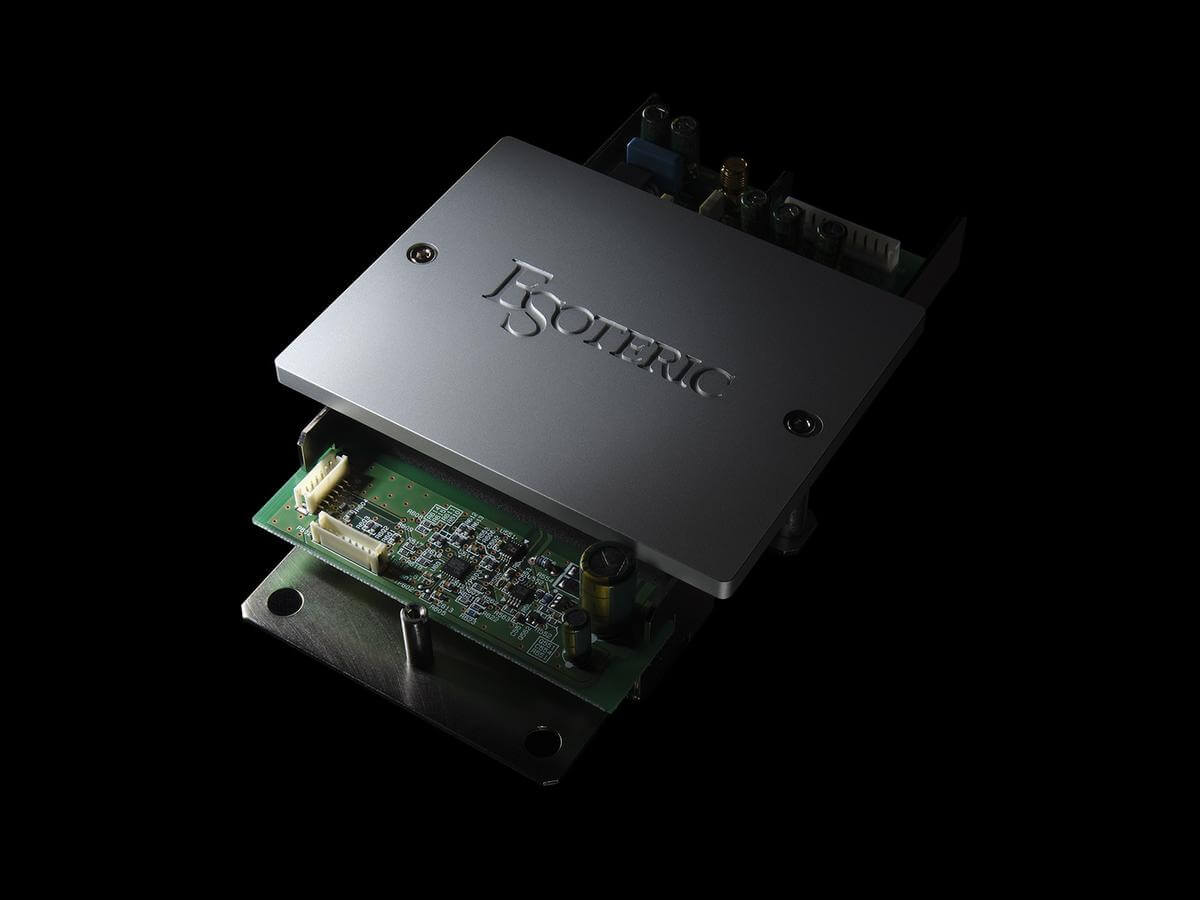

G-01XD master clock generator is a precision timing instrument featuring the Master Sound Discrete Clock—a meticulously crafted OCXO module developed in-house by Esoteric. Unlike conventional off-the-shelf OCXO solutions, Esoteric’s discrete oscillator architecture comprises custom SC1 crystals, dedicated temperature-control circuitry, and a fully bespoke control programme, all engineered from scratch. By developing each part independently, the G-01XD reaches new heights of audio synchronisation accuracy, resulting in ultra-pure signal transmission that enhances timing, resolution, and soundstage fidelity.

This oscillator design reflects Esoteric’s philosophy that accurate timing isn't merely a technical requirement, but an essential component of emotional musical reproduction. With a focus on the discrete design of analogue and digital components, the G-01XD captures subtle nuances and micro-dynamics lost in conventional digital timing implementations.

G-01XD Delivers Stable Clock Accuracy Using Master Sound TC Technology

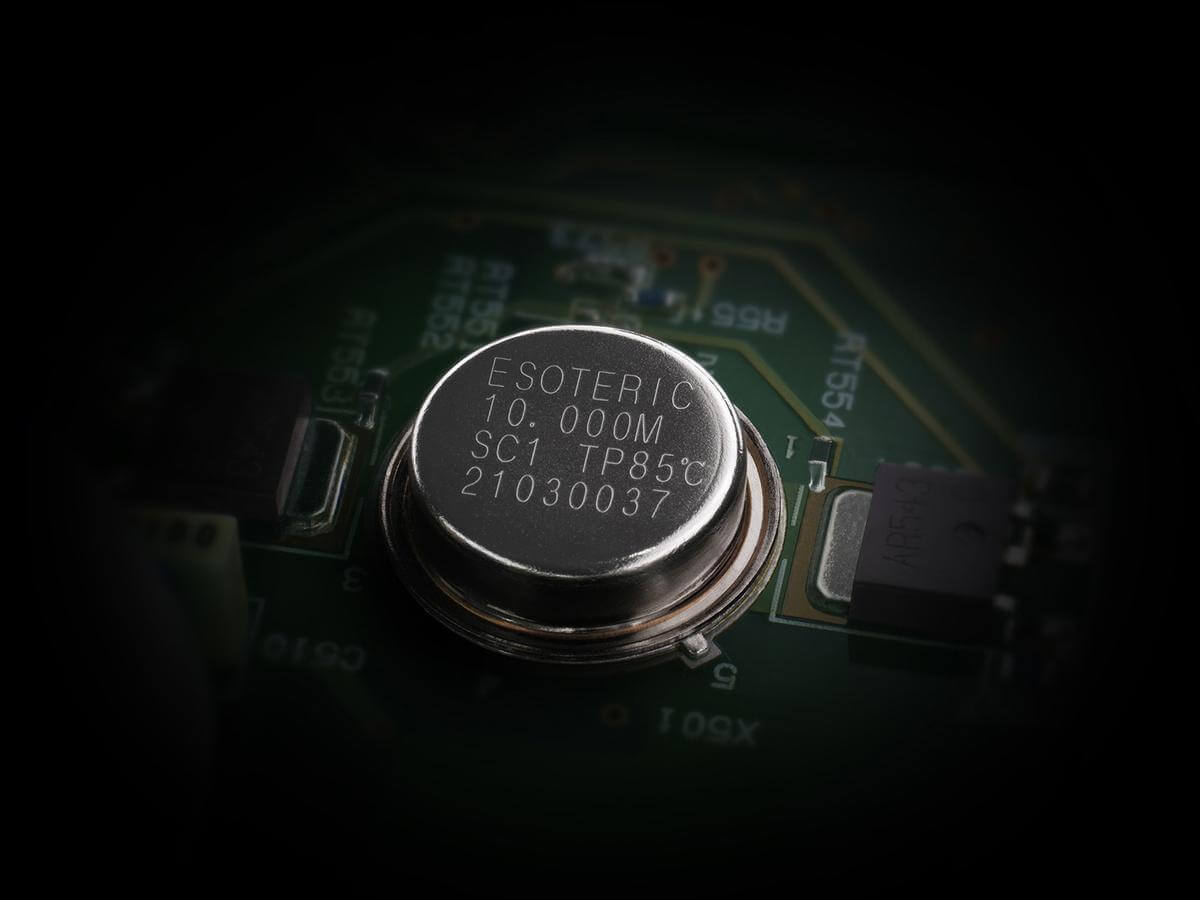

G-01XD master clock generator uses Master Sound TC—Esoteric’s proprietary temperature calibration system—to maintain stable oscillation frequency under varying environmental conditions. Recognising that each quartz crystal has a unique optimal operating temperature, the G-01XD performs a detailed temperature calibration process for each SC1 crystal. This involves creating an individual characteristics chart during manufacturing and tuning the oven’s internal microcontroller to regulate temperature precisely for each unit.

This temperature-stabilisation system includes a 128-step multi-phase heater, ensuring granular control of the oven environment. The result is highly consistent thermal regulation that maintains optimal frequency stability while minimising electrical noise and current fluctuations, both of which can degrade the oscillator’s signal purity.

G-01XD Incorporates Isolated Power Supply Circuits for Each Functional Block

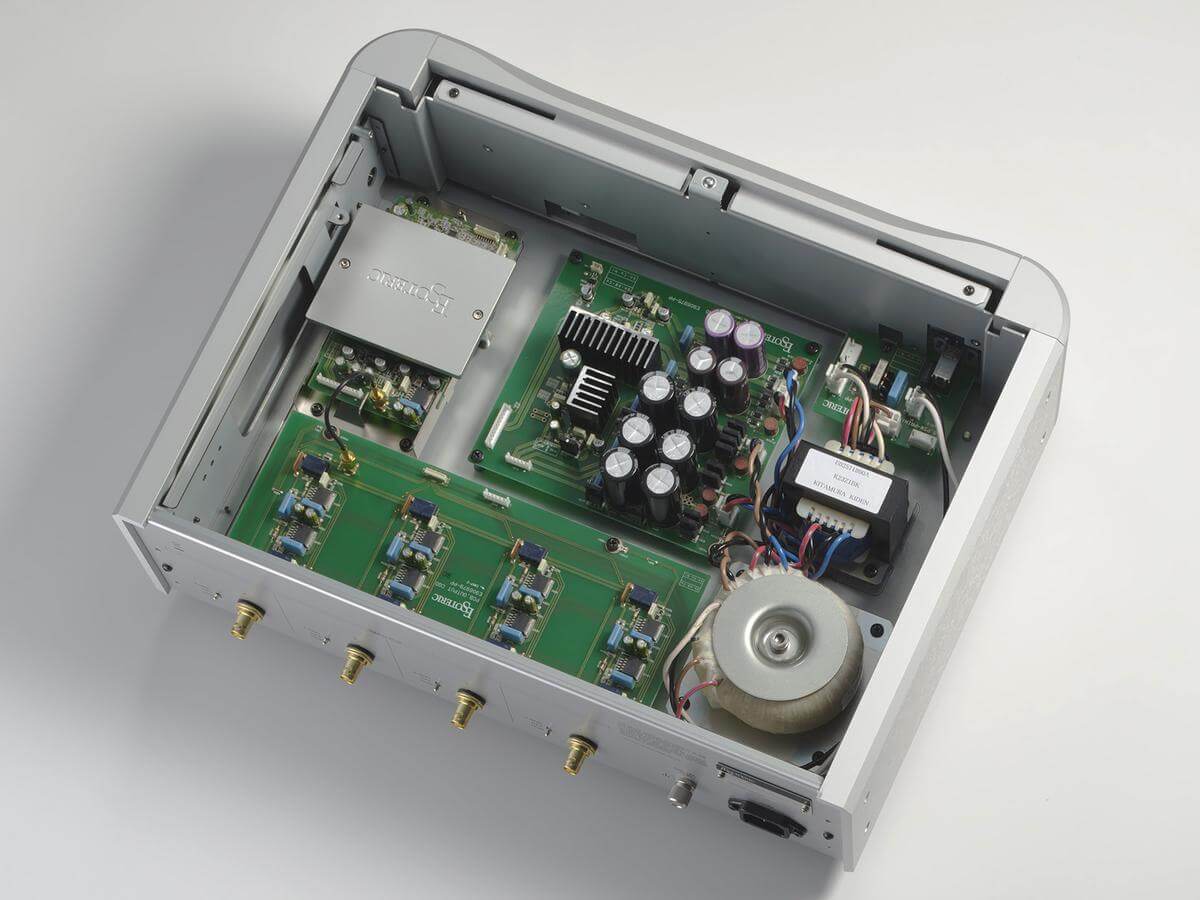

G-01XD master clock generator features four discrete power supply circuits, each isolated to serve a specific function: oscillator, buffer amplifier, heater, and control logic. The oscillator and buffer amplifier are powered by a dedicated toroidal transformer to ensure minimal impedance and high-current purity—critical for the integrity of the 10 MHz output signal. Meanwhile, the heater and control circuits receive power from a separate EI-core transformer, reducing cross-interference and enhancing overall audio clarity.

By physically and electrically separating power domains, the G-01XD ensures clean, uninterrupted power delivery, protecting signal fidelity at every stage of the clock generation process.

G-01XD Uses Esoteric-HCLD Buffer for Ultra-Fast Signal Transmission

G-01XD master clock generator employs the Esoteric-HCLD (High Current Line Driver) buffer amplifier circuit, originally developed for the Grandioso C1X preamplifier. This high-speed, high-current design supports an ultra-wide 180 MHz frequency response, enabling clean, distortion-free delivery of the 10 MHz sine wave signal to connected components.

By maximising slew rate and current handling capability, the Esoteric-HCLD circuit ensures each downstream digital device receives a stable and faithful reference clock, leading to enhanced timing precision and lower jitter across the entire playback chain.

G-01XD Offers Flexible Output Configurations for Tailored System Integration

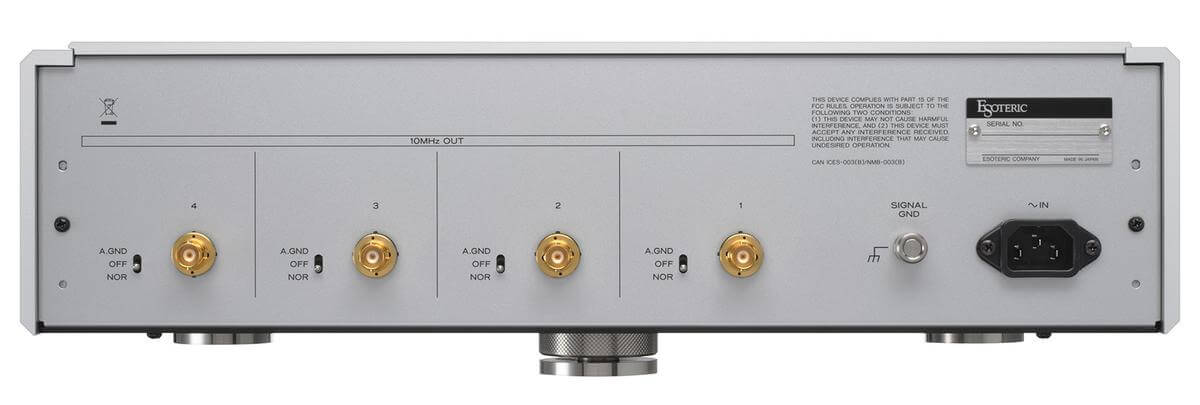

G-01XD master clock generator includes four independent 10 MHz sine wave outputs, each equipped with a toggle switch for selecting between normal mode and Adaptive Zero Ground mode. The adaptive mode dynamically maintains the ground reference at 0 V for each output terminal, minimising potential ground loop noise and letting users fine-tune system voicing by selecting the clock mode that best suits their sonic preferences.

This multi-terminal setup is ideal for high-end audio installations involving multiple digital sources or DACs that benefit from shared, synchronised clocking.

G-01XD Utilises High-End Internal Wiring and Military-Grade Connectors

G-01XD master clock generator features custom-designed internal coaxial cabling with MIL-standard gold-plated SMA connectors, ensuring optimal signal conductivity and mechanical reliability. Each 10 MHz output is terminated in precision 50Ω BNC connectors, chosen for their impedance accuracy and low transmission loss.

These carefully selected components reflect Esoteric’s dedication to every detail that impacts sound, including those often overlooked in consumer audio design.

G-01XD Is Built with Vibration-Resistant, Resonance-Controlled Chassis Architecture

G-01XD master clock generator benefits from a specially engineered enclosure that reduces resonances and minimises vibration-induced artefacts. The heavy-gauge aluminium side and front panels offer structural rigidity and isolation, while the Master Sound Discrete Clock module itself is mounted without screws, resting freely for mechanical grounding by weight.

Esoteric’s patented Pinpoint Foot System (Patent Nos. 4075477 and 3778108) supports the chassis without introducing vibrational stress through hard mounting. Additionally, the semi-floating top panel further mitigates resonance build-up, ensuring the most open, transparent, and uncoloured audio performance possible from a clock generator.

G-01XD Master Clock Generator sets a new benchmark in digital timing precision, engineered for discerning audiophiles seeking the ultimate in musical expression and system synchronisation. Its in-house developed discrete oscillator design, precision thermal control, high-speed buffer circuitry, and vibration-optimised chassis design make it an ideal reference clock for the most demanding digital audio environments.
