G-05 Master Clock Generator Enables Ultra-Precise Sound Synchronisation
G-05 Master Clock Generator is a high-precision clock system developed entirely in-house by Esoteric, purpose-built for audiophiles seeking absolute musical fidelity and stability across their digital systems. By focusing on ultra-low phase noise, material purity, and discrete engineering, the Esoteric G-05 delivers a pure 10MHz sine wave clock signal optimised for musical coherence and tonal integrity. Designed to meet the stringent demands of high-end digital audio playback, the G-05 transforms system synchronisation into a transparent, sonically refined process.
G-05 Uses Esoteric’s Master Sound Discrete Clock for Precision Timing

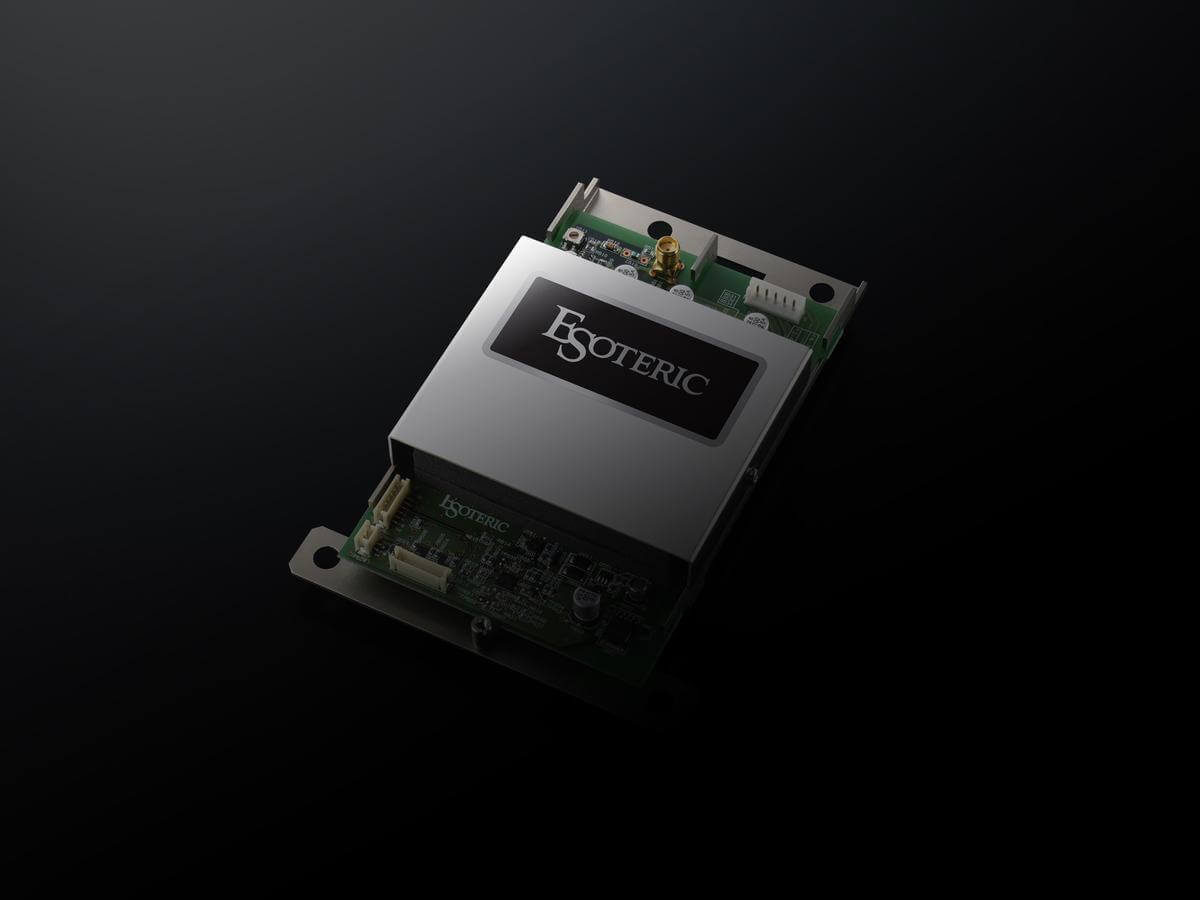

G-05 Master Clock Generator is equipped with Esoteric’s proprietary Master Sound Discrete Clock module, developed from scratch to elevate timing accuracy beyond conventional quartz modules. Unlike off-the-shelf clock units, the G-05’s oscillator module features a discrete, custom-engineered circuit designed specifically for musical applications. Every aspect—from the oscillator topology to the thermal management algorithm—has been purpose-built to maintain consistent timing, resulting in expressive, spatially accurate musical playback.
The circuit achieves this by converting a previously generic quartz oscillator format into a dedicated musical timing system, housed within an independently engineered environment. This transition from a modular to a bespoke design enables Esoteric G-05 to maintain extreme timing stability with an organic, analogue-like fluidity in the sound.
G-05 Integrates Esoteric SXT-03 Custom Crystal Oscillator for Sonic Purity

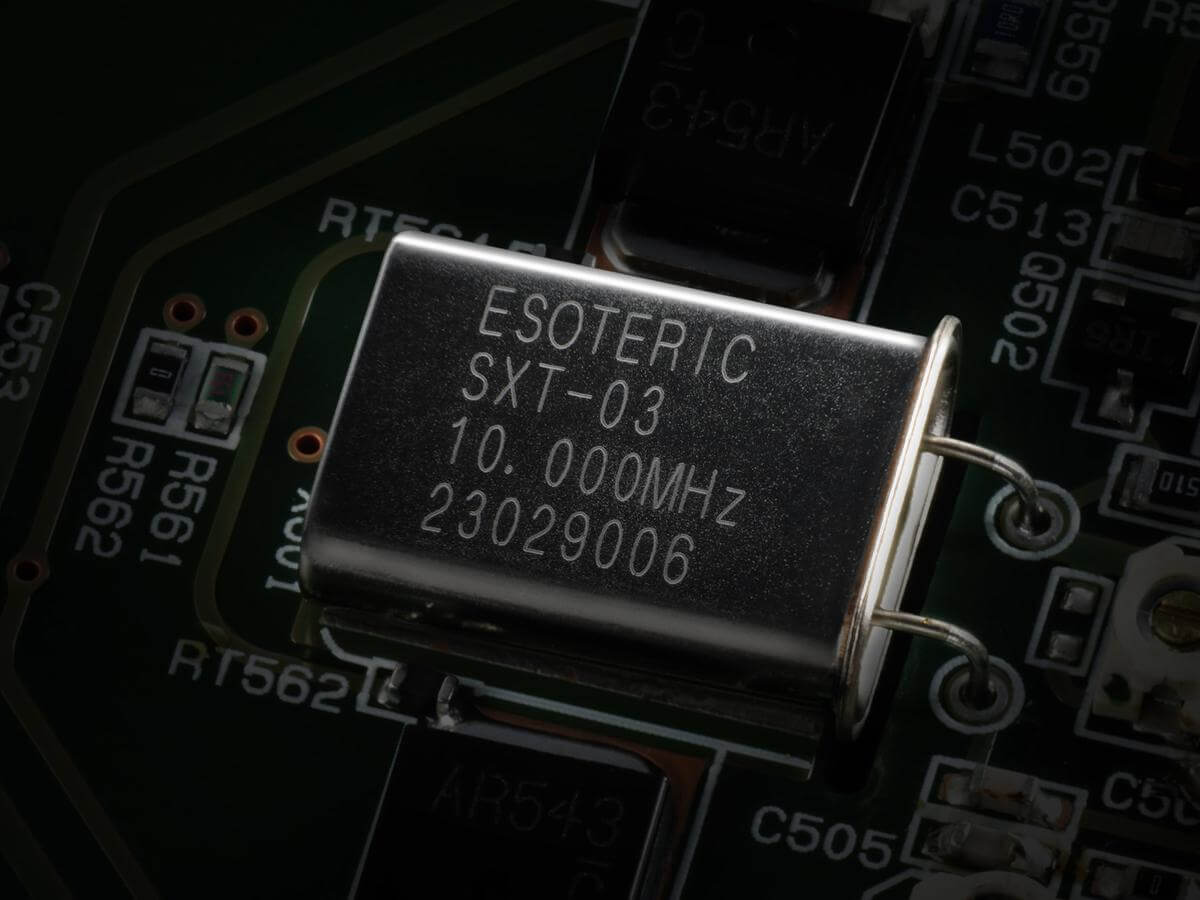

G-05 Master Clock Generator integrates the Esoteric SXT-03, a premium SC-cut crystal oscillator engineered for enhanced thermal and mechanical stability. Built from raw quartz slowly grown and processed with precise thermal mapping, the SXT-03 benefits from increased mass and superior oscillation margin. These properties support greater self-resonance and resist phase deviation under electrical and thermal stress.
This large-format custom crystal is uniquely tuned to maintain phase coherence, resulting in reduced jitter and minimised signal distortion. By applying a meticulous selection process and aligning each unit’s temperature calibration to its individual frequency profile, G-05 with SXT-03 delivers a natural harmonic balance with low noise characteristics that are especially critical in high-resolution audio playback.
G-05 Uses Master Sound TC to Maximise Temperature Stability
G-05 Master Clock Generator features Master Sound TC (Thermo-Control), Esoteric’s proprietary software-driven thermal regulation system that precisely aligns each crystal oscillator with its optimum thermal operating point. Unlike standard oven-controlled crystal oscillators (OCXO), which maintain a fixed internal temperature, Esoteric's approach uniquely calibrates the oven temperature per crystal for optimal frequency stability.
By measuring the thermal characteristics of each SXT-03 unit and creating an individualised control programme, Master Sound TC eliminates fluctuations that typically degrade signal quality. The result is a warm, musical output that reflects the source material with fluidity and micro-detail—making the G-05 a reference-grade master clock ideal for ultra-high-fidelity systems.
G-05 Maintains Thermal Consistency with 128-Step Oven Control
G-05 Master Clock Generator includes a 128-step multi-level heating system that keeps internal temperature fluctuations within extremely tight margins. This fine-grain control eliminates the harsh on/off switching behaviour found in standard OCXO heaters, thereby avoiding micro-current distortions that would otherwise compromise the oscillator’s precision.
This advanced regulation minimises current ripple, contributing to a pristine operating environment for the delicate clock circuit. By maintaining uniform thermal consistency, G-05 ensures uninterrupted timing accuracy, supporting a stable and high-resolution soundstage in connected DACs, transports, and network players.
G-05 Operates with Triple Independent Power Supplies for Signal Integrity
G-05 Master Clock Generator separates its power domains across three independently regulated circuits—dedicated to the oscillator module, control and heating system, and output buffer amplifier. This architectural choice eliminates cross-interference, preserves signal integrity, and ensures each subsystem operates under optimal electrical conditions.
Isolating power for the oscillator from the buffer stage protects the clock signal from noise and voltage variation, leading to a clean, ultra-low-noise output. Audiophiles seeking maximum signal purity from their master clock generator will appreciate the sonic refinement this architectural strategy provides.
G-05 Includes Esoteric-HCLD Output Buffer for Dynamic Signal Transfer
G-05 Master Clock Generator is fitted with the Esoteric-HCLD (High Current Line Driver) buffer amplifier—a design originally developed for the flagship Grandioso C1X preamplifier. Engineered for wide bandwidth (up to 180MHz) and robust current transfer, this circuit delivers a highly stable, low-impedance 10MHz sine wave across multiple devices without signal degradation.
Whether connected to high-end digital transports, D/A converters, or network players, the G-05’s HCLD buffer ensures dynamic, phase-accurate signal synchronisation, preserving musical transients and timing coherence across every source.
G-05 Supports Four 10MHz Clock Outputs for System Integration

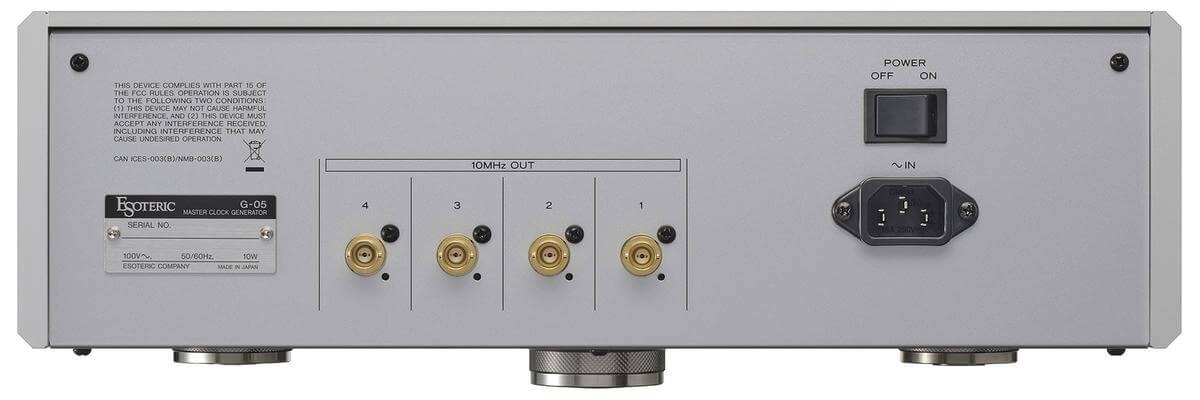

G-05 Master Clock Generator includes four 10 MHz sine wave outputs, enabling precise timing synchronisation across multiple components. Designed for high-end digital ecosystems, these outputs support simultaneous clock distribution to multiple devices such as SACD players, DACs, and streamers.
Each output maintains signal consistency and impedance matching, ensuring optimal synchronisation without clock signal degradation. For multi-component systems requiring a high-precision reference clock, the G-05 offers exceptional scalability and connection flexibility.
G-05 Utilises MIL-Spec SMA and BNC Connectors for Signal Reliability
G-05 Master Clock Generator features gold-plated SMA connectors internally and precision BNC connectors externally, both designed to ensure tight impedance matching at 50 ohms. These MIL-standard components are chosen specifically for their high conductivity and minimal insertion loss, reinforcing the product’s low-jitter, low-noise performance profile.
Internally, custom-designed coaxial cables maintain signal integrity between oscillator and output stage, forming a fully shielded, high-fidelity signal path. This robust internal design protects against electromagnetic interference, offering signal consistency for discerning audiophiles and studio-grade applications.
G-05 Uses Vibration-Resistant Chassis Construction for Mechanical Isolation

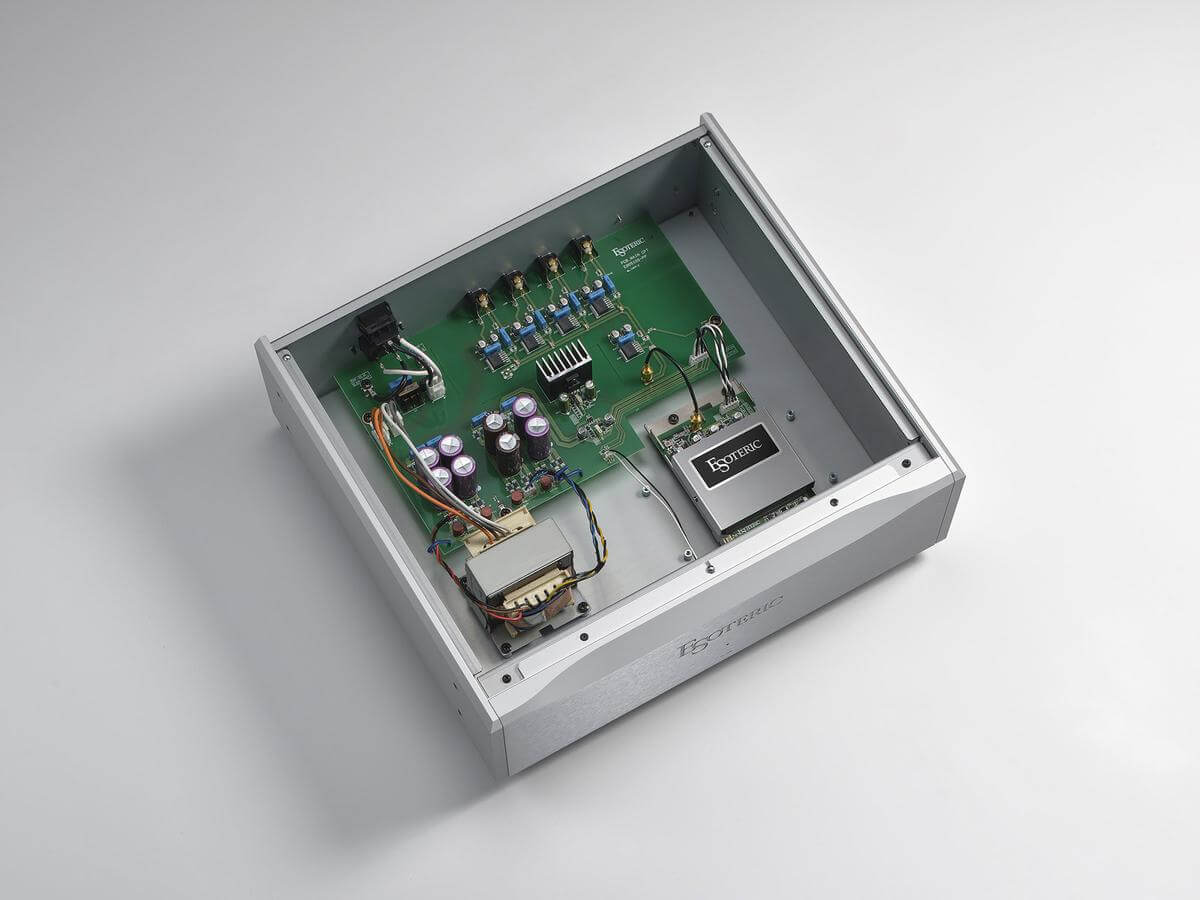

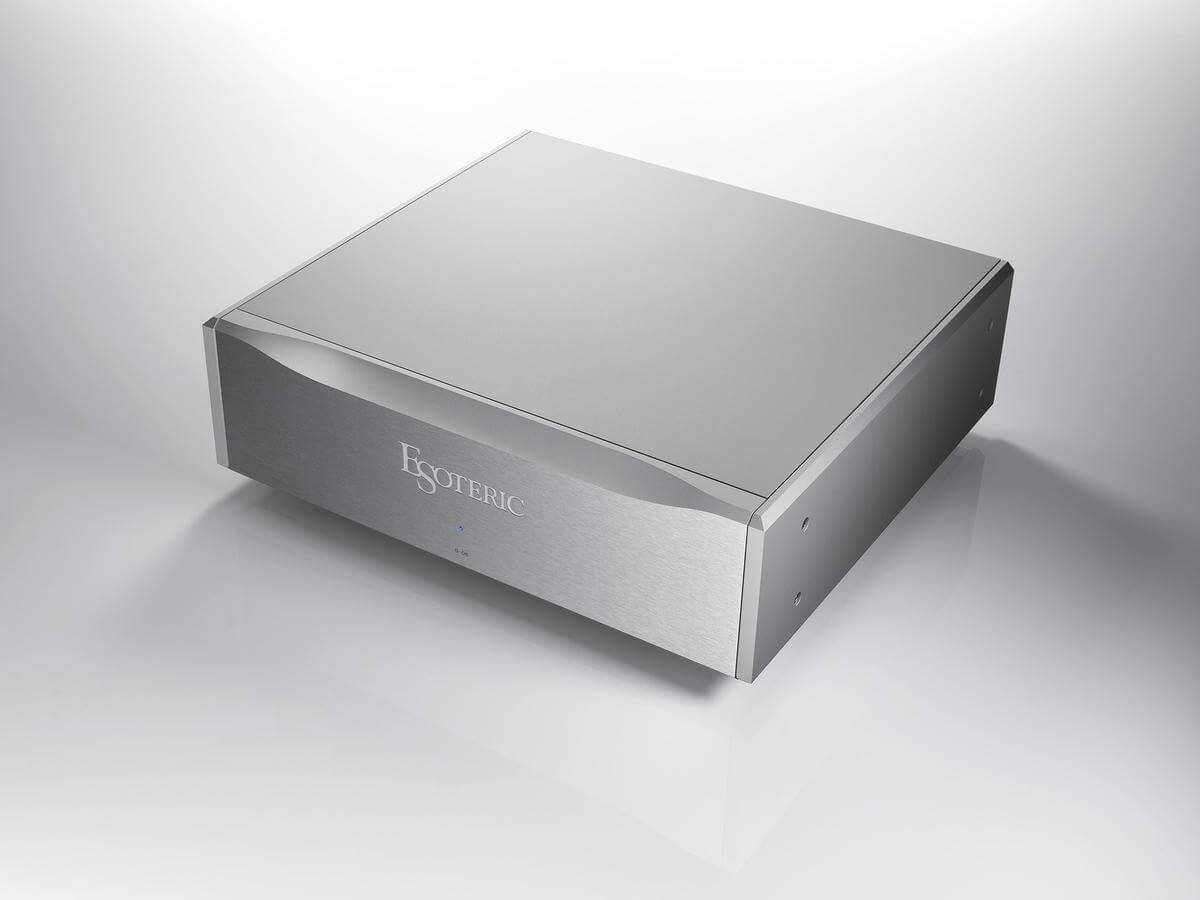

G-05 Master Clock Generator is housed in a vibration-controlled chassis with heavy aluminium front and side panels, designed to shield the sensitive clock module from external and structural vibration. Internally, the Master Sound Discrete Clock module is free-mounted, relying on its own mass for grounding rather than rigid screws. This free-mount method avoids resonance transmission and ensures a more organic sonic character.
Three-point isolation feet, precision-machined from steel, support the chassis with a load-distributed coupling to the bottom plate. These anti-resonance feet reduce microphonic interference and structural ringing. Additionally, the semi-floating top panel remains screwless to reduce stress loading on the frame, promoting a more open and resonant soundstage.
The result is a mechanically inert enclosure optimised for reference-level audio clocking, where every structural and electronic detail is harmonised to produce a clock signal of unrivalled clarity and temporal precision.
