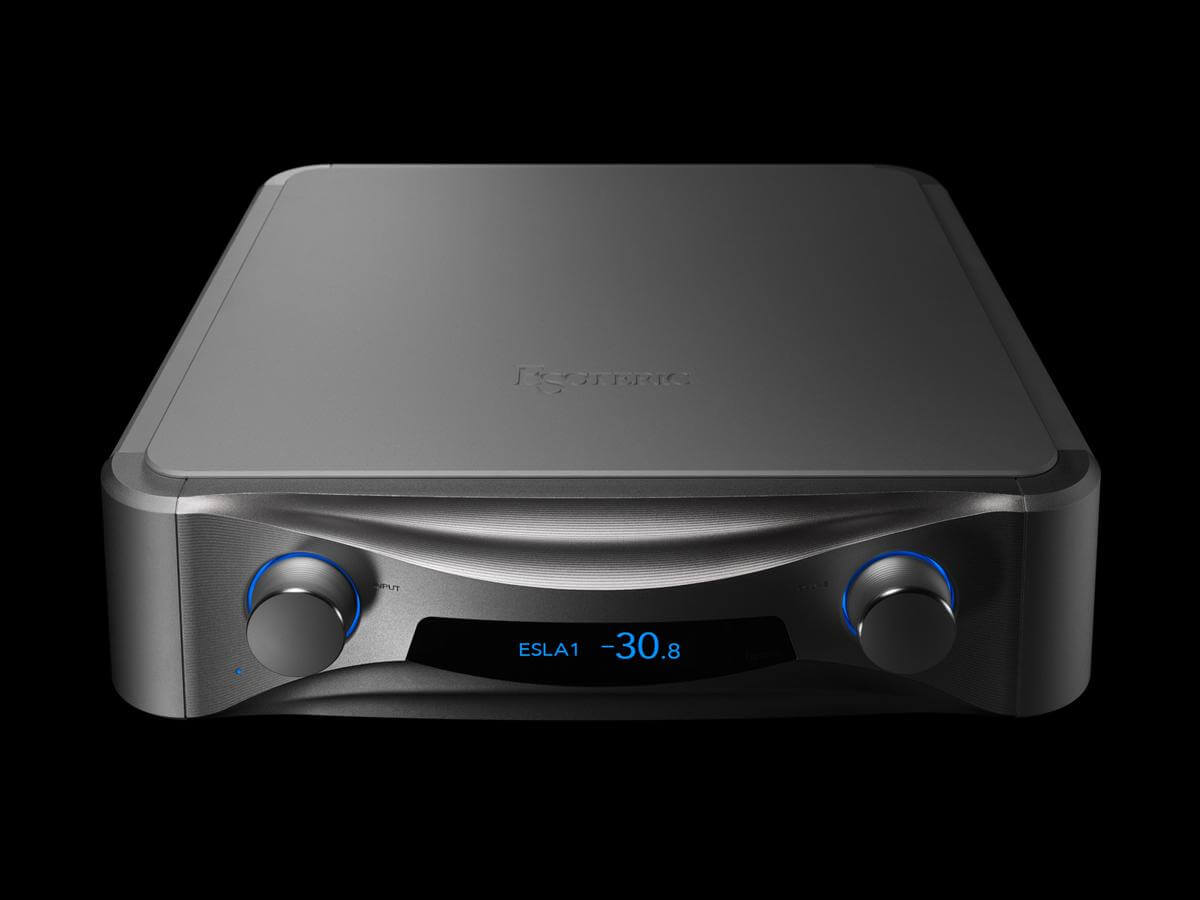

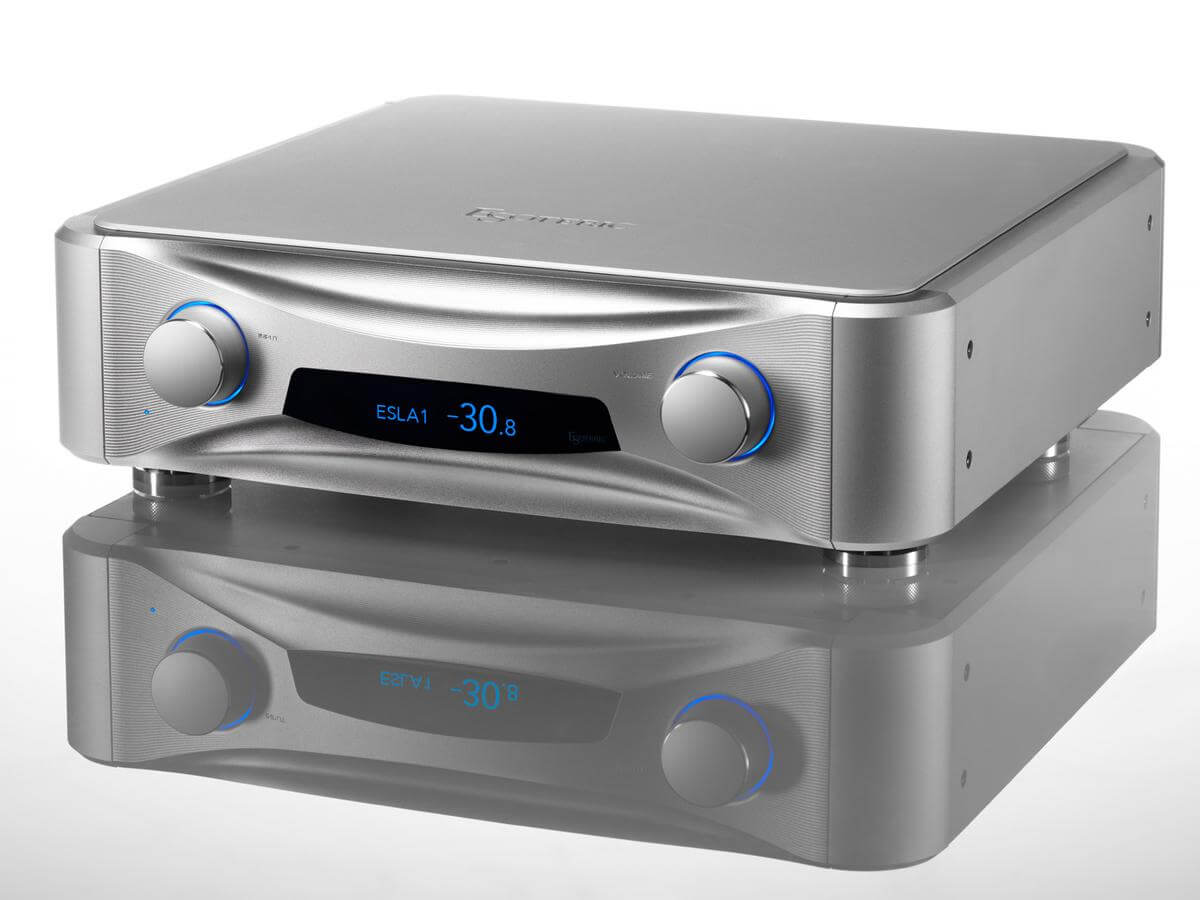

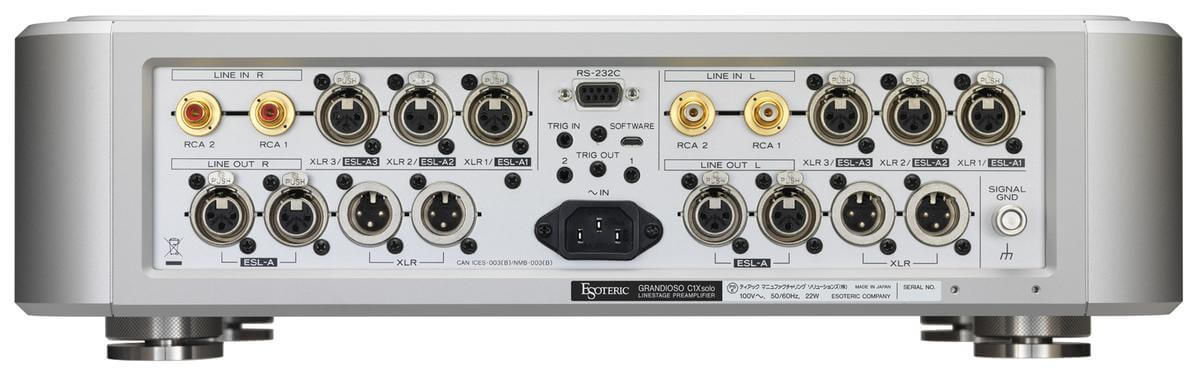

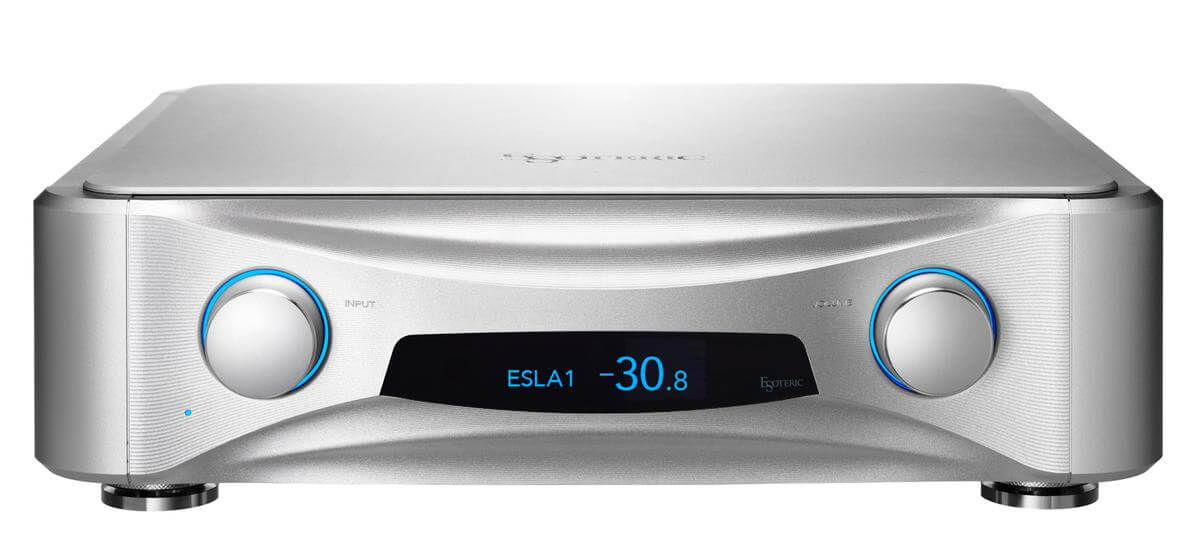

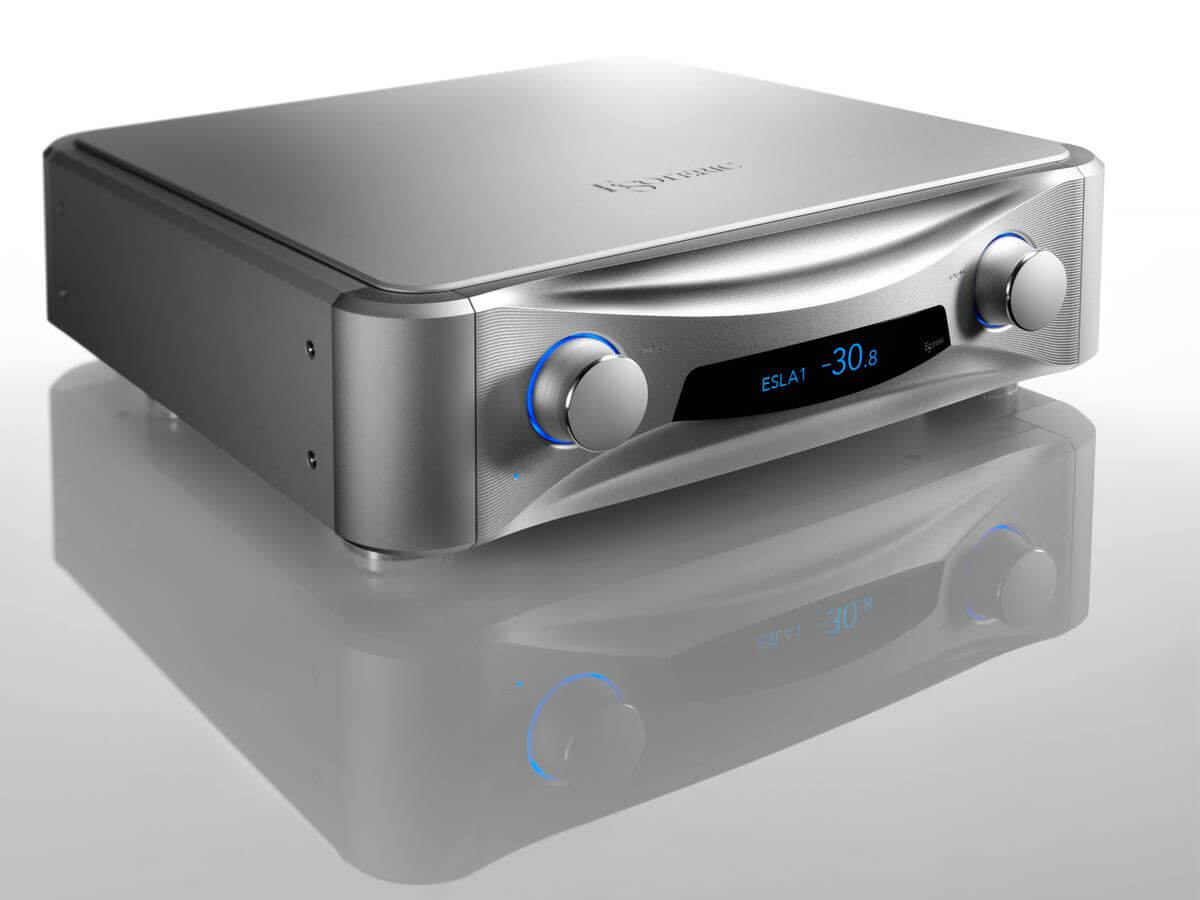

Esoteric Grandioso C1X Solo Reference Pre-amplifier

Linestage Preamplifier Is Grandioso C1X solo

The Grandioso C1X solo is a reference-grade linestage preamplifier that fuses audiophile-grade engineering with cutting-edge proprietary technology. Crafted by Esoteric, this flagship linestage component embodies technical elegance, delivering pristine analogue signal transmission, ultra-fine volume control, and industry-defining signal fidelity. It’s engineered to be the heart of a high-end stereo system, maximising amplifier potential and revealing musical subtleties that typical preamps often lose.

Ultra Fidelity Attenuator System Is a New Paradigm in Volume Control

At the core of the Grandioso C1X solo is the Ultra Fidelity Attenuator System, a hybrid design that eliminates the long-standing trade-offs between stepped attenuators and variable potentiometers. Traditional stepped attenuators offer purity but sacrifice adjustability. Potentiometers, though smooth, degrade over time and compromise channel integrity.

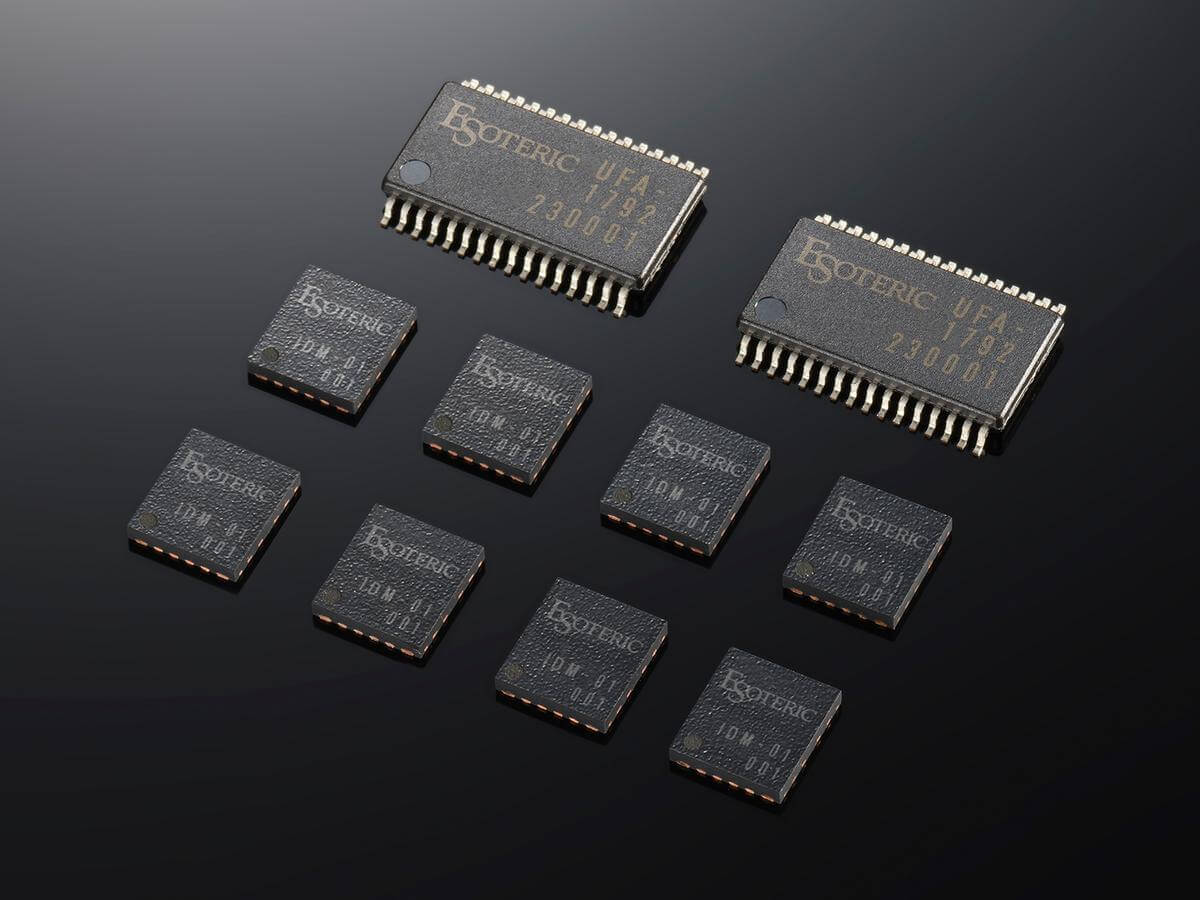

Esoteric’s UFA-1792 attenuator module resolves this by offering 0.1dB increments across 1,120 steps – ten times finer than conventional modules. Embedded in an integrated circuit, it precisely switches discrete resistors to provide ultra-smooth, nearly continuous volume control while preserving absolute channel symmetry and low distortion.

This refinement is driven by meticulous component selection and circuit layout, optimising resolution and tonal balance. From whisper-quiet passages to orchestral crescendos, the volume behaviour remains linear, transparent, and devoid of sonic artefacts.

IDM-01 Amplifier Module Is the Foundation of Vibrant Signal Amplification

The IDM-01 module acts as the discrete signal amplification engine within the Grandioso C1X solo. As Esoteric’s proprietary Integrated Discrete-Amplifier Module, it combines the tonal warmth and control of fully discrete designs with the spatial economy and signal purity of ICs.

By deploying ultra-short signal paths and refined circuit layouts, IDM-01 preserves transient detail and microdynamics. It amplifies the musical signal with a balance of dynamism and delicacy, preserving the life-force of live performance while eliminating unnecessary coloration.

Each channel of the Grandioso C1X solo contains four of these modules in a dual balanced topology, resulting in eight discrete amplifier paths total. This design ensures phase coherence, perfect left/right symmetry, and a vanishingly low noise floor, even under complex signal loads.

Ultimate Driving Power Is Delivered by Esoteric-HCLD Output Buffers

The Grandioso C1X solo output stage drives downstream amplifiers with an authority and immediacy rare in preamplification. Central to this is the Esoteric-HCLD (High Current Line Driver) system, which offers extraordinary current delivery, extremely wide bandwidth, and a rapid 2,000V/μs slew rate.

These buffer amps are parallel-configured, increasing current output without compromising speed or phase integrity. Crucially, each output stage is individually powered by two dedicated toroidal transformers – one per channel – allowing explosive dynamics and effortless control over power amplifiers and loudspeakers alike.

Whether connected to a tube power amplifier or a high-damping solid-state mono block, the Grandioso C1X solo maintains command, ensuring the amplifier follows its lead with uncompromised fidelity.

Advanced Power Supply Architecture Is Built for Purity and Control

The Grandioso C1X solo houses five discrete power transformers, each dedicated to a specific block of the system: left/right input amplification, left/right output buffering, and control logic. This separation avoids crosstalk and power contamination, sustaining ultra-clean voltage rails and unwavering current flow.

Esoteric employs Grandioso-grade capacitors with high capacitance values and Schottky barrier diodes, ensuring minimal noise and optimal transient response. This overbuilt supply infrastructure results in exceptional headroom, stability under dynamic conditions, and an uncanny sense of low-frequency grip and transparency.

ES-Link Analog Transmission Is Esoteric’s Purest Signal Path

ES-Link Analog is a proprietary current-mode transmission technology designed to overcome the limitations of traditional voltage-based signal paths. Unlike standard methods, which lose fidelity over cable resistance and connector impedance, ES-Link Analog delivers signals at 100x the current of conventional transmission, remaining immune to cable length and interconnect quality.

This system maintains signal integrity end-to-end, allowing the amplifier to receive exactly what the preamp outputs, as though it were part of the same internal circuit. The result is a sonic presentation that’s three-dimensional, dynamically truthful, and astonishingly immediate.

When used with compatible Grandioso power amplifiers, the synergy is maximised, yielding a listening experience akin to master-tape playback in a reference studio environment.

Dual Balanced Signal Architecture Is Engineered for Zero Crosstalk

All internal signal paths in the Grandioso C1X solo are handled in a fully balanced, dual mono configuration. Every stage from input through output is duplicated for left and right channels, ensuring electrical symmetry and phase precision.

The unit houses independent transformers and rectifiers per channel, reducing inter-channel interference to negligible levels. Additionally, Esoteric-HCLD buffers are used even for internal signal handoff between input and output stages, sustaining low impedance and full signal integrity at every point.

The design guarantees absolute channel separation, especially at high volumes, ensuring soundstage width, localisation, and spatial cues are rendered with surgical accuracy.

Ultra-Low Noise Input Control Is Silent and Accurate

To switch inputs silently and accurately, the Grandioso C1X solo uses FET-based switching circuits instead of mechanical relays. These field-effect transistors handle both instantaneous (12A) and sustained (3A) current with virtually no loss and absolute neutrality.

Conventional relays are prone to mechanical wear, generate audible clicks, and can introduce contact coloration over time. FET switching is immune to these issues, offering long-term reliability and a completely silent user experience, crucial in high-end listening environments.

Mechanical Isolation and Vibration Control Are Meticulously Engineered

The chassis design of the Grandioso C1X solo takes inspiration from high-performance automotive engineering. Precision-machined aluminium block panels form a non-resonant enclosure, while a semi-floating top plate helps neutralise standing waves and airborne vibration.

Esoteric’s patented isolation foot system, combining a machined spike and saucer with an anti-stress mounting structure, further decouples the unit from rack-borne mechanical noise. These details ensure an uncannily black background and enhance low-level signal resolution.

Artisanal Control Interfaces Are Designed for Sensory Satisfaction

The volume knob and input selector are milled from solid aluminium billets and rotate on a high-precision bearing mechanism borrowed from Esoteric’s VRDS disc transports. The rotational feel is purpose-tuned for smooth, analogue-like feedback, offering a tactile elegance that enhances the user’s physical connection with the device.

Volume ramping is intelligently managed: upon shutdown, the output fades and drops to zero; upon power-up, the previous level is restored gently. Input changes trigger a similar fade out/in to avoid sudden dynamic jumps, contributing to a seamless listening flow.

Double-Faced Remote Control Is Compact, Intuitive, and Luxurious

Included with the Grandioso C1X solo is a dual-sided aluminium remote, sized like a modern smartphone and sculpted through advanced metalwork techniques. Function-specific buttons are spread across both sides, providing ergonomic control for both the preamplifier and Esoteric digital sources.

This precision controller reflects the same craftsmanship and tactile consideration as the main unit, reinforcing the idea that every touchpoint of the Grandioso system must meet the highest standards of performance, usability, and aesthetic sophistication.
