Esoteric GRANDIOSO K1X SE Delivers Flagship-Grade SACD/CD Playback
Esoteric Grandioso K1X SE is a high-end reference SACD/CD player built for audiophiles seeking the most advanced digital audio reproduction available today. As the evolution of Esoteric's elite K1 lineage, the Grandioso K1X SE incorporates groundbreaking technologies including the VRDS-ATLAS transport system and the Master Sound Discrete DAC, resulting in playback that captures the full emotional spectrum of music with uncompromising fidelity.
VRDS-ATLAS Mechanism Powers Ultra-Stable Disc Transport
VRDS-ATLAS transport is the core of the Esoteric Grandioso K1X SE and is engineered for ultra-precision Super Audio CD and CD playback. This proprietary mechanism features a rigid bridge and large, anti-resonance chassis that suppress micro-vibrations during disc rotation. The disc clamping system ensures perfect alignment and minimal jitter, offering unmatched tracking precision and mechanical integrity for digital audio transport.
The VRDS-ATLAS’s mechanical architecture uses high-mass stabilisation and a low-centre-of-gravity design, reducing resonance and noise for clearer, more immersive sound reproduction. Whether handling hybrid SACDs or standard Red Book CDs, the VRDS-ATLAS elevates disc playback into a level of stability typically reserved for professional-grade studio equipment.
Master Sound Discrete DAC Reconstructs Music with Surgical Precision
Master Sound Discrete DAC is an in-house innovation crafted by Esoteric for the Grandioso K1X SE. Instead of relying on conventional off-the-shelf chipsets, this DAC uses discrete components and a custom-designed 64-bit/512Fs Delta-Sigma modulator, capable of decoding ultra-high-resolution digital formats including DSD 22.5MHz and PCM 768kHz/32-bit.
This architecture allows for exceptionally transparent signal paths and fine-tuned tonal balance. A dedicated FPGA runs proprietary algorithms exclusively tailored to extract lifelike texture and spatial nuance from both DSD and PCM sources. This unique design synergy eliminates digital artefacts and introduces a new level of dynamism, musical density, and transient response.
ES-Link Analog Outputs Deliver Uncompromised Signal Purity

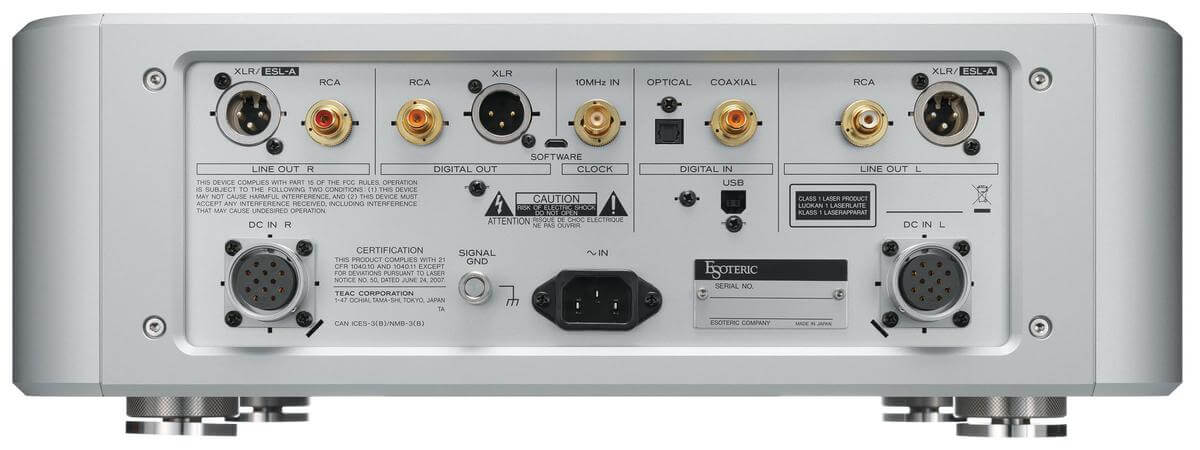

ES-Link Analog current signal transmission ensures high-integrity signal flow between the DAC stage and external amplifiers. The Grandioso K1X SE maintains superior current-mode analogue output to preserve dynamic range and detail, especially when partnered with compatible Esoteric amplifiers that can fully harness this proprietary transmission system.
This current-mode interface helps eliminate voltage fluctuations and introduces better linearity, offering a more direct, transparent connection between digital source and analogue reproduction chain.
Internal Power Engineering Ensures Noise-Free Performance
Four independent toroidal transformers power the digital, analogue, clock, and drive circuits separately, isolating them from cross-contamination and voltage interference. These transformers deliver clean, robust energy to each system block, minimising electrical noise and ensuring signal purity.
To further enhance low-frequency energy reserves, 76 EDLC super capacitors (with a total capacitance of 2.05F) are deployed, stabilising transient current delivery for demanding musical passages. This power infrastructure ensures that the Grandioso K1X SE maintains composure and headroom under dynamic duress.
Upgraded SE Model Enhances Fidelity with Premium Components
Esoteric Grandioso K1X SE features significant upgrades over the original K1X model. At its heart is an enhanced DAC board featuring newly selected premium-grade components, including the IDM-01 discrete module—custom designed to optimise signal paths and improve noise shaping.
Additional refinements include a semi-floating top panel that mechanically decouples the chassis to reduce resonant energy transfer, and newly designed pinpoint feet that improve vibration isolation by targeting key resonance nodes. Together, these physical improvements support the acoustic integrity of the digital-to-analogue conversion process.
Master Sound Discrete Clock Brings Superior Time Alignment
Master Sound Discrete Clock for Digital Player is another critical advancement in the Grandioso K1X SE’s engineering. Designed entirely in-house, this discrete clock module offers ultra-low phase noise and significantly improved clock precision. It allows for external synchronisation via the built-in clock sync function, enabling users to link the K1X SE with high-precision master clocks for superior jitter control.
This accurate clocking architecture ensures that digital signals are converted with perfect temporal accuracy, eliminating phase distortion and enhancing image focus, timing, and rhythmic coherence across complex recordings.
Esoteric Grandioso K1X SE Redefines Digital Audio Playback
Esoteric’s flagship Grandioso K1X SE SACD/CD player achieves a rare synthesis of mechanical innovation and discrete digital processing. By employing the VRDS-ATLAS transport, Master Sound Discrete DAC, and a completely redesigned power and clock system, this reference-class unit delivers a transportive musical experience for discerning listeners who demand sonic purity and engineering excellence in equal measure.
