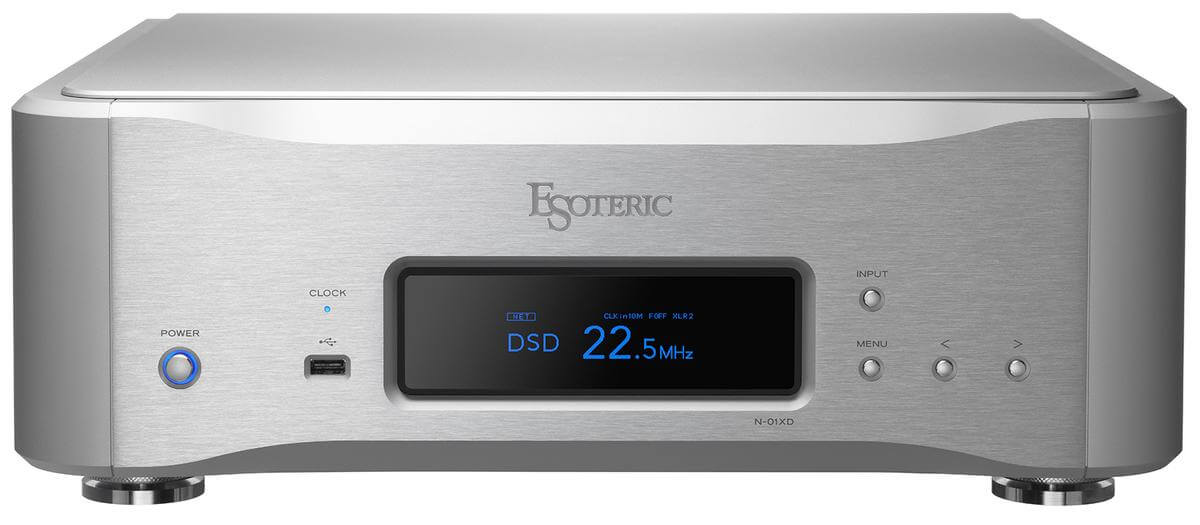

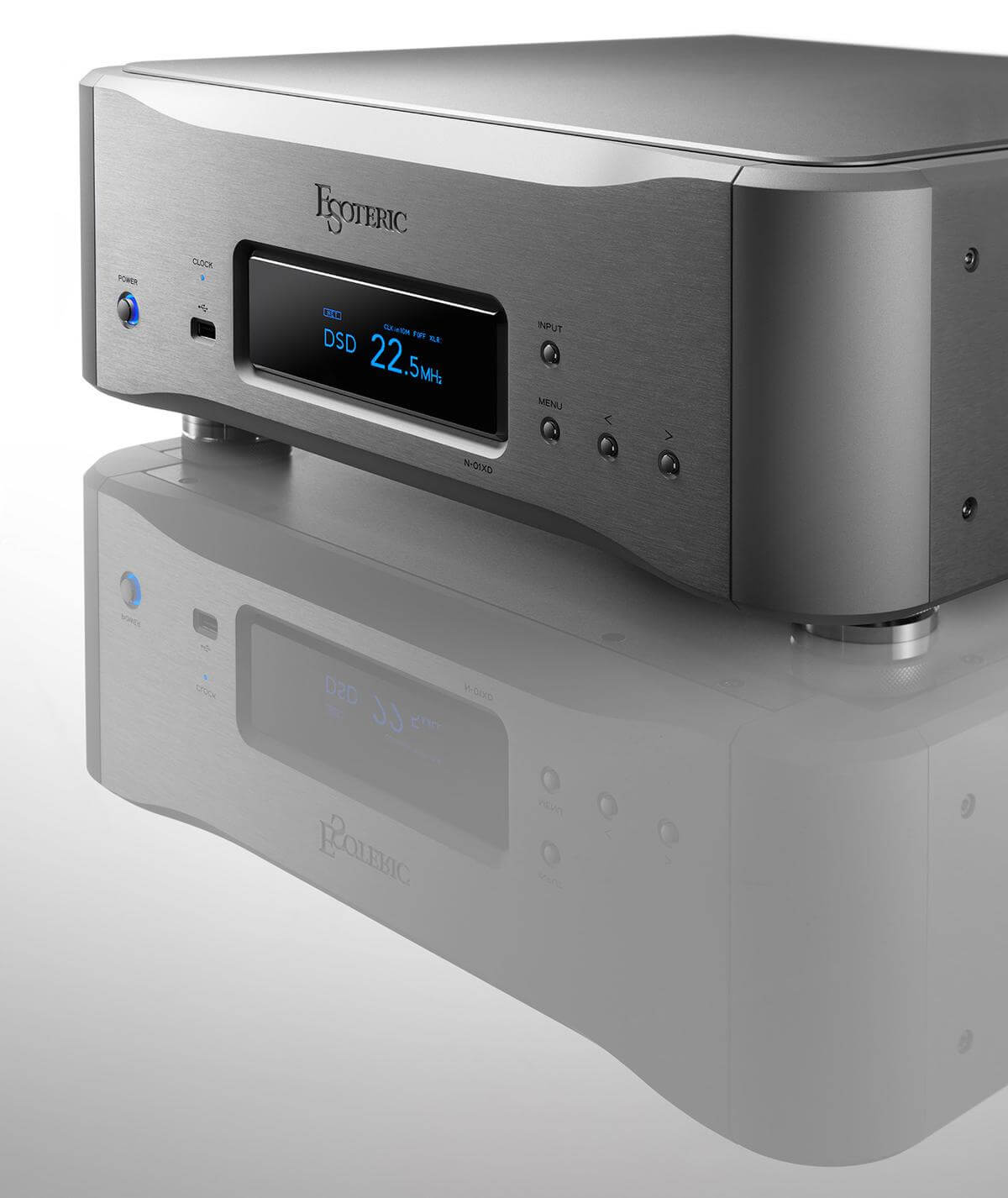

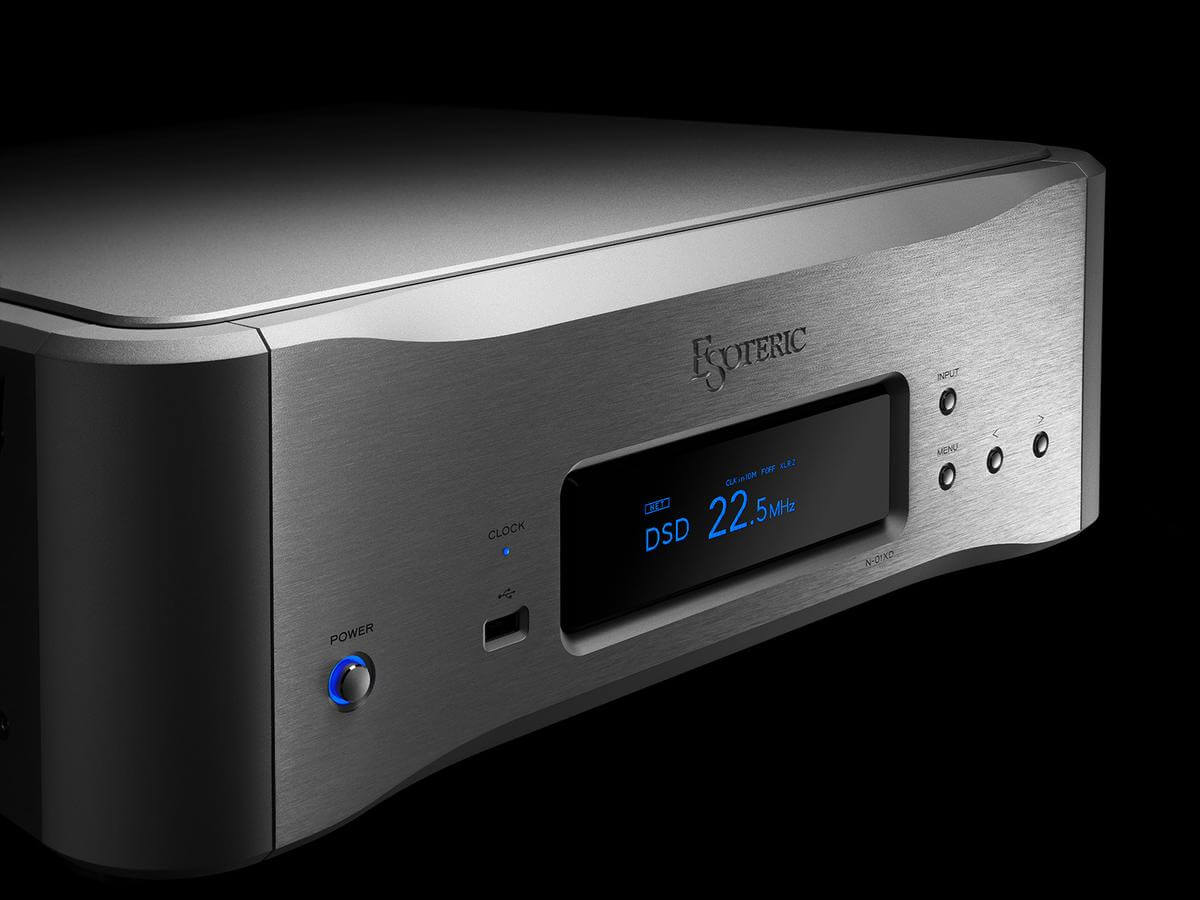

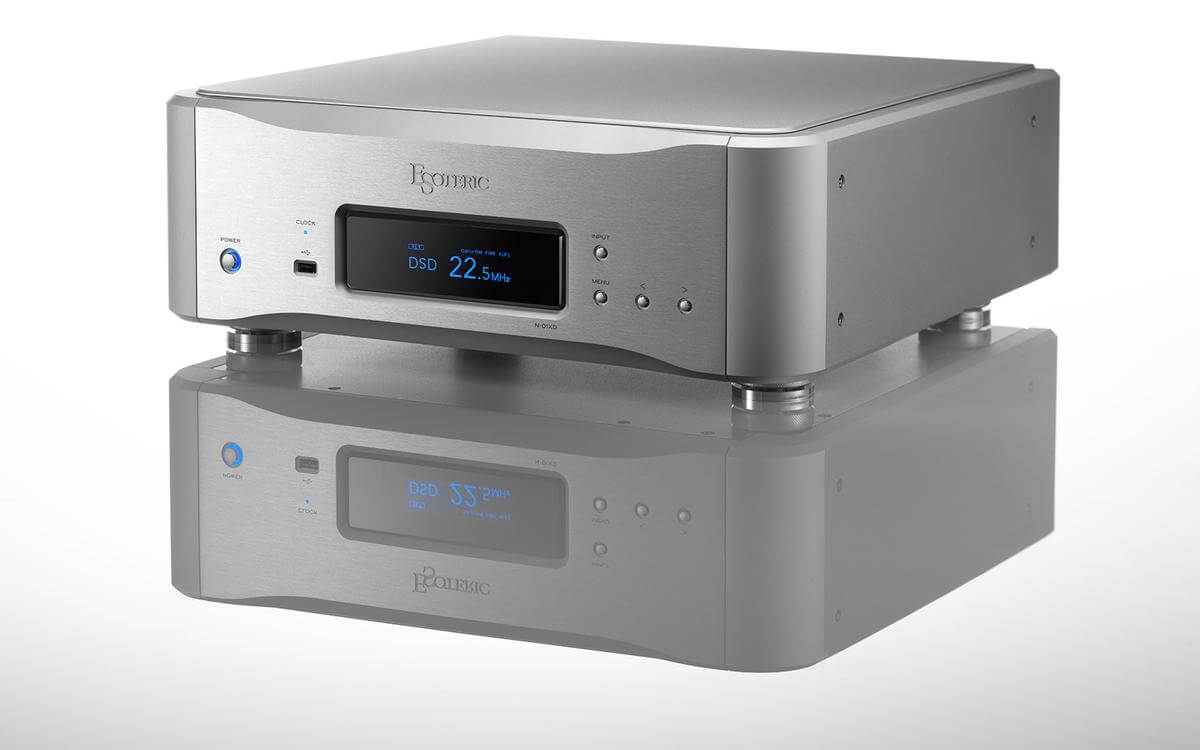

Esoteric N-01XD SE Reference 64-bit Streaming Audio Player/DAC

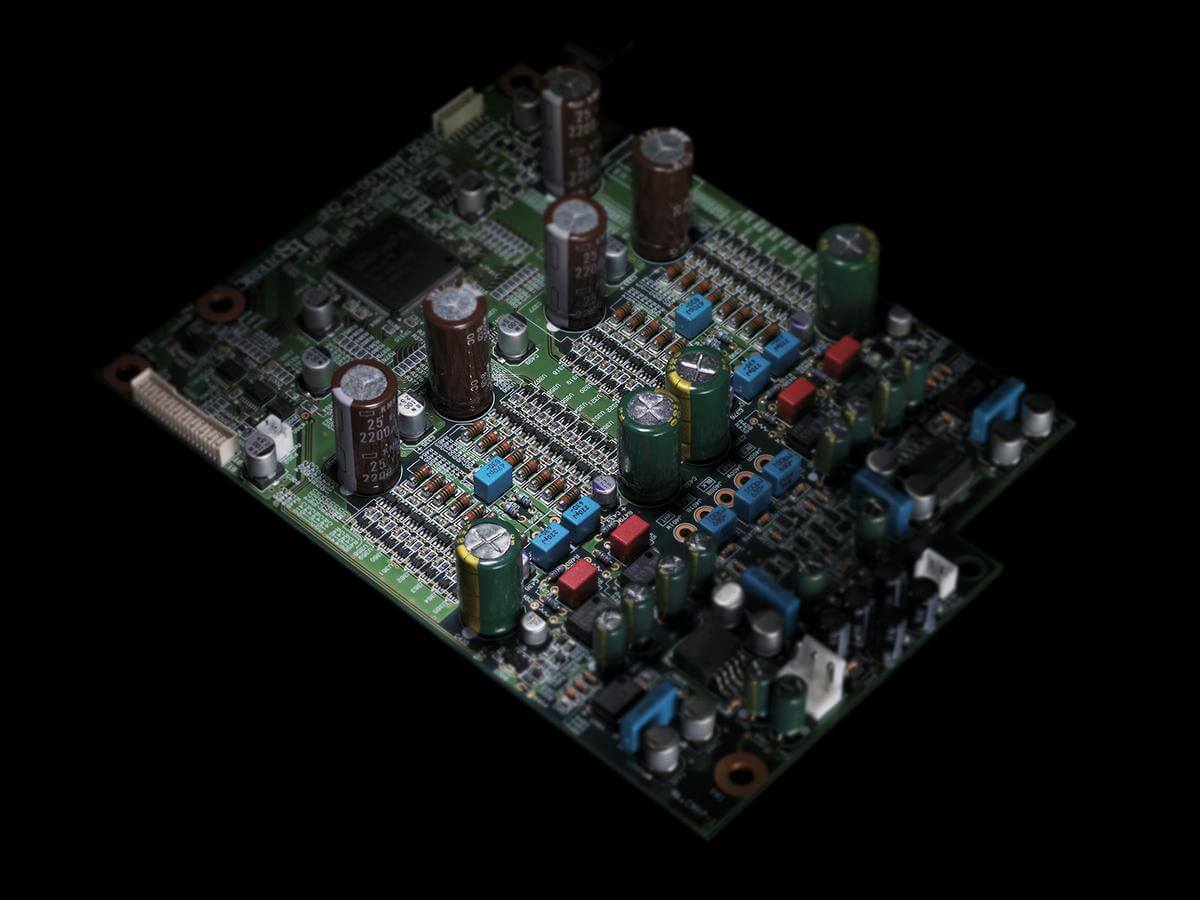

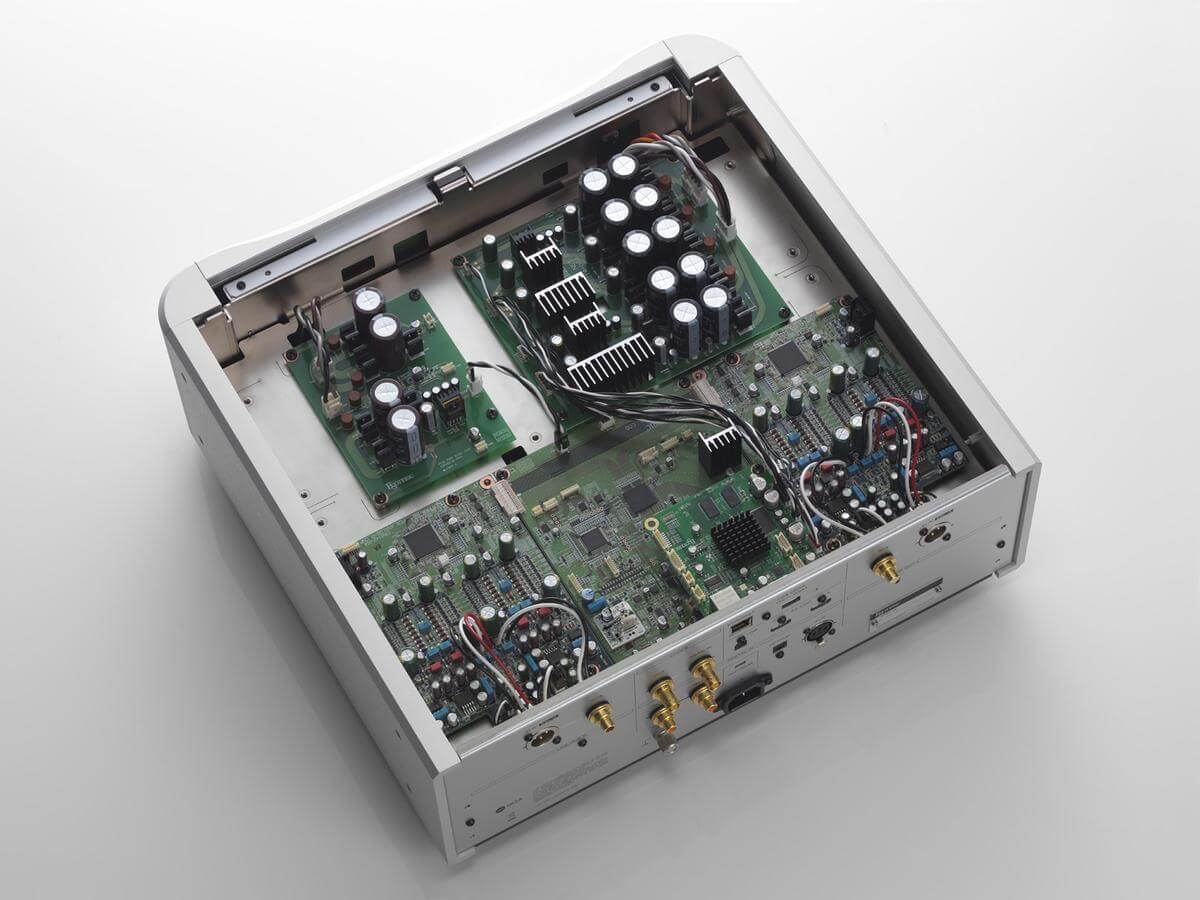

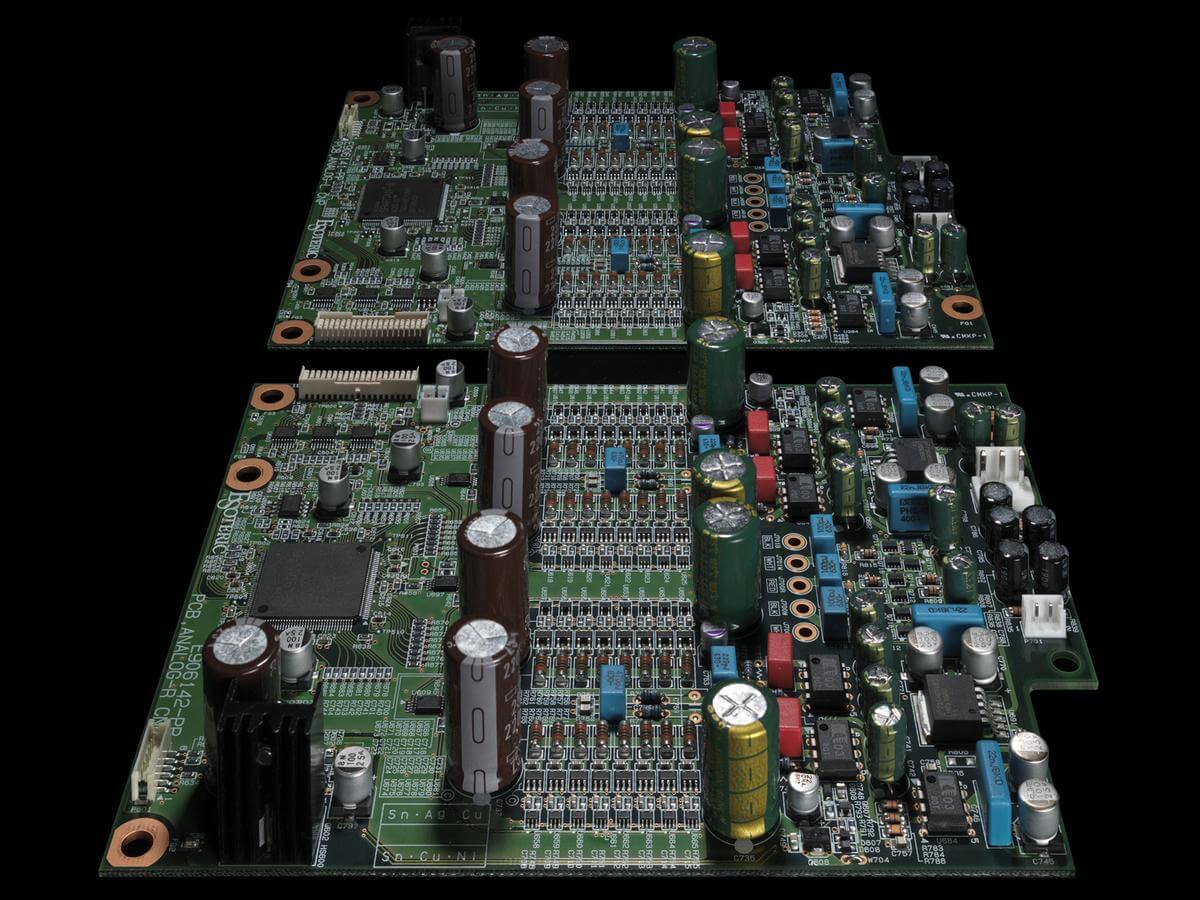

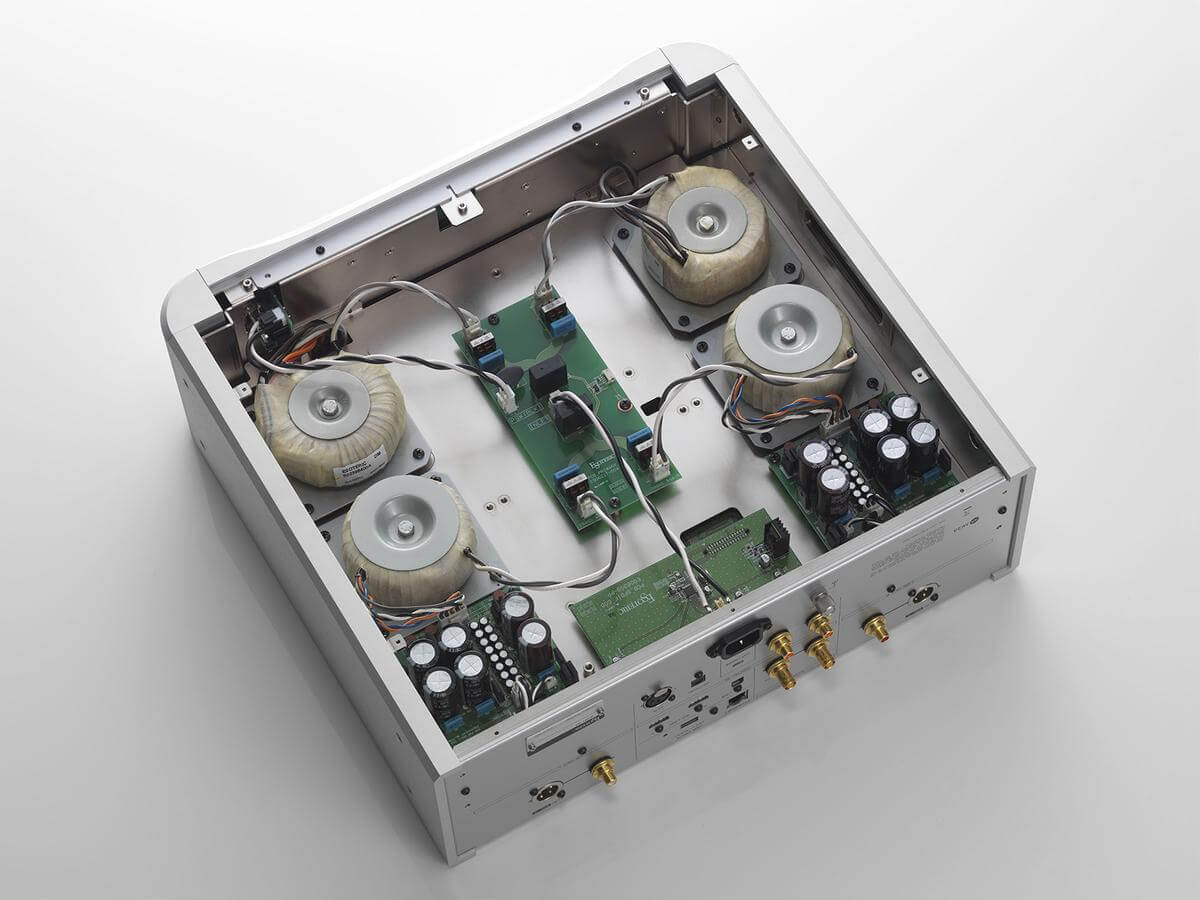

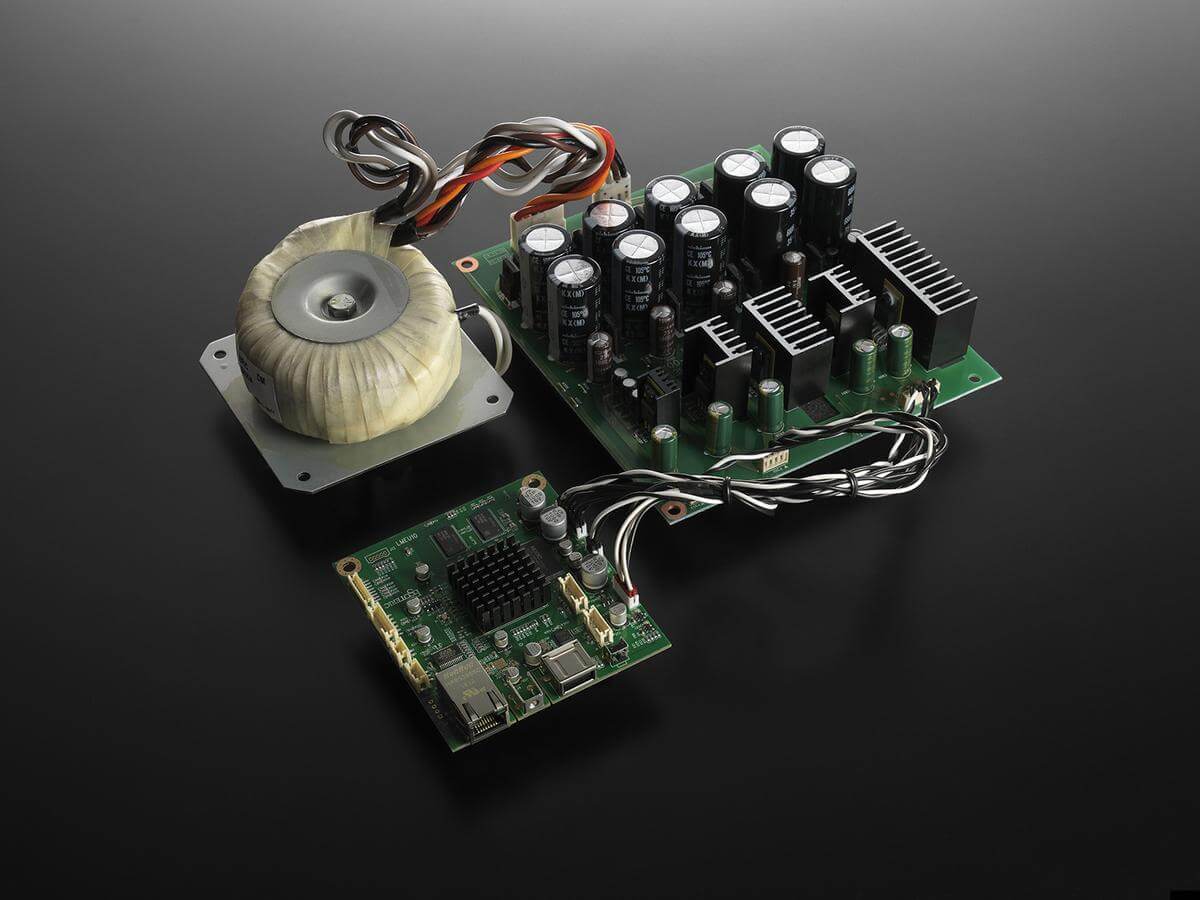

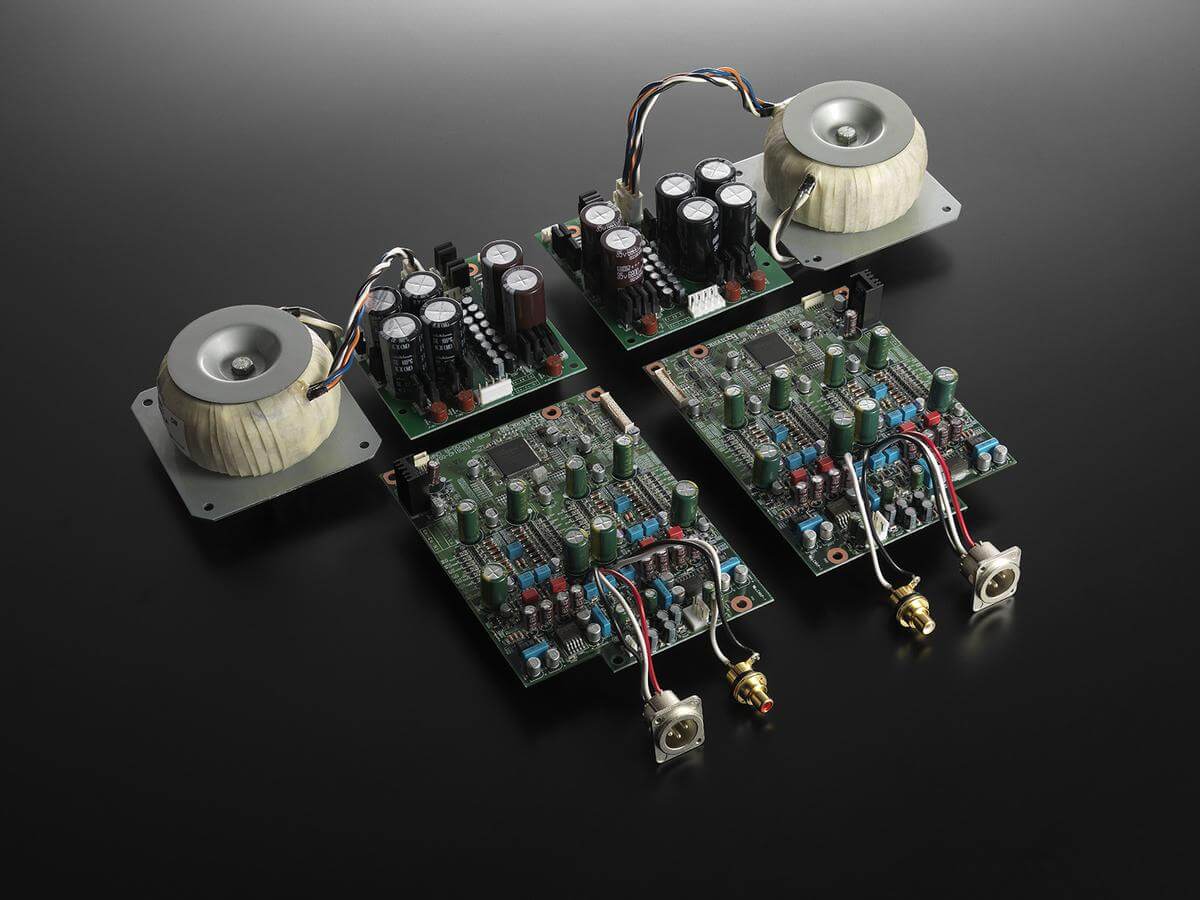

The Esoteric N-01XD SE Network DAC is a flagship digital-to-analogue converter built on the brand’s exclusive Master Sound Discrete DAC architecture, derived from the Grandioso D1X SE. Featuring fully discrete circuitry, the custom IDM-01 amplifier module, and an ultra-fast HCLD output stage, it delivers unmatched resolution, dynamics, and tonal purity. With support for 22.5MHz DSD, 384kHz PCM, MQA, and streaming services including TIDAL, Qobuz, Spotify, and Roon, it functions as both a high-end DAC and music server. Powered by quad toroidal transformers and a linear network power supply, and stabilised by a rigid aluminium-steel chassis with semi-floating panels, the N-01XD SE combines cutting-edge engineering with analog-like musical expressiveness for reference-level listening.
Specifications
Esoteric N-01XD SE Reference 64-bit Streaming Audio Player/DAC
Specification | Value |
---|---|
Product |
N-01XD SE |

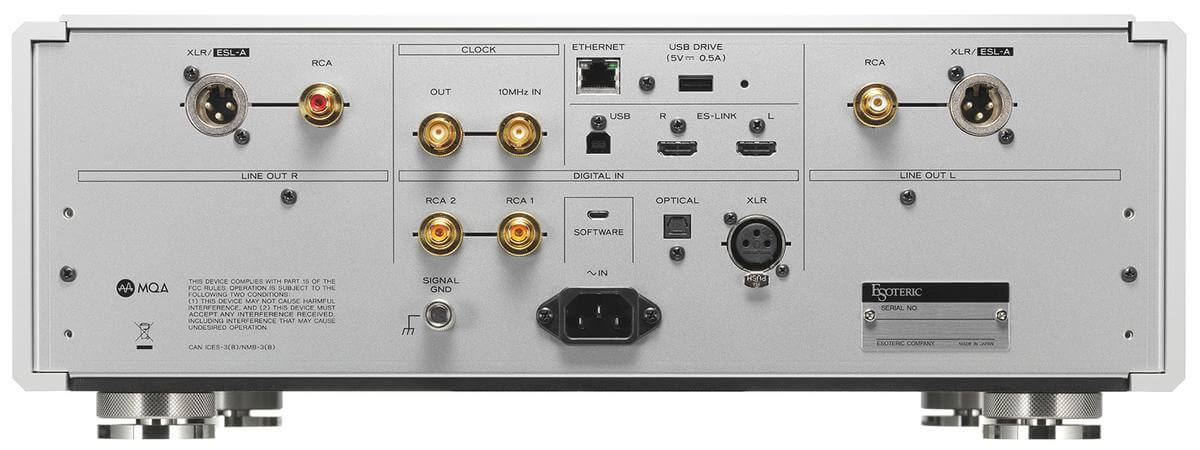

Digital audio input es-link |
1 (L/R) |
Es-link input signal formats linear pcm |
44.1k to 768kHz, 48bit (ES-LINK5 format) |
Es-link input signal formats dsd |
2.8MHz, 5.6MHz, 11.2MHz, 22.4 |
Xlr |
1 |
Xlr input level |
5.0Vp-p |
Xlr input impedance |
110Ω |
Xlr input signal formats linear pcm |
32k to 192kHz, 16bit / 24bit (AES/EBU format) |
Xlr input signal formats dsd |
2.8MHz (ES-LINK1, ES-LINK2, DoP format) |
Rca |
2 |
Rca input level |
0.5Vp-p |
Rca input impedance |
75Ω |
Rca input signal formats linear pcm |
32k to 192kHz, 16bit / 24bit (IEC60958 format) |
Rca input signal formats dsd |
2.8MHz (DoP format) |
Optical |
1 |
Optical input level |
–24.0 to –14.5dBm peak |
Optical input signal formats linear pcm |
32k to 192kHz, 16bit / 24bit (IEC60958 format) |
Optical input signal formats dsd |
2.8MHz (DoP format) |
Usb |
1 (B type) |
Usb input signal formats linear pcm |
44.1k to 384kHz, 16bit / 24bit / 32bit |
Usb input signal formats dsd |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
Ethernet |
1 (1000BASE-T) |
Ethernet input signal formats linear pcm |
44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) |
Ethernet input signal formats dsd |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo) |
Ethernet note |
32bit audio files only support integer formats. |
Supported file formats pcm lossless |
FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA |
Supported file formats dsd lossless |
DSF, DSDIFF (DFF), DoP |
Supported file formats compressed audio |
MP3, AAC (m4a container) |
Usb drive |
2 (Front, Rear) |
Usb drive supported file formats |
FAT32, NTFS, Single partition; USB 2.0 or faster recommended |
Usb drive maximum power supply |
0.5A |
Usb drive input signal formats linear pcm |
44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) |
Usb drive input signal formats dsd |
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo) |
Analog audio outputs xlr/esl-a |
1 pair (L/R) |
Analog audio outputs xlr output level |
5.0Vrms (1kHz, 10kΩ loaded) |
Analog audio outputs xlr output impedance |
40Ω |
Analog audio outputs rca |
1 pair (L/R) |
Analog audio outputs rca output level |
2.5Vrms (1kHz, 10kΩ loaded) |
Analog audio outputs rca output impedance |
15Ω |
Clock sync input bnc |
1 |
Clock sync input input frequency |
10MHz (±10ppm) |
Clock sync input input impedance |
50Ω |
Clock sync input input level rectangle wave |
equivalent to TTL level |
Clock sync input input level sine wave |
0.5 to 1.0Vrms |
Clock sync output bnc |
1 |
Clock sync output output level |
TTL level equivalent (75Ω load) |
Clock sync output output frequency |
44.1k / 48kHz |
Clock sync output output frequency accuracy |
±0.5ppm |
General power supply |
AC 230V 50Hz, AC 120V 60Hz, AC 220V 60Hz |
General power consumption |
38W |
General external dimensions (w×h×d) |
445 × 162 × 438mm (17-⅝" × 6-½" × 17-¼" including protrusions) |
General weight |
26.3kg / 58 lb |
Included accessories |
Power cord × 1, HDMI cable × 1, Felt pads × 4, Owner's manual × 1, Warranty card × 1 |
Audio performance frequency response |
5Hz to 30kHz (–3dB) |
Audio performance s/n ratio |
113dB (IHF-A) |
Audio performance distortion |
0.0007% (1kHz) |
