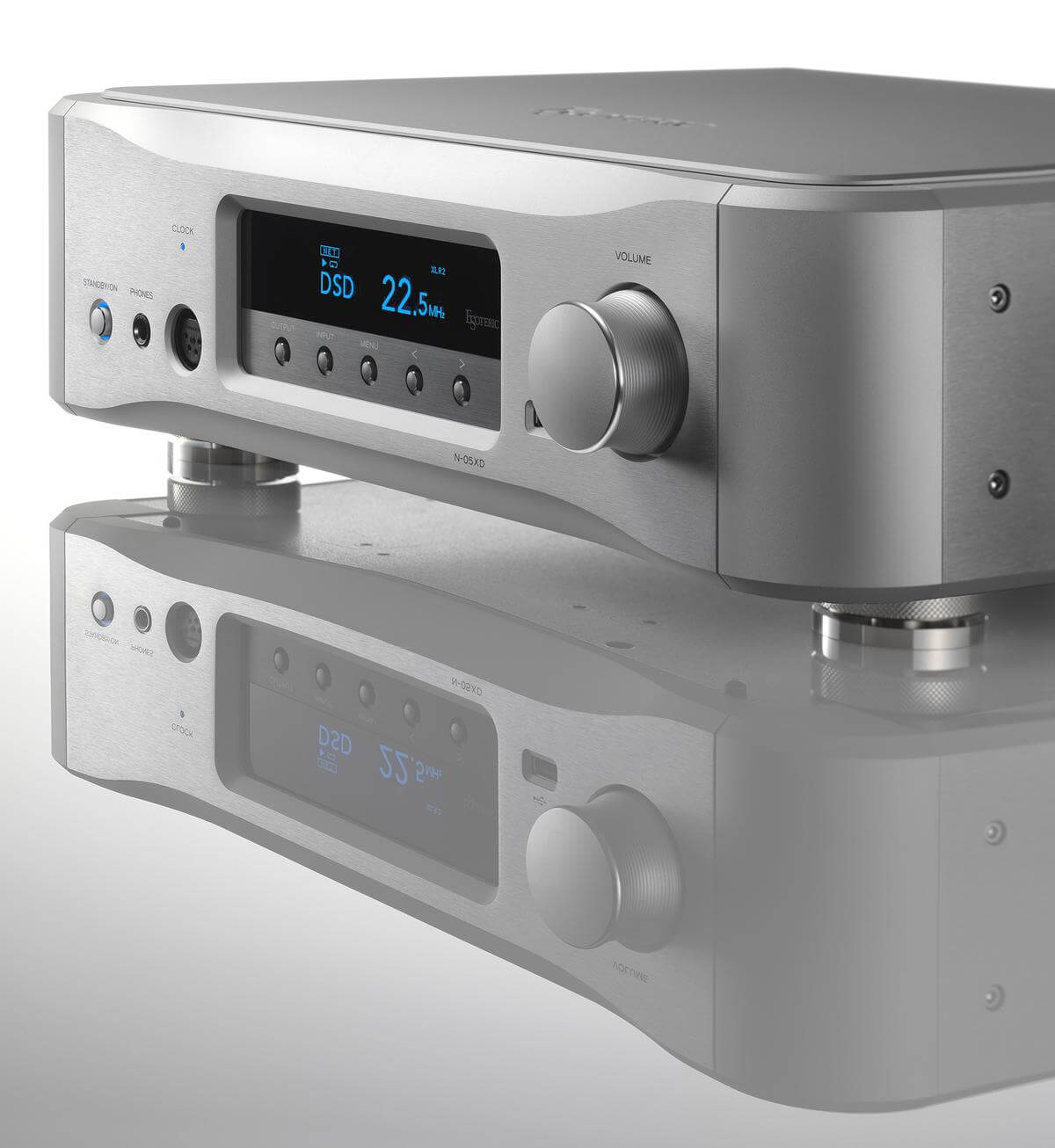

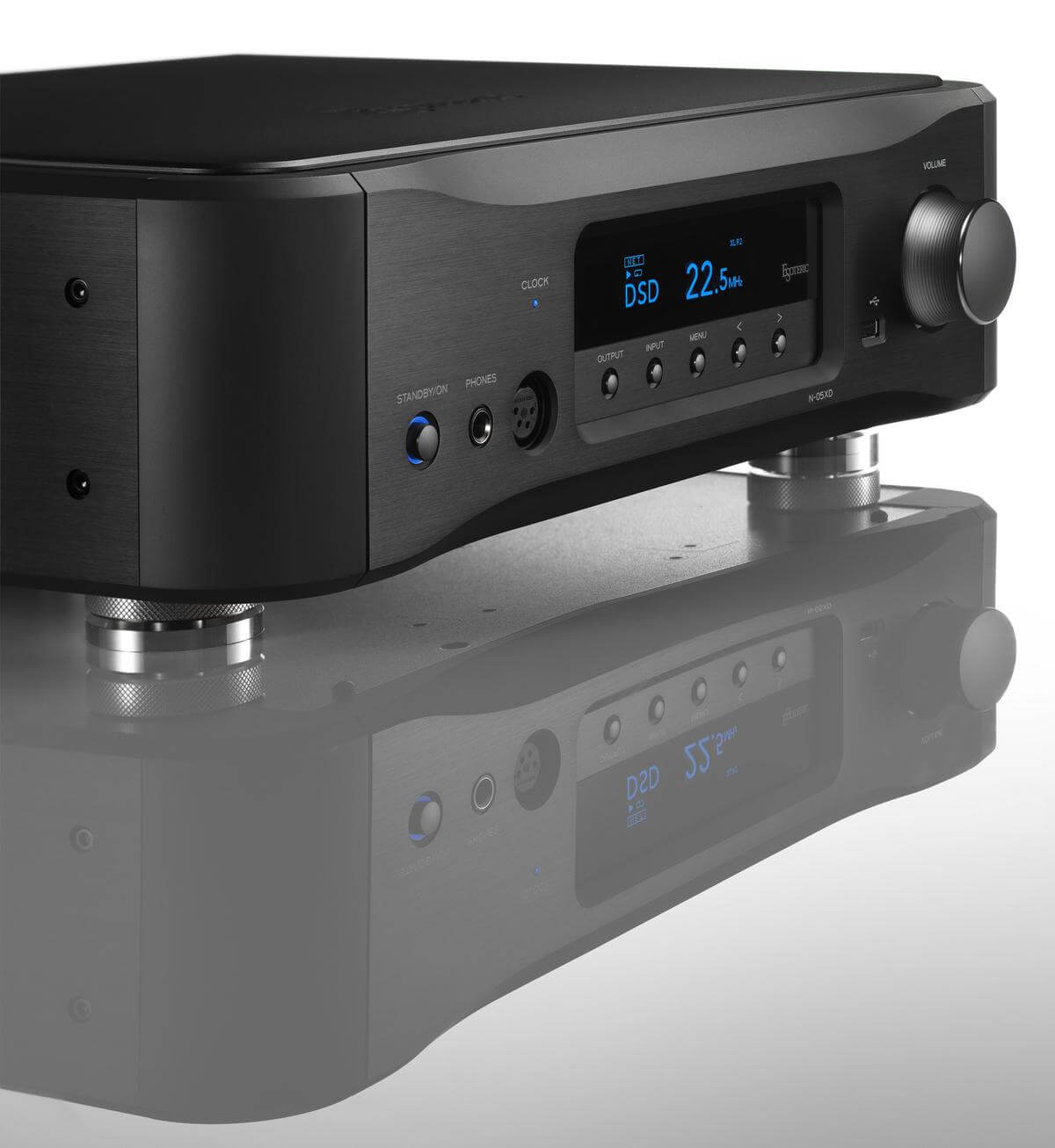

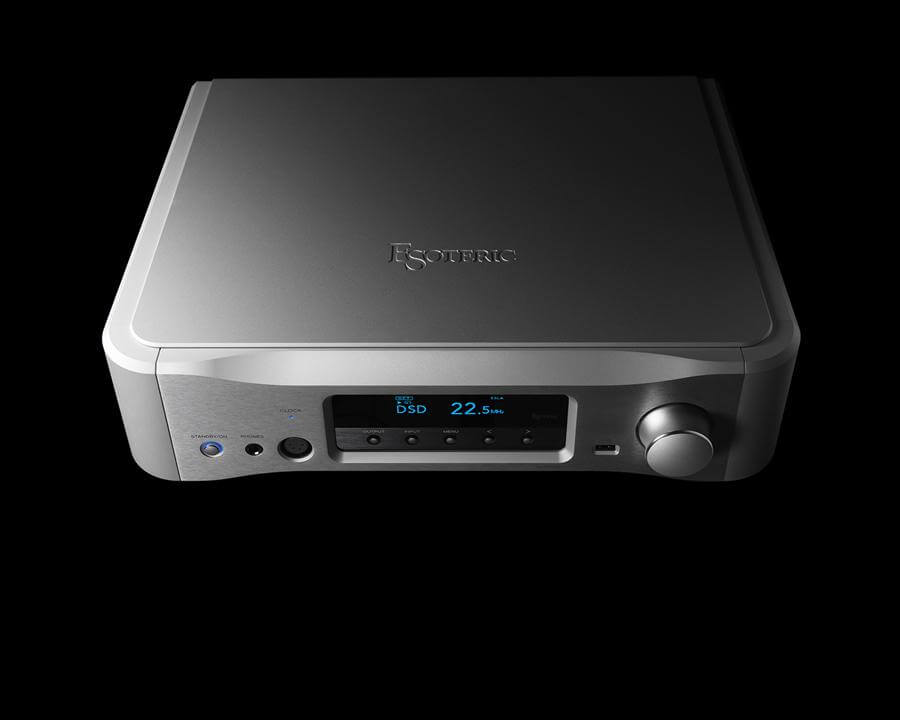

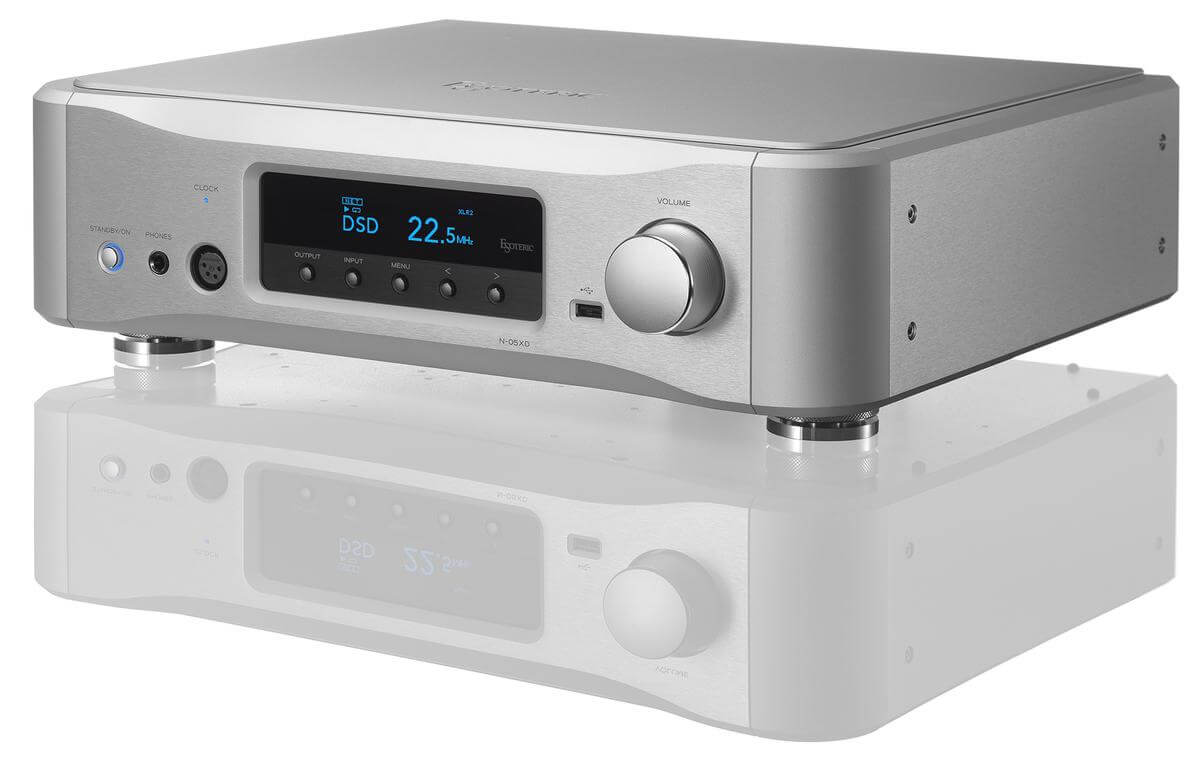

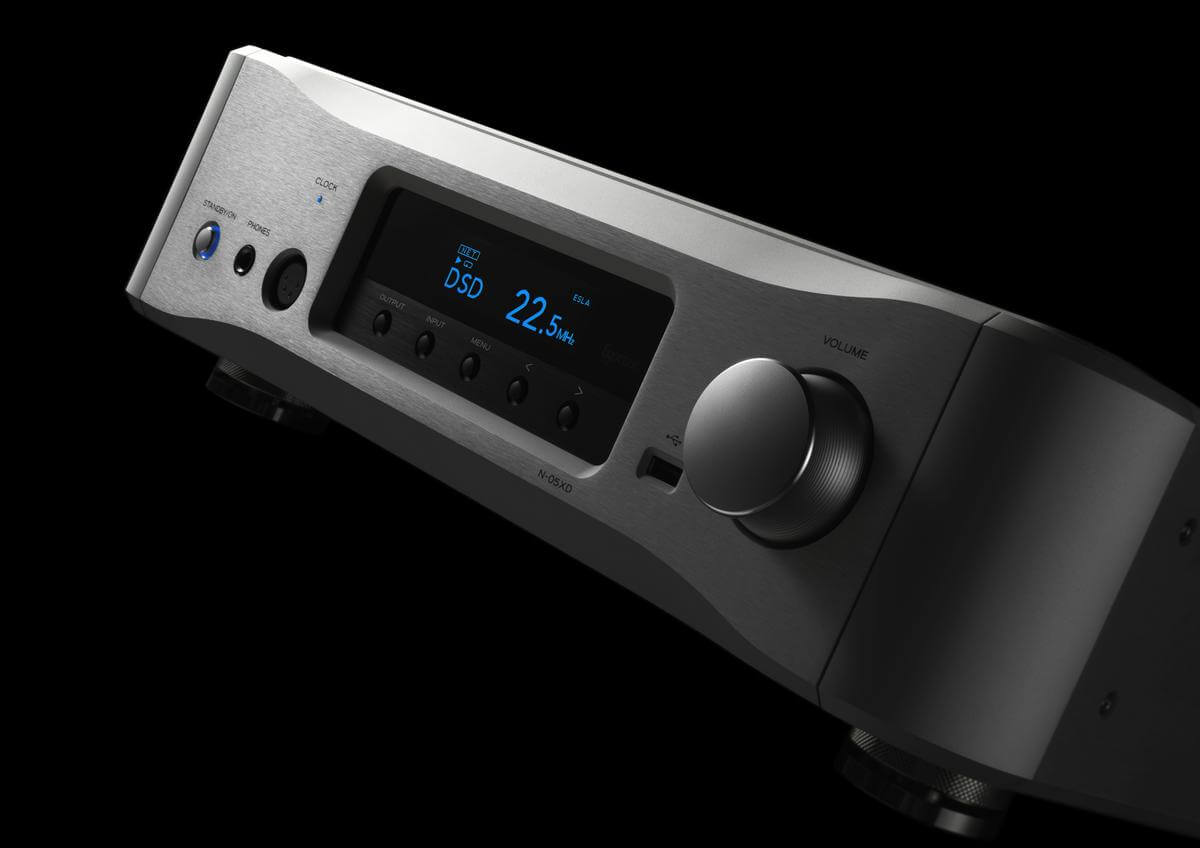

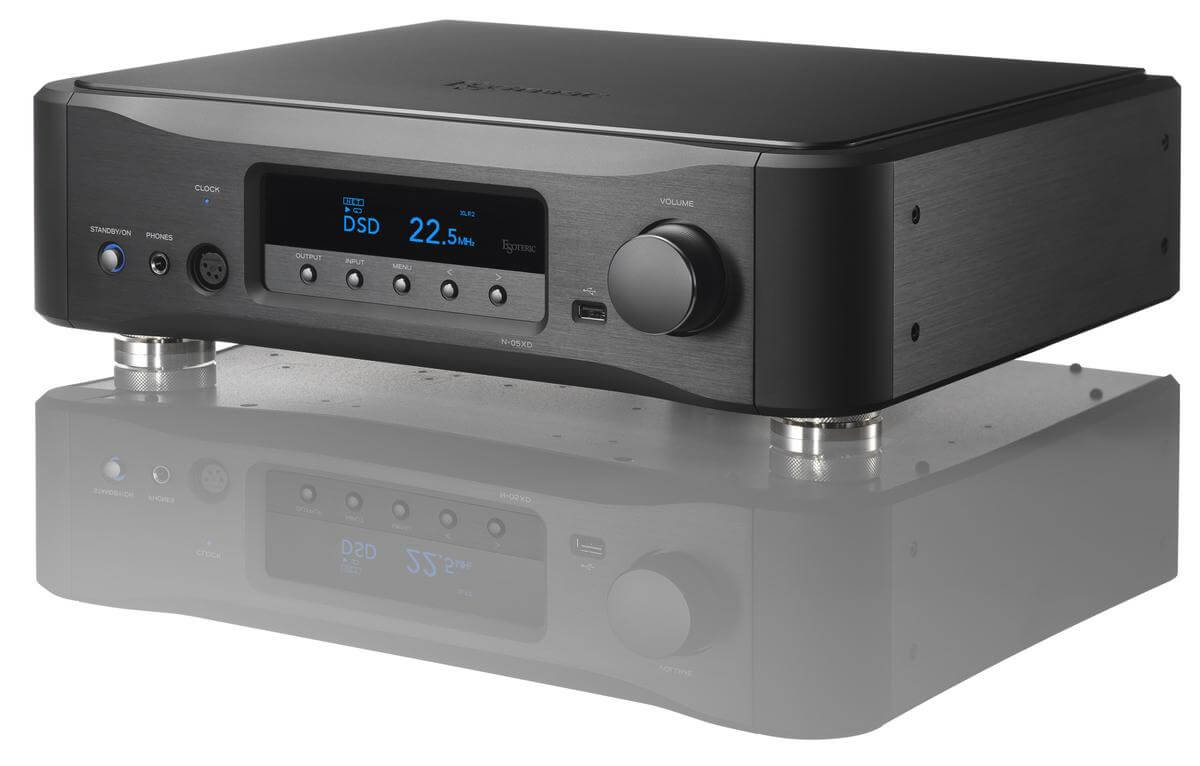

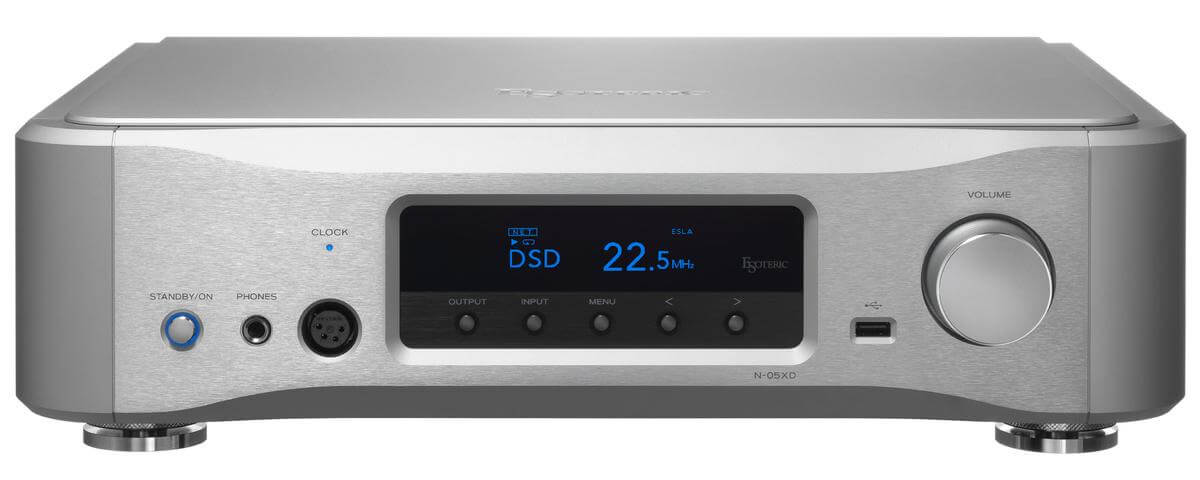

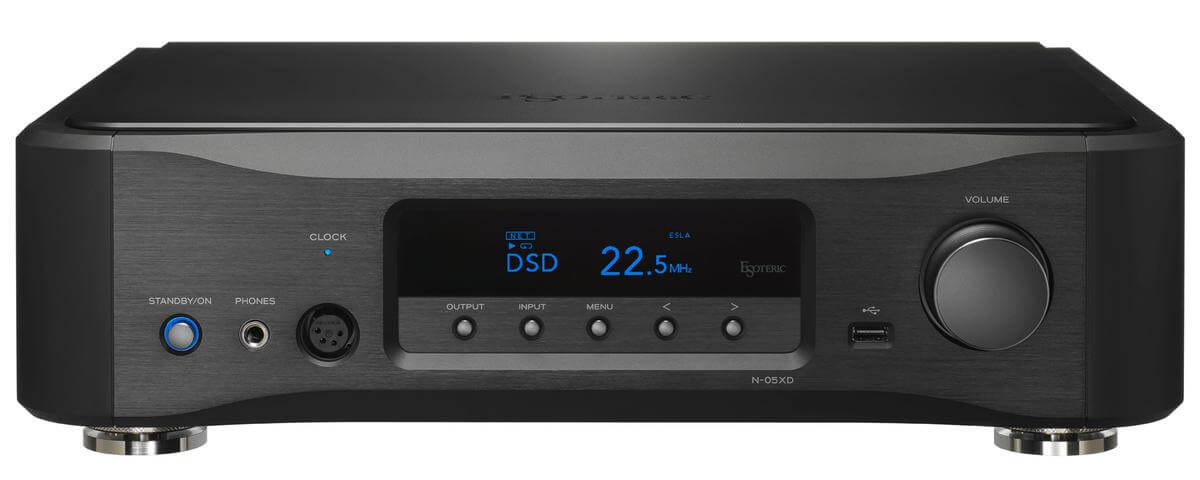

Esoteric N-05XD Network DAC / Preamplifier/Headphone Amplifier

Why Choose the Esoteric N-05XD Network DAC/Preamplifier

What makes the N-05XD's DAC circuit different from typical integrated-chip designs?

The Esoteric N-05XD Network DAC/Preamplifier is built around the Master Sound Discrete DAC, a circuit assembled from individually selected discrete components rather than an off-the-shelf integrated chip. This design choice exists because discrete circuitry lets engineers tune the behaviour of each stage independently, preserving more of a recording's original dynamics and energy than a single packaged chip typically allows. The Master Sound Discrete DAC traces its lineage to the circuit developed for the Grandioso D1X Monoblock D/A Converter, and it carries that design philosophy forward with 16 separate elements per channel, including the clock driver, logic circuitry, capacitors and resistors. Keeping these elements fully independent for each channel reduces interaction between circuit stages, which in turn limits the loss of musical energy that can occur when components share pathways. For a buyer comparing network DACs, this construction approach is the main reason the N-05XD sits apart from mass-market designs built on standard chipsets.

How does the Delta-Sigma modulator handle high-resolution digital sources?

The N-05XD's digital processing is built around Esoteric's own Delta-Sigma (ΔΣ) modulator, which supports 64-bit/512Fs audio frequency sampling. Separate FPGA digital processing algorithms run at each stage of the conversion process, handling DSD and PCM sources through dedicated pathways rather than a single shared algorithm. This separation matters for compatibility, because it lets the converter apply processing suited to the specific characteristics of each file type, drawing the available detail out of whichever compatible digital source is connected instead of forcing every format through one generic conversion path.

Which streaming services and audio codecs does the network engine support?

The N-05XD's network engine is a dedicated high-end audio engine with its own linear power supply, supporting DSD playback at 22.5MHz. The power supply section matches the scale of the components used in Esoteric's flagship N-01XD, including large toroidal transformers, high-capacity filter capacitors, Schottky barrier diodes, and high-end super capacitors with a combined 2,333,333μF of capacity. Esoteric avoids switching elements in this supply, removing a common source of electrical noise in network audio components. For everyday use, the unit works with the Esoteric Sound Stream app on iOS and Android, with native support for Tidal and Qobuz so a buyer can search, browse and build playlists from those services within the same interface used to play local files. Esoteric continues to add compatibility with further audio codec and streaming partners, though regional restrictions can apply to individual services.

Can the N-05XD slot into an existing preamp or AV system?

The N-05XD is designed for use in more than one system role. A fixed line level output lets it connect to an external preamp and operate purely as a digital source or DAC, and its network function can be switched off entirely when a buyer only needs the analogue or digital input stages. An AV Pass through output extends this further, letting the unit serve as the front channel preamp in a surround sound AV speaker system without disrupting the rest of the home cinema chain. This flexibility means a buyer doesn't need to commit to a single system architecture at the point of purchase.

How does the N-05XD function as a standalone preamplifier?

The Esoteric N-05XD Network DAC/Preamplifier is centred on a fully balanced dual mono preamplifier circuit, inherited from the design philosophy of Esoteric's Grandioso line. Because the left and right channels run through entirely separate circuit paths from input to output, crosstalk between channels is reduced, supporting the accurate channel placement and separation a buyer would expect from a high-end preamp. This dual mono configuration underpins every other audio function in the unit, including the attenuator system and headphone amplifier described below.

What does the Esoteric-QVCS attenuator system contribute to volume control?

Volume control in the N-05XD is handled by the Esoteric-QVCS (Quad Volume Control System) Attenuator, which uses four collectively operated attenuator circuits to independently and electronically control the left and right channels and their positive and negative phases. Controlling each phase separately keeps channel separation and phase accuracy consistent across the volume range, while a shorter audio signal path reduces the points at which the signal can degrade at both low and high listening levels. The volume knob itself uses the same ball bearing support mechanism found in the Grandioso line and is machined from solid aluminium, giving the control a smooth, consistent feel during everyday adjustment.

How is the headphone amplifier section configured for balanced and unbalanced listening?

The N-05XD's headphone amplifier is a fully balanced dual mono design, built using the same preamplifier design technology as Esoteric's Linestage preamplifiers. Two output options sit on the front panel: a balanced 4-pin XLR jack and an unbalanced 6.3mm stereo jack. The balanced output delivers 1500mW into a 32Ω load, giving it enough headroom to drive higher impedance headphones without running out of power. On the unbalanced output, the ground potential is actively driven to 0V, so fluctuations in the ground reference of one channel don't carry across into the other, keeping channel separation intact regardless of which connection a buyer chooses.

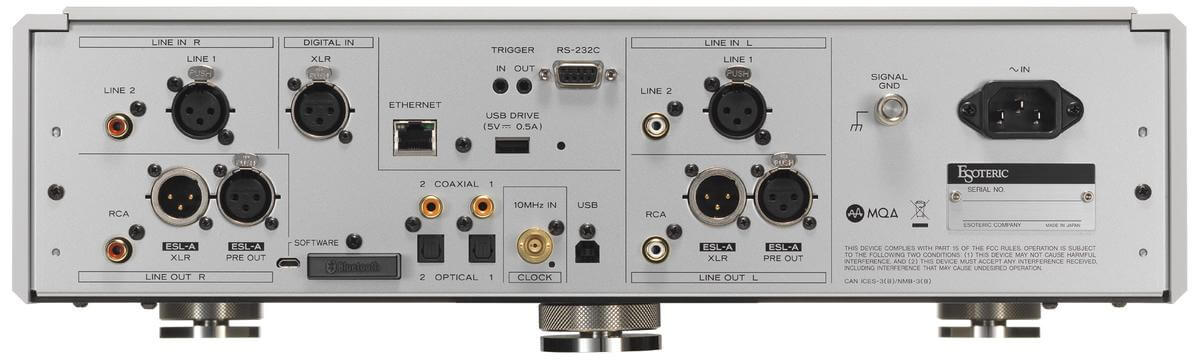

What output options exist for connecting to external power amplifiers or Esoteric source components?

The N-05XD's analogue output is built around Esoteric's Es-Link Analog current transmission, which draws on the high-speed Esoteric-HCLD (High Current Line Driver) output buffer circuit. This buffer has a slew rate of 2,000V/μs, giving it the response speed to transmit current quickly and in volume, largely unaffected by the impedance of the connected signal path. On the digital side, Esoteric's Es-Link wideband digital transmission standard runs over a single XLR cable, allowing direct connection to Esoteric's Super Audio CD players and transports. A 10MHz master clock input also lets the unit synchronise with an external master clock generator, which a buyer building a multi-component Esoteric system would use to align timing across separate units. Bluetooth reception covers LDAC, LHDC, aptX HD, aptX and AAC codecs, giving the N-05XD a route for playing smartphone files without a wired connection.

How does the N-05XD's chassis construction address vibration control?

The N-05XD's chassis is designed to address vibration at several points rather than relying on mass alone. The top panel uses a semi-floating mount, and the bottom chassis has high-precision laser-cut slits at the power supply transformer mounts, both intended to reduce the transfer of mechanical vibration into the circuitry above. Esoteric's own pinpoint feet, covered by patents 4075477 and 3778108, are designed to channel vibration away from the unit through point contact with the supporting surface. Controlling vibration at the chassis level matters for a network DAC because the sensitive discrete components in the Master Sound Discrete DAC and preamplifier stages can be affected by mechanical interference from transformers and external surfaces.

What remote control functionality does it offer for everyday operation?

Day-to-day operation of the N-05XD is handled through an aluminium-bodied remote control, with buttons positioned on both sides so it can be held and used comfortably from a normal listening position. Beyond preamplifier and network playback control, the same remote also operates Esoteric's Super Audio CD player and transport, letting a buyer running multiple Esoteric components manage them from a single handset rather than switching between separate remotes.
