Esoteric S-05 Class A Stereo Amplifier

Stereo Power Amplifier Delivers Pure, Dynamic Class-A Sound

Stereo Power Amplifier S-05 is a compact, high-performance Class-A amplifier crafted with audiophile precision to deliver vivid tonal richness and dynamic musicality. Inspired by the flagship Grandioso M1X, the Esoteric S-05 Stereo Power Amplifier captures the spirit of minimalism through meticulous engineering, exceptional build quality, and a commitment to pure signal fidelity.

Class-A Amplifier Produces Expressive, Vivid Audio

Class-A amplifier S-05 is designed for listeners seeking emotionally resonant sound with minimal distortion. The S-05 uses a high-bias, all-analogue Class-A topology that generates a richly saturated tonal palette and ultra-linear output. Unlike typical solid-state amplifiers, this model echoes the vivid, colourful tone of a direct-heated triode valve amplifier, but with the speed and authority of modern circuitry. Its abundant idling current supports instantaneous signal rise, revealing subtle transients, inner detail, and expressive dynamics across all genres.

Pure Circuit Design Prioritises Musical Integrity

Esoteric S-05 amplifier embraces a minimalist signal path to preserve musical nuance. The internal circuit layout is free from unnecessary complexity, embodying the Grandioso M1X philosophy of “minimal circuitry – maximum output.” Signal paths are optimally short, and the amplifier features a single-pole phase compensation network and coil-less final stage. Negative feedback is kept minimal to retain natural harmonic structure and microdynamic expression. By eliminating clutter, the amplifier allows music to unfold with exceptional clarity and spatial coherence.

Dual Monaural Construction Maximises Channel Separation

Dual monaural amplifier architecture is implemented across all stages of the S-05, including current smoothing and power rectification. Left and right channels are electrically and physically isolated, with independent power circuits to prevent crosstalk. This symmetry ensures high-resolution channel separation and a stable soundstage, particularly noticeable in orchestral and spatial recordings. By mirroring the layout and preserving signal integrity across both channels, the amplifier achieves a striking sense of dimensional realism.

ES-LINK Analog Enables High-Current, Noise-Free Signal Transmission

ES-LINK Analog current transmission system, unique to Esoteric components, is embedded into the S-05 stereo amplifier. Transmitting approximately 100 times more current than traditional voltage transmission, ES-LINK Analog maintains signal purity over longer cable lengths and eliminates susceptibility to noise. The system achieves a “High out, Low in” configuration, meaning the preamp’s output current is directly matched by the power amp’s input, regardless of cable resistance. This architecture secures perfect synchronisation between the S-05 and matching N-05XD preamp/DAC, ensuring the amplifier receives every nuance with uncompromised clarity.

Overengineered Power Supply Enables Dynamic, Effortless Playback

High-capacity power supply design is at the heart of the S-05's sound. A 940VA bare-mounted EI-core transformer delivers instantaneous current with minimal vibration and no transformer case to compromise responsiveness. Esoteric's low-impedance wiring, extra-thick cabling, and copper bus bars enable stable high-current flow required by Class-A operation. The result is a powerful, confident sonic presentation with immense headroom, rock-solid bass control, and effortlessly clean transients.

Each channel is served by four Grandioso-grade 10,000μF capacitors arranged in a dual-mono, parallel configuration. This ensures stable voltage regulation and consistent power delivery, even during intense musical peaks. Such a power infrastructure supports the amplifier’s ability to energise demanding speakers with refined grip and control.

Precision Components Ensure Textural Detail and Musical Warmth

High-quality internal components enhance tonal texture and signal transparency. The signal input stage features a newly developed balanced amplifier, isolating each channel from noise and maintaining stability under load. All switching in the signal path uses FET switches selected for minimal tonal colouration. Ultra-thick 105μm copper traces and OFC (oxygen-free copper) bus bars provide the foundation for pure, low-impedance signal flow.

In the output stage, Esoteric S-05 amplifier uses a triple parallel push-pull bipolar transistor configuration for fast current delivery. This structure excels in maintaining consistent performance under load, whether driving large woofers or revealing the shimmer of cymbals in delicate acoustic recordings.

Versatile Modes Expand System Customisation

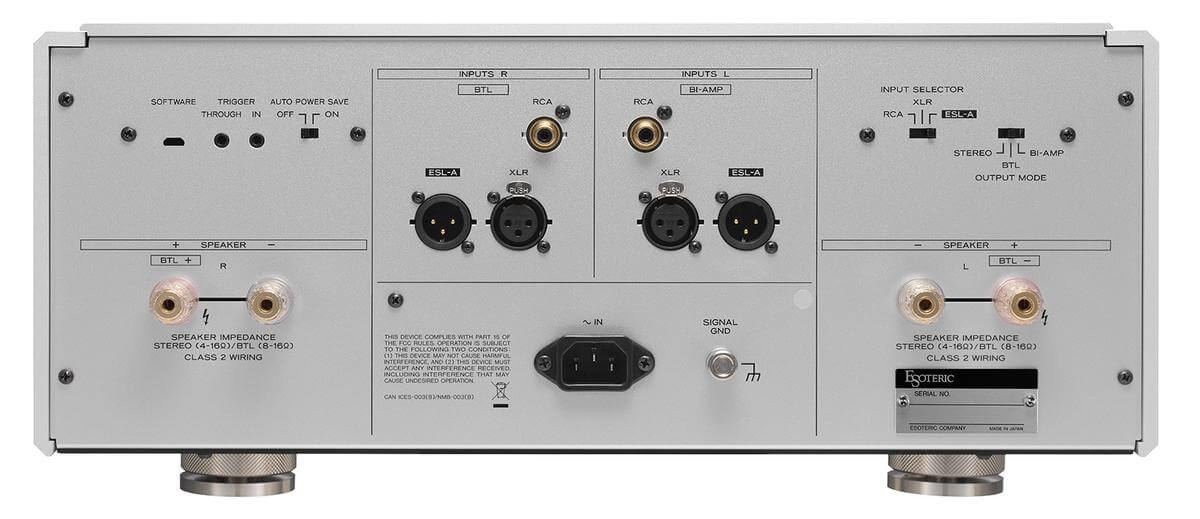

Flexible output configurations give the S-05 power amplifier extended utility in high-end setups. It operates natively in stereo mode, but a single switch enables deployment as a monaural amplifier in BTL mode or as a bi-amp mode driver.

• BTL Mode: Bridging both channels doubles the voltage swing, producing 120W into 8Ω for low-efficiency or power-hungry speakers. This monaural configuration ensures maximum output without losing Class-A detail.

• Bi-Amp Mode: This mode allows separate amplifier circuits within each S-05 unit to power the high and low frequencies of a multi-way speaker system independently. This results in clearer definition and control across the frequency spectrum, particularly beneficial for high-resolution listening where microdynamics and layering matter.


Each mode reflects the Esoteric S-05’s commitment to customisability without sacrificing sonic purity.

Industrial Aesthetic Reflects Japanese High-End Philosophy

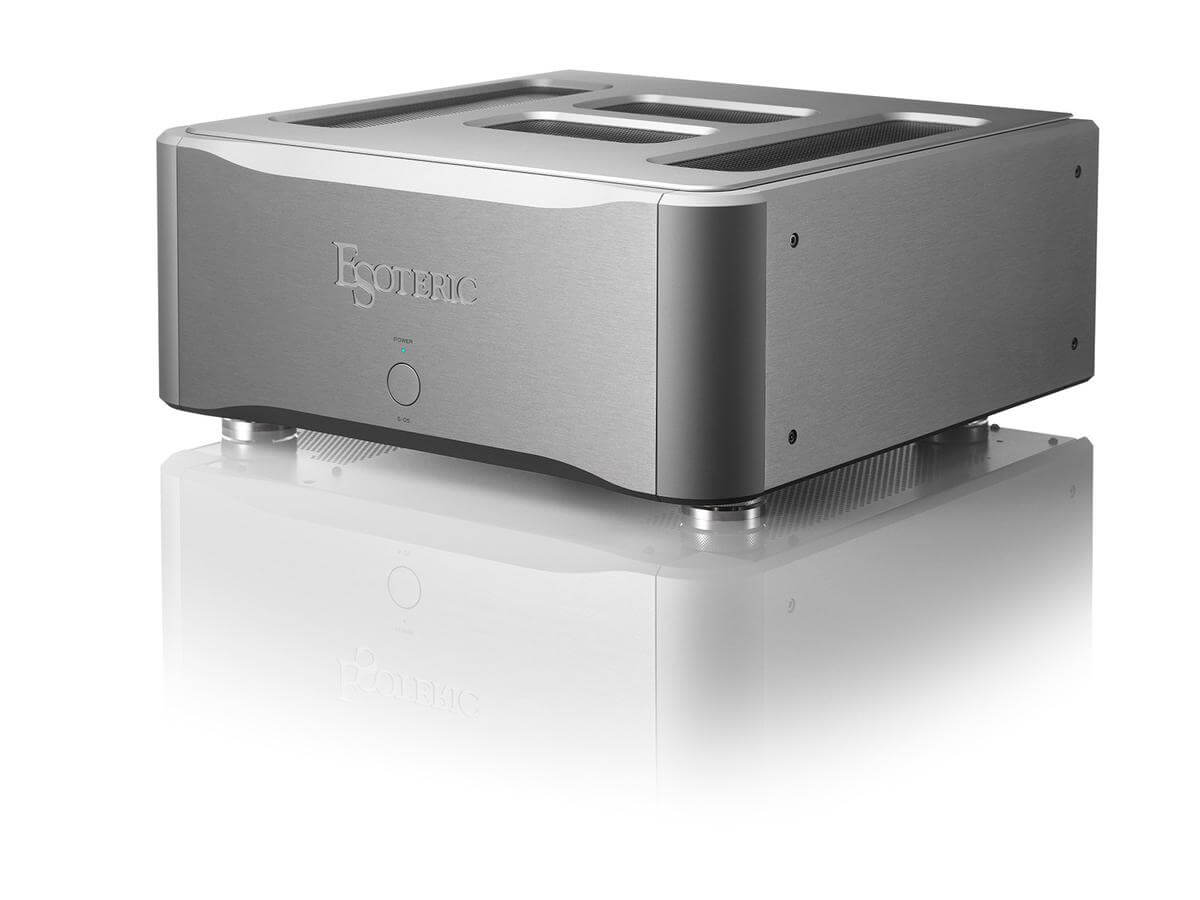

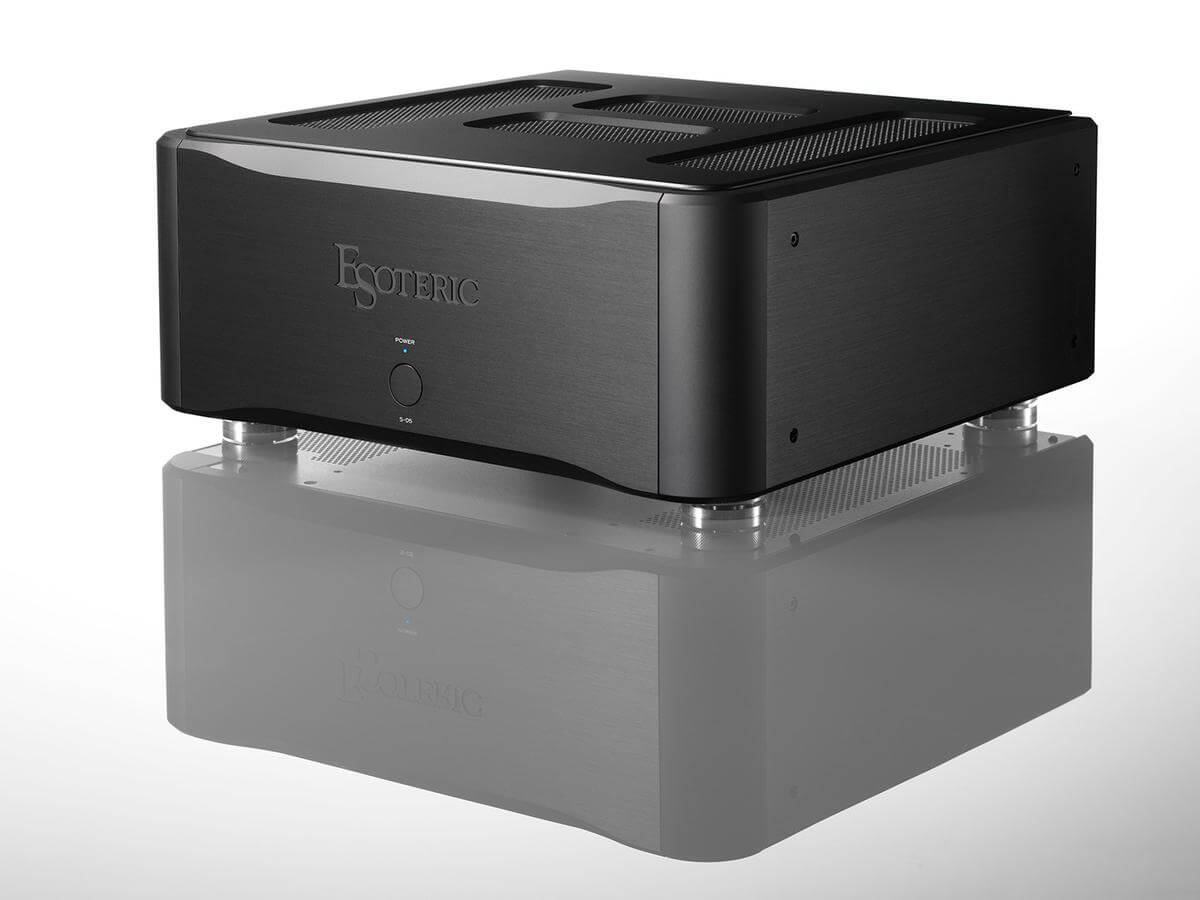

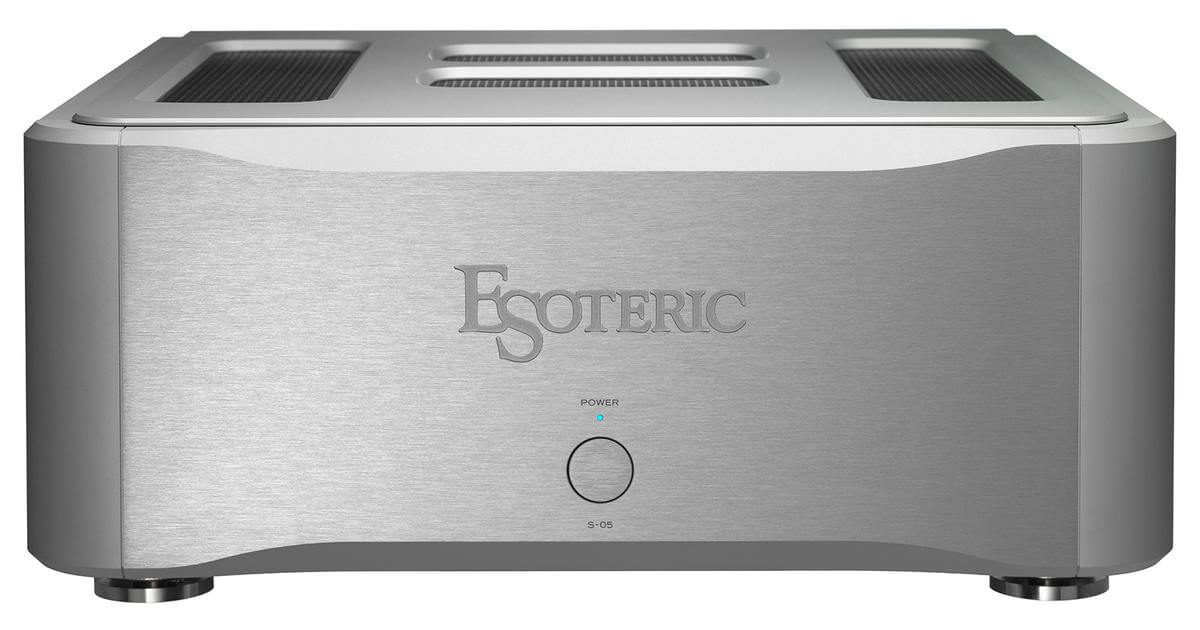

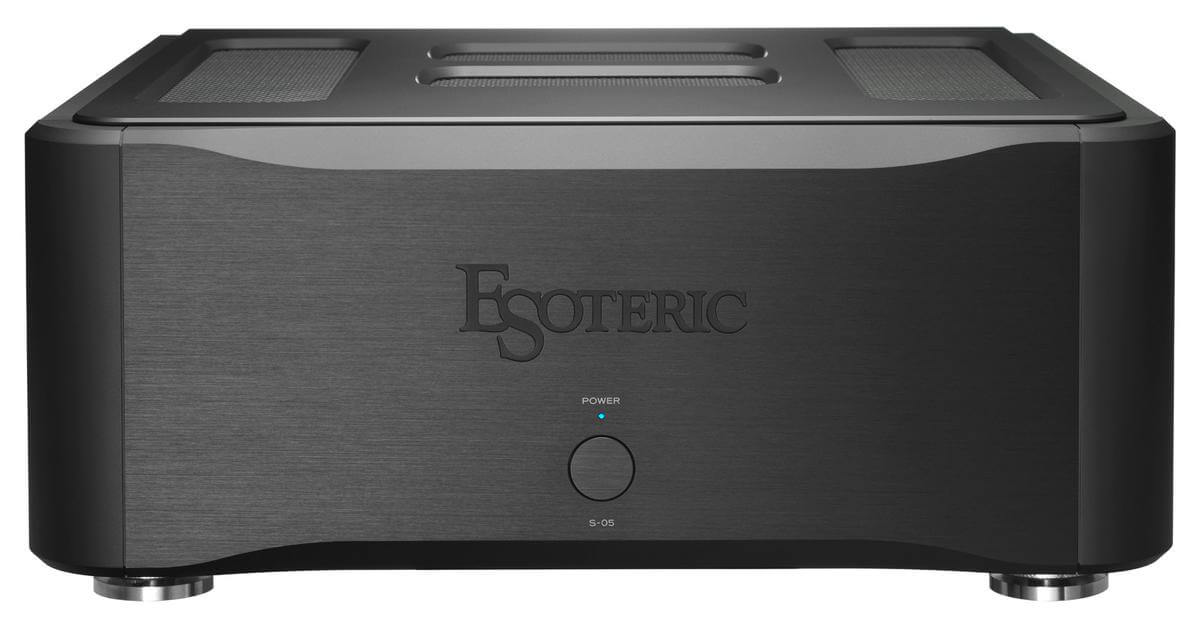

Minimalist design language mirrors the audio purity of the Esoteric S-05 stereo power amplifier. Available in S-05 Silver and S-05 B Black, the chassis features elegant aluminium machining and Esoteric’s signature semi-floating top panel, which helps suppress micro-resonances. Heat sinks are shaped to reduce peak resonance while efficiently dissipating heat generated by Class-A operation.

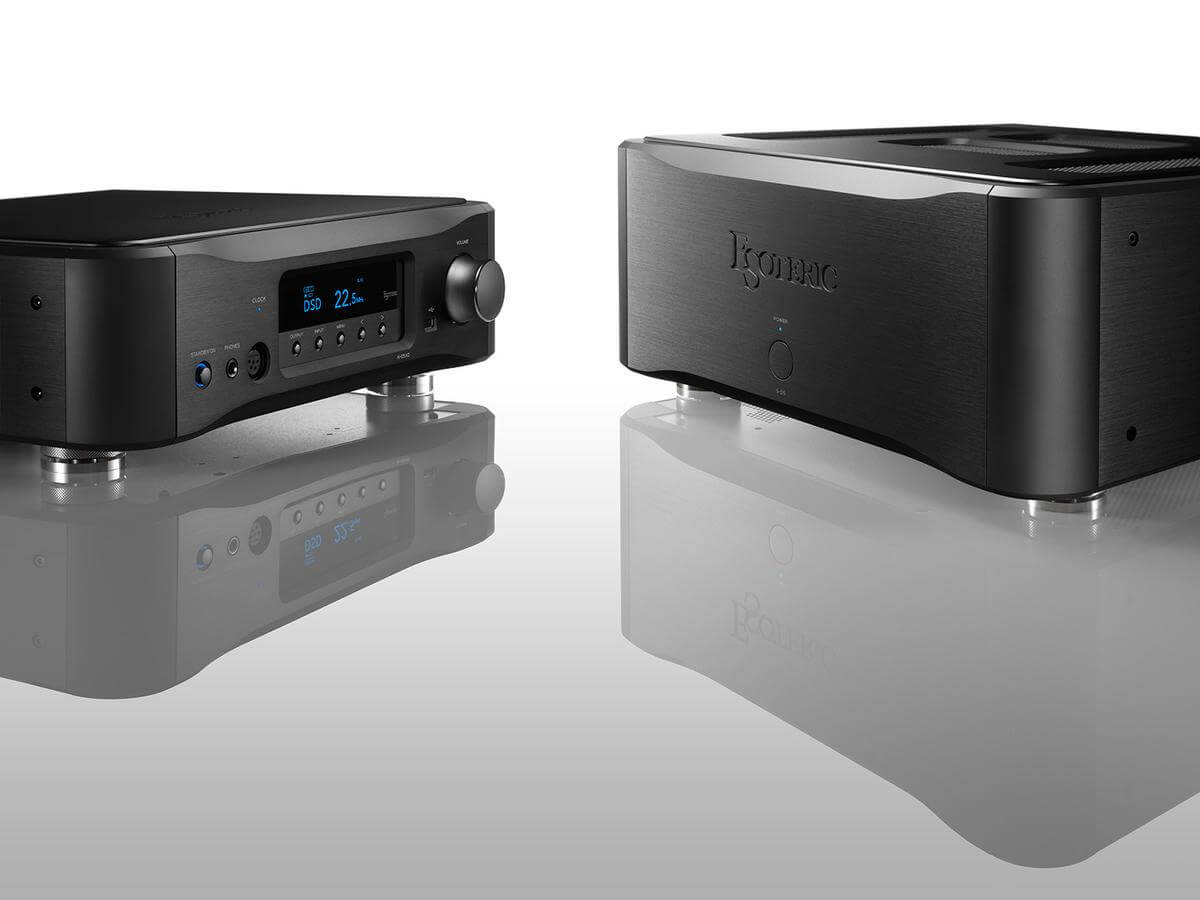

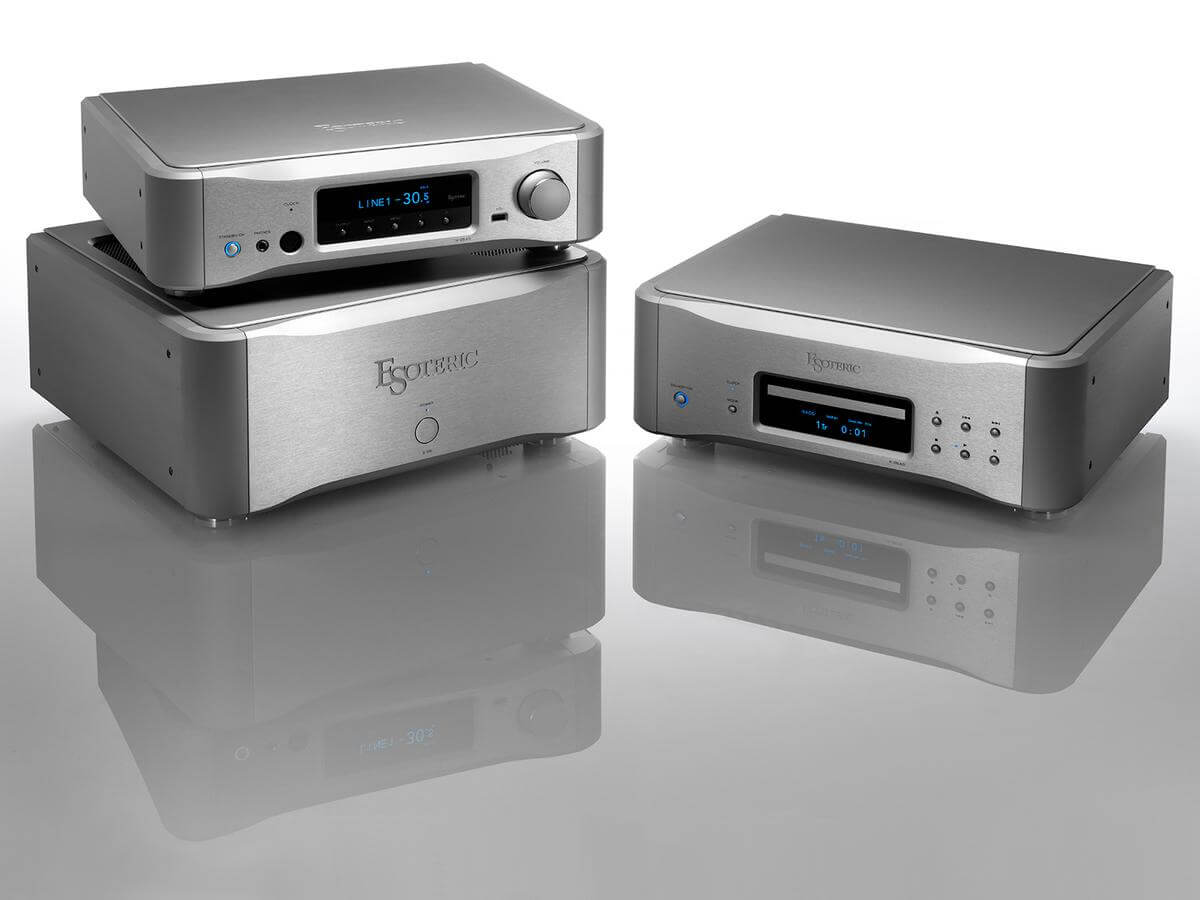

Esoteric isolation feet anchor the amplifier while isolating it from mechanical vibration. A DC trigger input enables the amplifier to power up automatically when linked to the N-05XD, enabling seamless integration into an elegant, two-component reference system.

The compact footprint of the S-05 stereo Class-A amplifier conceals its massive power capabilities, offering discerning listeners a no-compromise path to musical immersion in minimalist form.
