Brand: Lehmann Audio

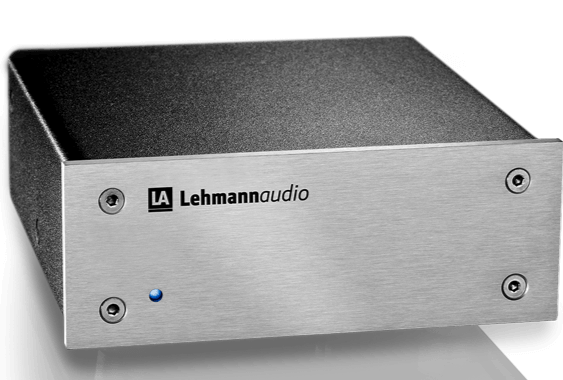

Lehmann Audio Black Cube II Phono Preamplifier

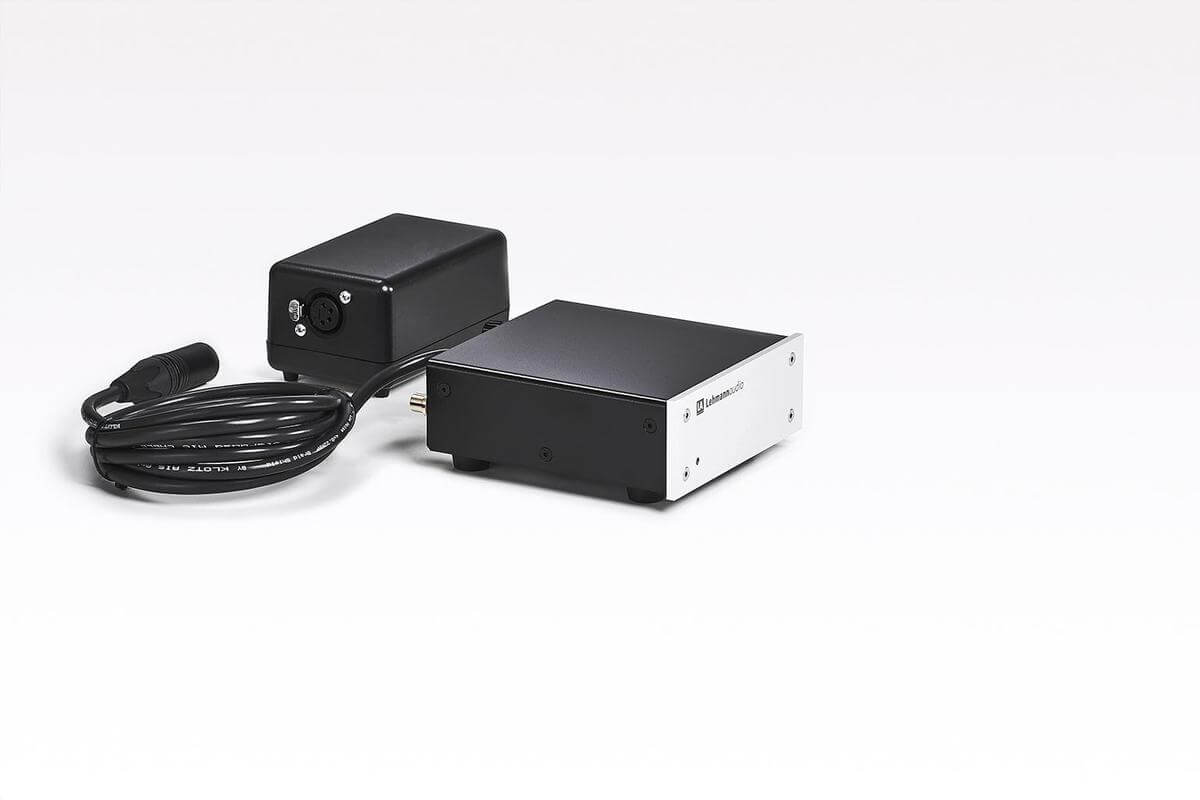

Black Cube II Phono Preamplifier is a high-performance, low-noise vinyl preamp by Lehmann Audio, engineered for MM and MC cartridges—even low-output or exotic types. It features a precision passive RIAA equalisation network, wide gain settings from 36 to 66 dB, and flexible impedance matching through solderless and hardwire slots. Built in a resonance-dampened, non-magnetic aluminium chassis with gold-plated RCA connectors, it offers transparent, punchy sound with excellent channel balance and subsonic filtering. The unit can be upgraded with the PWX power supply to become a Black Cube SE.
Specifications
Lehmann Audio Black Cube II Phono Preamplifier
| Specification | Value |
|---|---|
| Product |
Lehmann Black Cube II |
| Sensitivity for output level |
775 mV/0 dB (with activated high gain switch) |
| Gain 1 khz mm |
46 dB |
| Gain 1 khz mc |
66 dB |
| Maximum input level 1 khz mm |
45 mV |
| Maximum input level 1 khz mc |
4.5 mV |
| Signal to noise ratio rms unweighted mm |
71 dB |
| Signal to noise ratio rms unweighted mc |
63 dB |
| Signal to noise ratio condition |
MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz |
| Gain settings |
36 dB, 46 dB, 56 dB, 66 dB |
| Channel separation |
> 85 dB at 10 kHz |
| Input impedance |
47 kohms, 1 kohm, 100 ohms, 1 x custom load, 1 x hardwire slot |
| Output impedance |
47 ohms |
| Input capacitance |
100 pF |
| Channel mismatch |
typ. 0.5 dB |
| Bass filter |
16 settings between 7 Hz and app. 90 Hz |
| Power consumption |
< 3 W |
| Outer dimensions audio section |
114 mm x 124 mm x 50 mm |
| Outer dimensions power supply |
70 mm x 115 mm x 55 mm |
| Weight audio section incl. cable |
0.65 kg netto |
| Weight power supply |
0.3 kg netto |
Product Details

Lehmann Audio Black Cube II Phono Preamplifier
Sale price$1,500.00 AUD
