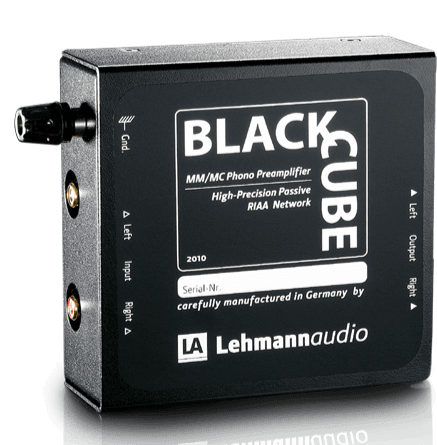

Lehmann Audio Black Cube Phono Preamplifier
Black Cube Phono Preamplifier is a compact, high-performance analogue preamp from Lehmannaudio, engineered in Germany for discerning vinyl enthusiasts. Its low-noise design, precise passive RIAA equalisation, and selectable gain settings make it compatible with virtually all MM and MC cartridges. With custom load options, hardwired impedance slots, and a mechanically dampened aluminium chassis, it delivers transparent, detailed playback with exceptional channel balance. The Black Cube is upgradeable to the Black Cube SE via the optional PWX power supply, offering flexibility for evolving audio systems.
Specifications
Lehmann Audio Black Cube Phono Preamplifier
Specification | Value |
---|---|
Model |
Black Cube |
Sensitivity for output level |
775 mV / 0 dB (with activated high gain jumper) |
Gain at 1 khz mm |
46 dB |
Gain at 1 khz mc |
66 dB |
Maximum input level at 1 khz mm |
45 mV |
Maximum input level at 1 khz mc |
4.5 mV |
Signal to noise ratio rms unweighted mm |
71 dB |
Signal to noise ratio rms unweighted mc |
63 dB |
Input level for snr mm |
3.8 mV / 1 kHz |
Input level for snr mc |
0.38 mV / 1 kHz |
Gain settings |
36 dB, 46 dB, 56 dB, 66 dB |
Channel separation |
> 85 dB at 10 kHz |
Input impedance |
47 kohms, 1 kohm, 100 ohms |
Custom load slots |
1 x custom load, 1 x hardwire slot |
Output impedance |
47 ohms |
Input capacitance |
100 pF |
Channel mismatch |
typ. 0.5 dB |
Bass filter |
50 Hz, 6 dB/oct. |
Power consumption |
< 3 W |
Dimensions audio section w x d x h |
113 mm x 108 mm x 45 mm |
Dimensions power supply w x d x h |
70 mm x 115 mm x 55 mm |
Weight audio section |
0.4 kg netto |
Weight power supply |
0.3 kg netto |
Product Details

Lehmann Audio Black Cube Phono Preamplifier
Sale price$1,199.00 AUD
