Brand: Lehmann Audio

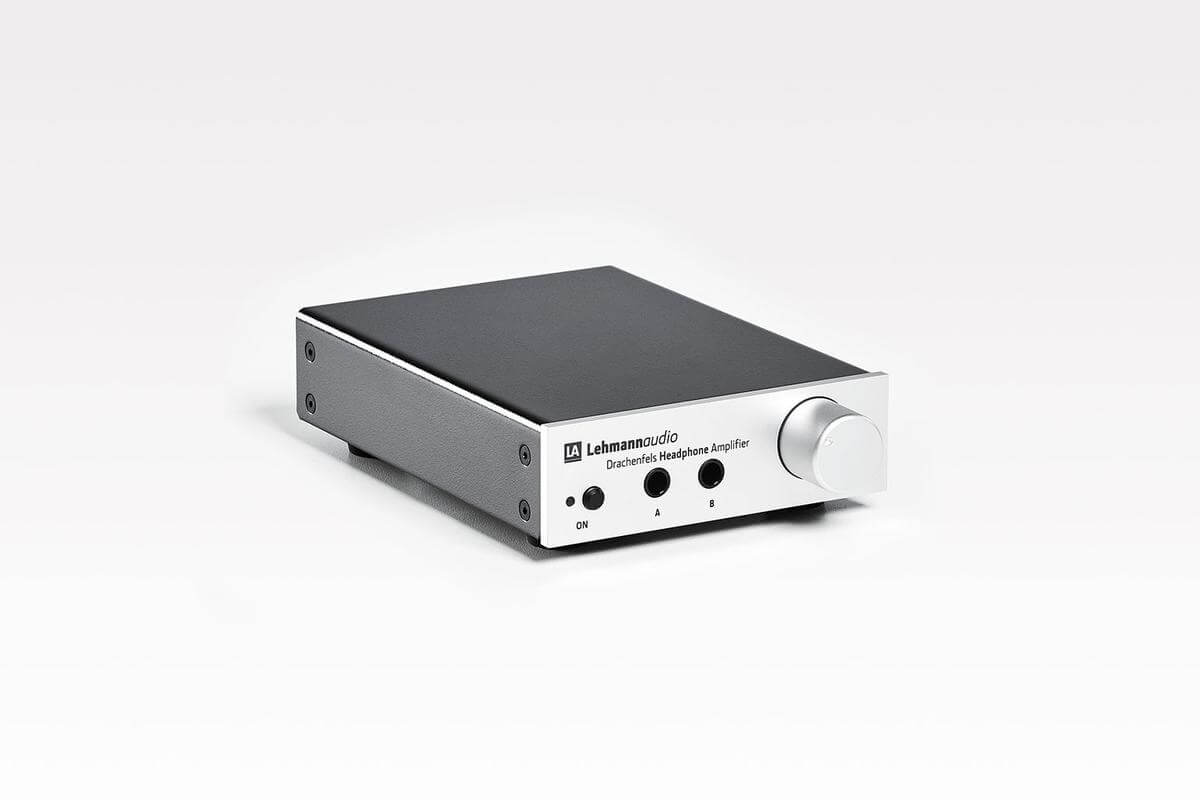

Lehmann Audio Drachenfels D Digital Headphone Amplifier
The Drachenfels D by Lehmannaudio enhances the analogue model with a high-performance ESS Sabre DAC, delivering reference-quality sound from digital sources. Equipped with S/PDIF and TOSLINK inputs, it connects seamlessly to streamers and CD players while preserving the brand’s renowned clarity and musicality. With low-loss mica capacitors, ultra-fast amplifier stages, and RF-optimised circuit design, the Drachenfels D transforms digital libraries into a rich, detailed, and emotionally engaging listening experience.
Specifications
Lehmann Audio Drachenfels D Digital Headphone Amplifier
| Specification | Value |
|---|---|
| Model |
Drachenfels |
| Input impedance |
47 kohms |
| Maximum gain |
12 dB with maximum potentiometer setting |
| Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
| Signal to noise ratio |
> 85 dB at gain 0 dB |
| Thd |
< 0.006 % at 18 mW/330 ohms |
| Channel separation |
> 80 dB at 10 kHz |
| Output power 330 ohms |
110 mW |
| Output power 33 ohms |
180 mW |
| Output impedance pre-out |
105 ohms |
| Output impedance phones out |
5 ohms |
| Connectors audio |
Neutrik headphone sockets with gold-plated contacts |
| Connectors pre-out |
1 x pre-out |
| Connectors phones out |
2 x phones out |
| Connectors line in/pre-out |
RCA |
| Power consumption |
approx. 4 W through external wide range wall power supply (without any optional pc board) |
| Outer dimensions w x d x h |
160 mm x 120 mm x 43 mm (audio section) |
| Weight |
0.5 kg (1.1 lbs.) net (audio section) |
Product Details

Lehmann Audio Drachenfels D Digital Headphone Amplifier
Sale price$2,040.00 AUD
