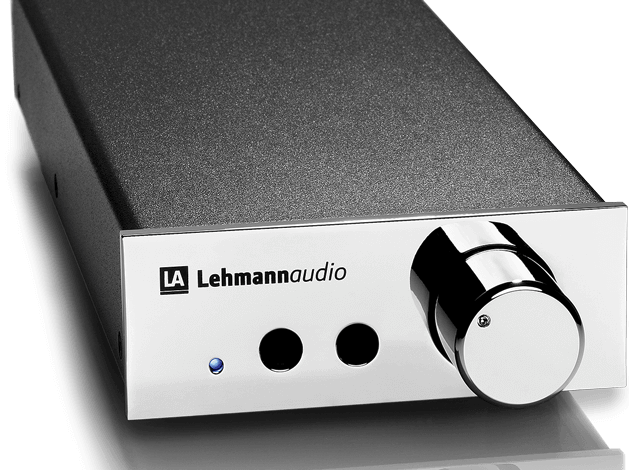

Lehmann Audio Linear Headphone Preamplifier
The Lehmannaudio Linear Headphone Amplifier is a reference-class solid-state preamplifier designed to extract maximum detail and musicality from high-end dynamic headphones. With a discrete Class A output stage, zero global feedback, and three selectable gain levels, it ensures precise control and transparency across a wide range of headphone sensitivities. Dual gold-plated Neutrik outputs allow two headphones to be used simultaneously without signal loss, while its low output impedance enables seamless integration with active loudspeakers. Hand-built in Germany with carefully selected components and an oversized power supply, the Linear delivers a spacious, open soundstage ideal for critical listening or professional audio work.
Specifications
Lehmann Audio Linear Headphone Preamplifier
Specification | Value |
---|---|
Input impedance |
47 kohms |
Maximum gain |
0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
Signal to noise ratio |
> 95 dB at gain 0 dB |
Thd |
< 0.001 % at 6 mW/300 ohms |
Channel separation |
> 70 dB at 10 kHz |
Output power 60 ohms |
400 mW |
Output power 300 ohms |
200 mW |
Output impedance pre-out |
50 ohms |
Output impedance phones out |
5 ohms |
Connectors audio |

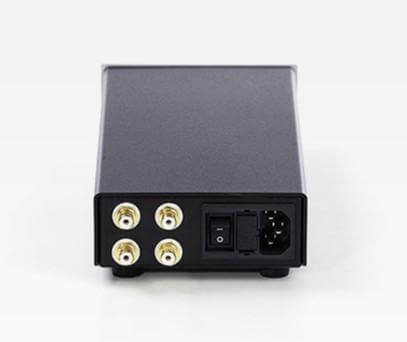

Neutrik headphone jacks with gold plated contacts, 1 x pre-out, 2 x phones out, gold plated RCA sockets with teflon insulation |
Power consumption |
10 W |
Outer dimensions w x d x h |
110 mm x 280 mm x 50 mm |
Weight |
1.5 kg netto |
