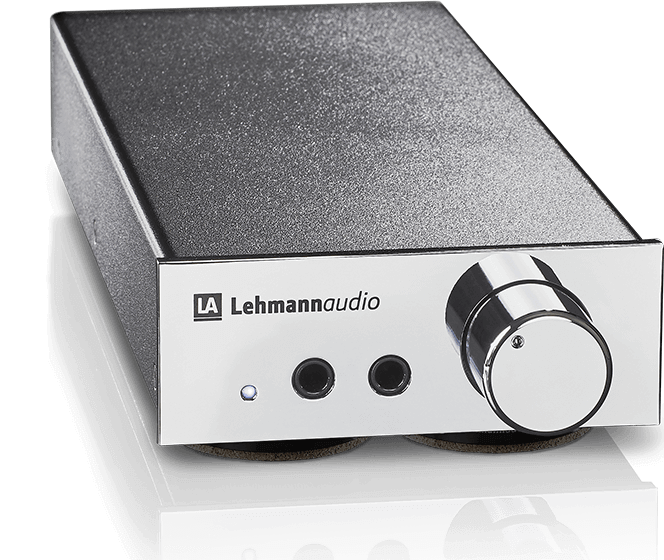

Lehmann Audio Linear II Headphone Preamplifier
The Linear II headphone preamplifier is a premium second-generation amplifier from Lehmannaudio, crafted for audiophiles and professional listeners seeking exceptional clarity and musicality. It features a discrete Class A output stage, Low-Z copper circuit board, and Mundorf capacitors for enhanced dynamics, transparency, and spatial accuracy. With selectable gain settings and dual gold-plated headphone outputs, it delivers precise control and high-current performance across a wide range of headphones. Its oversized power supply and low output impedance also make it ideal as a single-source preamplifier for active speakers, all within a compact, elegantly finished chassis.
To secure a unit, please enquire directly regarding current availability, as lead times may vary.
Specifications
Lehmann Audio Linear II Headphone Preamplifier
Specification | Value |
---|---|
Model |
Linear II |
Input impedance |
47 kohms |
Maximum gain |
0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
Signal to noise ratio |
> 100 dB at Gain 0 dB |
Thd |
< 0.001 % at 6 mW/300 ohms |
Channel separation |
> 70 dB at 10 kHz |
Output power 60 ohms |
400 mW |
Output power 300 ohms |
200 mW |
Output impedance pre-out |
60 ohms |
Output impedance phones out |
5 ohms |
Connectors audio |
Neutrik headphone jacks with gold plated contacts, 1 x pre-out, 2 x phones out, gold plated RCA sockets with teflon insulation |
Power consumption |
10 W |
Outer dimensions w x d x h |
110 mm x 280 mm x 50 mm |
Weight |
1.5 kg netto |
