Brand: Lehmann Audio

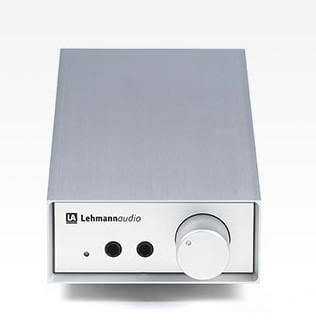

Lehmann Audio Linear SE USB II Headphone Amplifier Preamplifier
Lehmannaudio Linear SE mk II USB is a high-end headphone amplifier and USB-DAC that fuses reference-class analogue design with 384 kHz / 32-bit digital conversion. Built in Germany, it delivers pure, natural sound with ultra-low distortion and wide dynamic range. Its discrete Class A circuitry, Mundorf capacitors, and Low-Z Copper analogue board ensure exceptional clarity and musical depth. Dual gold-plated Neutrik headphone outputs, adjustable gain, and a USB input prioritisation system make it ideal for both audiophiles and professionals seeking uncompromised sound from digital sources.
To secure a unit, please enquire directly regarding current availability, as lead times may vary.
Specifications
Lehmann Audio Linear SE USB II Headphone Amplifier Preamplifier
Specification | Value |
---|---|
Model |
Linear SE USB II |
Digital options |
USB-DAC 384/32, Prioritization: I: USB input, II: line input analogue; TOSLINK/SPDIF DAC 192/24, Prioritization: I: TOSLINK input, II: RCA input digital, III: line input analogue |
Input impedance |
47 kohms |
Maximum gain |
0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
Signal to noise ratio |
> 100 dB at gain 0 dB |
Thd |
< 0.001 % at 6 mW/300 Ohms |
Channel separation |
> 70 dB at 10 kHz |
Output power |
400 mW/60 Ohms, 200 mW/300 Ohms |
Output impedance |
pre-out 60 Ohms, phones out 5 Ohms |
Connectors audio |
Neutrik headphone jacks with gold plated contacts, 1 x pre-out, 2 x phones out, gold plated RCA sockets with teflon insulation |
Power consumption |
10 W |
Outer dimensions w x d x h |
120 mm x 296 mm x 59 mm |
Weight |
2.2 kg netto |
Product Details

Lehmann Audio Linear SE USB II Headphone Amplifier Preamplifier
Sale price$4,890.00 AUD
