Ortofon 2M Black LVB 250 Pre-Mounted Cartridge

Is the Ortofon 2M Black LVB 250 Pre-Mounted the Right Flagship MM Cartridge for Your Turntable?

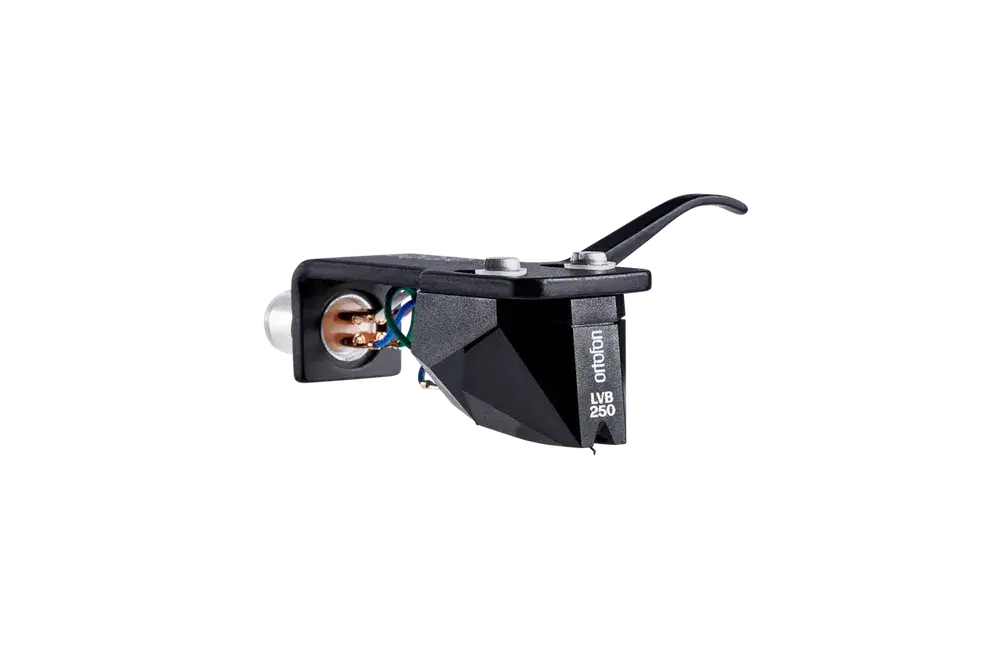

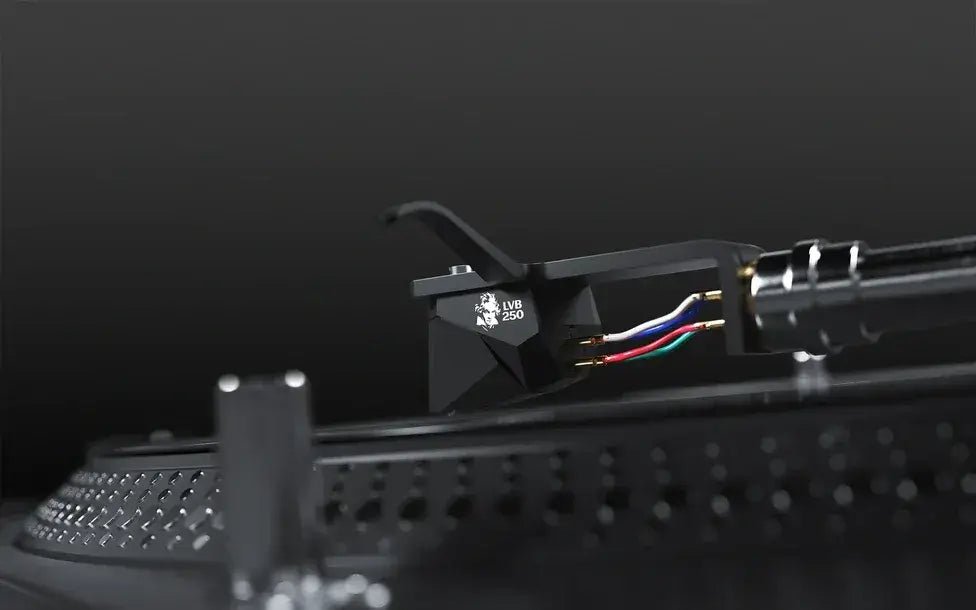

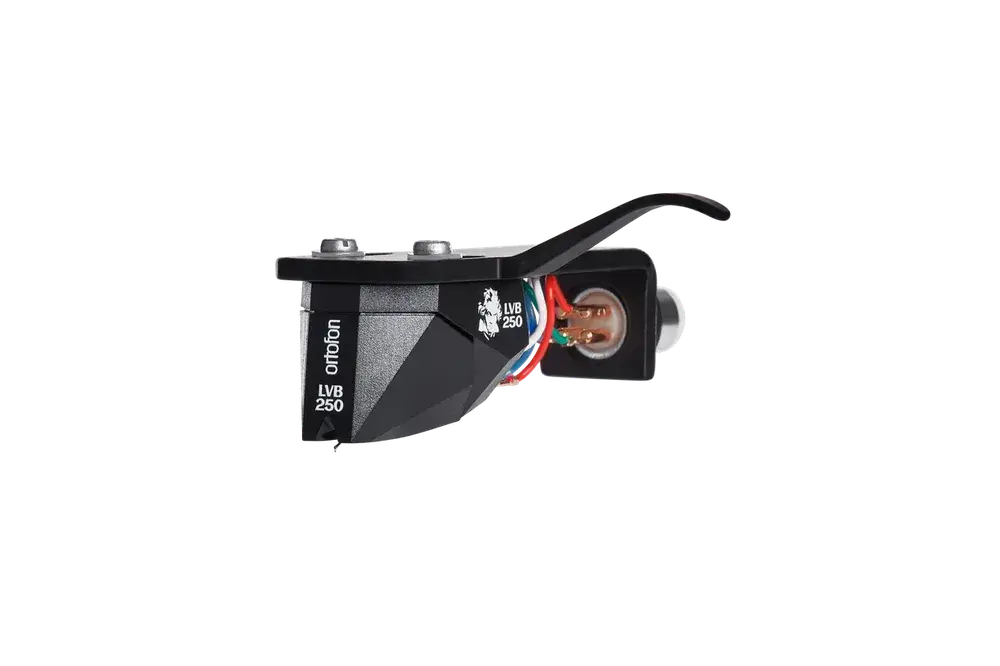

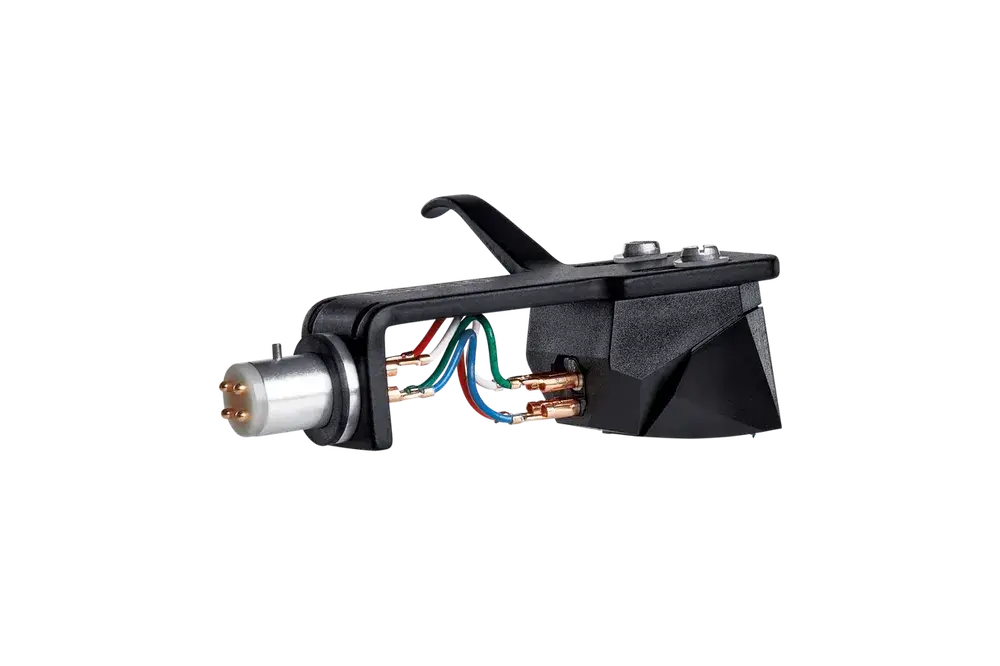

Ortofon 2M Black LVB 250 Pre-Mounted is the top model in Ortofon's 2M moving magnet range, mounted on Ortofon's SH-4 headshell. It's aimed at vinyl listeners with a detachable-headshell tonearm who want the 2M range's flagship cartridge as a single assembly. The 2M Black LVB 250 takes the 2M Black's build and adds a boron cantilever and a suspension made from a new carbon nano tube rubber compound. Its Nude Shibata diamond on boron is the stylus and cantilever pairing Ortofon uses in its Cadenza Black moving coil cartridge.

Ortofon released this cartridge as an exclusive model marking the 250th anniversary of Ludwig van Beethoven's birth, which gives the LVB 250 its name. It's a moving magnet design for standard MM phono inputs.

What Do the Boron Cantilever and Nude Shibata Stylus Change in the 2M Black LVB 250 Pre-Mounted?

The 2M Black LVB 250 Pre-Mounted is fitted with a Nude Shibata diamond, a line-contact stylus shape, on a boron cantilever. Ortofon specifies both parts to improve how accurately the cartridge reads the groove.

The Nude Shibata's r/R 6/50 µm tip radii quantify its slim profile. Ortofon states that this slim, highly polished shape gives an exceedingly wide contact area with the groove walls and detailed reproduction across the spectrum, including the highest frequencies. Ortofon's cartridge guide explains the principle. Finer diamond cuts create a larger contact area, follow the groove more precisely and come closer to the profile of the cutting stylus that made the record. Ortofon's guide groups the Shibata with line-contact shapes, alongside the spherical (conical) and elliptical families.

"Nude" means the stylus is solid diamond, not a diamond tip mounted on a metal shank as in tipped styli. Ortofon's guide notes that nude diamonds weigh less than tipped ones, which improves responsiveness and detail and reduces distortion.

The boron cantilever carries the diamond's movement to the cartridge's generator. Ortofon chose boron because it's extremely stiff and lightweight. A stiffer cantilever flexes less under load, and a lighter one has less mass to move. Ortofon credits it with added transparency, speed and responsiveness.

Why Did Ortofon Develop a Carbon Nano Tube Suspension?

This cartridge is fitted with a suspension made from a new rubber compound filled with Multi Wall Carbon Nano Tubes (MWCNT). Ortofon developed the compound to optimise the interaction between compliance and damping. Compliance is how freely the cantilever moves. Damping controls unwanted movement.

Ortofon states that the MWCNT nano filler gives the compound mechanical properties that improve damping and overall cartridge performance. The suspension's resulting dynamic lateral compliance of 22 µm/mN is the figure that determines which tonearms suit the cartridge.

How Does the Ortofon 2M Black LVB 250 Pre-Mounted Compare With Its Alternatives?

The Ortofon 2M Black LVB 250 Pre-Mounted is the top step in a 2M range that runs through the 2M Red, 2M Blue, 2M Bronze and 2M Black. Buyers usually weigh it against three alternatives.

The 2M Black is the cartridge the LVB 250 is built from. Ortofon's spec sheet lists the LVB 250 replacement stylus as interchangeable with the 2M Black and 2M Bronze. That gives existing owners of either cartridge the option of fitting the LVB 250 stylus unit to their current body.

The 2M Bronze sits below the 2M Black in the range. The same published interchangeability means a 2M Bronze body can take the LVB 250 stylus unit later.

Moving coil cartridges such as Ortofon's Cadenza Black are the main alternative outside the MM category. The LVB 250 shares the Cadenza Black's Nude Shibata and boron pairing. HIFI Maailma's reviewer judged the LVB 250 a viable alternative to a good-quality MC cartridge. Ortofon's guide recommends moving magnet designs for buyers who want a replaceable stylus and an easy upgrade path.

Choose the LVB 250 over the 2M Black if the boron cantilever and MWCNT suspension justify the step up. Choose it over a moving coil design if you'd rather stay with an MM phono input and a replaceable stylus.

Which Tonearms Will It Match?

This pre-mounted cartridge is rated at 22 µm/mN compliance and 7.2 g body weight, a pairing Ortofon positions to suit the vast majority of modern tonearms. The 22 µm/mN figure sits above the 10–20 µm/mN band that Ortofon's guide classes as moderate compliance. Ortofon's guide pairs low-mass arms, rated at 10 g effective mass or below, with higher-compliance cartridges.

Ortofon calculates the arm and cartridge resonance as F = 1000 ÷ (2π × √(M × C)). M is the cartridge's mass plus the headshell and screws, plus the tonearm's effective mass. Ortofon treats 7–12 Hz as optimal, with 10 Hz recommended, and 6.5–7 Hz as usable. Below 6.5 Hz, Ortofon describes the system as questionable.

The published pre-mounted weight is 16.7 g. Using that figure, the assembly alone gives approximately 8.3 Hz before tonearm mass is added. An arm contributing up to approximately 6.8 g of effective mass keeps resonance at or above 7 Hz. Up to approximately 10.5 g lands in the 6.5–7 Hz band Ortofon calls usable. With 16.7 g at the headshell, resonance sits towards the lower end of the window rather than at the 10 Hz recommendation.

Check how your tonearm's manufacturer quotes effective mass. If the figure already includes a headshell, subtract that headshell's weight before adding the 16.7 g assembly. Ortofon's guide classes arms above 25 g as high mass, which would take resonance below Ortofon's usable window.

Does Your Turntable Need a Detachable Headshell?

The pre-mounted version is the right choice only if your tonearm takes a detachable headshell. The cartridge comes mounted on Ortofon's SH-4 headshell and installs as one unit at the headshell coupling. Check that your arm's coupling accepts the SH-4 before you buy.

If your arm has a fixed headshell, the standalone 2M Black LVB 250 cartridge is the variant to choose. On a detachable-headshell arm, the SH-4 assembly lets you swap between the LVB 250 and cartridges on other headshells without re-mounting.

What Phono Stage Does It Need?

This moving magnet cartridge is specified for a 47 kΩ load resistance and 150–300 pF load capacitance, with a 5 mV output at 1 kHz and 5 cm/s. Check that your phono stage's MM input offers a 47 kΩ load. If it has adjustable capacitance, select a value within the 150–300 pF range.

How Do You Set Up the 2M Black LVB 250 Pre-Mounted?

The 2M Black LVB 250 Pre-Mounted is ready to attach, but it still needs adjusting on your tonearm. Balance the arm first, and check that your counterweight can offset a 16.7 g headshell assembly. Set tracking force to Ortofon's recommended 1.6 g, within the permitted 1.5–1.7 g range. Ortofon measures the cartridge's 80 µm tracking ability at 315 Hz at that recommended force.

The cartridge is specified for a 20° vertical tracking angle. Set arm height following your tonearm manufacturer's instructions. Ortofon lists its Premium Alignment Tool among its setup accessories.

If you move the cartridge to a different headshell, follow Ortofon's pin colour code. Connect white to left positive, blue to left ground, red to right positive and green to right ground.

What Happens When the Stylus Wears Out?

The 2M Black LVB 250 is fitted with a user-replaceable stylus unit, sold by Ortofon as the 2M Black LVB 250 replacement stylus. Replacing the stylus unit renews the diamond and cantilever without removing the cartridge body from the SH-4 headshell.
