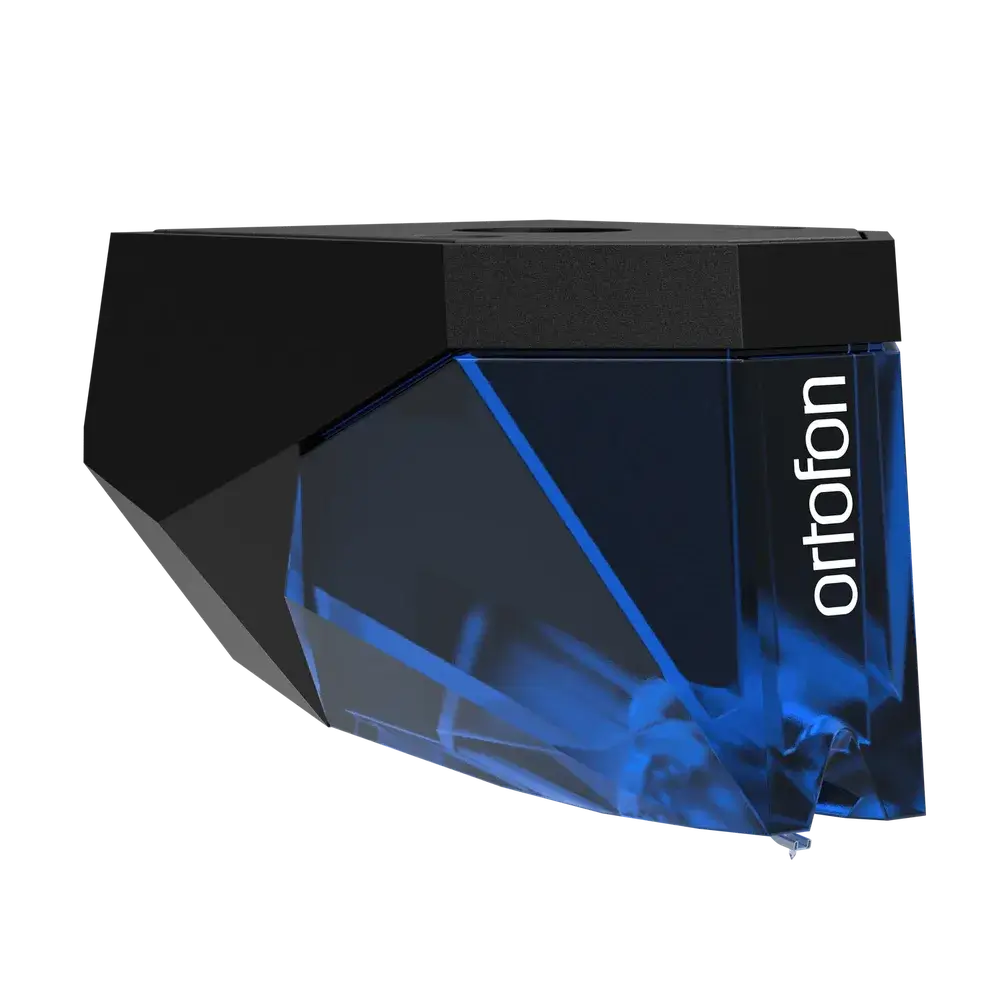

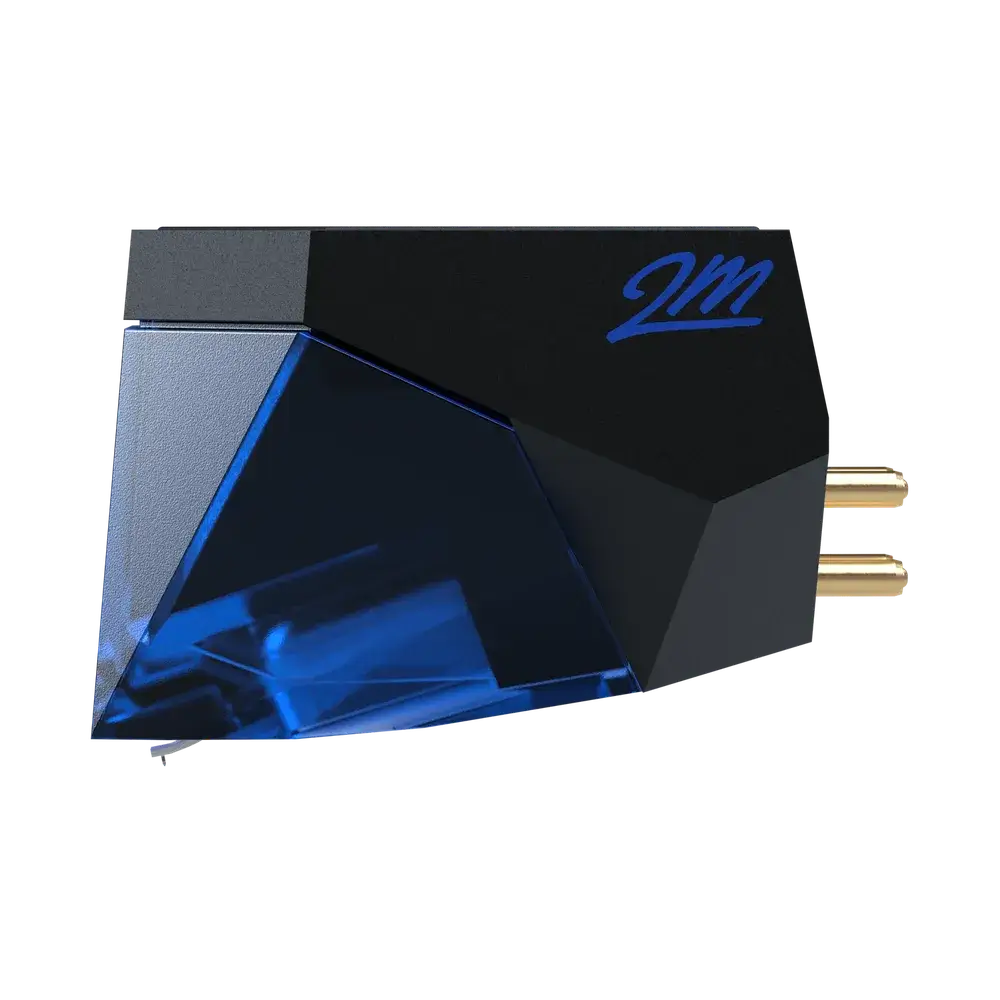

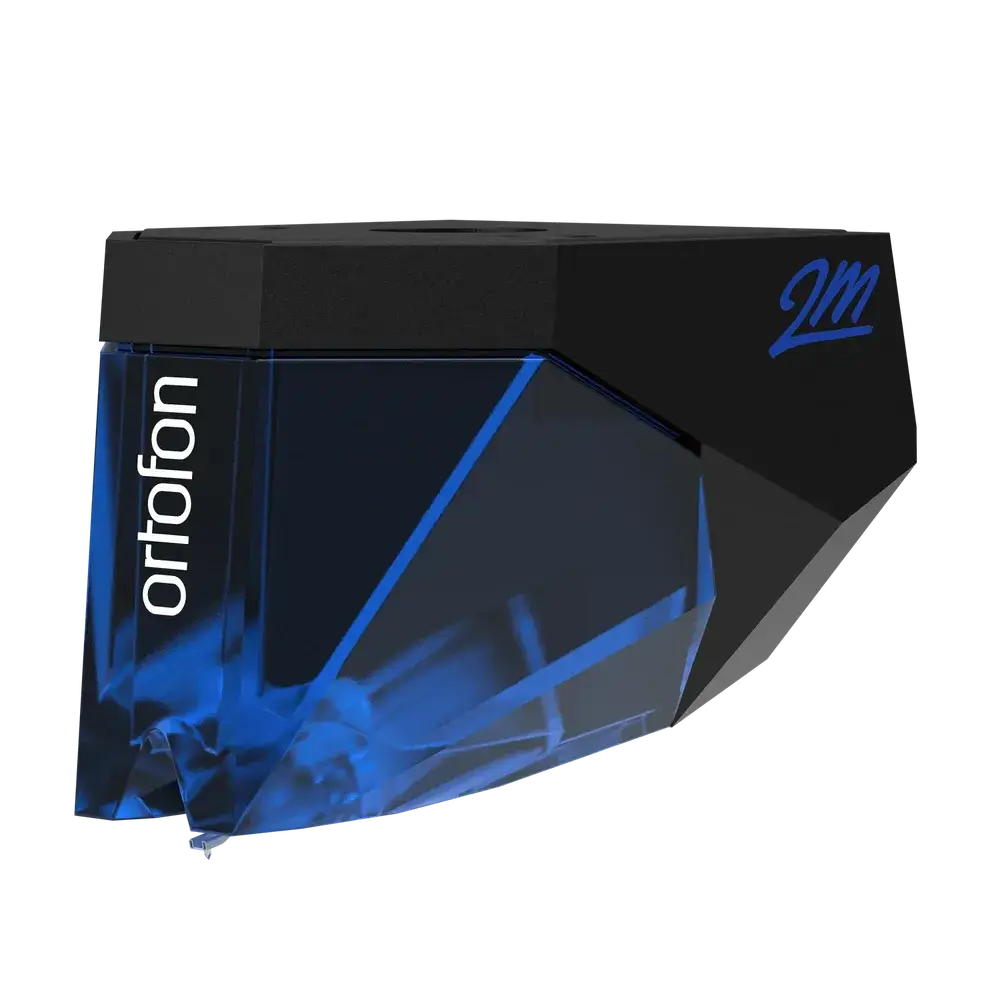

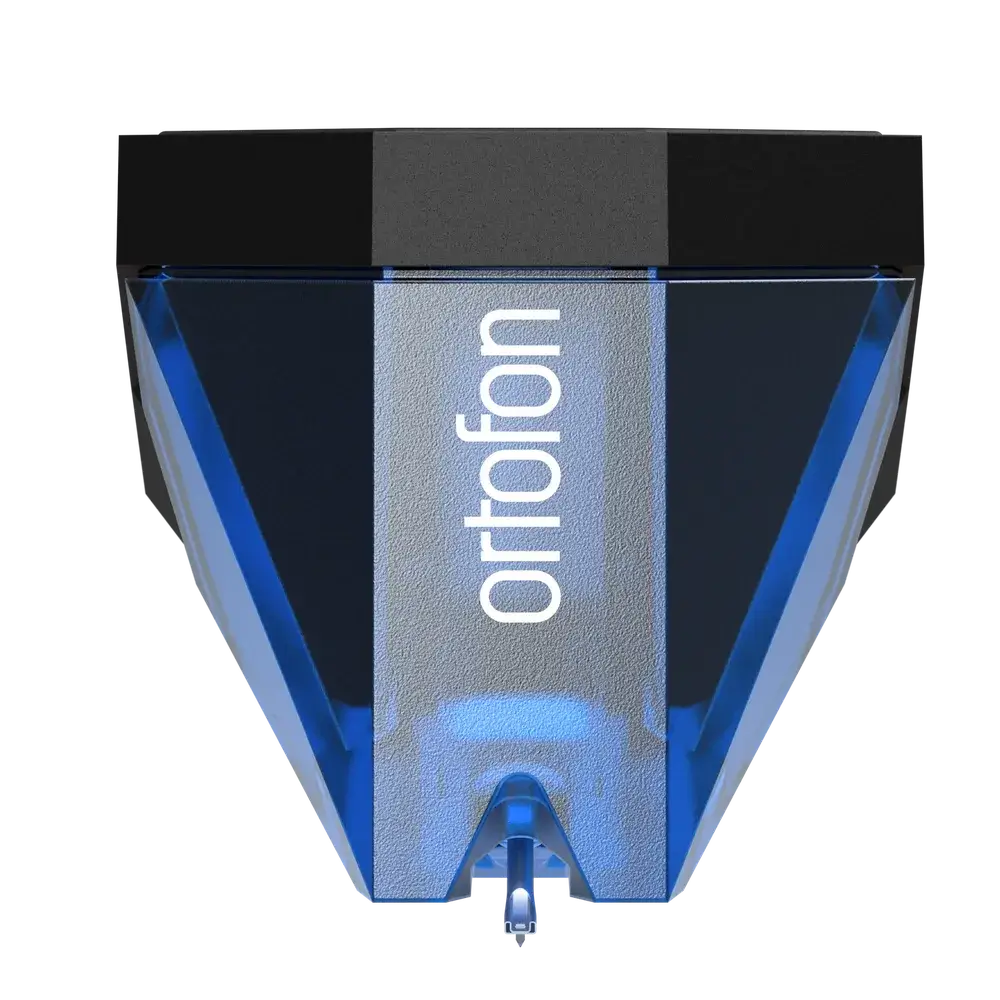

Ortofon 2M Blue Moving Magnet Cartridge

Ortofon 2M Blue: accurate vinyl reproduction for serious listeners

What sets the Ortofon 2M Blue apart from the 2M Red?

The Ortofon 2M Blue is the higher-output model in Ortofon's 2M moving magnet range, fitted with split pole pins, Ortofon's own invention and trademark. The design lets a moving magnet cartridge produce a frequency response as flat as a moving coil cartridge by reducing energy loss in the magnetic circuit, so less of the original musical signal is absorbed within the generator before it reaches the phono stage. Ortofon states that the 2M Blue adds more dynamics and resolution, sounds more open and reproduces more detail than the 2M Red, an outcome the output voltage of 5.5 mV at 1 kHz supports by giving the cartridge more signal to work with. Channel separation reaches 25 dB and channel balance sits within 1.5 dB at 1 kHz, figures that govern how precisely the cartridge keeps the left and right channels distinct and matched in level, which affects how stable and well-defined the stereo image is.

Which turntables and tonearms work with the Ortofon 2M Blue?

The 2M Blue is one of four variants in the 2M Series, each built so the same engine and stylus combination can fit a different mounting standard. The standard 2M Blue suits most common turntables and tonearms. Ortofon also offers a 2M Premounted version for owners who want a cartridge that mounts and replaces directly onto an S-shaped tonearm, a 2M Verso for bottom-mount headshells, and a 2MR built with a low-form-factor housing for turntables and tonearms such as Rega, which need a more compact cartridge body. Picking the right variant for an existing tonearm and headshell means a buyer doesn't need adapters or non-standard fixings during installation, and it keeps the cartridge geometry within the tolerances the engine was designed around.

How is the Ortofon 2M Blue mounted and aligned on a tonearm?

The 2M Blue is installed by setting tracking force, tracking angle and azimuth, adjustments that work together with the cartridge's internal geometry to keep the stylus tracing the groove accurately. The recommended tracking angle is 20 degrees, and the recommended tracking force is 1.8 g within a working range of 1.6 to 2.0 g. Tracking force affects how the Nude Elliptical stylus sits in the groove: too little and the stylus can lose contact during loud or complex passages, too much and it adds unnecessary wear to both stylus and record. A dynamic lateral compliance of 20 µm/mN means the cantilever-suspension assembly isn't especially stiff, which suits tonearms of low to medium effective mass and is worth checking against an existing arm before buying.

What load settings does the phono stage need?

The 2M Blue is a moving magnet cartridge that depends on the phono stage loading it correctly to deliver its stated frequency response. Ortofon specifies a recommended load resistance of 47 kOhm and a load capacitance of 150 to 300 pF, working alongside the cartridge's internal impedance of 1.3 kOhm and internal inductance of 700 mH. Capacitance loading outside the recommended range shifts the high-frequency response of a moving magnet design, so a phono stage with adjustable capacitance gives a buyer more control over matching the 2M Blue to their cable and equipment chain, while a fixed-capacitance input close to the recommended figure will still deliver the cartridge's specified response.

Who should choose the Ortofon 2M Blue over the 2M Red?

The Ortofon 2M Blue is the natural upgrade for a buyer already running the 2M Red who wants more dynamics, resolution and detail, since Ortofon states the 2M Blue sounds more open and resolves more detail than the 2M Red it sits above. Ortofon builds four stereo models in its 2M Series, and the differences between them centre on stylus profile, body material and engine, so a buyer who wants more than the 2M Blue offers would look further up the range, while a buyer who finds the 2M Red's output and detail sufficient won't need to spend more to reach the 2M Blue's level of accuracy.

What stylus and cantilever does the Ortofon 2M Blue use?

The 2M Blue is fitted with a Nude Elliptical stylus on an aluminium cantilever, with a stylus tip radius of 8/18 µm. A nude-cut diamond, rather than one bonded to a metal shank, keeps the moving mass at the stylus tip lower, which lets the stylus follow fine groove modulations more closely and supports the cartridge's tracking ability of 80 µm at 315 Hz. The elliptical profile contacts the groove wall across a defined area shaped to follow the cutting geometry used on most vinyl records.

What is the cartridge body made from?

The 2M Blue is built with a body that combines polymer and aluminium in a black housing finished with a blue stylus for identification, and the standard cartridge weighs 7.2 g, with the premounted version weighing 16.7 g once fitted to its headshell. Cartridge weight is one of the figures a buyer needs when checking tonearm and counterweight compatibility, since combined with the tonearm's effective mass it sets the resonant frequency of the arm-cartridge system, and a mismatch here can affect tracking stability. The coil system uses quad-coils with split pole pins and OFC coil wire, wound with oxygen-free copper to keep electrical resistance low along the signal path from stylus to output terminals.
