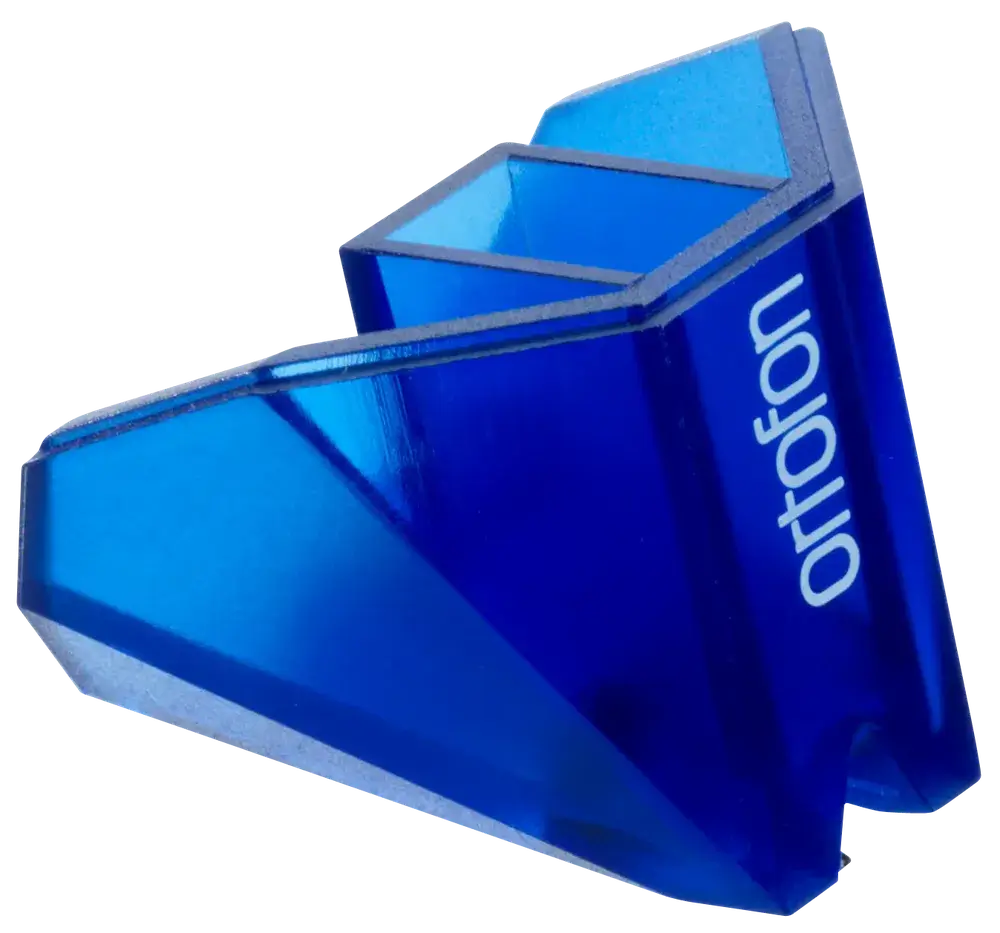

Ortofon Stylus 2M Blue

Who is the Ortofon Stylus 2M Blue stylus for?

The Ortofon Stylus 2M Blue is a replacement stylus built for owners of the 2M Blue cartridge and for 2M Red owners who want a direct upgrade path without buying a new cartridge body. It suits anyone running a 2M Red, 2MR Red, or 2M Red Premounted who wants to move up the range, as well as anyone whose existing 2M Blue stylus has reached the end of its service life. The Stylus 2M Blue carries a Nude Elliptical diamond, a stylus profile that is mounted directly to the cantilever rather than bonded inside a metal sleeve. This nude mounting reduces the mass the cantilever has to move, which lets the diamond respond more closely to the cutting stylus that originally traced the groove.

Which cartridges accept this stylus?

The Stylus 2M Blue fits the 2M Blue, 2MR Blue, and 2M Blue Premounted cartridge bodies as a direct, matched replacement. It also fits onto the 2M Red, 2MR Red, and 2M Red Premounted bodies as an upgrade stylus, since Ortofon's 2M range shares a common cartridge body across stylus grades. Buyers therefore don't need to replace the cartridge, headshell wiring, or tonearm cabling when moving between these variants; only the stylus assembly changes.

What happens when you install it?

Installing the Stylus 2M Blue takes seconds because it slots into the existing 2M cartridge body and requires no alignment afterwards. Since the stylus shares the same mounting geometry as the cartridge it replaces, tracking force, anti-skate, and azimuth settings carried over from the previous stylus remain valid, so there's no need to recheck tonearm geometry with a protractor or test record before playing records again. This makes the Stylus 2M Blue a practical option for turntable owners who want to change listening character or replace a worn stylus without recalibrating the whole tonearm setup.

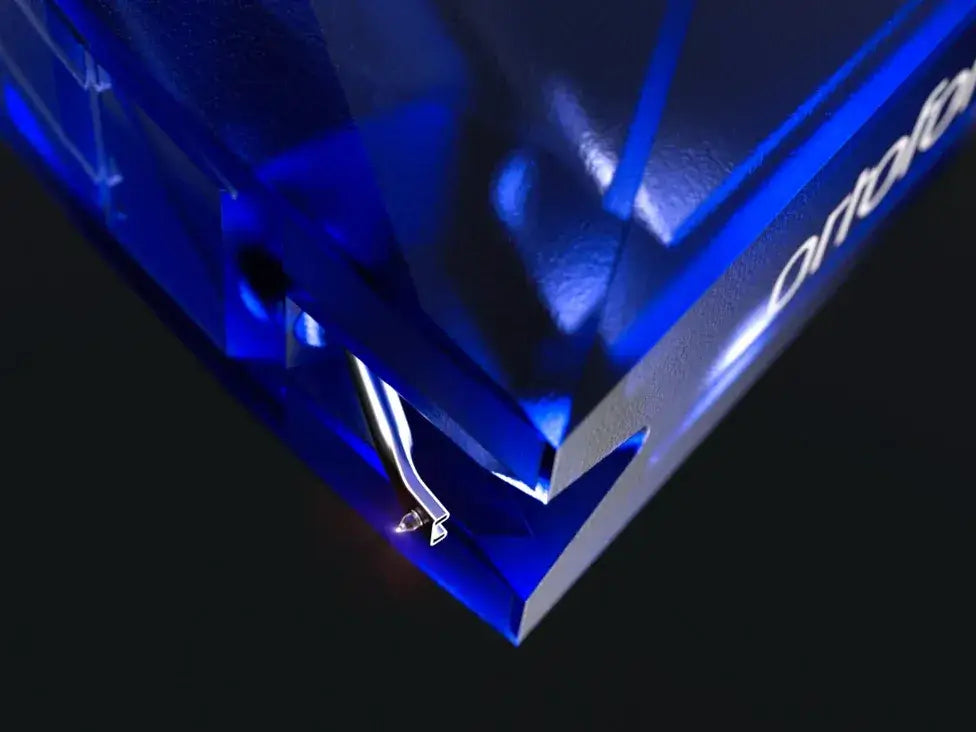

How does the Nude Elliptical diamond affect tracking and groove contact?

The Nude Elliptical diamond on the Stylus 2M Blue has a tip radius of 8/18 µm, a smaller contact patch than a spherical tip, which lets it follow higher-frequency groove modulation with less mechanical lag. Combined with an equivalent stylus tip mass of 0.5 mg, this keeps inertia low so the diamond can change direction quickly as it tracks complex groove information, supporting the cartridge's stated frequency response of 20 Hz to 20 kHz, +2/-1 dB. Lateral dynamic compliance of 20 µm/mN and a tracking ability of 80 µm at 315 Hz define how well the suspension and diamond combination handle high-amplitude passages without losing contact with the groove wall. Recommended tracking force sits at 1.8 g, within a usable range of 1.6 to 2.0 g, giving owners room to fine-tune downforce for their specific tonearm and phono stage loading. Tracking angle is set at 20°, matching the vertical tracking angle used on the original lacquer cut, which keeps the relationship between stylus and groove wall consistent with the mastering geometry.

Where does the Stylus 2M Blue sit against the 2M Red and 2M Silver?

Within Ortofon's 2M series, the Stylus 2M Blue sits above the 2M Red and 2M Silver because of its Nude Elliptical diamond, which retrieves information from the groove with greater accuracy than the bonded styli used further down the range. Buyers comparing the Red, Silver, and Blue grades are essentially choosing a stylus profile and mounting method for the same cartridge body and generator, so the decision comes down to how much groove detail and high-frequency tracking precision the buyer wants from their existing turntable and phono stage, rather than a change in compatibility or fitting.

Is the Stylus 2M Blue the right upgrade path for your turntable?

The Stylus 2M Blue is the more practical upgrade route for existing 2M Red owners than buying a separate cartridge, since the cartridge body, generator, and wiring stay the same and only the stylus is exchanged. It's also the correct like-for-like replacement for anyone whose current 2M Blue stylus needs renewing. For owners weighing this against a full cartridge change, the Stylus 2M Blue offers a way to raise tracking precision and tip geometry on the same platform they already own, without altering tonearm setup, cartridge alignment, or loading requirements elsewhere in the system.
