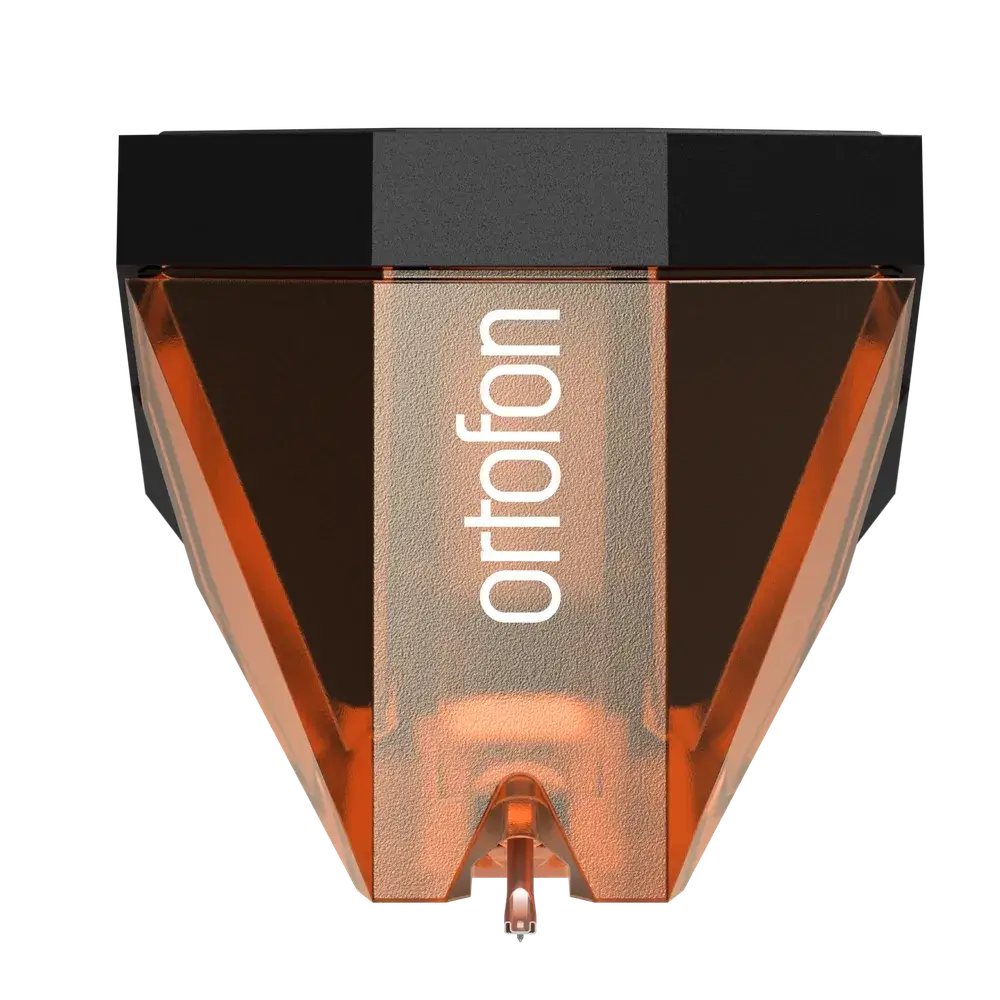

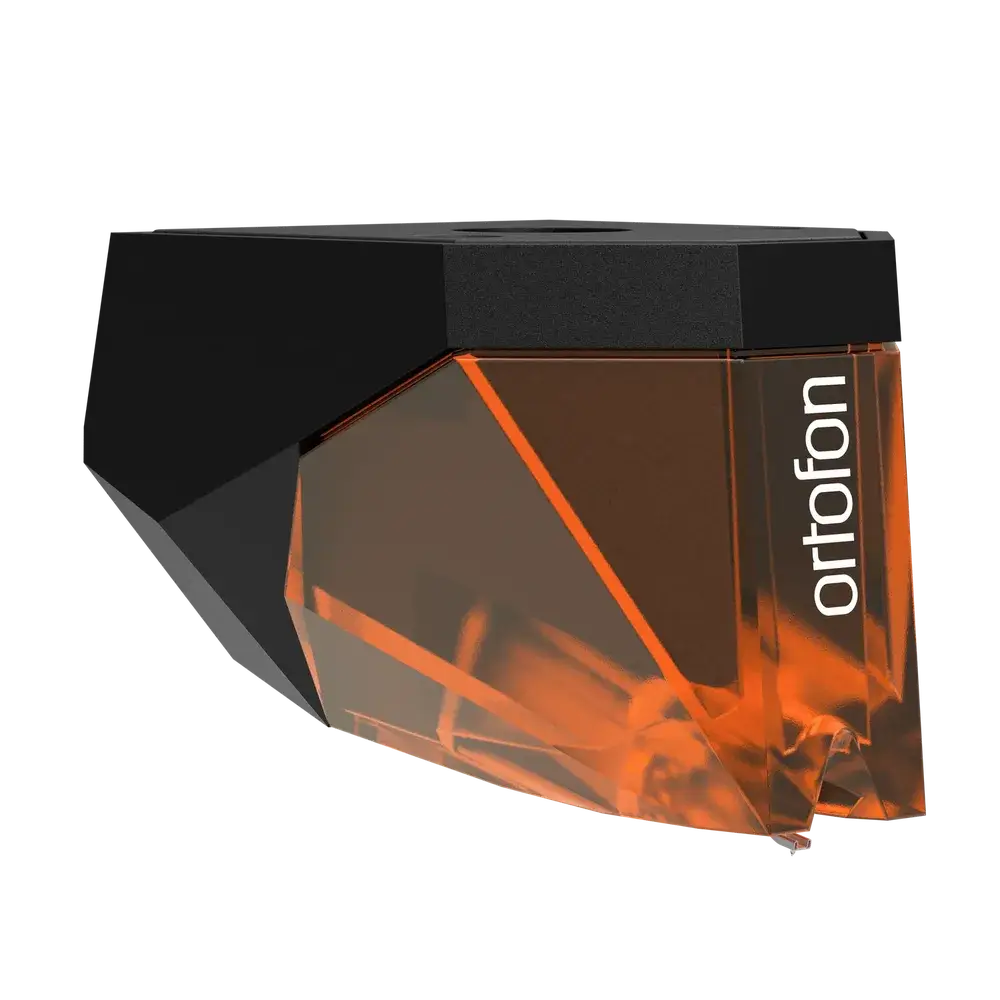

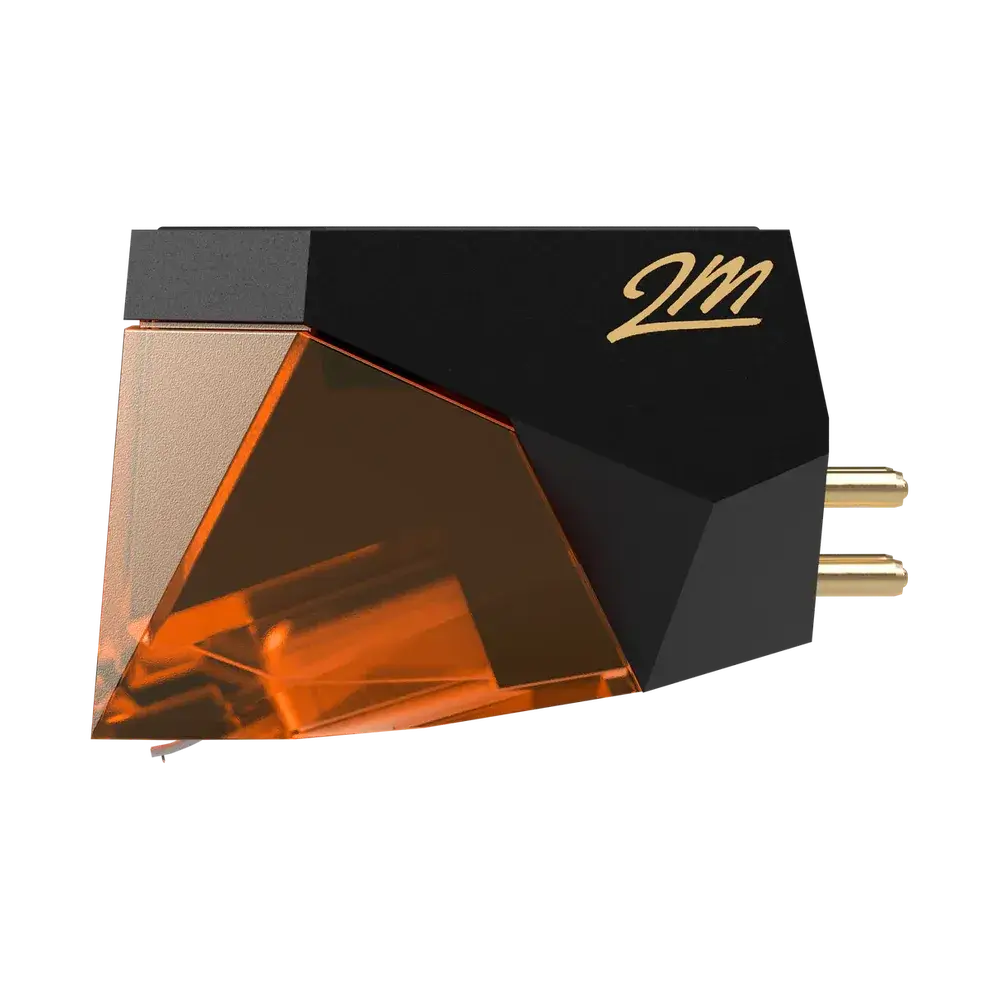

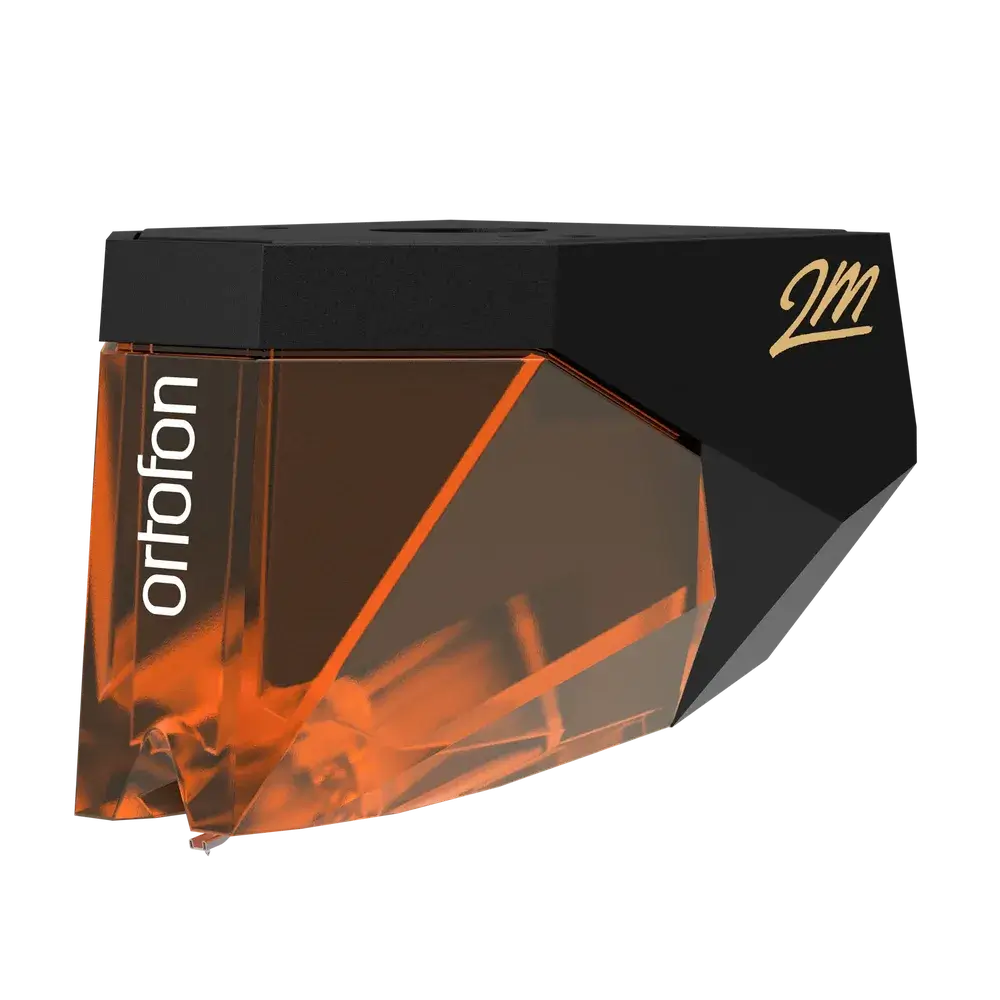

Ortofon 2M Bronze Cartridge
The 2M Bronze is a moving magnet cartridge built for common turntable mounting standards. It suits owners fitting a cartridge themselves, since the body's weight and size match most existing tonearms without adjustment. A Nude Fine Line diamond stylus on an aluminium cantilever tracks grooves at a recommended 1.5g force. Split pole pins and silver-plated OFC coil wire form the generator system, supporting signal transfer into a 47kOhm load. Buyers pick this version when they want a cartridge that fits standard tonearms rather than a premounted or bottom-mount alternative.
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support
Specifications
Ortofon 2M Bronze Cartridge
| Specification | Value |
|---|---|
| Product |
Ortofon 2M Bronze Cartridge |
| Channel balance at 1 khz |
1 dB |
| Output voltage at 1 khz, 5cm/sec |
5 mV |
| Channel separation at 1 khz |
26 dB |
| Frequency response 20 hz - 20 khz |
2 / -0 dB |
| Tracking ability at 315 hz |
80 µm |
| Compliance, dynamic, lateral |
22 µm/mN |
| Cantilever material |
Aluminium |
| Stylus type |
Nude Fine Line |
| Stylus tip radius |
r/R 8/40 µm |
| Coil system |
Quad-coils with split pole pins and silver-plated OFC Coil wire |
| Tracking force range |
1.4-1.7 g (14-17 mN) |
| Tracking force, recommended |
1.5 g (15 mN) |
| Tracking angle |
20° |
| Internal impedance, dc resistance |
1.2 kOhm |
| Coil wire material |
Silver-plated OFC Coil Wire |
| Cartridge body material |
Polymer and aluminum |
| Cartridge colour |
Black/Bronze |
| Cartridge weight |
7.2 g |
| Premounted cartridge weight |
16.7 g |
| Recommended load resistance |
47 kOhm |
| Internal inductance |
630 mH |
| Recommended load capacitance |
150-300 pF |
