Ortofon 2M Bronze Pre-mounted Cartridge

Ortofon 2M Bronze Premounted Moving Magnet Cartridge

What listening applications does the 2M Bronze Premounted suit?

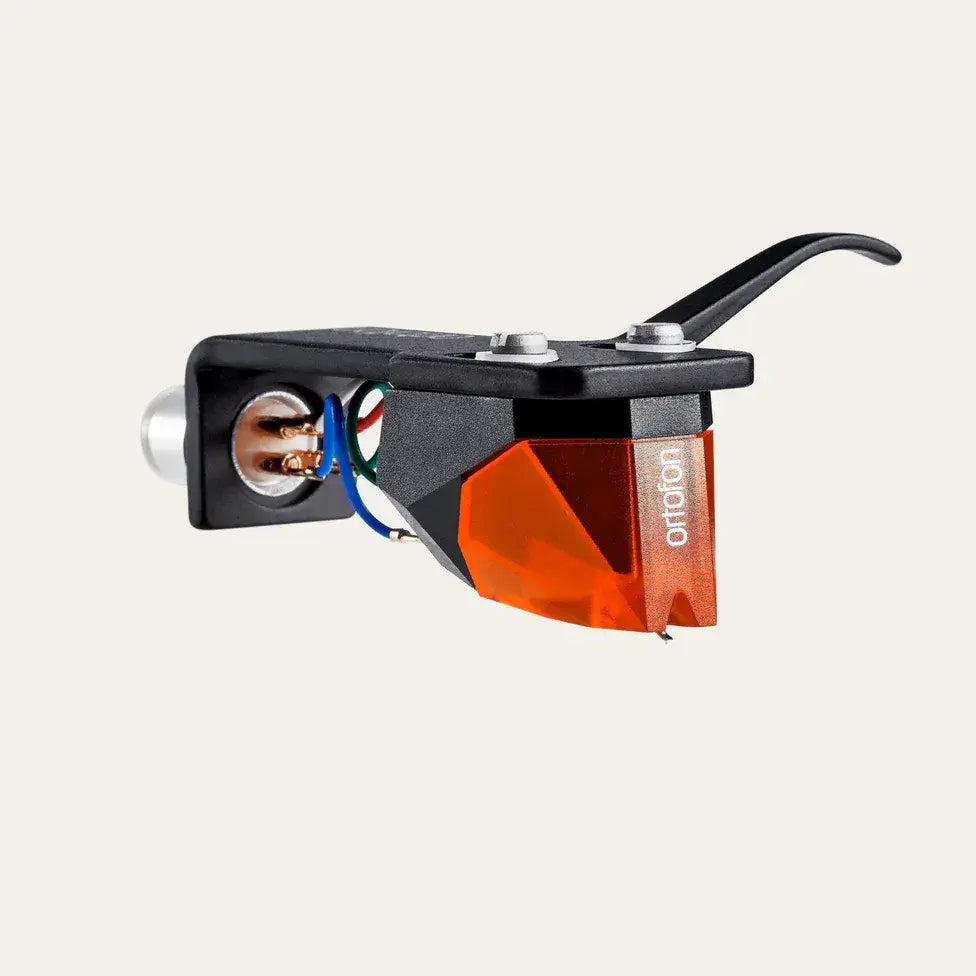

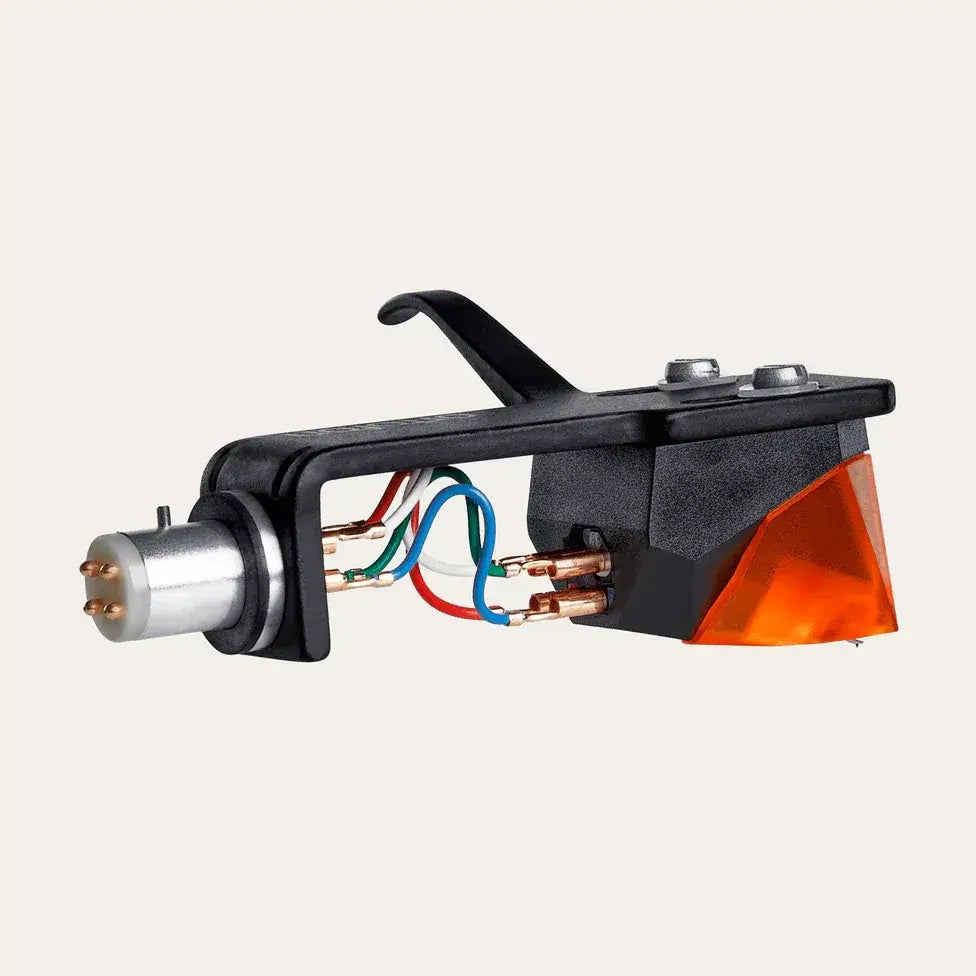

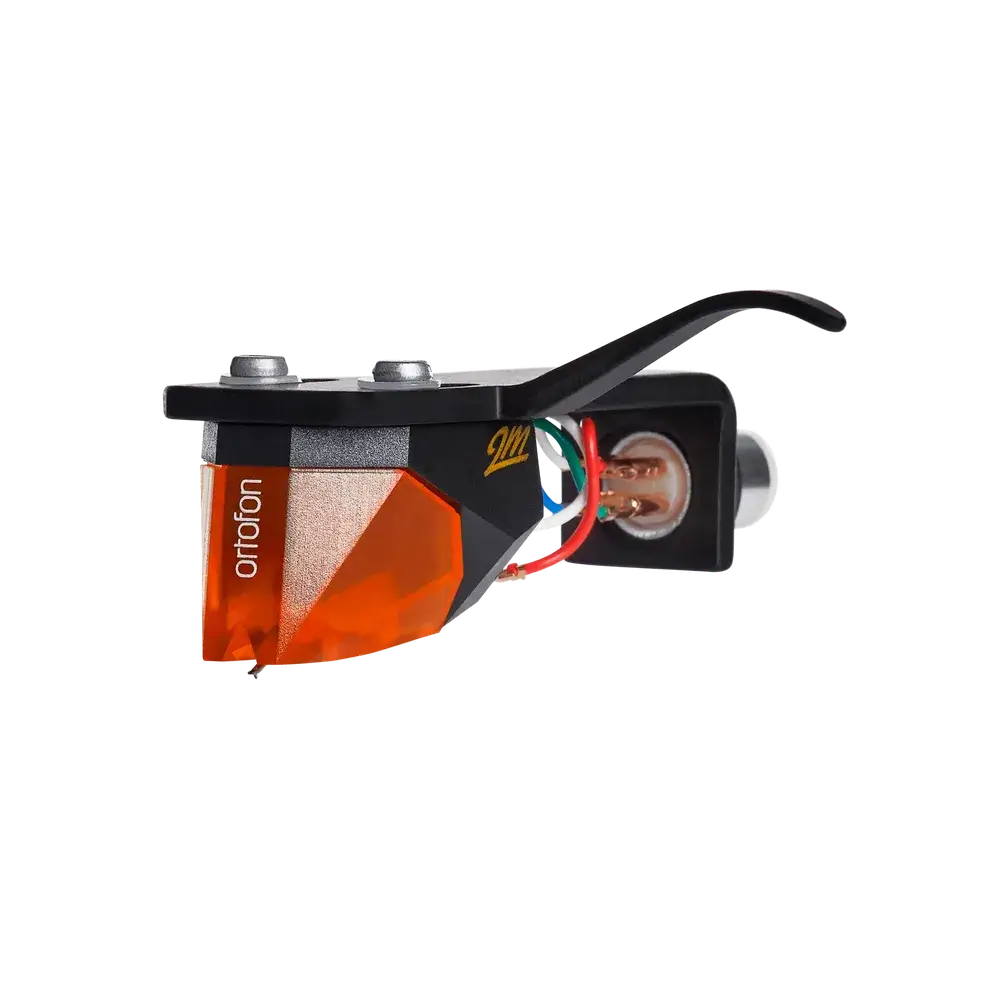

The Ortofon 2M Bronze Premounted is a moving magnet cartridge built around a Nude Fine Line diamond, supplied already fitted to its headshell mount for S-shaped tonearms. The slim, elongated contact area of the Fine Line cut sits closer to the original cutting stylus shape than a simple conical or elliptical tip, so it picks up the rapid groove modulations that carry high-frequency detail on busy or densely cut records. Buyers moving up from a basic moving magnet cartridge, or running a system capable of resolving fine groove information, choose the 2M Bronze for that stylus geometry, with the Premounted format aimed at owners who want that performance without a separate cartridge-mounting step.

How does the split pole pin engine work?

Ortofon's split pole pin design sits at the centre of the 2M Bronze's generating system, paired here with silver-plated OFC coil wire wound as quad coils. Splitting the pole pins changes how the magnetic circuit couples to the coils, and Ortofon applies this construction across the 2M range as its own patented approach to the moving magnet engine; in the Bronze it combines with the silver-plated wire to produce a 5 mV output at 1 kHz and a channel separation of 26 dB. A phono stage set to the recommended 47 kOhm load resistance and 150-300 pF load capacitance keeps the frequency response within its rated 20 Hz-20 kHz, +2/-0 dB window, since a mismatched load can roll off or peak the high end the Fine Line stylus is tracing.

Which tonearms accept the Premounted format?

Ortofon builds the Premounted version of the 2M Bronze specifically for S-shaped tonearms, bolting directly onto the headshell mount rather than requiring the buyer to fit and align a separate cartridge body. That ready-fitted construction removes the overhang and azimuth adjustments normally needed when mounting a cartridge from scratch, since Ortofon sets these at the factory to suit the S-shaped arm geometry. Owners with an integrated or fixed S-shaped tonearm, rather than a turntable that takes a separate, swappable headshell, are the intended buyers for this format.

What tracking force and compliance does the 2M Bronze Premounted require?

The 2M Bronze tracks within a force range of 1.4-1.7 g (14-17 mN), with Ortofon recommending 1.5 g (15 mN), alongside a 20-degree tracking angle and a dynamic lateral compliance of 22 µm/mN. That compliance figure tells a buyer how the cartridge will behave with their existing tonearm: medium-mass arms generally pair well with this compliance, since the combination keeps the arm-cartridge resonance in the range needed for stable tracking, while a very high or very low mass arm can push that resonance out of range and affect tracking accuracy. As a complete, premounted assembly the 2M Bronze Premounted weighs 16.7 g, the figure a buyer needs when checking it falls within their tonearm's counterweight range.

How does the Nude Fine Line stylus affect tracking ability?

A nude-mounted stylus, where the diamond is fixed directly to the cantilever rather than to a separate metal mounting block, reduces the moving mass at the stylus tip, and Ortofon pairs that mounting with an aluminium cantilever on the 2M Bronze. The Fine Line tip itself has an 8/40 µm radius, smaller and more elongated than a standard elliptical or spherical profile, which lets it follow tighter groove curves and contributes to the cartridge's rated tracking ability of 80 µm at 315 Hz. A higher tracking ability figure at this test frequency indicates the stylus can follow louder, more heavily modulated passages without mistracking or adding distortion.

Who should choose the Premounted format over the other 2M Bronze variants?

Ortofon offers the 2M Bronze in four mounting configurations, and the stylus, engine and electrical specification stay the same across all of them, so the choice between formats comes down to the tonearm rather than the sound. The standard 2M Bronze suits turntables with a removable half-inch headshell; the 2M Verso is built for bottom-mount headshells; the 2MR uses a lower-profile housing for Rega-pattern tonearms; and the Premounted format is for owners of an S-shaped tonearm without a swappable headshell, who would otherwise need to mount and align the cartridge themselves. Buyers with that fixed S-shaped arm gain a direct fit and a factory-set alignment by choosing the Premounted version, rather than buying the standard cartridge and a compatible headshell separately.
