Brand: Ortofon

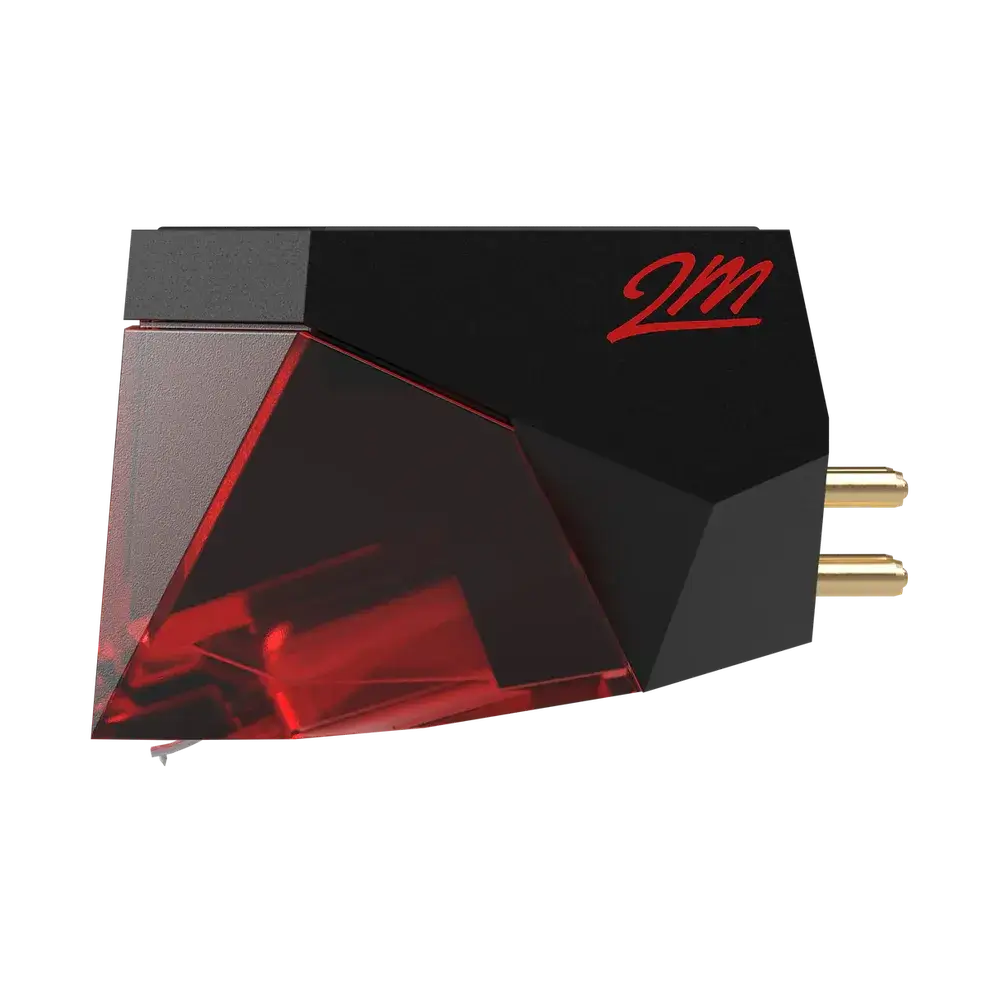

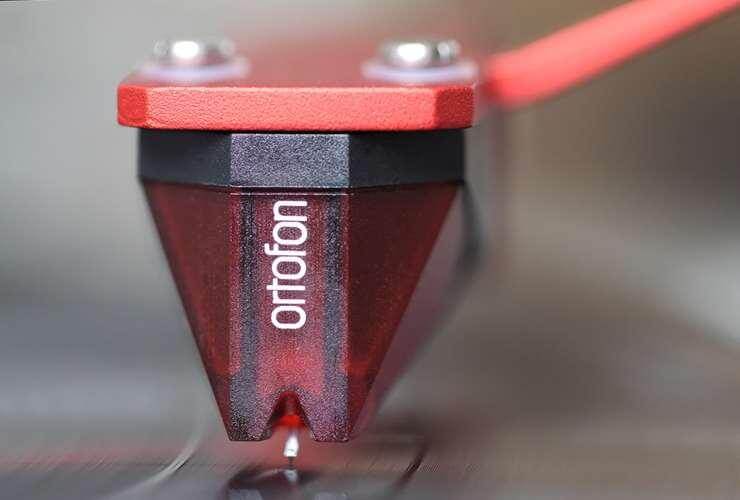

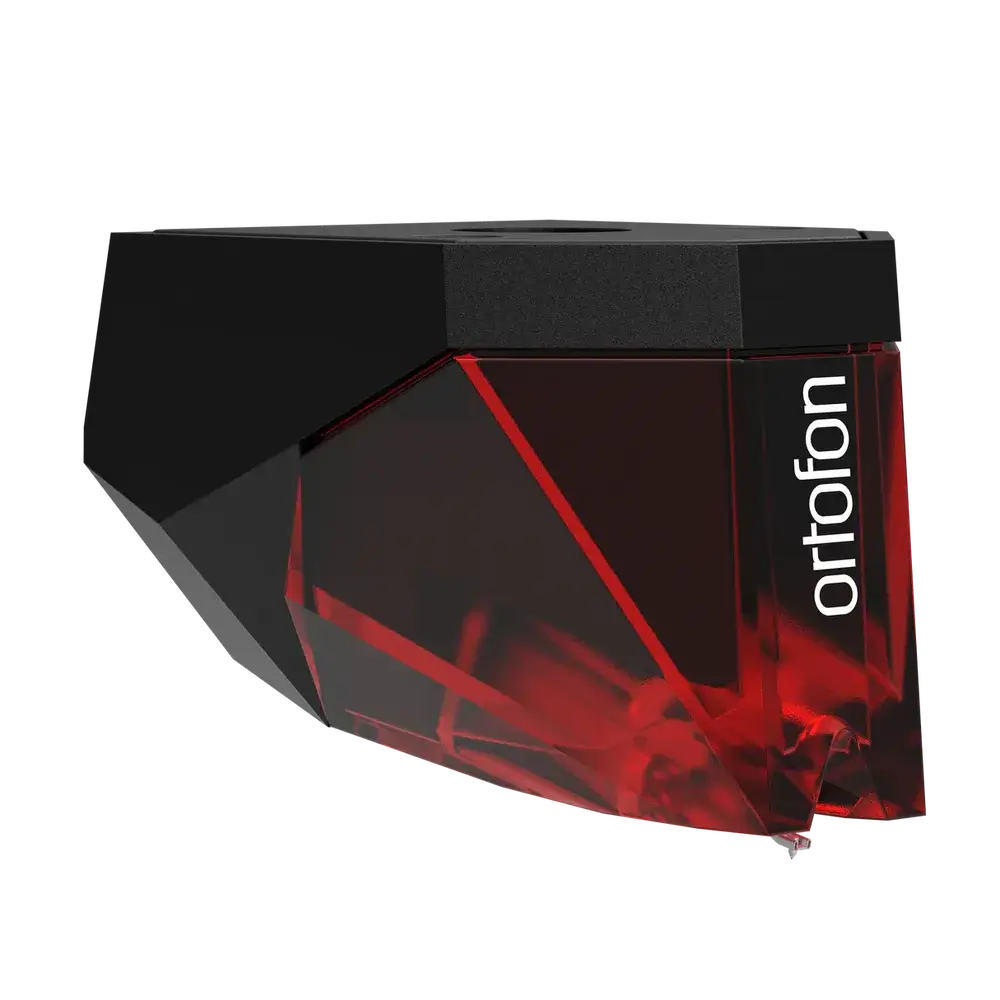

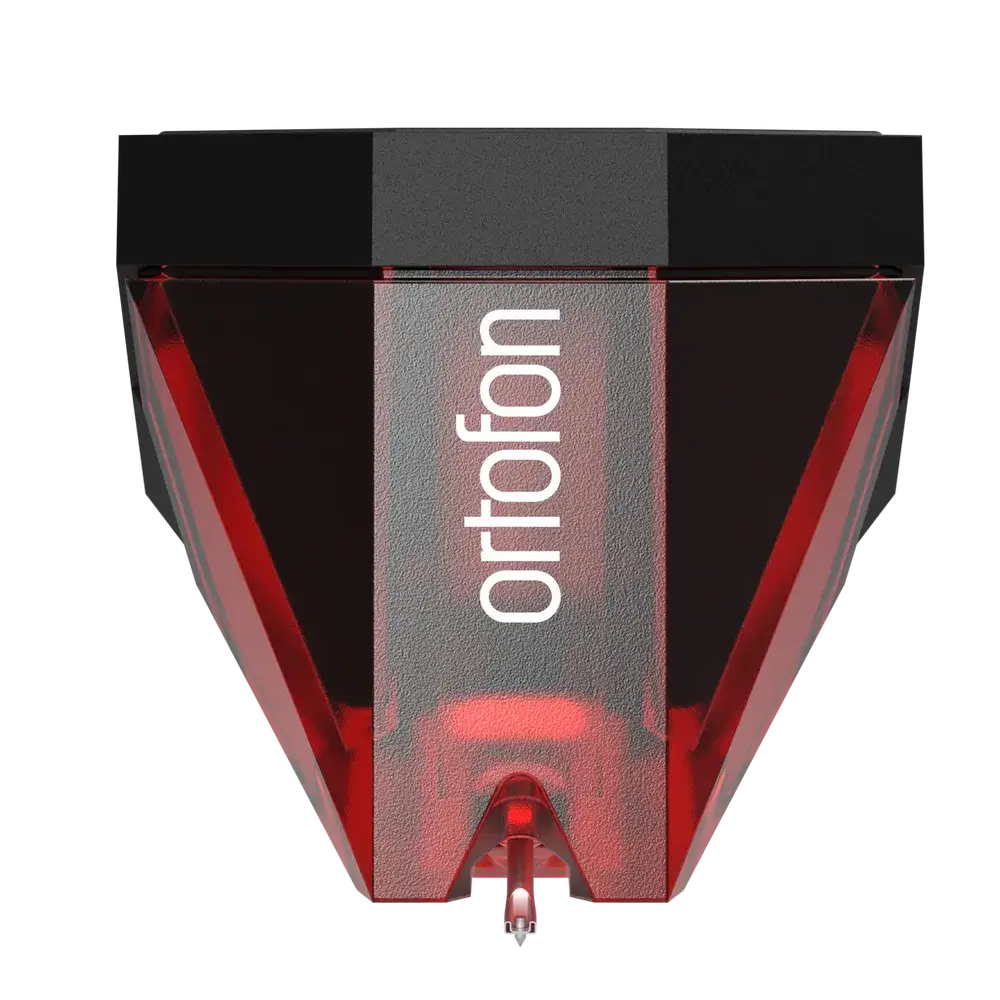

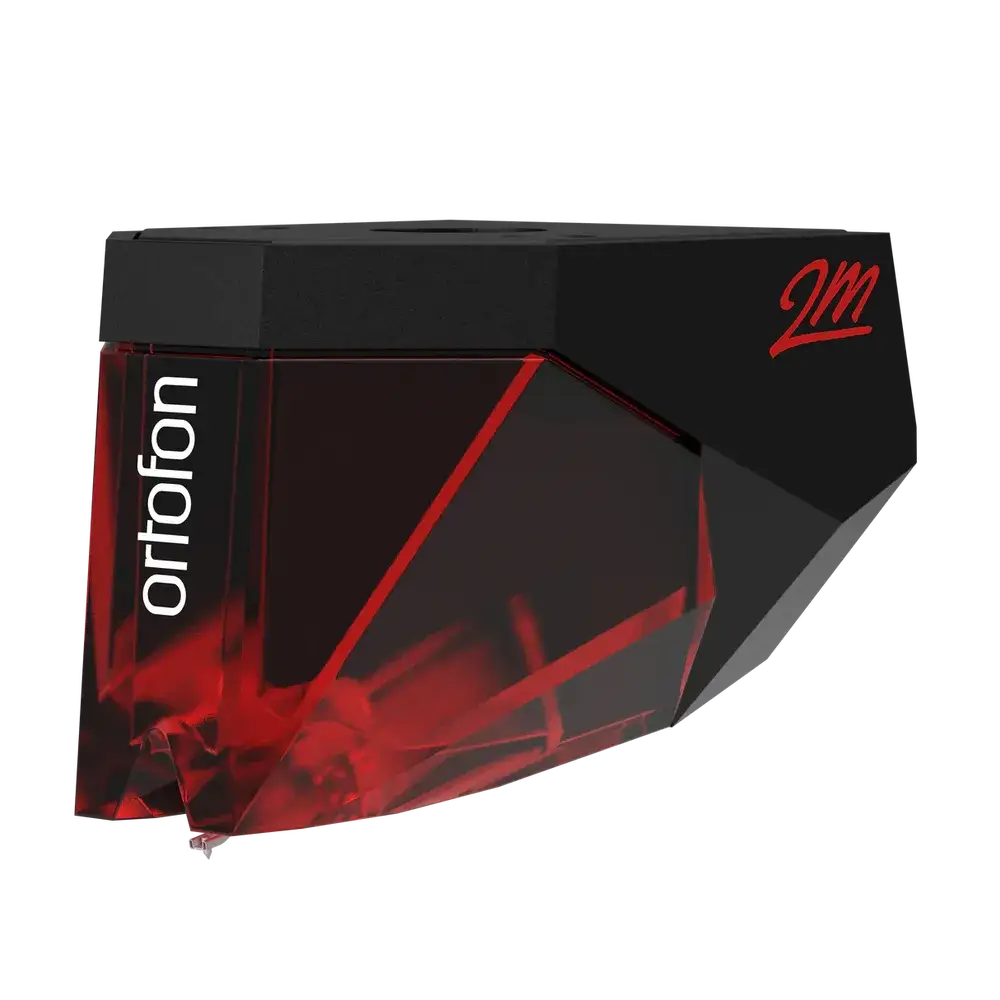

Ortofon 2M Red Cartridge
Specifications
Ortofon 2M Red Cartridge
| Specification | Value |
|---|---|
| Product |
Ortofon 2M Red Cartridge |
| Channel balance at 1 khz |
1.5 dB |
| Output voltage at 1 khz, 5cm/sec |
5.5 mV |
| Channel separation at 1 khz |
22 dB |
| Frequency response 20 hz - 20 khz |
+3 / -1 dB |
| Tracking ability at 315 hz |
70 µm |
| Compliance, dynamic, lateral |
20 µm/mN |
| Cantilever material |
Aluminium |
| Stylus type |
Elliptical |
| Stylus tip radius |
r/R 8/18 µm |
| Coil system |
Quad-coils with split pole pins and OFC Coil wire |
| Tracking force range |
1.6-2.0 g (16-20 mN) |
| Tracking force, recommended |
1.8 g (18 mN) |
| Tracking angle |
20° |
| Internal impedance, dc resistance |
1.3 kOhm |
| Coil wire material |
OFC Wire |
| Cartridge body material |
Polymer and aluminum |
| Cartridge colour |
Black/Red |
| Cartridge weight |
7.2 g |
| Premounted cartridge weight |
16.7 g |
| Recommended load resistance |
47 kOhm |
| Internal inductance |
700 mH |
| Recommended load capacitance |
150-300 pF |
Product Details

Ortofon 2M Red Cartridge
Sale price$179.00 AUD
