Ortofon 2M Red Pre-Mounted Moving Magnet Cartridge

Is the Ortofon 2M Red Pre-Mounted on SH-4 the Right Cartridge for Your S-Shaped Tonearm?

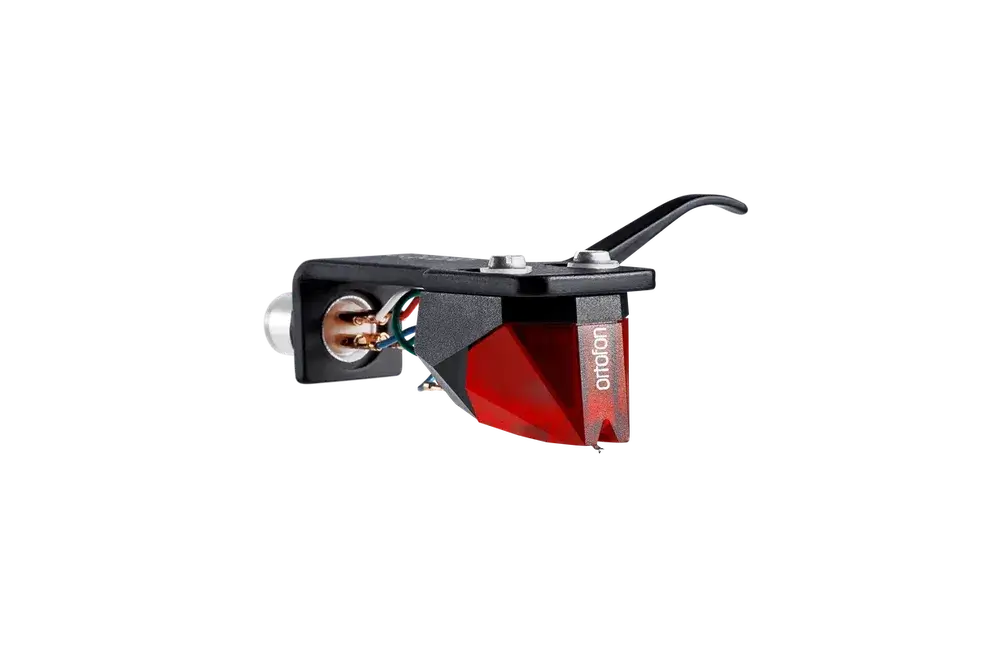

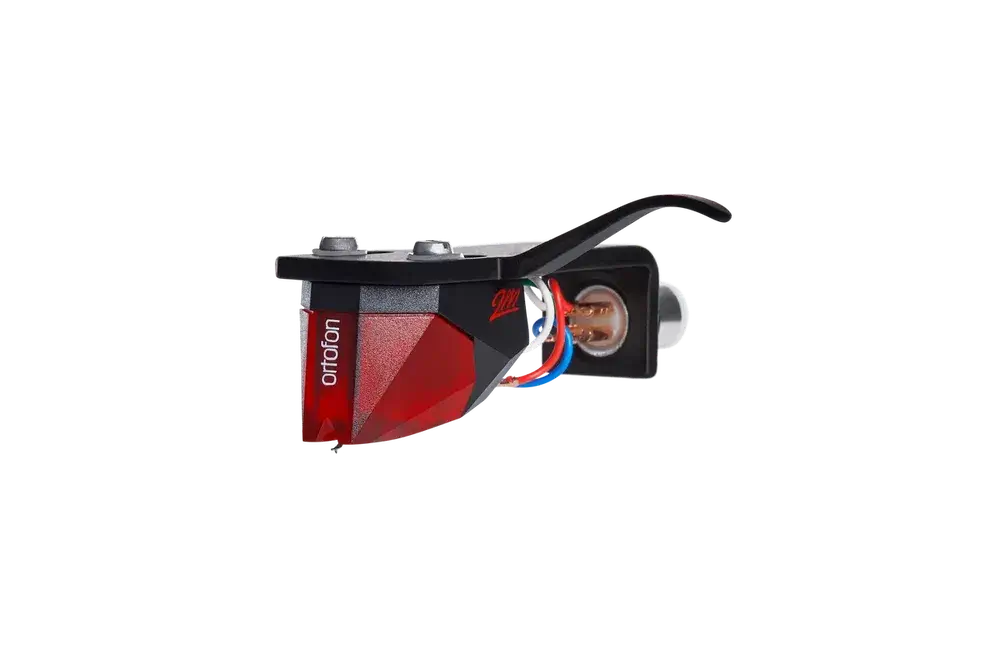

The Ortofon 2M Red Pre-Mounted is the entry-level cartridge in Ortofon’s 2M moving magnet series, supplied fitted to Ortofon’s SH-4 headshell. It’s aimed at owners of S-shaped tonearms with a universal mount who want straightforward installation and effortless replacement. The Ortofon 2M Red Pre-Mounted pairs an elliptical diamond with a replaceable stylus that accepts 2M Blue and 2M Silver styli, so the cartridge you fit today has an upgrade path built in.

Which Turntables Suit the Ortofon 2M Red Pre-Mounted?

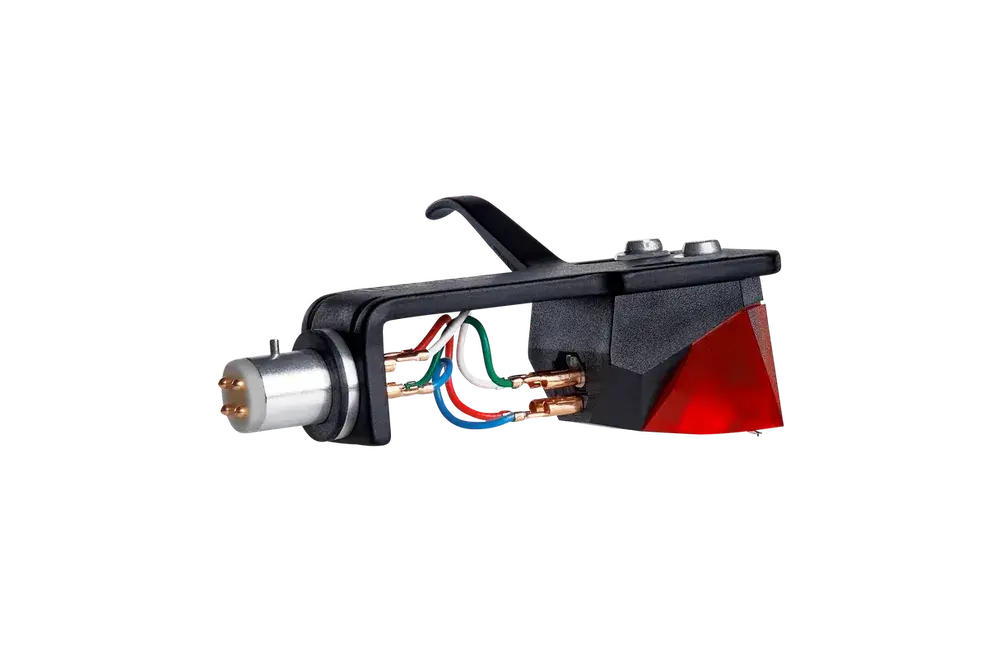

The Ortofon 2M Red Pre-Mounted is designed for S-shaped tonearms with a universal mount, the fitting Ortofon built the SH-4 headshell to integrate with. The SH-4’s gold-plated terminal pins provide the connection between headshell and tonearm. Attaching the headshell mounts the cartridge and connects its signal path in one step.

Ortofon advises checking your turntable’s manual or the manufacturer’s specifications for cartridge type, mounting style and tonearm compatibility before buying. Tonearms without a universal mount need a cartridge fitted directly to the arm or its headshell. Ortofon sells the 2M Red as a separate cartridge and lists compatible turntables on its product page.

Will It Match Your Tonearm’s Effective Mass?

This pre-mounted cartridge is a moderate compliance design at 20 µm/mN, the top of the 10–20 µm/mN band Ortofon classes as moderate. Compliance and total tonearm system mass decide the cartridge resonance frequency. Ortofon recommends keeping that resonance between 7 and 12 Hz, with 10 Hz as the target.

Ortofon’s formula is F = 1000 ÷ (2π × √(M × C)). M is the cartridge mass, plus the headshell and screws, plus the tonearm’s effective mass. The cartridge and SH-4 headshell together weigh 16.7 g. The cartridge alone weighs 7.2 g, so the headshell and its fittings account for 9.5 g. Applying the formula:

A tonearm with 8 g effective mass gives about 7.2 Hz, inside Ortofon’s optimal range.

A 10 g arm gives about 6.9 Hz, and a 13 g arm gives about 6.5 Hz. Ortofon says 6.5–7 Hz might be used without problems.

Arms heavier than about 13 g fall below 6.5 Hz, a range Ortofon calls questionable.

Those results point to low-mass and lighter moderate-mass S-shaped tonearms. Ortofon classes arms at 10 g or below as low mass and 11–25 g as moderate mass. Check whether your tonearm’s quoted effective mass already includes a headshell, as counting the 9.5 g headshell and fittings twice will understate the resonance frequency.

What Phono Stage Does the Ortofon 2M Red Pre-Mounted Need?

The Ortofon 2M Red Pre-Mounted is a moving magnet cartridge with a 5.5 mV output at 1 kHz, 5 cm/sec, so it connects to an MM phono input. Ortofon specifies a load resistance of 47 kOhm and a load capacitance of 150–300 pF. If your phono stage has adjustable loading, set it within those figures.

How Do You Set Up This Pre-Mounted Cartridge?

This pre-mounted cartridge is ready to attach straight to the tonearm’s universal mount, so there’s no cartridge wiring or screw mounting to do. Once it’s attached, balance the tonearm and set the tracking force to Ortofon’s recommended 1.8 g, within a 1.6–2.0 g range. Your tonearm’s counterweight has to balance the 16.7 g assembly, so confirm it can handle that load. Ortofon’s Cartridge Alignment Tool can be used to check alignment.

The SH-4’s long finger lift makes the headshell easy to handle and pick up. That helps when changing cartridges, because swapping headshells at the universal mount lets you move between cartridges without remounting either one.

What Does Its Elliptical Stylus Offer?

This cartridge is fitted with an elliptical diamond with an 8/18 µm tip radius. Ortofon notes that the diamond is the only part of a cartridge touching the groove, and that its shape plays a crucial role in how accurately the sound is reproduced. Ortofon groups stylus shapes into spherical (conical), elliptical and fine line, and line contact designs. It explains that slimmer, more advanced cuts follow the groove more precisely and come closer to the profile of the cutting stylus used to make the record.

Other figures describe how the cartridge tracks and reproduces the signal. Tracking ability of 70 µm at 315 Hz measures how large a groove excursion the stylus can follow. Channel separation of 22 dB and channel balance within 1.5 dB at 1 kHz show how well left and right signals are kept apart and how evenly they’re matched. Frequency response of 20 Hz–20 kHz, +3/-1 dB, sets how far output may rise or fall across the audible range.

Can You Upgrade the Ortofon 2M Red Pre-Mounted Later?

The Ortofon 2M Red Pre-Mounted is upgradeable by stylus replacement, so the cartridge can stay on its SH-4 headshell. Ortofon suggests moving magnet cartridges for buyers who want that option.

2M styli interchange only within fixed groups. The 2M Red, 2M Blue and 2M Silver share one group, which sets your upgrade path. A 2M Blue stylus brings a Nude Elliptical diamond, which Ortofon says retrieves groove information with higher accuracy. Nude diamonds weigh less than diamonds mounted on a metal shank, and Ortofon links that to improved responsiveness, greater detail and reduced distortion.

The 2M Bronze, 2M Black and 2M Black LVB 250 use a separate stylus group, as do the 2M Mono and 2M 78. The Stylus 2M 78 fits only the 2M Mono and 2M 78, so 78 rpm playback needs one of those bodies.

How Does It Compare With Other 2M Cartridges?

The 2M Red Pre-Mounted is the entry point to a range that rises through the 2M Blue, 2M Bronze, 2M Black and 2M Black LVB 250. The standard 2M Red shares its specifications but comes without the SH-4 headshell.

The 2M Silver is an upgrade on the 2M Red because of its special suspension and silver-plated copper wire material. The 2M Blue improves on both through its Nude Elliptical stylus, so buyers can buy it outright or reach it later by stylus swap. Moving to the 2M Bronze or 2M Black means a new cartridge, because their styli don’t fit the Red.

Moving coil cartridges are Ortofon’s recommended route for listeners pursuing more ambitious playback. The 2M Red Pre-Mounted suits buyers who prefer the stylus upgrade path set out above.

How Is the Cartridge Built?

The 2M Red is built from a polymer and aluminium body with an aluminium cantilever, finished in black and red. Its coil system uses quad coils with split pole pins and OFC coil wire. The SH-4 headshell is made from anodised aluminium, which Ortofon uses to combine a lightweight design with strength.
