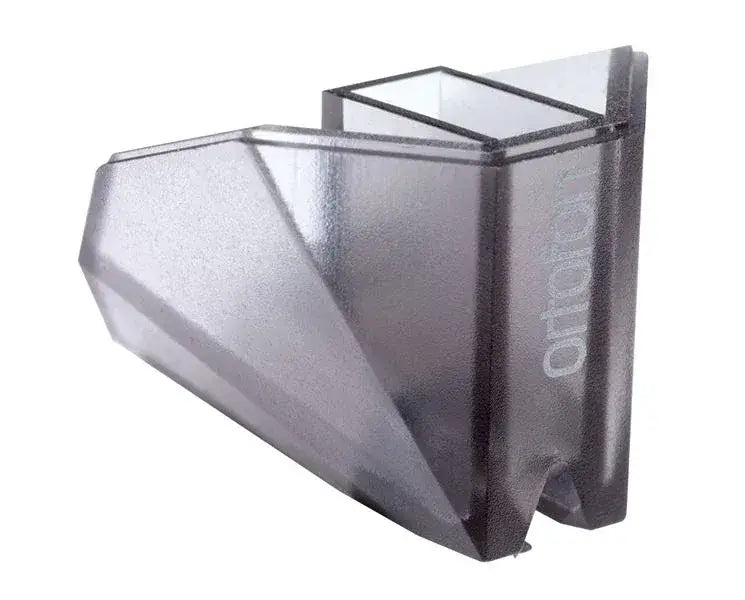

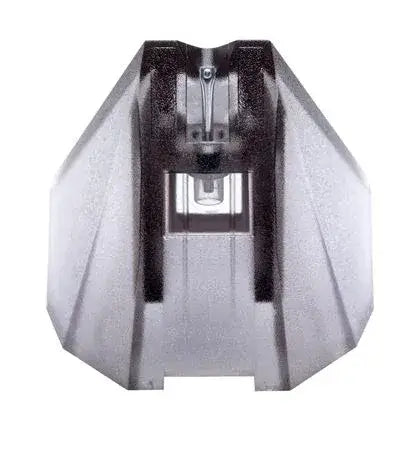

Ortofon 2M Silver Replacement Stylus

Ortofon Stylus 2M Silver: Choosing the Right Replacement for Your 2M Cartridge

The Stylus 2M Silver is a replacement diamond stylus made for the Ortofon 2M Silver moving-magnet cartridge, aimed at owners running a 2M Silver, 2M Red or 2M Blue cartridge body who need a worn stylus replaced or want to move up a tier within that same interchangeability set. Its main differentiators against the lower-tier 2M Red are a special suspension and silver-plated copper wire, while it sits a tier below the 2M Blue's Nude Elliptical diamond.

Which cartridges is the Stylus 2M Silver compatible with?

The Stylus 2M Silver is interchangeable with the 2M Red and 2M Blue, in addition to fitting the 2M Silver cartridge it is designed for. This means a buyer who owns any cartridge in this specific trio can move between stylus grades without replacing the cartridge body itself. Ortofon groups its 2M range into three separate interchangeability sets, and only styli within the same set will physically and electrically match a given cartridge: the 2M Red, 2M Blue and 2M Silver form one set, the 2M Bronze, 2M Black and 2M Black LVB 250 form a second, and the 2M Mono and 2M 78 form a third. A buyer should confirm which set their cartridge belongs to before ordering, since a stylus from outside that set will not be a valid match.

What makes the Stylus 2M Silver different from the 2M Red stylus?

The Stylus 2M Silver is an upgrade on the 2M Red, using a special suspension and silver-plated copper wire in place of the wire material fitted to the 2M Red. For a buyer already running a 2M Red cartridge, fitting the 2M Silver stylus is a way to move to this improved suspension and wire material without buying a new cartridge body, since the two share the same interchangeability set.

How does the 2M Silver compare with the 2M Blue stylus?

The Stylus 2M Silver is a step below the 2M Blue within the same interchangeability set, since the 2M Blue uses a Nude Elliptical diamond that Ortofon states retrieves information from the groove with higher accuracy. A buyer deciding between the two should treat the 2M Silver as the mid-point in this three-stylus set and the 2M Blue as the next upgrade step within the same compatible cartridge body.

What stylus type and tip geometry does the Stylus 2M Silver use?

The Stylus 2M Silver is fitted with an Elliptical diamond with a tip radius of r/R 8/18 µm. This tip geometry supports a tracking ability rating of 70 µm at 315 Hz when the stylus is run at the recommended tracking force, and it carries an equivalent stylus tip mass of 0.5 mg.

What tracking force and setup does the Stylus 2M Silver require?

The Stylus 2M Silver is specified for a tracking force range of 1.6–2.0 g (16–20 mN), with Ortofon's recommended setting at 1.8 g (18 mN). This range needs to sit within what the tonearm's counterweight and anti-skate mechanism can deliver accurately, so a buyer should check their turntable's adjustment range against these figures before fitting the stylus. The stylus tracks at a 20° angle and has a dynamic lateral compliance of 20 µm/mN, a figure that determines how well it matches the effective mass of a given tonearm; pairing a stylus of this compliance with a tonearm outside its intended mass range can affect tracking stability even when the tracking force itself is set correctly.

How long does the Stylus 2M Silver last, and what does that mean for ownership?

The Stylus 2M Silver is rated by Ortofon for up to 1,000 hours of use without a drop in performance when properly cared for. For a buyer weighing replacement-stylus cost against a full cartridge upgrade, this lifespan figure sets the expected interval before the next stylus swap is needed, assuming routine care such as keeping the stylus clean and handling it correctly during play.

Where does the Stylus 2M Silver fit for a buyer building or maintaining a 2M-based system?

The Stylus 2M Silver is a practical mid-tier choice for a buyer already invested in a 2M Red or 2M Blue cartridge body, since all three share frequency response, tracking angle and mounting compatibility within the same set. It suits an owner who wants the silver-plated wire and suspension improvements over the 2M Red without moving to the Nude Elliptical diamond of the 2M Blue, and it lets that owner change performance tier later by swapping the stylus rather than replacing the cartridge itself.
