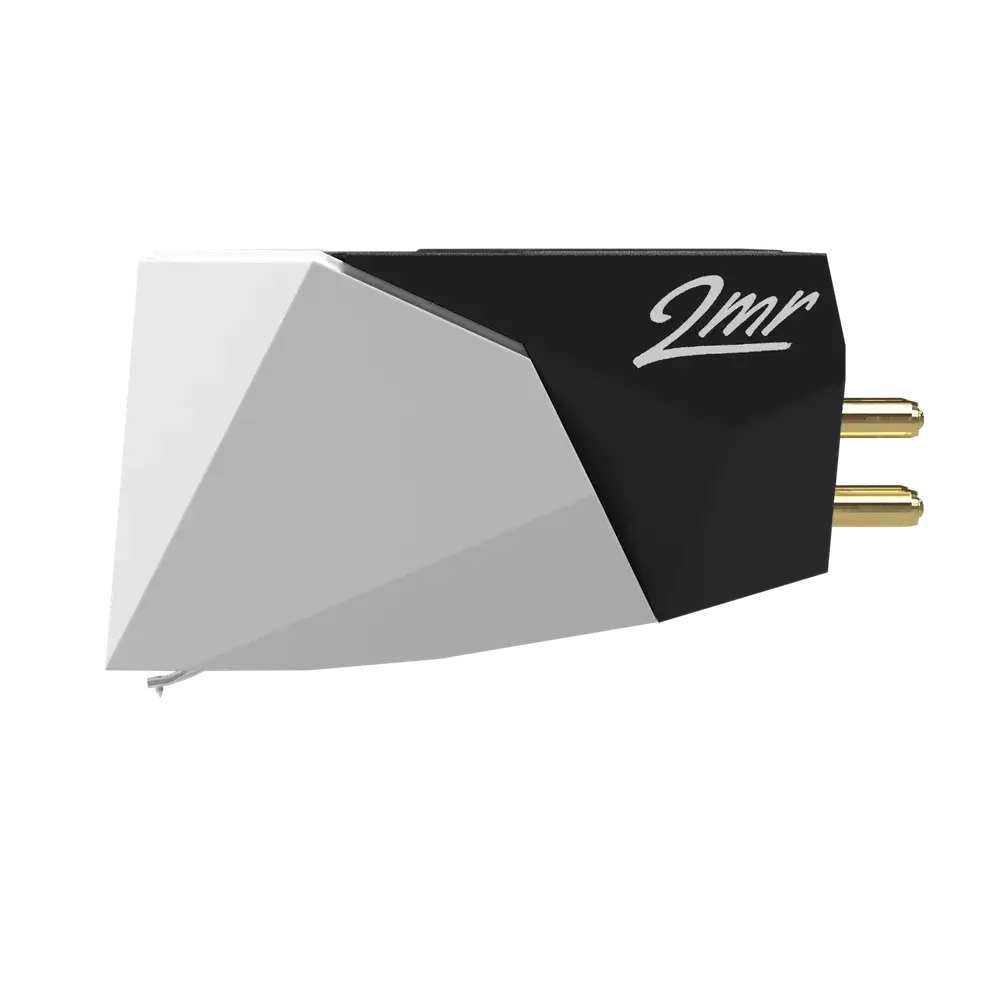

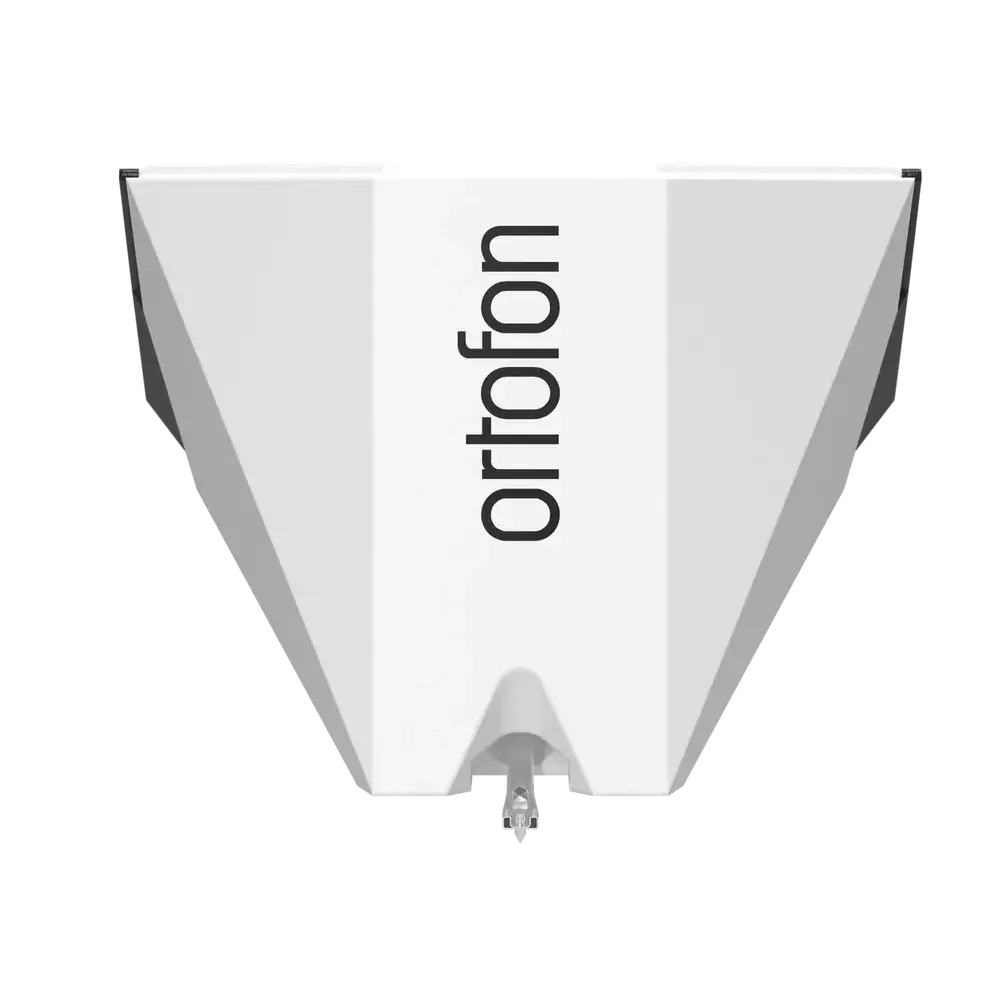

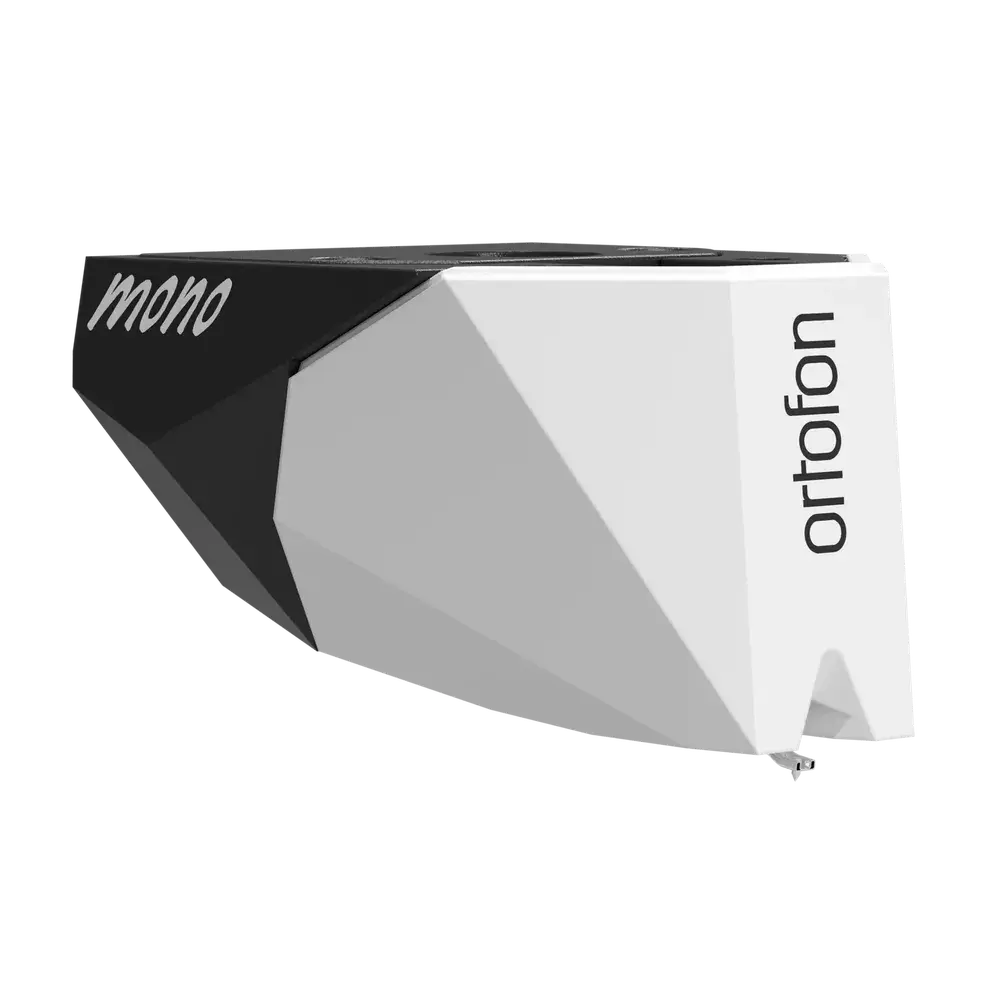

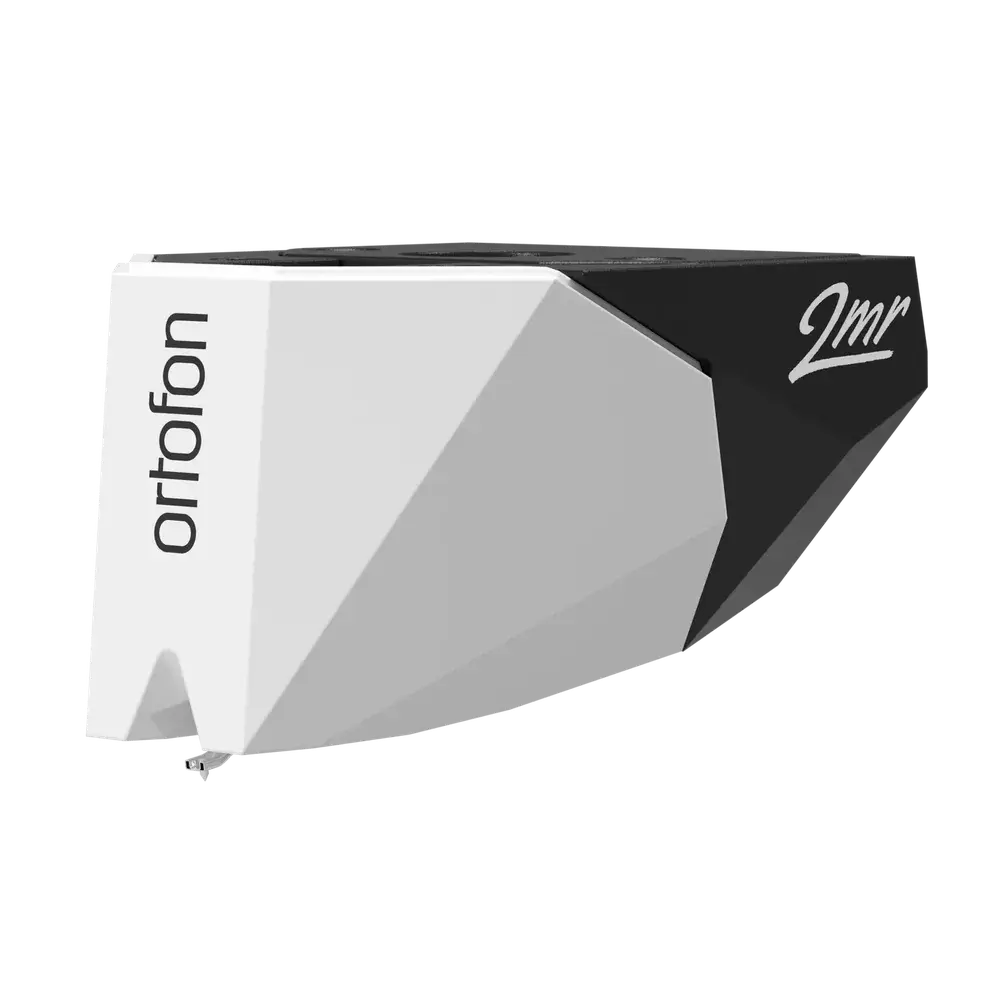

Ortofon 2MR Mono Moving Magnet Cartridge

Ortofon 2MR Mono

The Ortofon 2MR Mono is a dedicated mono phono cartridge built for playing mono microgroove LP records rather than standard stereo vinyl. It's aimed at collectors and listeners who own mono pressings and want a cartridge matched specifically to that groove geometry, rather than a stereo cartridge run in mono mode. Its narrow housing and R18µm Nude Spherical stylus tip are the two features that set the buying decision: the housing determines which tonearms it will physically suit, and the stylus tip determines which records it's designed to track correctly.

What makes the Ortofon 2MR Mono different from a stereo cartridge?

The Ortofon 2MR Mono is a cartridge built around a stylus tip with an R18µm Nude Spherical diamond, a shape and radius chosen to suit the wider, single-plane groove cut used on mono microgroove LPs rather than the narrower stereo groove. Because the diamond is nude rather than tipped, it isn't bonded to a metal shank, so the stylus carries less mass at the point of contact with the groove. Lower tip mass lets the cantilever respond more readily to the groove's modulations, which is what a nude diamond construction is designed to achieve compared with a bonded tip. This combination of stylus tip radius and nude diamond construction is the core reason a buyer with mono records would pick the 2MR Mono over a general-purpose stereo cartridge.

Does it fit low-profile tonearms such as Rega?

The Ortofon 2MR Mono is fitted with a cartridge housing designed specifically for low-form-factor requirements, matching the mounting geometry that turntables and tonearms like Rega call for. Tonearms of this type need a narrower cartridge body than standard-height headshells accept, and the 2MR Mono's housing is shaped to meet that requirement directly. A buyer checking compatibility with a Rega-style arm, or any low-profile arm with the same clearance limitation, can use this housing shape as the deciding compatibility factor before purchase.

How does mounting work without spacers or modifications?

The Ortofon 2MR Mono is designed to sit correctly under a low-profile tonearm without extra hardware, thanks to its narrow housing. Because the body is already shaped to the tonearm's clearance, it mounts with just two screws and doesn't require spacers or any modification to the headshell or arm. For a buyer replacing an existing cartridge or building a system around a low-profile arm, this removes an extra fitting step that wider-bodied cartridges would otherwise need.

Which tonearms and phono stages suit the 2MR Mono's compliance and output?

The Ortofon 2MR Mono is rated at a dynamic lateral compliance of 18 µm/mN, which places it within the moderate compliance range. Cartridges in this range are best paired with low mass tonearms, since tonearm mass and cartridge compliance together set the resonance frequency of the arm/cartridge system, and that frequency needs to sit within the turntable's stable operating range for accurate tracking. At 6 g, the cartridge itself contributes relatively little to the total effective mass in that calculation, which gives a buyer more flexibility when combining it with a low mass arm. On the electrical side, it outputs 4 mV at 1 kHz and specifies a recommended load resistance of 47 kOhm with an internal inductance of 350 mH, so a phono stage or preamp input set for these values is what the cartridge expects for correct level and frequency response.

Who should choose the Ortofon 2MR Mono over the stereo 2M range?

The Ortofon 2MR Mono is positioned apart from Ortofon's wider 2M range, which includes 2M Red, 2M Blue, 2M Bronze and 2M Black, by application rather than by performance tier. Those models are stereo cartridges built for standard stereo LPs, so anyone building or maintaining a system around stereo records is better served by them. The 2MR Mono is the option for buyers whose collection includes mono pressings and who want a stylus profile matched to mono groove geometry rather than a stereo cartridge adapted to mono playback, or for anyone building a dedicated mono playback chain.

What tracking force and angle does it need?

The Ortofon 2MR Mono is specified with a recommended tracking force of 1.8 g (18 mN), within a permitted range of 1.6 to 2.0 g (16 to 20 mN), and a tracking angle of 20°. Setting the tonearm's counterweight to the recommended 1.8 g and matching the arm's vertical tracking angle to 20° is what keeps the stylus tracking within its rated 70 µm capability at 315 Hz, so these figures are the setup values a buyer needs once the cartridge is mounted.

How is the cartridge body constructed?

The Ortofon 2MR Mono is built with a body combining polymer and aluminium, with an aluminium cantilever carrying the nude stylus tip. It's finished in black and white, with a white stylus for visual identification against the cartridge body.
