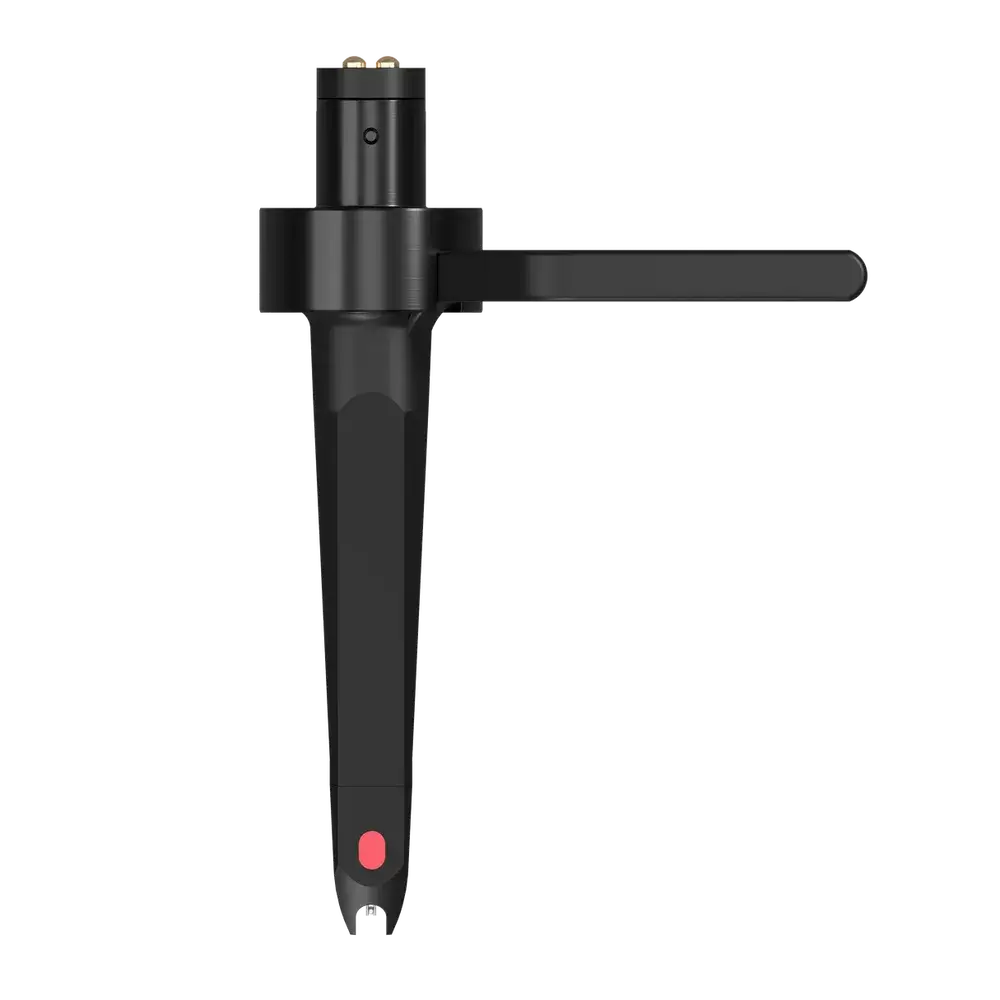

Ortofon Concorde 5E Moving Magnet Cartridge

Ortofon Concorde 5E: Is This Elliptical Bayonet-Mount Cartridge Right for Your Turntable?

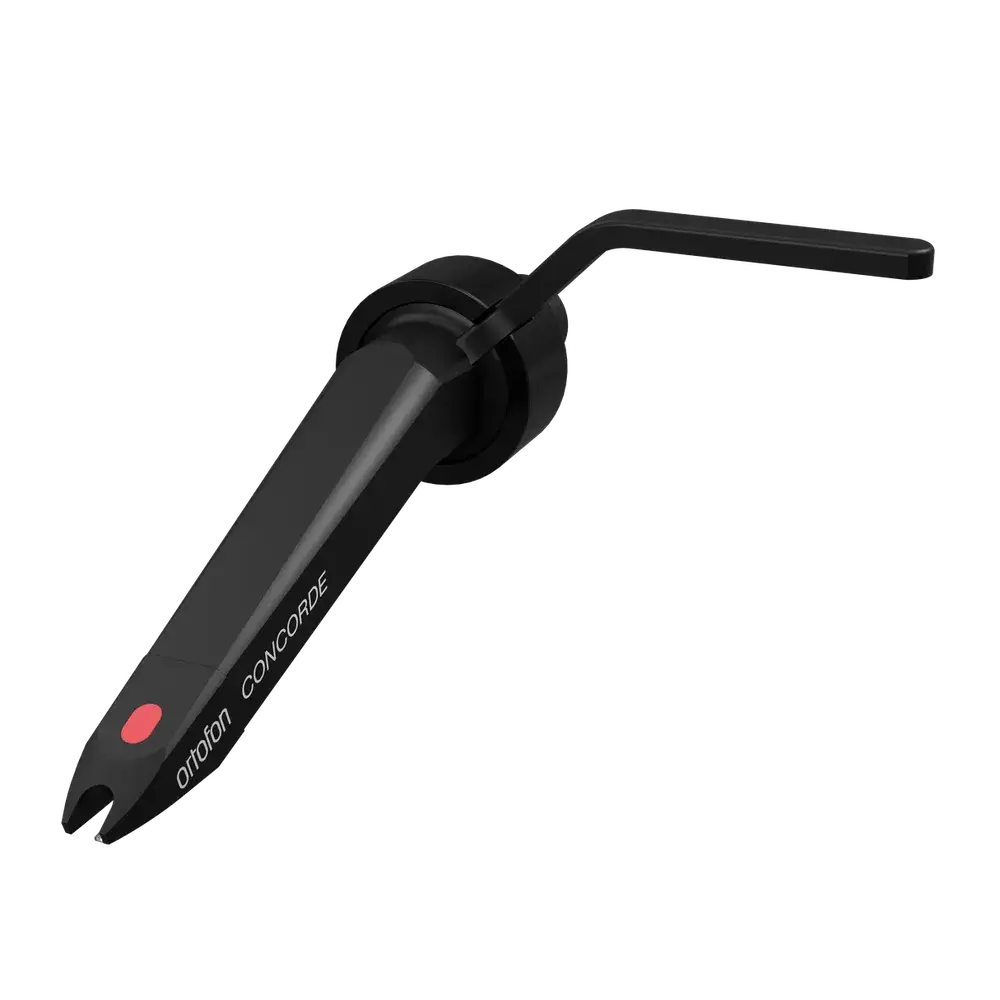

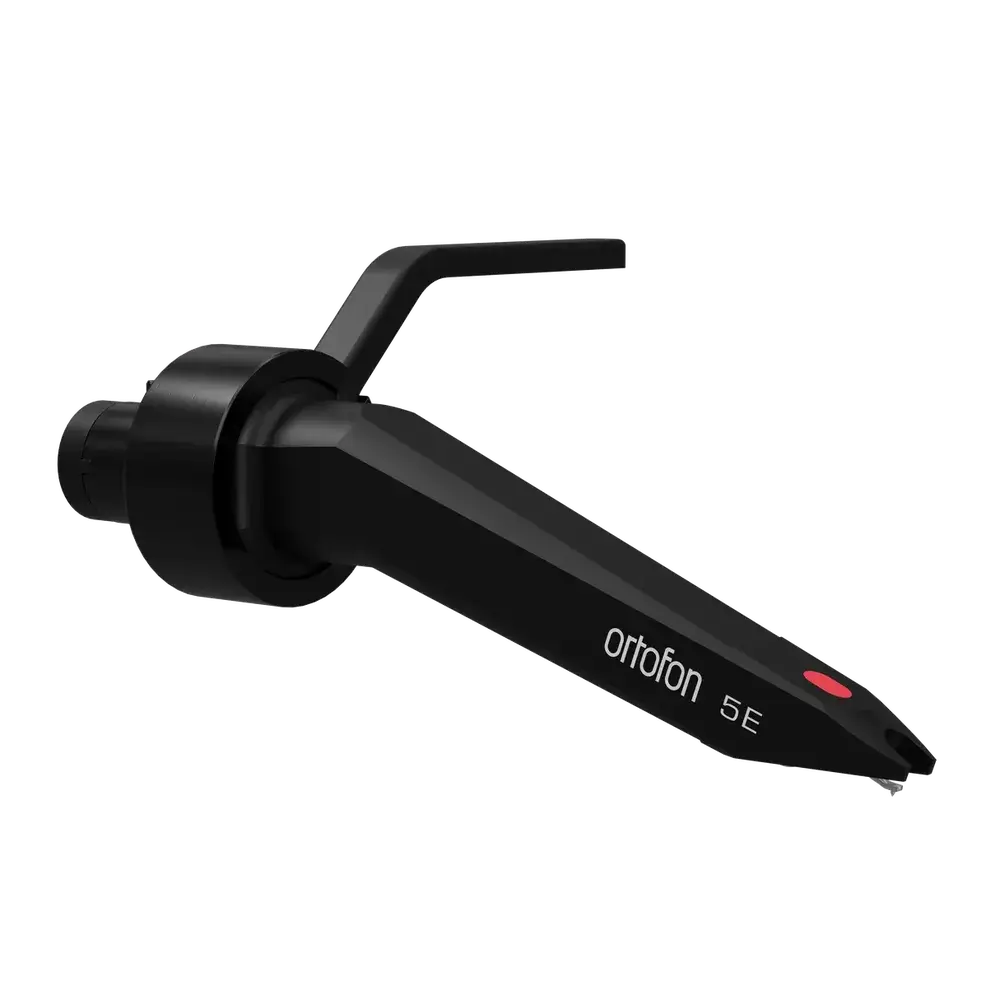

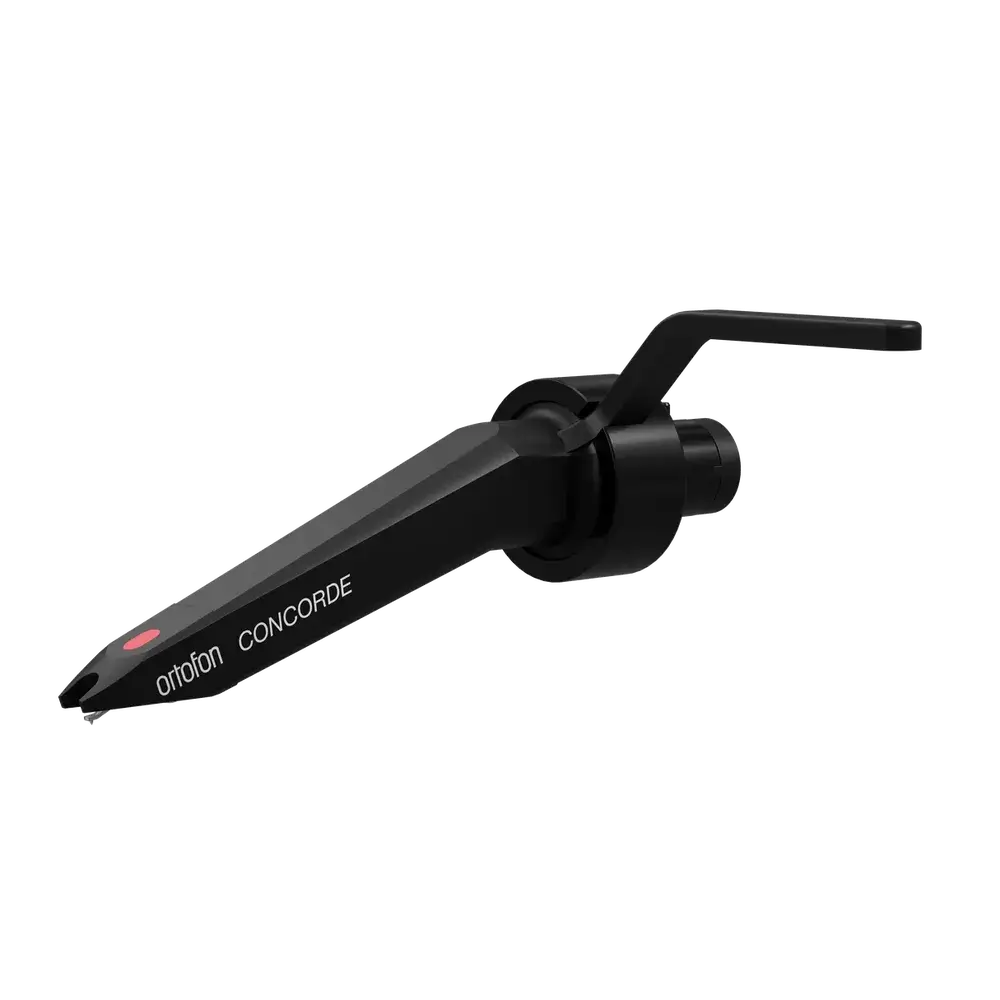

The Ortofon Concorde 5E is a phono cartridge with a built-in bayonet mount for S-shaped tonearms, aimed at listeners who want an elliptical diamond stylus and a no-tool setup. The Ortofon Concorde 5 Series 5E keeps to the classic Concorde MkI design. It pairs that format with an elliptical stylus and a replaceable stylus assembly that opens an upgrade route within Ortofon’s range.

Where does it sit in Ortofon’s Concorde range?

The Concorde 5E is part of the Concorde 5 Series, which Ortofon positions as the proven, no-fuss branch of the Concorde family. Ortofon describes the Concorde Music series, offered as Red, Blue, Bronze and Black models, as its most advanced design. The Concorde 5 Series follows the earlier MkI design.

Ortofon says the Concorde 5 Series serves two priorities: precision and detail, or durability and smooth tracking. The 5E’s elliptical stylus is its route to precision and detail. Choose a Concorde Music model if you want Ortofon’s most advanced Concorde design from the outset. If your turntable doesn’t have an S-shaped arm, look at half-inch mount cartridges, which Ortofon’s guide describes as fixing to a headshell with two screws spaced 1/2" apart.

Which turntables does the Ortofon Concorde 5E fit?

The Ortofon Concorde 5E is compatible with any S-shaped tonearm, according to Ortofon. Its bayonet mount is built into the cartridge body, so the cartridge connects to the arm as a single unit. Ortofon’s cartridge guide advises checking your turntable’s manual or the manufacturer’s specifications for cartridge type, mounting style and tonearm compatibility before buying. For this cartridge, the arm shape is the deciding factor.

What does its elliptical diamond do in the groove?

The Concorde 5E is fitted with an elliptical diamond stylus with an r/R 8/18 µm tip radius. The two radii describe a tip that’s narrower in one direction than the other. A spherical (conical) tip has a single radius.

Ortofon’s guide explains why shape matters. The diamond is the only part of the cartridge that touches the groove. Slimmer, more refined shapes follow the groove more precisely and come closer to the profile of the cutting stylus that made the record. That closer tracing is the mechanism behind Ortofon’s claims that the 5E’s stylus improves tracking and reduces distortion. Ortofon’s guide lists elliptical and Fine Line tips alongside spherical and Line Contact designs such as Shibata.

Can you upgrade the Ortofon Concorde 5E later?

The Ortofon Concorde 5E is compatible with six Ortofon replacement styli: Stylus 5S, 5E, 10, 20, 30 and 40. Ortofon states that fitting a different stylus from this list is how owners reach higher performance without changing the cartridge. Stylus 5E is on the list, so a worn tip can be replaced like for like. Ortofon’s guide names replaceable-stylus designs as the way to keep this upgrade option open.

Will the Ortofon Concorde 5E suit your tonearm’s mass?

The Ortofon Concorde 5E is specified at 18.5 g with a dynamic lateral compliance of 20 µm/mN, and both figures determine how it pairs with a tonearm. Ortofon’s guide calculates cartridge and tonearm resonance with F = 1000 ÷ (2π × √(M × C)). In this formula, M is the cartridge mass plus headshell and screws plus the arm’s effective mass, and C is compliance. Ortofon treats 7–12 Hz as optimal and 6.5–7 Hz as usable without problems.

The 5E’s mount is built in, so there’s no separate headshell figure to add. M becomes 18.5 g plus your arm’s effective mass. With C at 20 µm/mN, the formula reaches 7 Hz when M is about 25.9 g, which means an arm effective mass of around 7.4 g. It reaches 6.5 Hz when M is about 30 g, an arm mass of around 11.5 g. Check whether your turntable’s quoted effective mass includes a headshell, because that changes the result.

Ortofon’s guide classes 10–20 µm/mN as moderate compliance and states that low-mass arms, rated at 10 g or below, match well with moderately high and very high compliance cartridges.

What phono input does it need?

The Concorde 5E is specified at 4 mV output at 1 kHz and 5 cm/s, with a recommended load resistance of 47 kΩ. A 47 kΩ load is the standard setting for a moving magnet (MM) phono input, and 4 mV falls within the output range those inputs are designed to amplify. If your phono stage has adjustable loading, set it to 47 kΩ.

How do you fit and set it up?

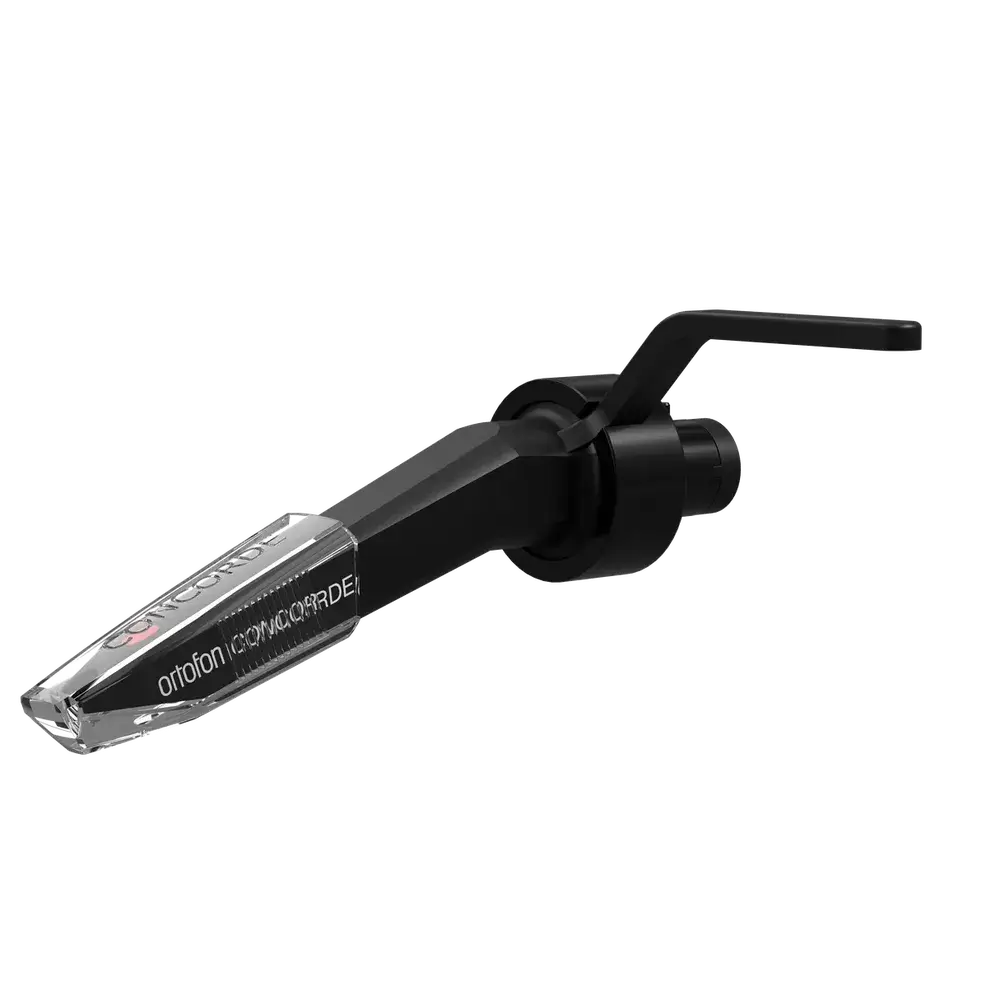

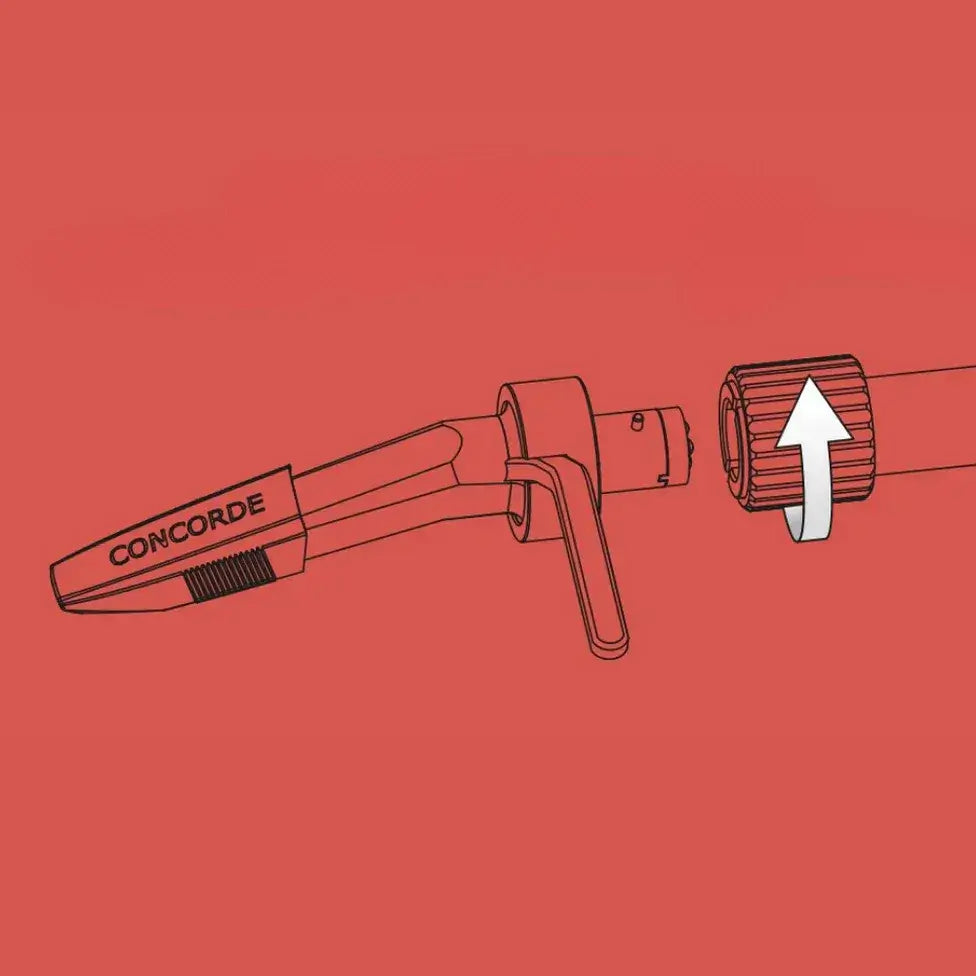

The Concorde 5E is designed for no-tool installation. Its built-in bayonet mount means there’s no headshell wiring, unlike the four-pin half-inch mount described in Ortofon’s guide. A rubber ring comes in the box and sits between cartridge and tonearm. Ortofon states that it prevents overtightening and secures the fit.

When you balance the arm, the counterweight has to offset the cartridge’s full 18.5 g. Ortofon recommends a tracking force of 1.8 g. A stylus brush is included for keeping the diamond clean. Ortofon publishes a downloadable user guide for the full procedure.

What do the published measurements tell you?

The Concorde 5E is specified for a frequency response of 20 Hz to 20 kHz within ±3 dB. Channel separation is better than 20 dB at 1 kHz, which means signal leaking into the opposite channel stays below one tenth of the original voltage. Channel balance is within 2 dB at 1 kHz, so the left and right output levels differ by no more than 2 dB.

What’s it made from?

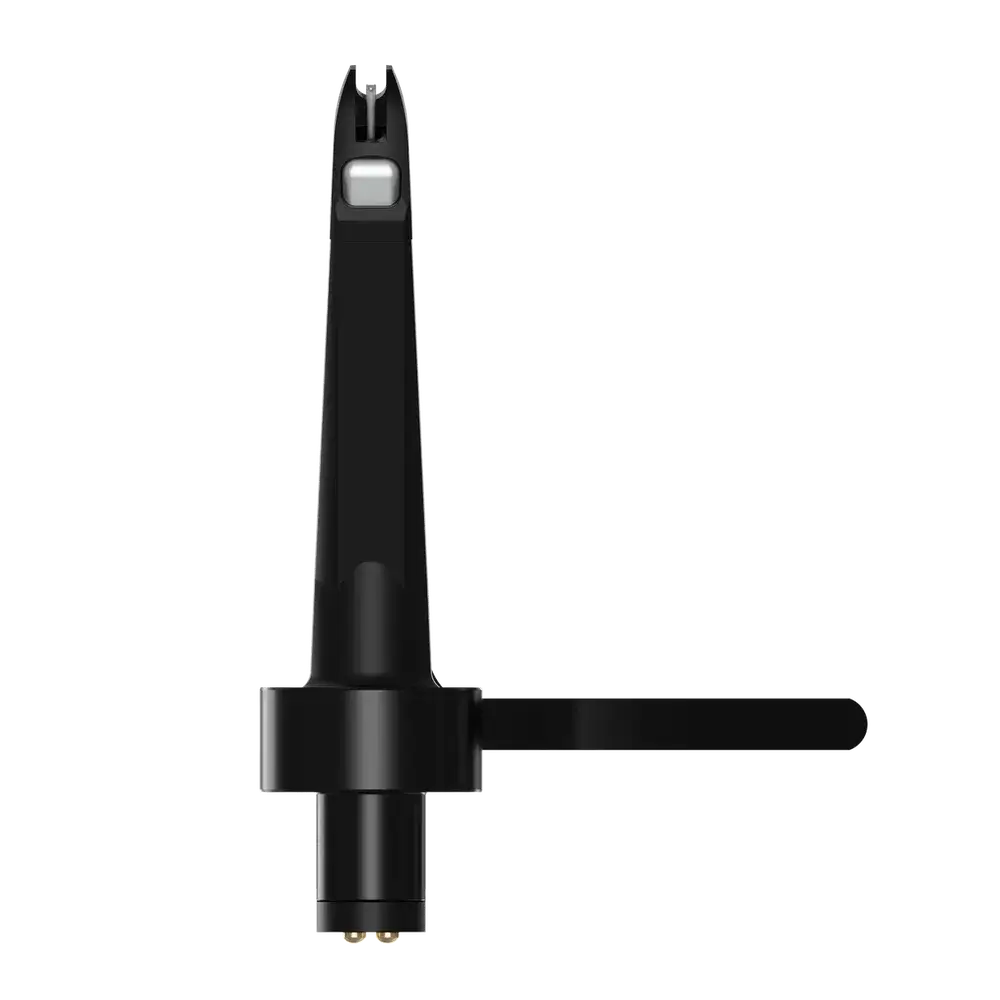

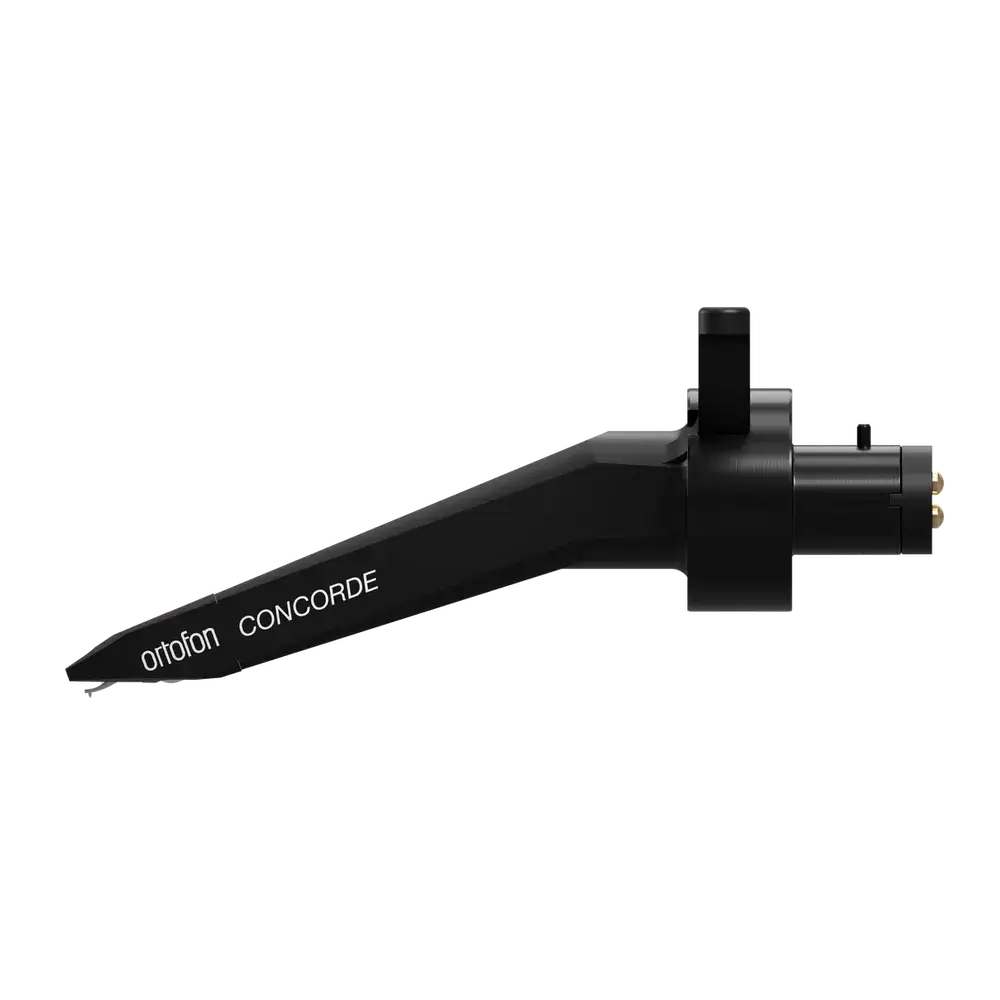

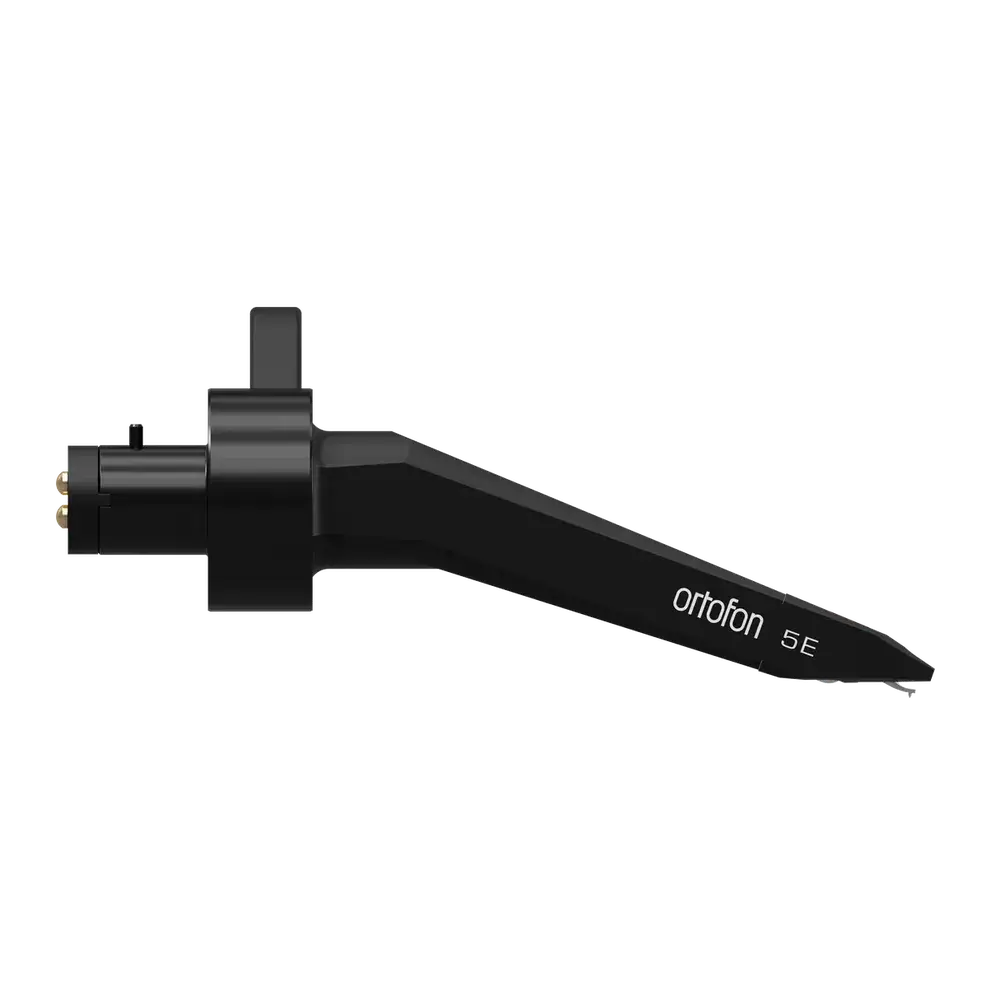

The Concorde 5E is built with a black polymer and brass body. An aluminium cantilever carries the diamond and sits in Ortofon’s proprietary stylus suspension. The generator uses a quad-coil system wound with oxygen-free copper (OFC) wire.
