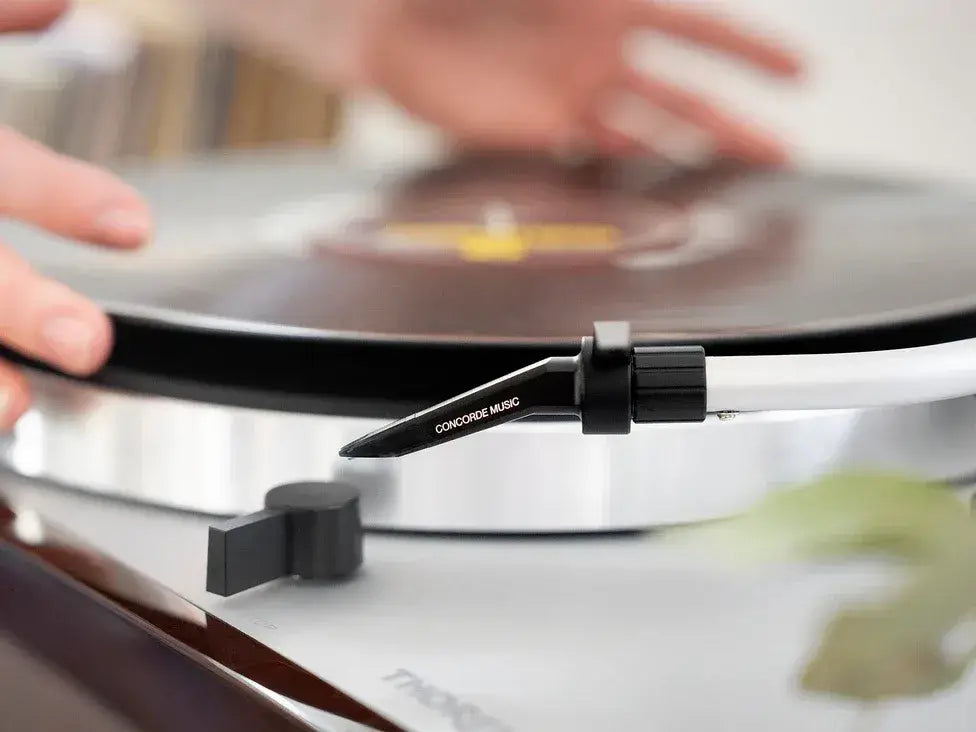

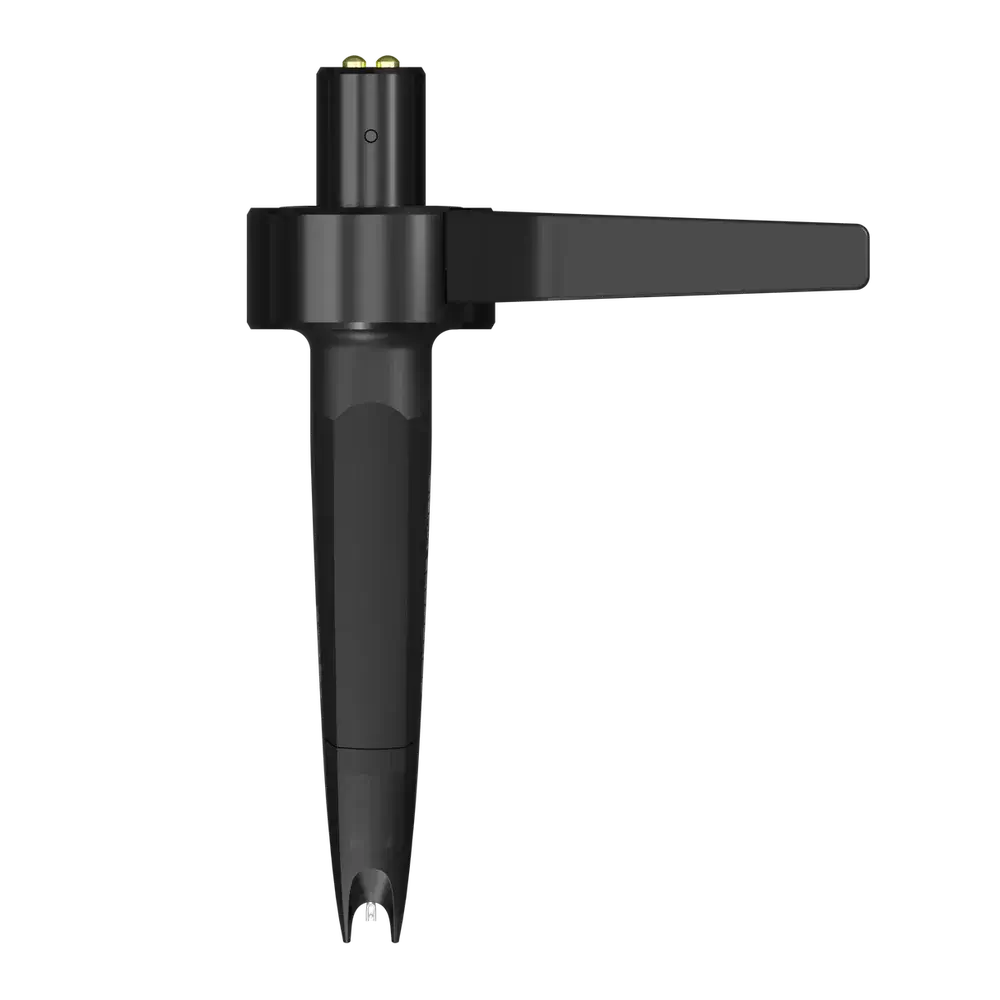

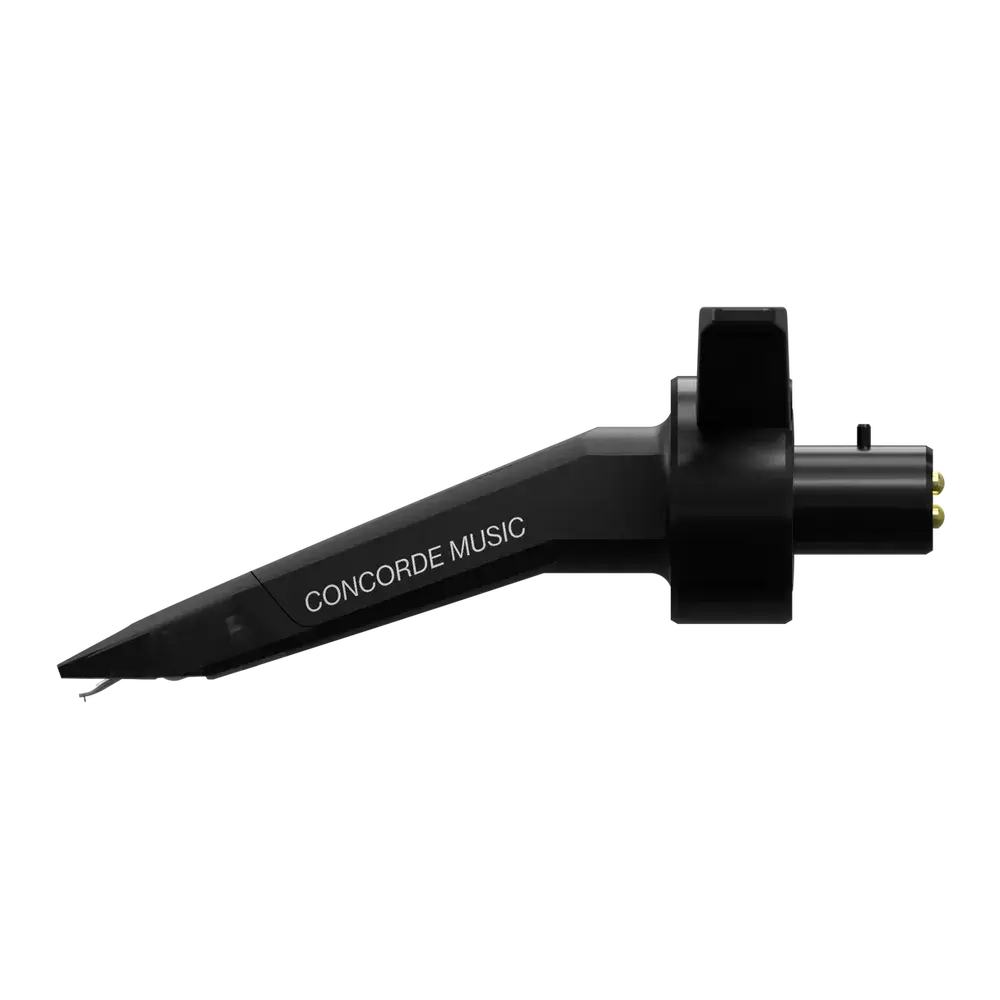

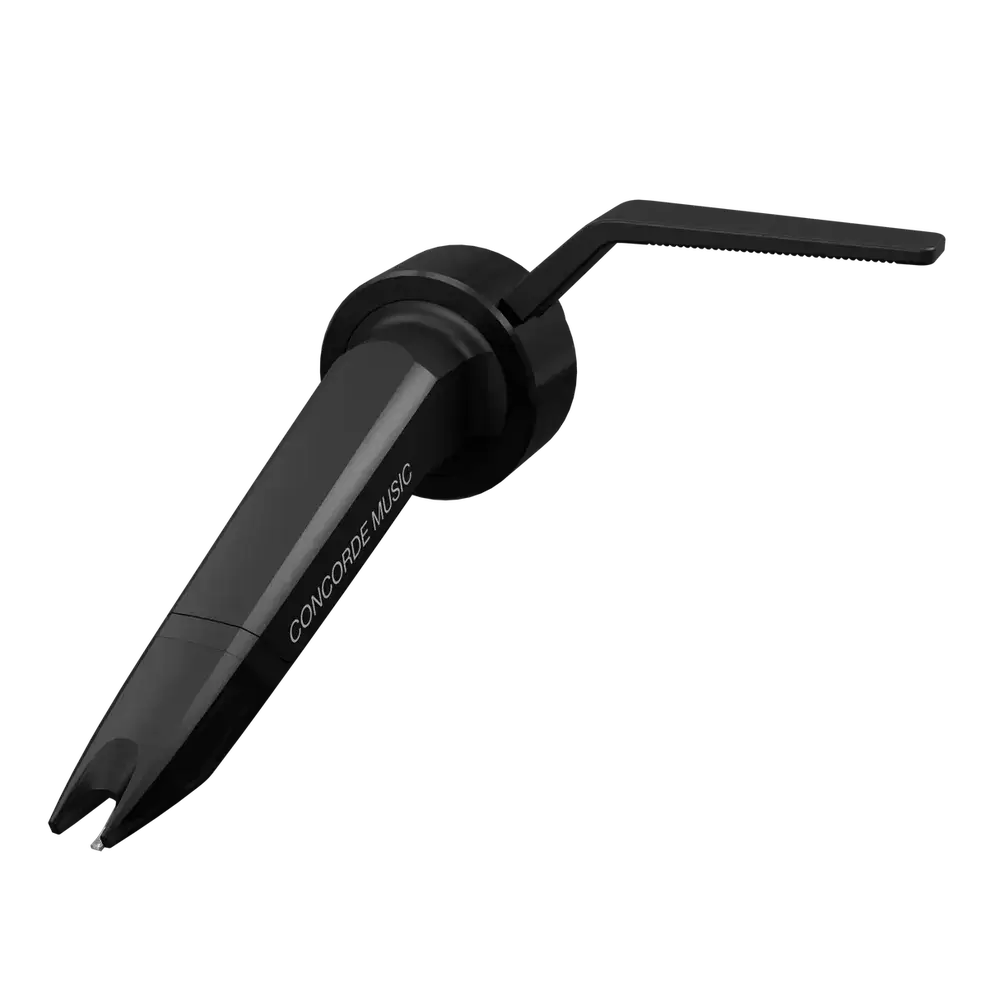

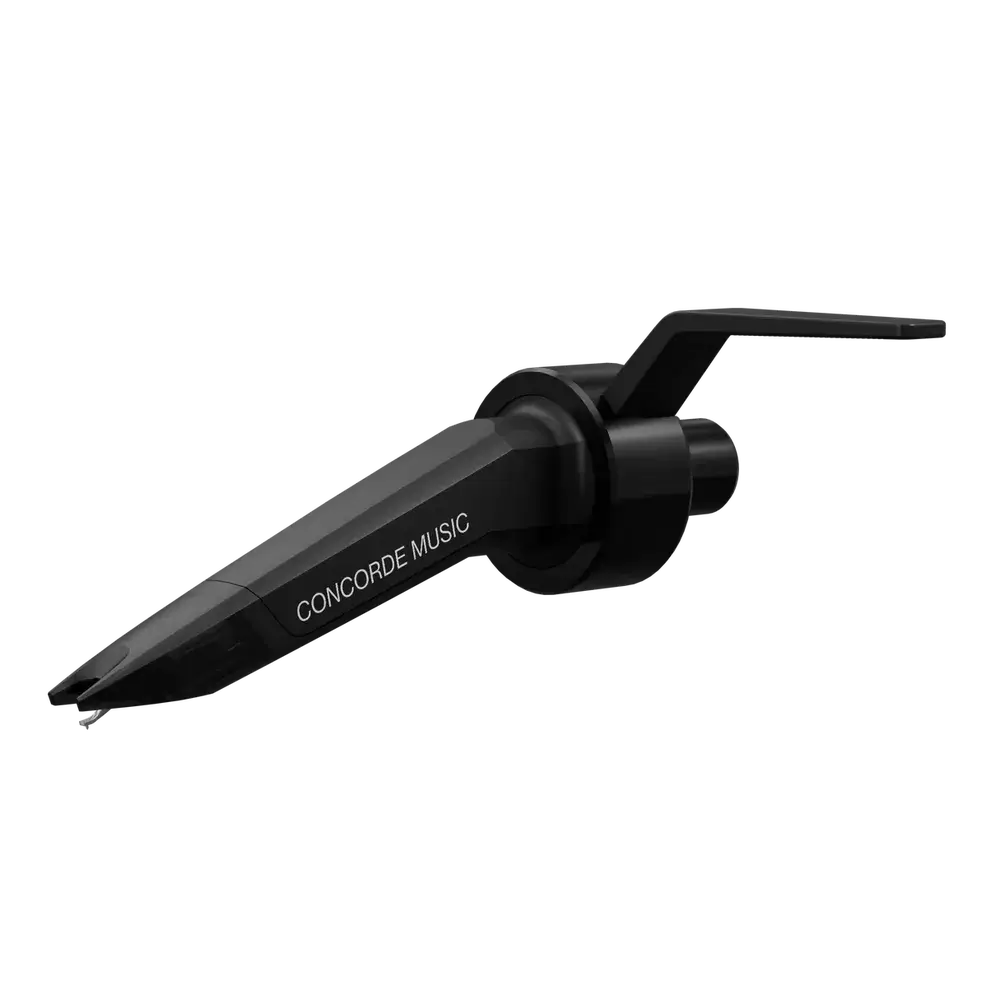

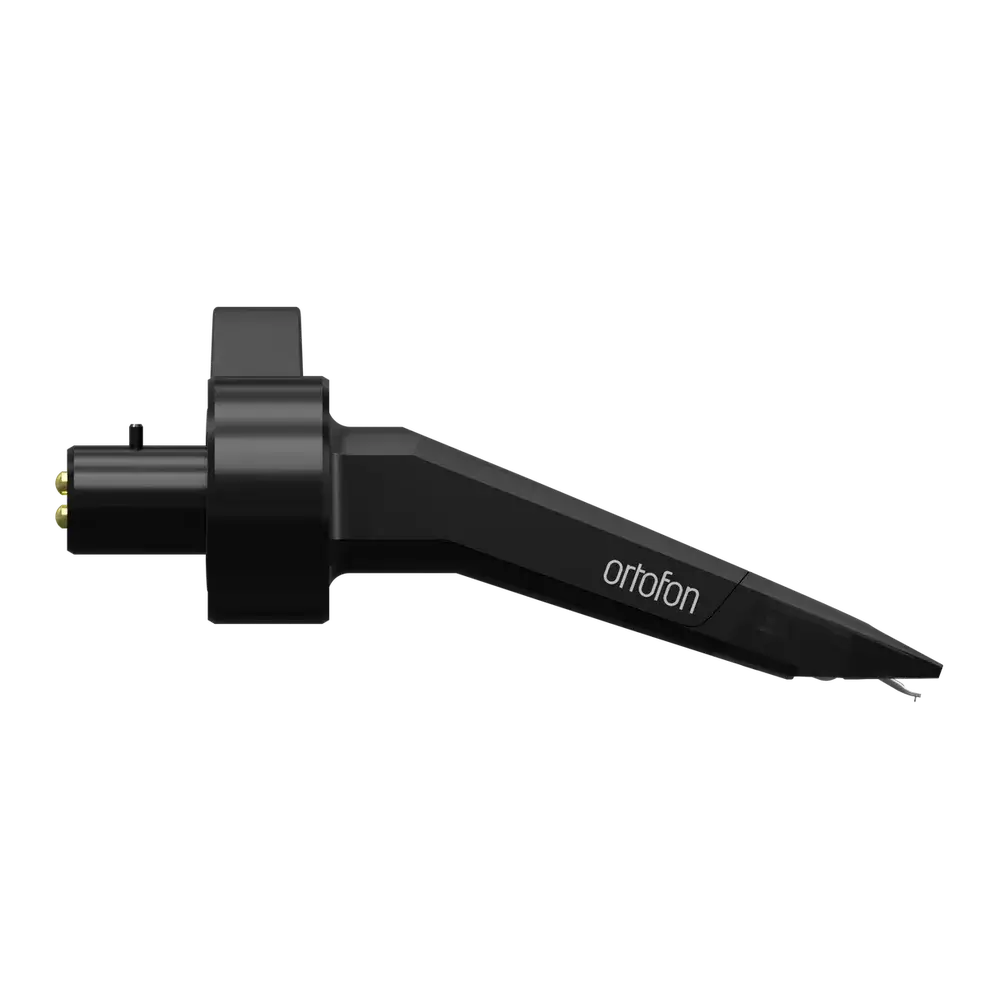

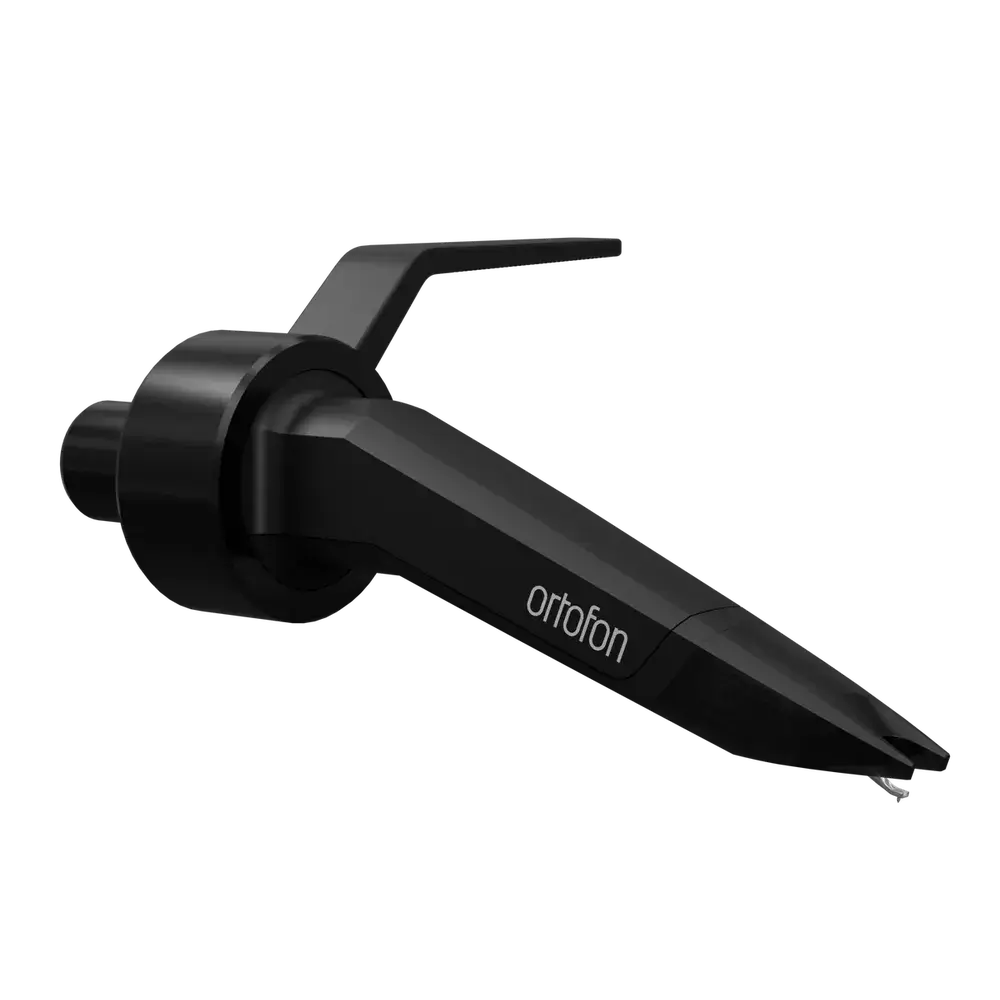

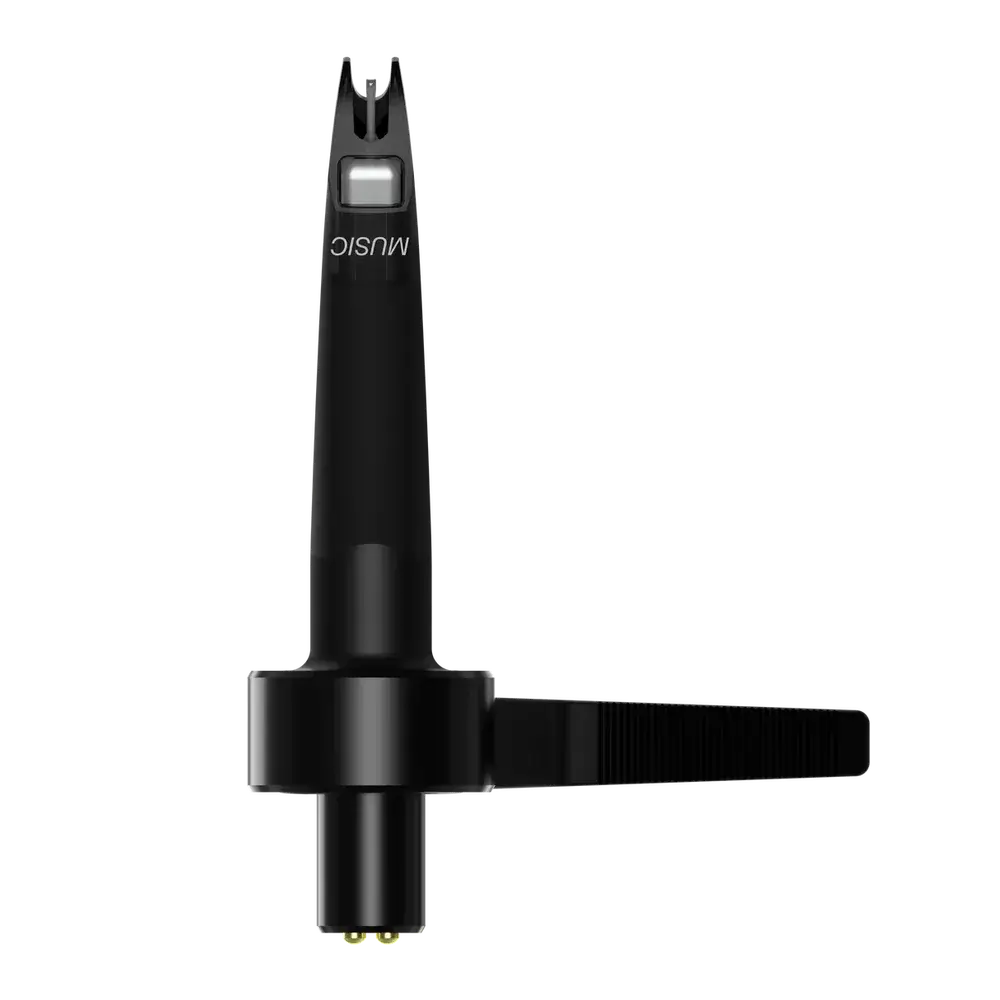

Ortofon Concorde Music Black Moving Magnet Cartridge

Ortofon Concorde Music Black: Is This Nude Shibata Moving Magnet Cartridge Right for Your Turntable?

The Ortofon Concorde Music Black is a premium moving magnet cartridge for vinyl listeners who want a Nude Shibata diamond in a Concorde body that installs without tools. It’s the second-highest model in Ortofon’s Concorde Music series. It’s built for owners who value a replaceable-stylus design and want to move beyond the entry and mid-range Concorde Music models.

Who should choose the Ortofon Concorde Music Black over its alternatives?

The Ortofon Concorde Music Black is the fourth model in a five-step range: Concorde Music Red, Blue, Bronze, Black and Black LVB 250. Ortofon presents it as an upgrade from the Concorde Music Bronze.

The wider choice is between cartridge types. Ortofon recommends moving magnet designs to buyers who want stylus replacement and future upgrades. It points listeners chasing an extraordinary musical experience towards moving coil cartridges. The Concorde Music Black belongs to the first group, so it suits buyers who want that upgrade flexibility in a Concorde format.

Will it fit your turntable?

The Concorde Music Black is a cartridge to check against your turntable before you buy. Ortofon notes that turntables can have specific requirements for cartridge type, mounting style and tonearm compatibility. Its guide describes two common connector formats. Half-inch mount cartridges attach with two screws spaced 1/2" apart. Direct-connector cartridges plug straight into the end of the tonearm. Check your turntable’s manual and the Compatible Turntables section on Ortofon’s product page before ordering.

Does the Ortofon Concorde Music Black suit your tonearm’s effective mass?

The Ortofon Concorde Music Black is a moderate-compliance cartridge. Its dynamic lateral compliance of 15 µm/mN sits inside the 10–20 µm/mN band Ortofon classes as moderate. Compliance and total moving mass together set the system’s resonance frequency. Ortofon targets 7 to 12 Hz and recommends 10 Hz.

Its polymer and brass body weighs 18 g. Ortofon’s formula is F = 1000 ÷ (2 × π × √(M × C)), where M is the total mass in grams and C is the compliance. With that formula, the cartridge alone gives about 9.7 Hz. An 8 g tonearm brings resonance to about 8.1 Hz, and a 12 g arm to about 7.5 Hz. A 16 g arm reaches about 7.05 Hz, the lower edge of the optimal window. A 22 g arm lands near 6.5 Hz, which Ortofon says may still work without problems. Heavier arms push resonance into the range Ortofon calls questionable.

These figures add 18 g to the tonearm’s quoted effective mass. Ortofon’s formula also counts headshell and screw mass where they’re present. Check how your turntable maker measures effective mass, because a separate headshell or extra hardware raises the total and lowers the resonance.

Which phono stage settings does it need?

The Concorde Music Black is a moving magnet design with a 6 mV output at 1 kHz (5 cm/sec), so it connects to a moving magnet phono input. Ortofon recommends a 47 kΩ load resistance and a load capacitance of 150–300 pF. Choose a phono stage that offers loading in that range.

How do you install and set it up?

The Concorde Music Black is a tool-free install. The supplied rubber ring helps prevent overtightening and ensures a secure fit between the cartridge and tonearm. Set the tracking force to Ortofon’s recommended 1.8 g. The specified tracking angle is 20°. Ortofon rates the tracking ability at 80 µm at 315 Hz, which is the groove amplitude the stylus can follow at that frequency. A stylus brush comes in the box for cleaning the diamond between records.

What does a Nude Shibata stylus change?

The Concorde Music Black is built around a Nude Shibata diamond on an aluminium cantilever. A tipped stylus mounts its diamond on a metal shank. A nude diamond doesn’t need one, so it weighs less. Less mass at the tip means less inertia for the groove walls to move, and Ortofon credits this with better responsiveness and reduced distortion.

The Shibata shape belongs to Ortofon’s line-contact category. Its r/R rating gives a 6 µm and a 50 µm radius, which describes a slim profile. Ortofon explains that finer cuts give a larger contact area with the groove. Slim shapes follow the groove more precisely and come closer to the profile of the stylus that cut the record.

Can the Ortofon Concorde Music Black be upgraded later?

The Ortofon Concorde Music Black is upgradable with the Stylus Concorde Music Black LVB 250. Upgrading is a stylus swap, not a new cartridge. You can start at the Black tier and move towards the top of the Concorde Music range when you’re ready.
