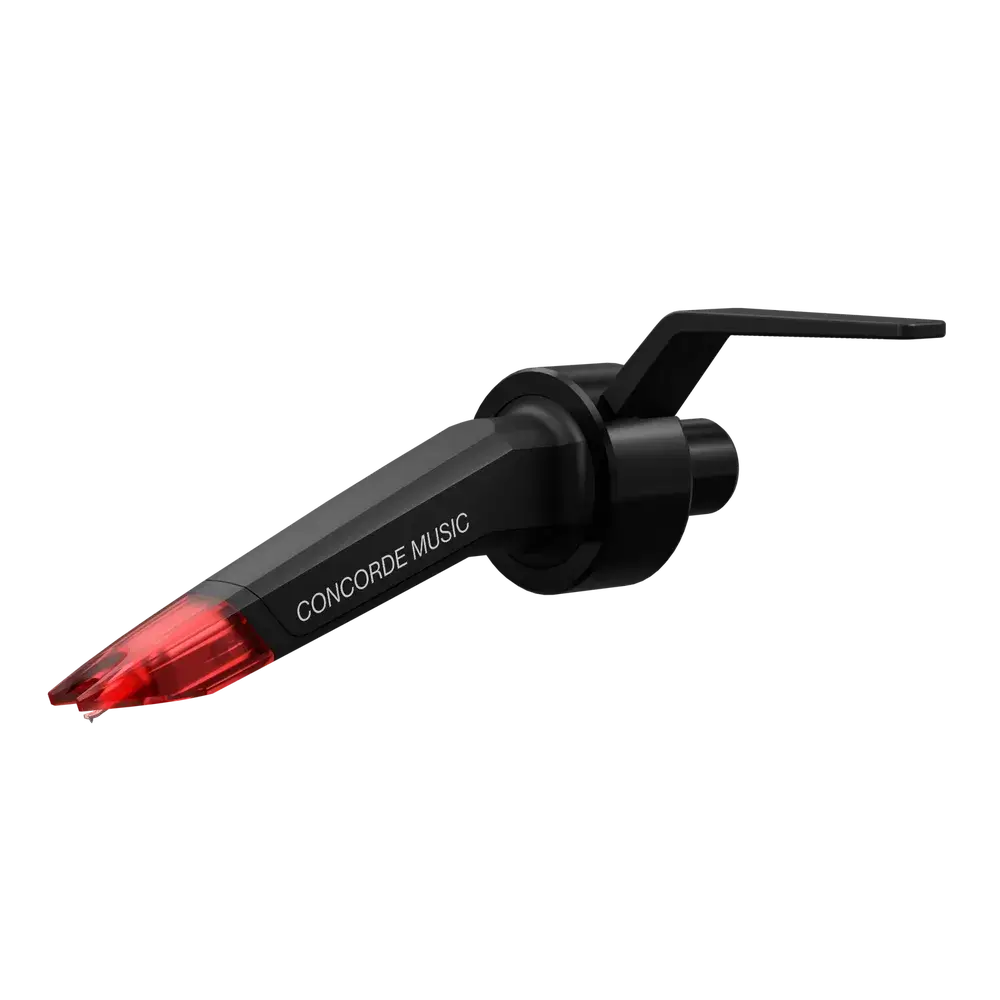

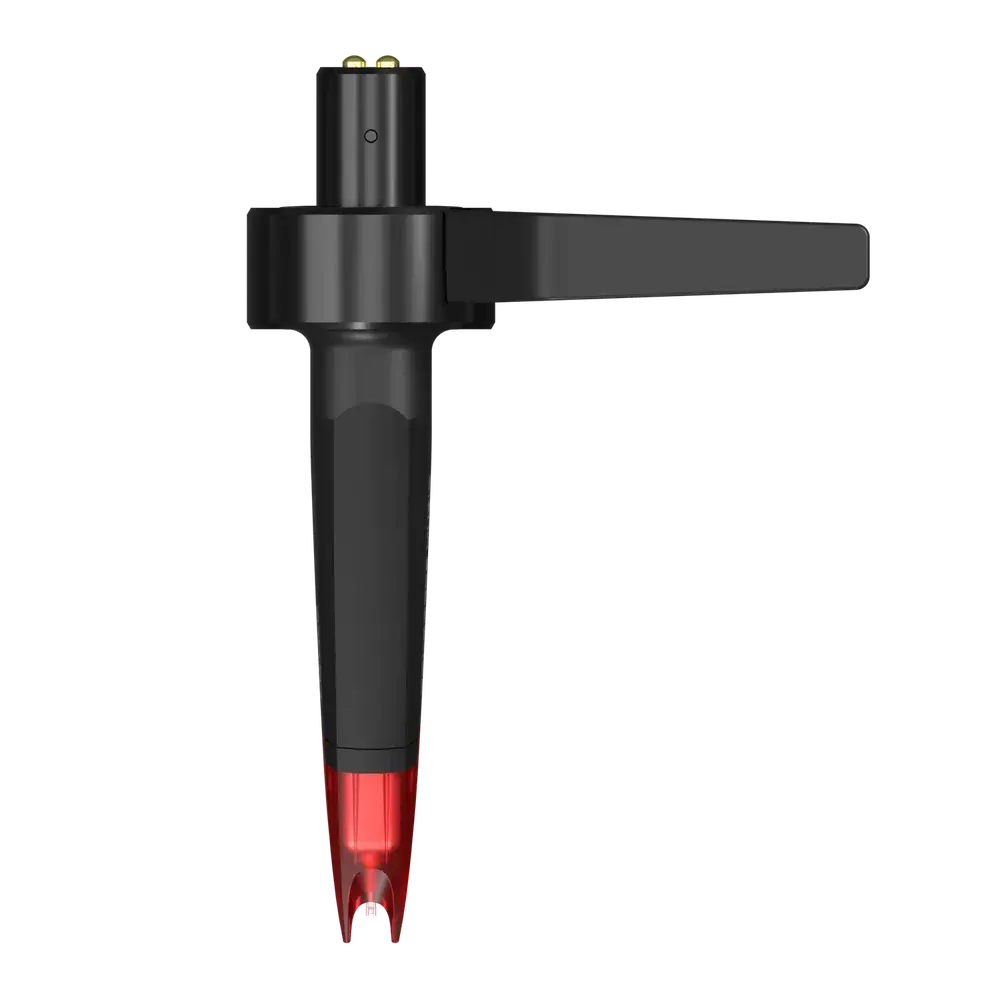

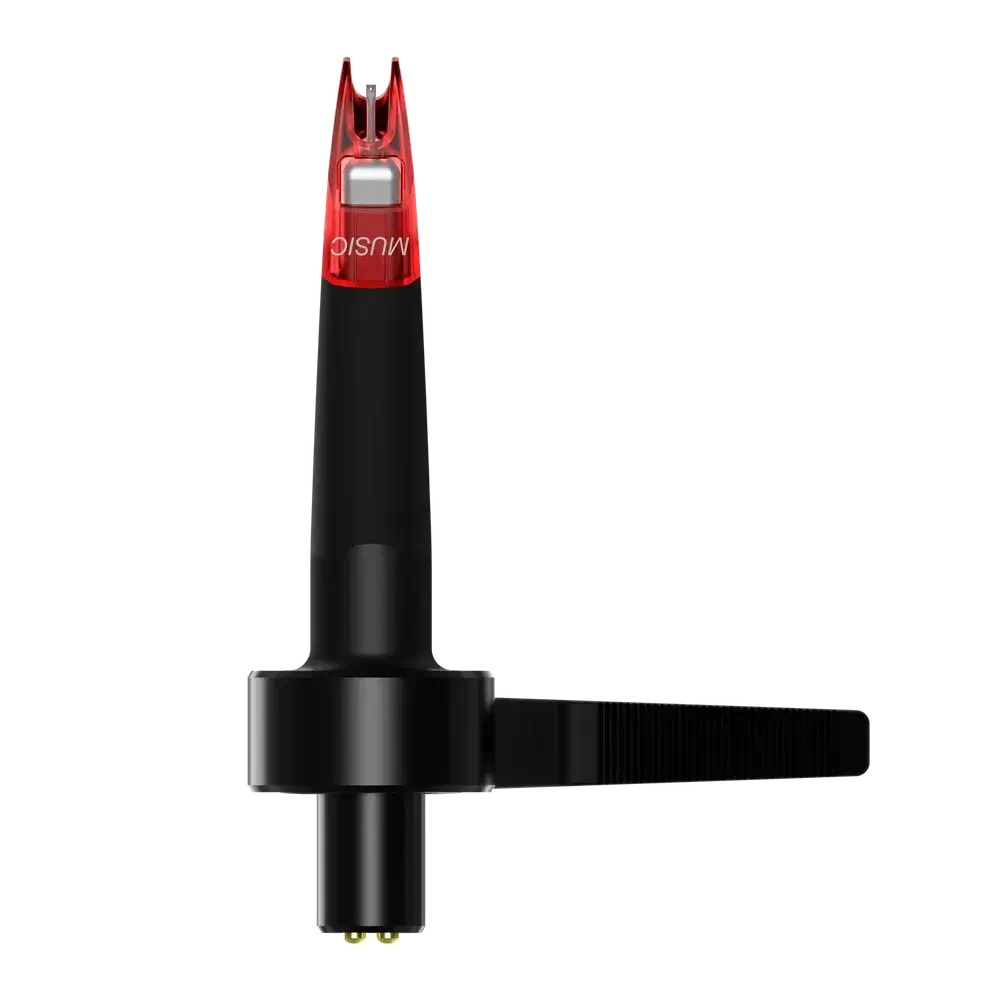

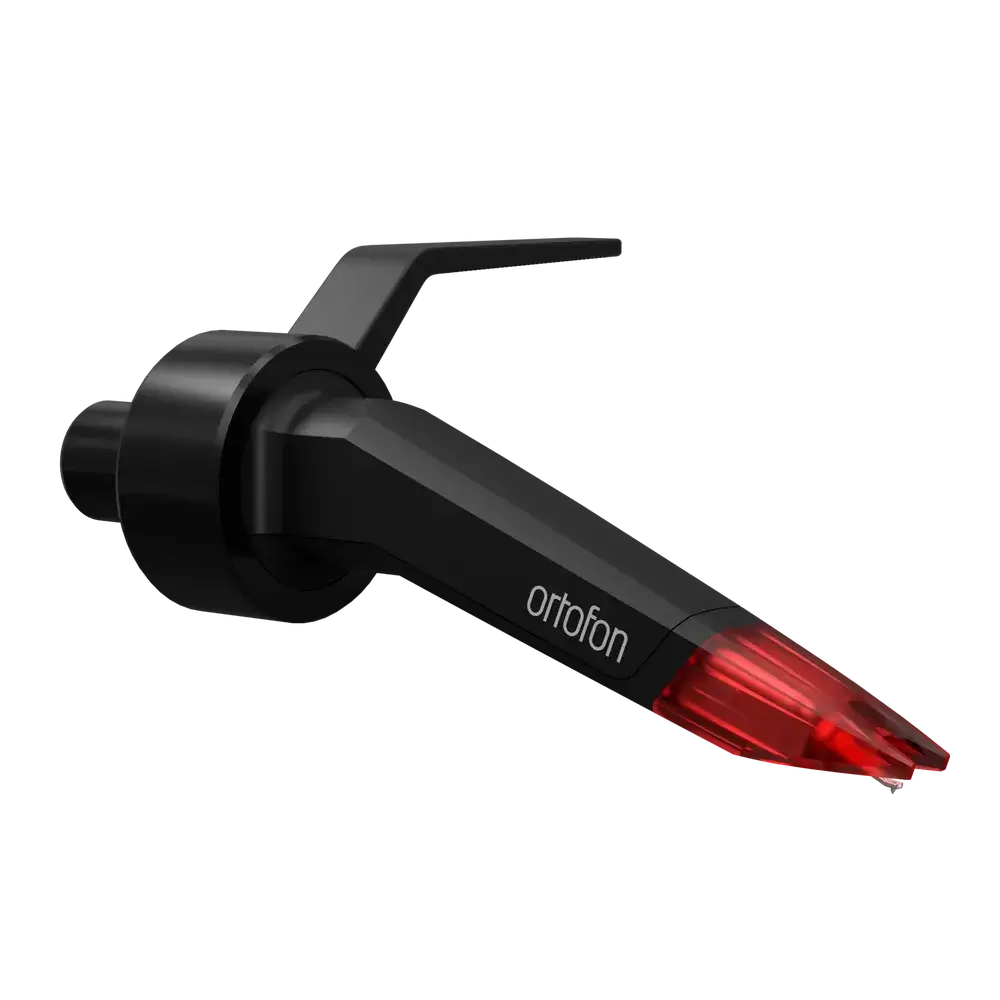

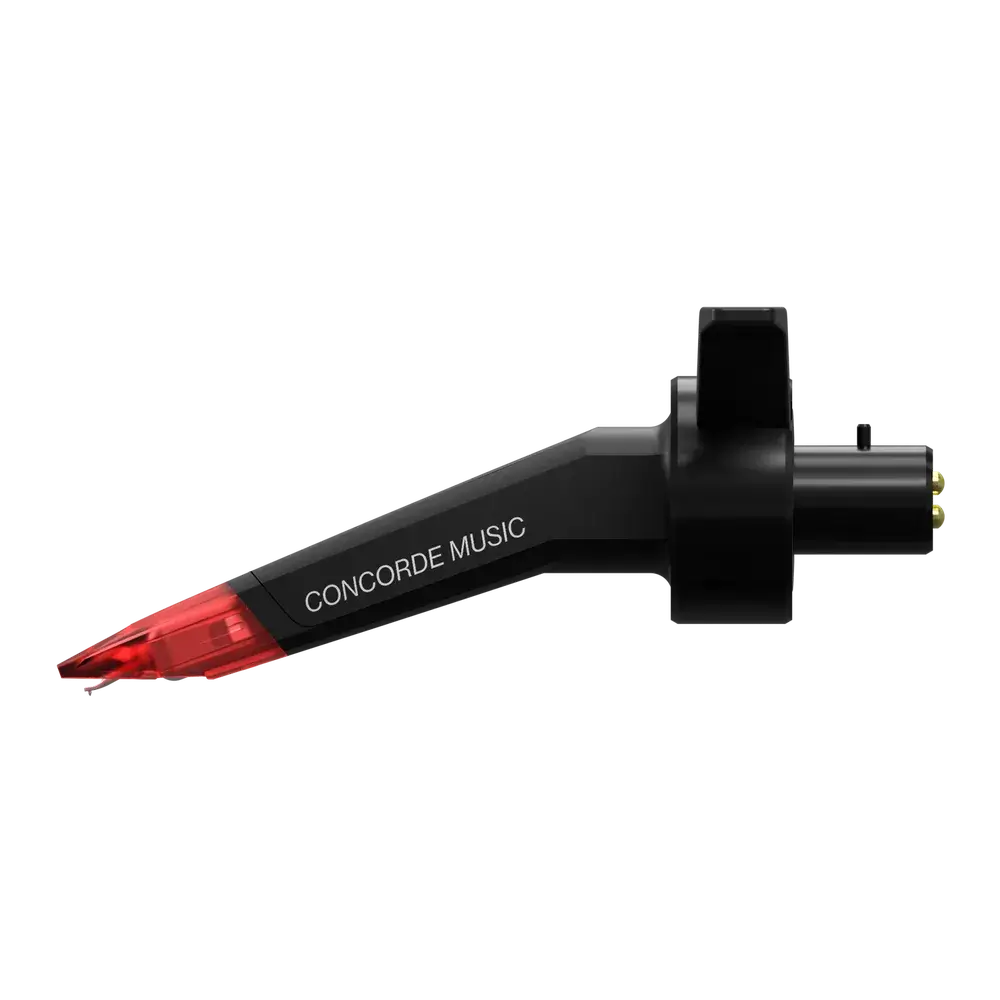

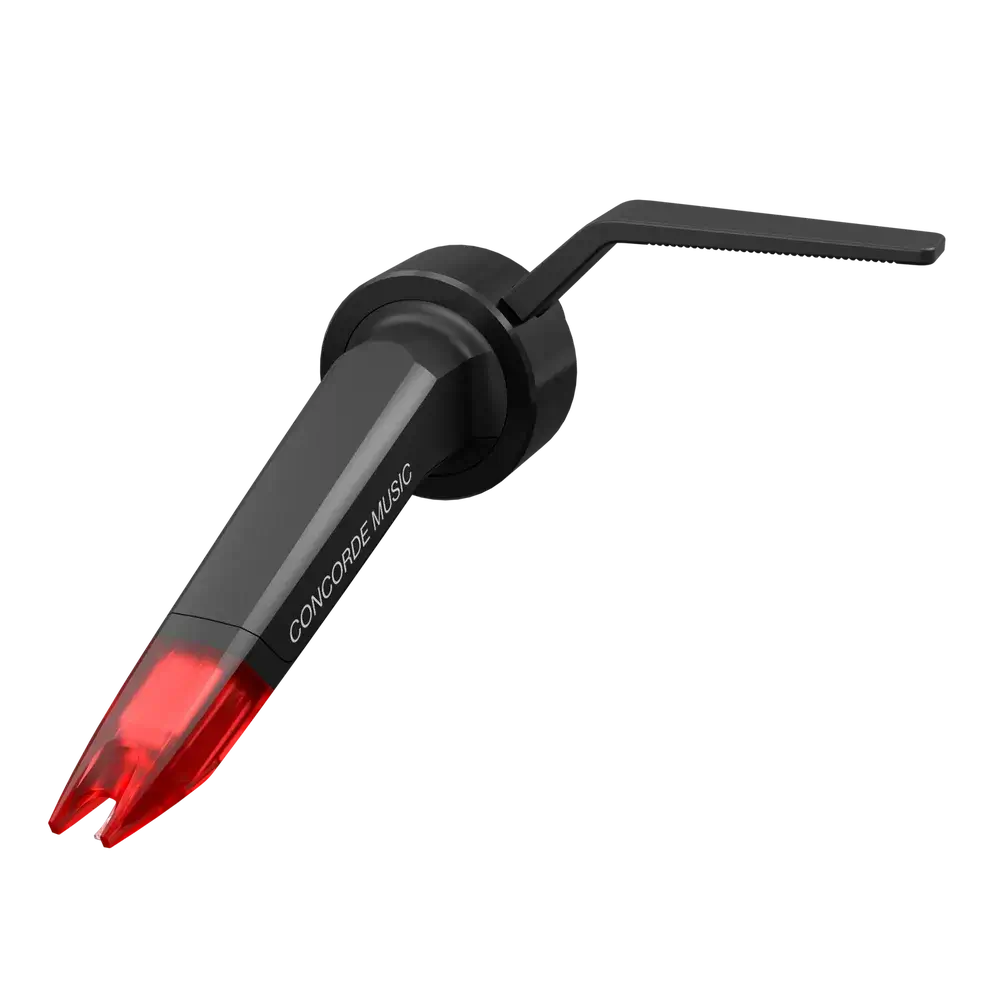

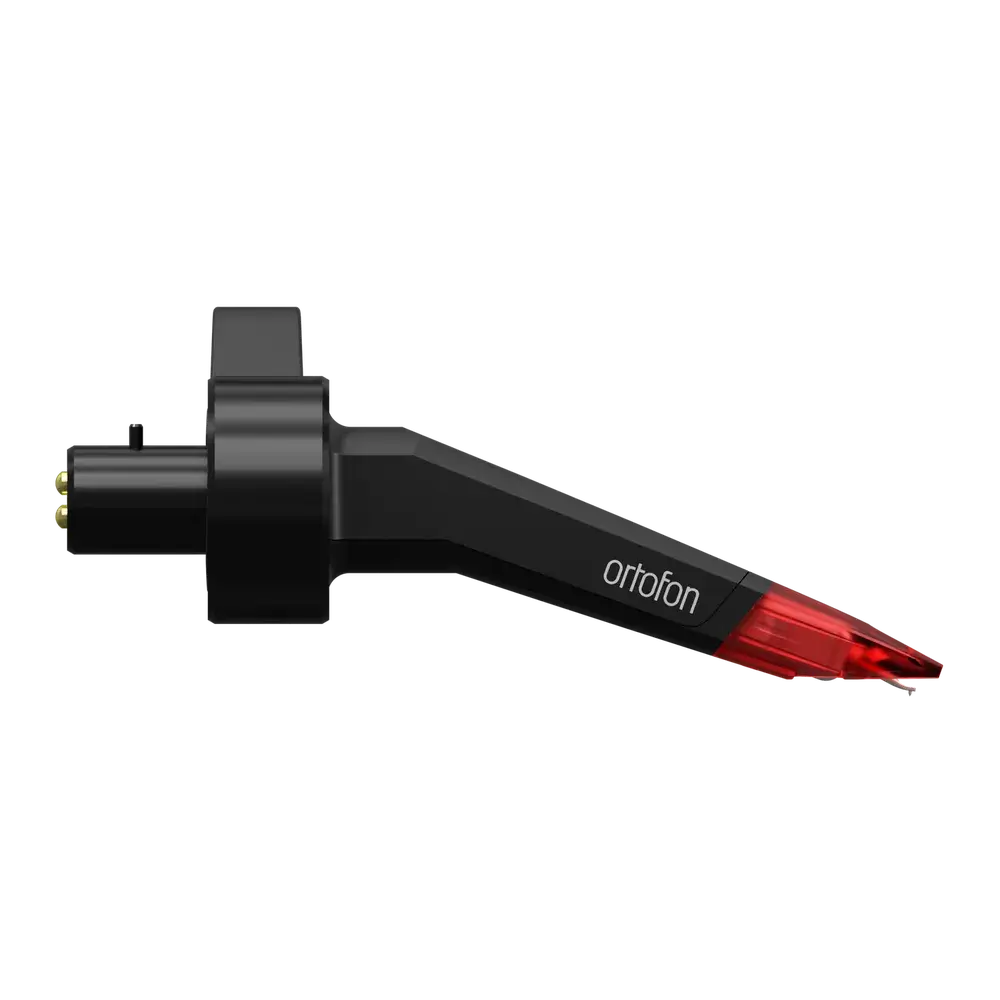

Ortofon Concorde Music Red Moving Magnet Cartridge

Ortofon Concorde Music Red: Premium Moving Magnet Cartridge for Turntable Systems

Ortofon Concorde Music Red is a moving magnet cartridge from Ortofon's Concorde Music series, built for buyers who want a straightforward entry point into the range with a defined upgrade path. The cartridge pairs an elliptical diamond stylus with an aluminium cantilever, and its defining feature is that owners can move up through every model in the Concorde Music series, as far as Concorde Music Black LVB 250, by replacing only the stylus rather than the whole cartridge. This makes the Red variant a starting point rather than a fixed-tier purchase, since the coil system, body, and electrical characteristics stay in place while the stylus assembly changes.

Why does the Ortofon Concorde Music Red suit buyers planning to upgrade later?

The Concorde Music Red is the entry model in Ortofon's Concorde Music series, and its main differentiator is stylus interchangeability across the range. A buyer can swap the stylus and carry the same cartridge body up to Concorde Music Blue, Bronze, Black, or Black LVB 250, without buying a new cartridge or coil system. This lets a buyer start with the Red variant and change only the wearing part, the stylus, as their system or budget develops, rather than replacing the whole cartridge each time they want a different performance tier.

What load resistance and capacitance does this cartridge need from a phono stage?

This cartridge is specified for a load resistance of 47 kΩ and a load capacitance of 150-300 pF, values that determine how a phono stage or preamp input should be set to match its output voltage of 6mV at 1kHz. Keeping the phono stage's input capacitance within this range helps preserve the cartridge's rated frequency response of 20Hz-20kHz +3/-1dB, since capacitance outside the specified range can shift high-frequency response. A buyer checking system compatibility before purchase should confirm their phono stage supports these load values.

How do you install the Ortofon Concorde Music Red on a tonearm?

Ortofon Concorde Music Red is designed to fit onto a tonearm without tools, using the Concorde mount's tool-free design. It comes with a rubber ring that sits between the cartridge and the tonearm mount, preventing overtightening and keeping the fit secure once installed, along with a stylus brush for ongoing maintenance. With a recommended tracking force of 1.8g and a tracking angle of 20°, setup only involves adjusting the tonearm's counterweight and anti-skate to these figures rather than a complex alignment process.

What does the coil system contribute to channel separation and output?

Ortofon Concorde Music Red is built around a coil system of quad-coils with split pole pins and silver-plated OFC coil wire, a construction that underpins its output voltage of 6mV at 1kHz and its channel separation of 22dB at 1kHz. Splitting the pole pins into paired sections around each coil keeps the two stereo channels more electrically isolated from one another, which is what the channel separation figure reflects. The elliptical diamond stylus, mounted on the aluminium cantilever, tracks the groove at a tip radius of 8/18µm and reaches a dynamic lateral compliance of 15µm/mN, giving a tracking ability of 80µm at 315Hz. A stiffer or heavier cantilever would lower this compliance figure and reduce how closely the stylus follows fine groove modulation.

What is the cartridge body made from?

Ortofon Concorde Music Red is built with a body made from polymer and brass, weighs 18g in total, and is finished in black and red.

Where does the Ortofon Concorde Music Red sit within Ortofon's Concorde Music range?

Ortofon Concorde Music Red is the entry point in the five-model Concorde Music range, which extends through Concorde Music Blue, Concorde Music Bronze, Concorde Music Black, and Concorde Music Black LVB 250. Buyers comparing these models are choosing between price points on the same cartridge platform, since the body, coil system, and mount stay consistent across the range and only the stylus and cantilever specification changes at each tier. Someone building a turntable system for the first time, or replacing a worn stylus on a budget, is better served by the Red model and its interchangeable stylus, while a buyer who wants the series' top stylus and cantilever specification from the outset should compare directly against the Black LVB 250 rather than planning a staged upgrade.
