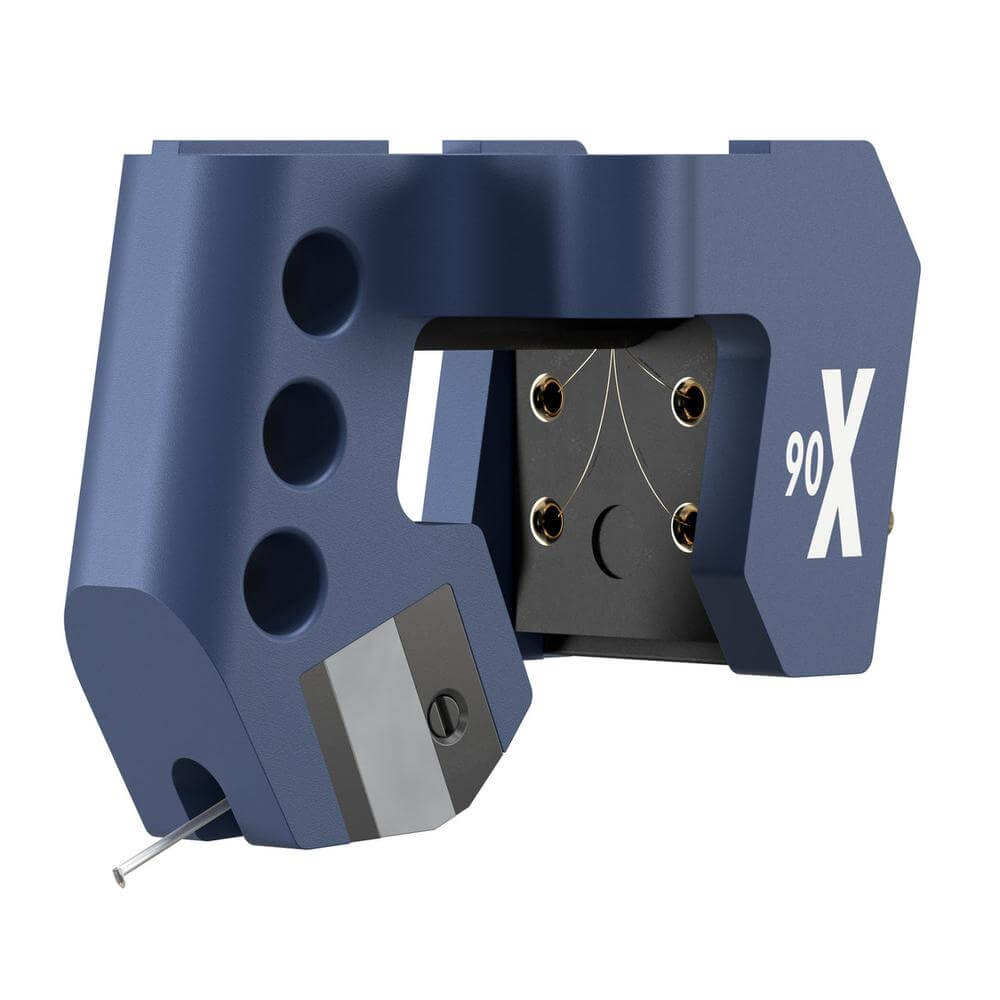

Ortofon MC 90X Moving Coil Cartridge

What makes the Ortofon MC 90X different from the original MC A90?

The Ortofon MC 90X is a reimagining of the MC A90, carrying forward its stainless-steel construction, Field Stabilizing Element and Wide Range Damping into a new generation cartridge. It pairs these carried-over principles with a Replicant 100 diamond stylus, an Aucurum coil wire generator and newly developed proprietary Ortofon rubber dampers, updating a recognised design rather than starting from an unproven one.

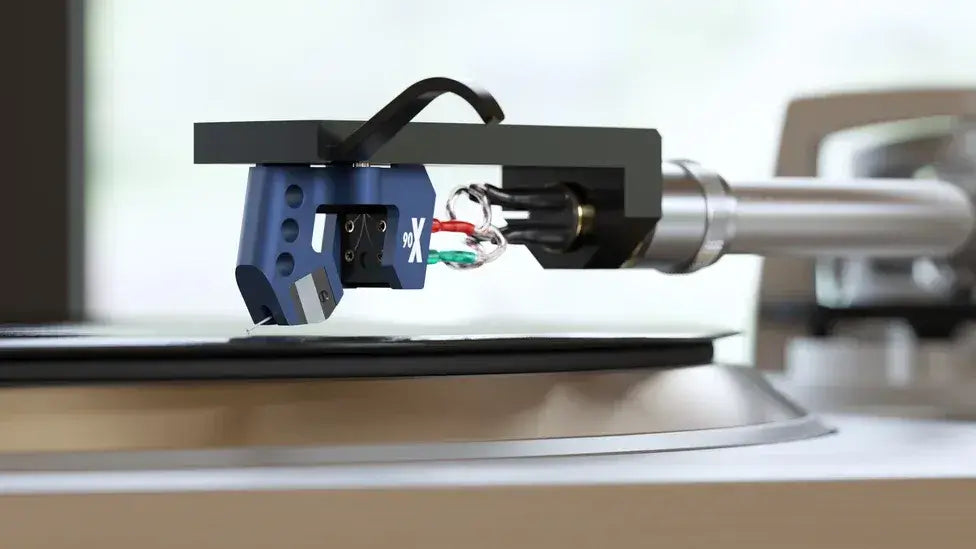

How does its compliance rating affect tonearm matching?

This cartridge is rated at 11 µm/mN dynamic lateral compliance, which sits inside the 10 to 20 µm/mN band that counts as moderate compliance. Tonearm and cartridge form a spring-and-mass system, and its resonance frequency is calculated from F = 1000 ÷ (2π√(M × C)), where M is the combined mass of cartridge, headshell and tonearm, and C is the compliance figure. A resonance frequency between 7 Hz and 12 Hz keeps the system stable, with 10 Hz as the target, and cartridges in this compliance range generally suit tonearms with an effective mass of around 10 grams or below. Buyers should check their tonearm's effective mass against this figure before fitting the cartridge, since a mismatch can leave the stylus poorly controlled in the groove regardless of build quality elsewhere.

What tracking force does the MC 90X need?

Its recommended tracking force is 2.3 grams, a figure that feeds directly into the resonance frequency calculation above and into headshell counterweight adjustment during setup. Cartridge weight is specified at 9.5 grams, which is the mass figure used alongside tracking force when balancing the tonearm.

What load resistance and phono stage does it require?

The cartridge's recommended load resistance is above 10 Ω, and its internal DC resistance is 4 Ω, so a phono stage or step-up transformer needs an input impedance set well above this figure. Output voltage at 1 kHz is 0.25 mV, a low signal level typical of moving coil generators, which is why the MC 90X depends on a phono stage or step-up device with gain suited to moving coil sources rather than a standard moving magnet input.

Why choose a moving coil design over a moving magnet cartridge?

A moving coil cartridge such as this one does not offer a user-replaceable stylus in the way a moving magnet design does, so any retip or replacement goes through Ortofon or an authorised service rather than a snap-in stylus assembly. Moving coil construction is the route Ortofon points buyers toward when pursuing more advanced tracking and detail retrieval, since the coil moves directly with the cantilever rather than a magnet swinging inside fixed coils. That trade-off suits an owner who has already settled on a long-term analogue front end and is prioritising tracking accuracy over stylus interchangeability.

How does its stylus improve tracking accuracy?

The MC 90X's stylus is a Replicant 100 diamond, cut with a thin, light profile and an exceptionally large contact surface, a shape Ortofon groups among its Line Contact profiles alongside Shibata and Fritz Gyger 70. A diamond with this larger contact area follows the groove wall more closely and comes nearer to the geometry of the original cutting stylus used to master the record, which lets it trace fine modulations that a simpler stylus shape would smooth over. That profile works with a Boron cantilever to keep the stylus responsive across the cartridge's specified 20 Hz to 20 kHz frequency range.

How does the SLM stainless-steel body affect sound quality?

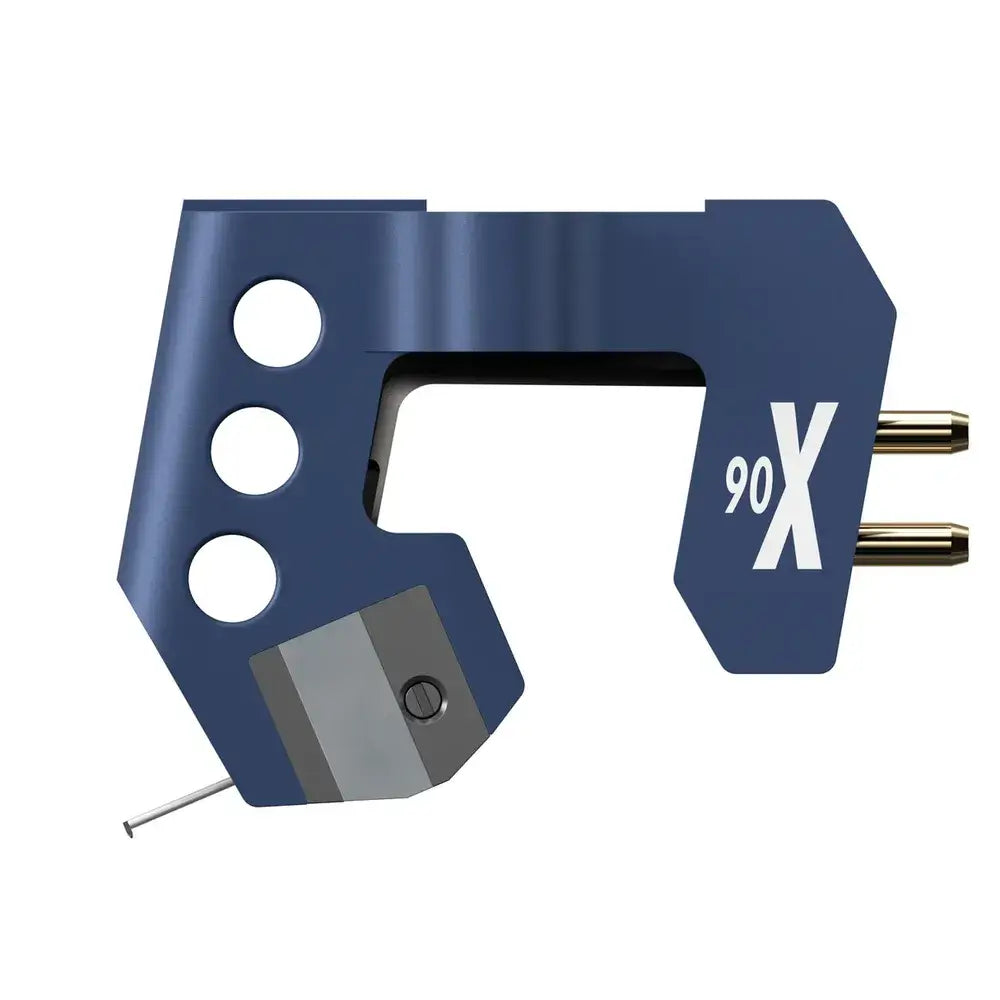

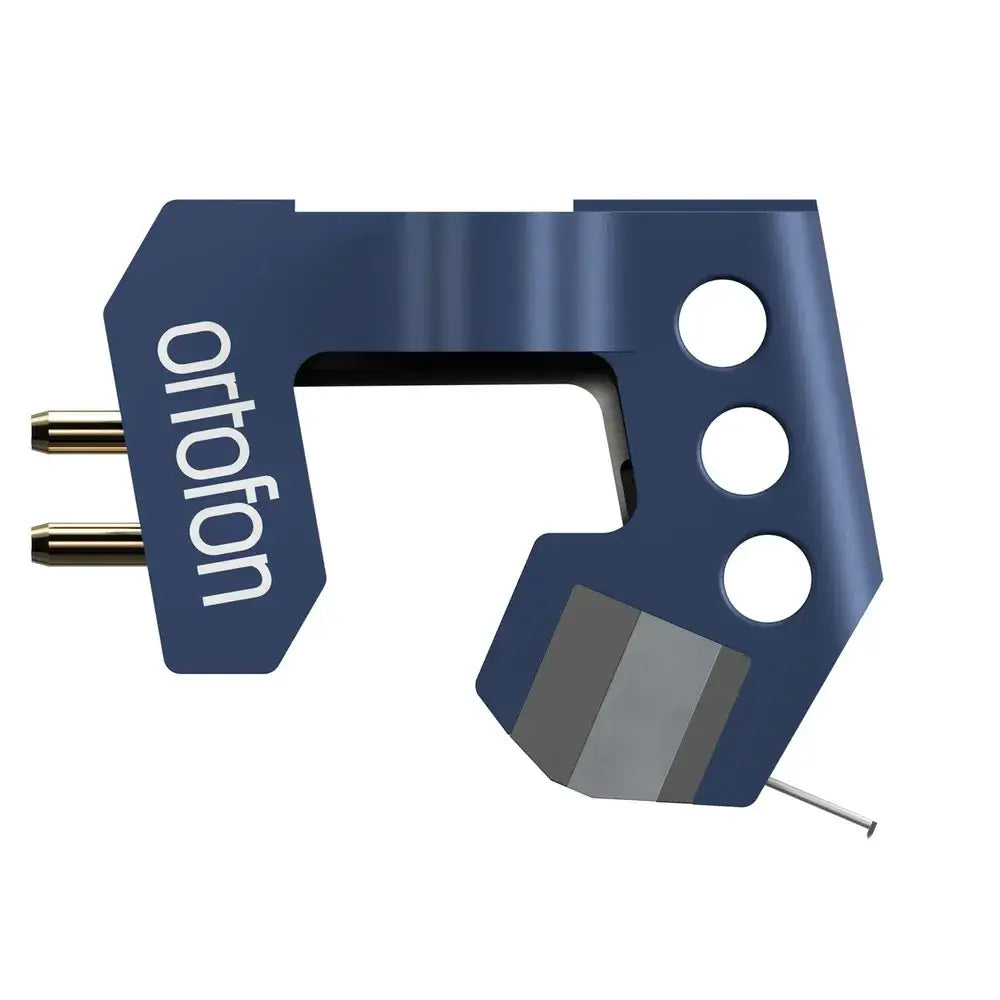

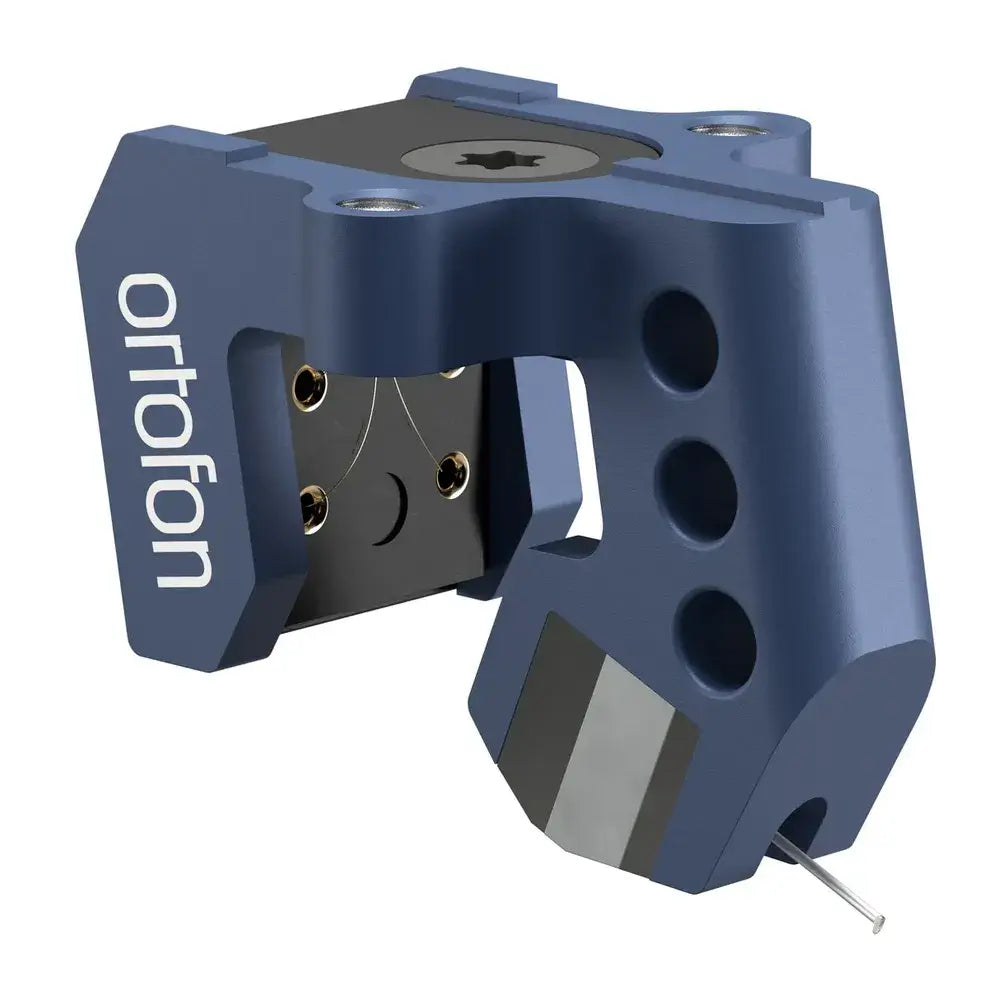

The MC 90X's body is built using Selective Laser Melting, which lets Ortofon form the structure from stainless steel and increase its rigidity at a controlled weight. A rigid body resists flexing under stylus movement, so more of the cantilever's motion reaches the generator system instead of being absorbed by the housing, and Ortofon states this construction also broadens the range of turntables the cartridge suits. The resulting 9.5 gram weight sits within a range that suits a broad spread of tonearms without pushing the resonance frequency calculation above out of range.

How does the magnet system control channel separation?

Its generator is built around a neodymium magnet, a material that produces a strong field from a small volume and keeps the magnet assembly compact and light. Set inside that system is a Field Stabilizing Element, a small cylinder of conductive material that holds the magnetic field steady regardless of how the cantilever and armature move during playback. Keeping the field stable this way supports the cartridge's specified channel separation of above 28 dB at 1 kHz and channel balance of under 0.2 dB, since a field that shifts with armature movement would otherwise let signal bleed between channels.

What damping technology reduces resonance in the MC 90X?

Its damping is handled by Wide Range Damping, which places a platinum disc between two rubber absorbers with different properties to control resonance and support tracking across the full frequency range rather than at one narrow band. Ortofon develops and manufactures these rubber compounds in-house, and the newly developed dampers used in this cartridge are built on that in-house production.

Where does the MC 90X sit within Ortofon's Exclusive Series?

The MC 90X belongs to Ortofon's Exclusive Series, positioned alongside the MC Diamond, MC Verismo, MC Windfeld Ti and MC X10 as one of the marque's moving coil designs rather than its entry-level moving magnet ranges. Buyers comparing it against the MC Windfeld Ti or MC X10 are choosing between cartridges within the same series family, so the deciding factors are stylus profile, coil material and body construction rather than a difference in intended system tier. Anyone moving up from a moving magnet cartridge, or from an earlier moving coil model without SLM construction, is the buyer this cartridge is built for, since it asks for a compatible low mass tonearm and a phono stage suited to moving coil output.
