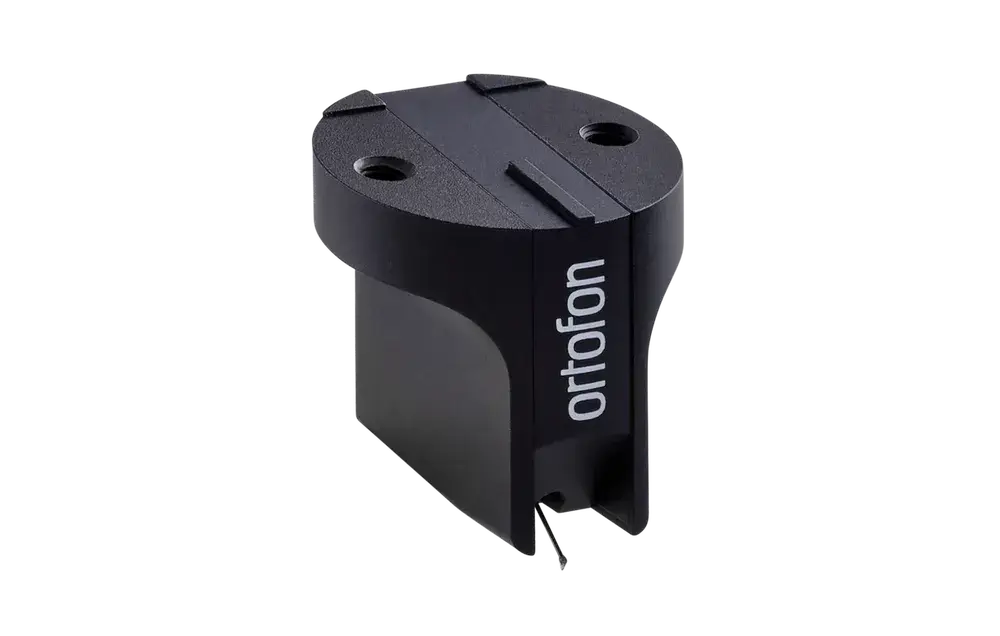

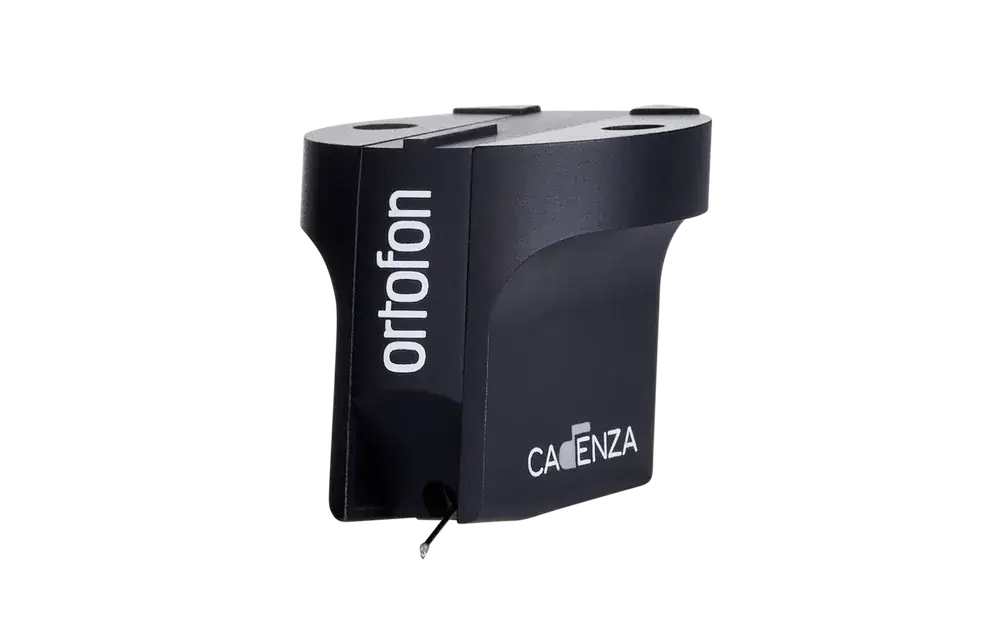

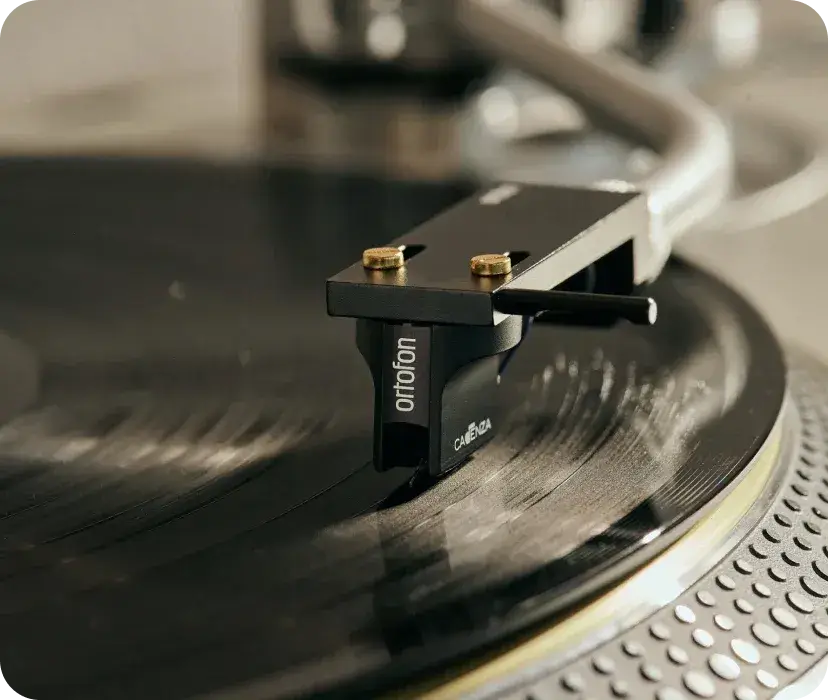

Ortofon MC Cadenza Black Moving Coil Cartridge

Why Choose the Ortofon MC Cadenza Black Moving Coil Cartridge

The Ortofon MC Cadenza Black is a moving coil cartridge built for owners who already have a well-matched turntable and tonearm and want to draw more resolution and detail out of their record collection. It's one of five models in Ortofon's Cadenza series, and where the other four each carry their own distinct sonic character, Ortofon designed the Cadenza Black to bring the strengths of the series together into one all-round performer, with a stated focus on resolution and accurate insight into each recording. It carries a Nude Shibata diamond, a boron cantilever and Ortofon's Wide Range Damping system - technology the brand also fits to several of its highest-tier moving coil cartridges. Choosing it over a moving magnet alternative means trading a user-replaceable stylus for a fixed, nude-mounted diamond built for closer groove tracing.

What sets the Ortofon MC Cadenza Black apart from the rest of the Cadenza series?

The Ortofon MC Cadenza Black is a cartridge that combines a Nude Shibata diamond, a boron cantilever and Ortofon's Wide Range Damping (WRD) system in one design, a combination Ortofon also uses in its MC Windfeld, MC A90, MC Anna, Xpression and MC A95 models. Ortofon built the whole Cadenza series around cobalt-iron pole pieces, an improved armature winding process and extruded aluminium housing, changes the brand states were intended to unlock further performance from the groove signal beyond what its earlier Kontrapunkt and MC Jubilee designs achieved. Each of the five Cadenza cartridges then builds on that shared platform with its own stylus, cantilever and coil wire, together forming a set of variations rather than five unrelated designs. The Cadenza Black's role within that set is to be the most rounded of the five, rather than the most specialised, which is why Ortofon frames it around resolution and accuracy rather than a particular tonal emphasis.

Will it suit your tonearm and turntable system?

The Cadenza Black is a cartridge whose compliance and mass figures decide whether it suits your tonearm before you commit to buying it. It has a dynamic lateral compliance of 16 µm/mN, a figure that sits in Ortofon's moderate-to-high compliance bracket, and it weighs 10.7 g. That weight and compliance, added to the mass of your headshell and tonearm, set the resonance frequency of the whole system, calculated as F = 1000 ÷ (2π√(M×C)). Ortofon recommends a resonance frequency of 10 Hz, treats 7-12 Hz as the optimal working range, still counts 6.5-7 Hz and 12-14 Hz as usable, and flags anything outside that span as questionable. Cartridges in the Cadenza Black's compliance range pair well with low-mass tonearms rated at 10 g effective mass or below, such as early SME arms or the Grace 747, because a low-mass arm keeps the combined system resonance inside that optimal window.

What tracking force and loading settings does the MC Cadenza Black need?

The MC Cadenza Black is specified with a tracking force range of 2.0-2.5 g, with Ortofon recommending 2.3 g for most installations, and its tracking angle is set at 20°. Because moving coil designs produce a low output voltage - 330 μV at 1 kHz - your phono stage needs a recommended load impedance above 10 Ohm to match the cartridge's own 5 Ohm internal impedance. Getting that loading right preserves the cartridge's rated frequency response of 20 Hz-20 kHz (+1.5/0 dB); mismatched loading or a phono stage without enough moving coil gain will under-drive the signal and flatten the detail the cartridge is built to recover.

Who is a moving coil cartridge like this designed for?

The Cadenza Black is a moving coil cartridge suited to listeners who want the fullest performance their system can extract from a record and who accept the ownership trade-offs that come with that choice. Moving magnet cartridges use a user-replaceable stylus, which suits listeners who expect to handle stylus wear themselves or who are assembling a first system around a lower outlay. Moving coil cartridges don't offer that same straightforward swap, so choosing the Cadenza Black over a moving magnet design is really a decision to prioritise tracking accuracy and long-term system refinement over simple stylus maintenance.

How does the Nude Shibata stylus shape improve detail retrieval?

The Nude Shibata diamond fitted to the Cadenza Black is a Line Contact stylus shape, a category that also includes Ortofon's Replicant 100 and Fritz Gyger 70 profiles. A Line Contact cut is finer and more advanced than a spherical or elliptical diamond, which gives it a larger contact area with the record groove and lets it recover more of the fine detail cut into the vinyl. Its slim profile follows the groove more precisely and sits closer to the shape of the original cutting stylus than a tipped, bonded diamond can manage, and because it's nude-mounted rather than fixed to a metal shank, it carries less mass at the point of contact. Ortofon rates the Cadenza Black's tracking ability at 90 μm at 315 Hz, which means the stylus holds the groove without mistracking even on the most heavily modulated passages a record can carry - a direct result of that slim profile and the stylus assembly's low moving mass.

What engineering lies behind its cantilever and damping system?

The boron cantilever fitted to the Cadenza Black is chosen for stiffness rather than hardness alone: boron is both stiffer and lighter than aluminium, so a thin boron rod keeps the effective mass of the stylus and cantilever assembly extremely low. A lower moving mass responds faster to the groove, which is why Ortofon applies the same boron-cantilever approach across its flagship moving coil cartridges. The Cadenza Black also carries Ortofon's Wide Range Damping system, which controls high-frequency and low-frequency damping as two separate parameters instead of one compromise setting - the same approach used in the MC Windfeld, MC A90, MC Anna, Xpression and MC A95. Together with the Aucurum coil system, that damping control keeps channel balance within 0.8 dB and channel separation above 27 dB at 1 kHz, so the stereo image stays accurately placed across the frequency range.

What materials make up the Ortofon MC Cadenza Black's construction?

The Ortofon MC Cadenza Black is built with an aluminium stainless steel cartridge body and Aucurum coil wire - Ortofon's gold-plated 6NX copper - carrying the signal from the coil system to the output pins. Gold plating on 6NX copper keeps the coil wire's conductivity high and resists the oxidation that would otherwise let internal resistance drift upward over time, which helps the loading and impedance figures covered above stay consistent for as long as you own the cartridge.

Which Ortofon cartridge should you choose instead of the Cadenza Black?

The Cadenza Black is the right choice for buyers who already own an established turntable and tonearm and want to extract more resolution and detail from records they know well, rather than buyers starting a first system. If you'd rather handle your own stylus replacement, or you're setting up on a tighter budget, a cartridge with a user-replaceable stylus fits that pattern better than a fixed-stylus moving coil design like the Cadenza Black does. Within Ortofon's moving coil line-up, the Cadenza Black shares its Wide Range Damping system and boron-cantilever engineering with the MC Windfeld, MC A90, MC Anna, Xpression and MC A95 models, giving it access to that same core technology while keeping the tonal balance that defines the five-model Cadenza series specifically.
