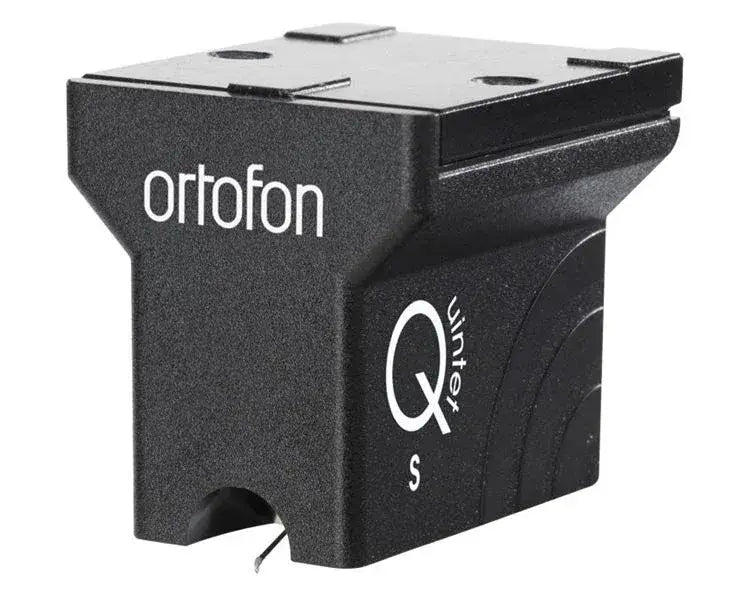

Ortofon MC Quintet Black S Moving Coil Cartridge

Is the Ortofon MC Quintet Black S the Right Cartridge for Your Turntable?

The MC Quintet Black S is the top model in Ortofon's Quintet moving coil series, and its Nude Shibata diamond is mounted on a Sapphire cantilever. Unlike a tipped or bonded diamond, where the diamond tip sits on a separate metal shank, a nude diamond is lighter because it's cut as a single piece, and this lower mass lets the stylus respond more quickly to the groove modulations cut into the record. That's why nude-diamond styli are associated with finer detail retrieval and lower distortion than tipped equivalents. The Shibata profile itself is a line-contact shape, so it's slimmer and more sharply cut than a spherical or elliptical stylus, giving it a wider contact area with the groove walls and a closer match to the profile of the original cutting stylus. In practice, this is what allows the MC Quintet Black S to trace high-frequency groove information that blunter stylus profiles struggle to recover, supporting the frequency response of 20 Hz to 20 kHz (±1.5 dB) and the tracking ability of 80 µm at 315 Hz stated in its specification.

Will it fit your turntable's tonearm?

The MC Quintet Black S is a moving coil cartridge with a dynamic lateral compliance of 15 µm/mN and a weight of 9 g, and both figures matter when matching it to a tonearm. Cartridge compliance and total tonearm mass together set the resonance frequency of the arm/cartridge system, calculated as F = 1000 ÷ (2π√(M×C)), where M is the combined mass of the cartridge, headshell and screws plus the tonearm's effective mass, and C is the cartridge's compliance. A resonance frequency of 7 to 12 Hz is optimal, with 10 Hz recommended; readings between 6.5 and 7 Hz or between 12 and 14 Hz are usable but not ideal, and anything further outside that range indicates a mismatch. At 15 µm/mN, the MC Quintet Black S falls into the moderate compliance band that Ortofon associates with low mass tonearms, rated at 10 grams effective mass or below, so it's worth checking your own tonearm's effective mass and resulting resonance figure before buying. It also uses a half-inch mounting standard, so it needs a tonearm or headshell with the corresponding two-screw fixing rather than a bayonet connector.

How is it installed and aligned?

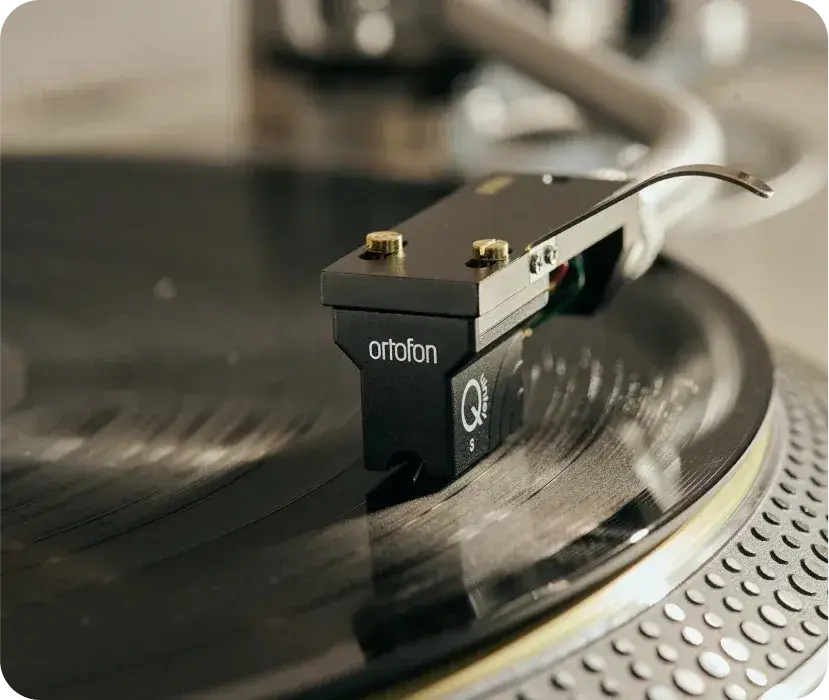

The MC Quintet Black S is mounted to the headshell through an aluminium frame with threaded holes, using either 5 mm or 7 mm screws depending on the thickness of your headshell. Its right-angled body, straight reference lines and visible stylus tip are designed to make alignment easier to judge by eye, and the distance left between the record surface and the underside of the cartridge body is part of what makes it straightforward to mount and align correctly with the tonearm. Ortofon states that the Quintet series gives good results with most common tonearms, which follows from this mounting design and the compliance range discussed above rather than requiring a specialist arm.

Who should choose a moving coil cartridge like the MC Quintet Black S?

The MC Quintet Black S is built as a fixed-stylus moving coil design, which is a different ownership proposition to a moving magnet cartridge. Ortofon's own guidance is that a cartridge with a replaceable stylus, suited to buyers who want an easy upgrade path later, points toward a moving magnet design; a moving coil cartridge like the MC Quintet Black S doesn't offer that same swap-out route, so choosing it is a decision to commit to the moving coil format for its tracing and detail characteristics rather than for stylus-replacement convenience. The MC Quintet Black S is described as suited to a wide range of musical genres without a particular tonal bias, drawing on the accuracy of its Shibata stylus and cantilever combination described above.

What is the cartridge's body and electrical design built from?

The MC Quintet Black S's body is moulded from PC thermoplastic, a lightweight, impact-resistant material chosen because it's well suited to injection moulding and gives a scratch-resistant surface that holds up to routine handling. Neodymium magnets are used in the generator to achieve the cartridge's output voltage of 0.3 mV at 1 kHz. The internal impedance is a low 5 Ohm DC resistance, which Ortofon states reduces the cartridge's sensitivity to the load it's connected to; this is why the recommended load impedance is broad, at above 20 Ohm, making the MC Quintet Black S compatible with a wider range of phono preamplifiers and step-up transformers than a cartridge with higher internal impedance would allow. Channel separation is rated above 23 dB at 1 kHz and channel balance within 1.0 dB, figures that stem from the same generator design and support stereo image accuracy rather than being separate features to weigh on their own.

Where does the MC Quintet Black S sit against Ortofon's other cartridges?

The MC Quintet Black S is positioned at the top of Ortofon's Quintet moving coil line, built as the accuracy-focused option within a series that Ortofon has developed as part of its moving coil cartridge history dating back to 1948. Buyers who value the option to replace just the stylus in future should weigh Ortofon's own guidance toward a moving magnet cartridge against the fixed Nude Shibata stylus of the MC Quintet Black S, which doesn't offer that same upgrade route. A buyer with a tonearm suited to the moderate compliance and low mass range discussed above, who wants the detail retrieval of a nude line-contact diamond and is prepared to commit to the moving coil format rather than plan around future stylus swaps, is the buyer the MC Quintet Black S is built for.
