Ortofon MC Quintet Mono Moving Coil Cartridge

MC Quintet Mono: A True Mono Cartridge for Playing Microgroove Vinyl Records

MC Quintet Mono is Ortofon's dedicated true mono cartridge, built for playing mono microgroove vinyl rather than adapted from a stereo design. It tracks through worn and damaged records while controlling surface noise, which matters to anyone working through older mono pressings. Within the Quintet Series, where Red, Blue, Bronze, and Black S are all stereo cartridges differentiated by stylus profile and coil material, Quintet Mono is the only model built specifically for monophonic reproduction.

Why Choose This Cartridge for Mono Record Playback?

This cartridge is built around mono records specifically, rather than general-purpose stereo playback with a mono workaround. It suits buyers who collect mono pressings alongside a stereo system, since it doesn't require separate mono-specific equipment to use.

What Stylus Technology Does MC Quintet Mono Use to Track Worn Records?

MC Quintet Mono is fitted with a Nude Elliptical stylus carrying an 8/18µm tip radius. A nude diamond mounts the stylus directly, without the metal shank a bonded or tipped diamond needs, which lowers the moving mass and improves responsiveness and detail while reducing distortion. Ortofon states that the stylus tracks reliably through even worn and damaged records, helping control surface noise on older mono pressings.

How Does the Strapped Output Remove the Need for Mono-Specific Equipment?

MC Quintet Mono is built around a strapped output that delivers the same output signal from both sets of pole pins, rather than reading the two channels separately as a stereo cartridge does. This removes the need for a dedicated mono phono stage or mono switch, since the cartridge sends an identical signal to both channels of a standard stereo system. A buyer can fit Quintet Mono to an existing stereo turntable and amplifier and play mono records through it directly.

Will MC Quintet Mono Work with an Existing Phono Stage?

MC Quintet Mono is rated with an internal DC resistance of 5 Ohm, a low figure that reduces how sensitive the cartridge is to the load placed on it by downstream equipment. Ortofon recommends a load impedance above 20 Ohm, a wide enough margin that the cartridge suits most moving coil-compatible preamps and step-up transformers already in use. Output voltage measures 0.3 mV at 1 kHz, matching the figure used by the Bronze and Black S models in the range, which keeps gain requirements consistent for anyone already running one of those cartridges.

How Easy Is It to Install the Cartridge?

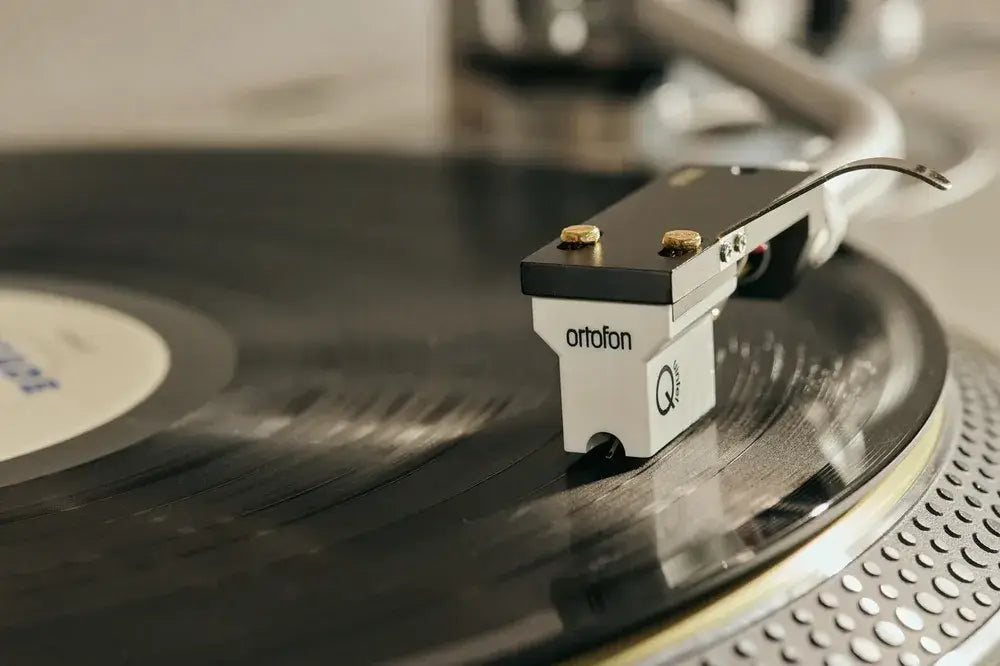

MC Quintet Mono is top-mounted onto a headshell using the screws supplied, a straightforward installation requiring no separate fittings. An aluminium frame carries threaded mounting holes that take either 5mm or 7mm screws depending on headshell thickness, so the fitting adapts to different tonearm hardware. The body's right angles and straight lines, together with clear stylus visibility and generous clearance between the record surface and the cartridge's underside, make it easier to align the stylus correctly against the tonearm.

What Does Its Construction Contribute to Durability?

MC Quintet Mono is built with an impact-resistant thermoplastic body paired with a neodymium magnet generator system. The thermoplastic housing is light and suited to injection moulding, with a surface that resists scratching during handling and cartridge changes. The neodymium magnets drive the generator to achieve a strong, consistent output from a compact cartridge body.

Where Does MC Quintet Mono Sit Within the Quintet Series?

MC Quintet Mono is positioned within the Quintet Series as its dedicated mono cartridge, distinct from the four stereo models that make up the rest of the range. Red, Blue, Bronze, and Black S move progressively from an Elliptical stylus through to a Nude Shibata stylus, aimed at buyers prioritising stereo detail and dynamics. Quintet Mono instead suits buyers who need a cartridge built around mono records specifically, whether as a dedicated mono deck or as a second cartridge alongside a stereo Quintet model.
