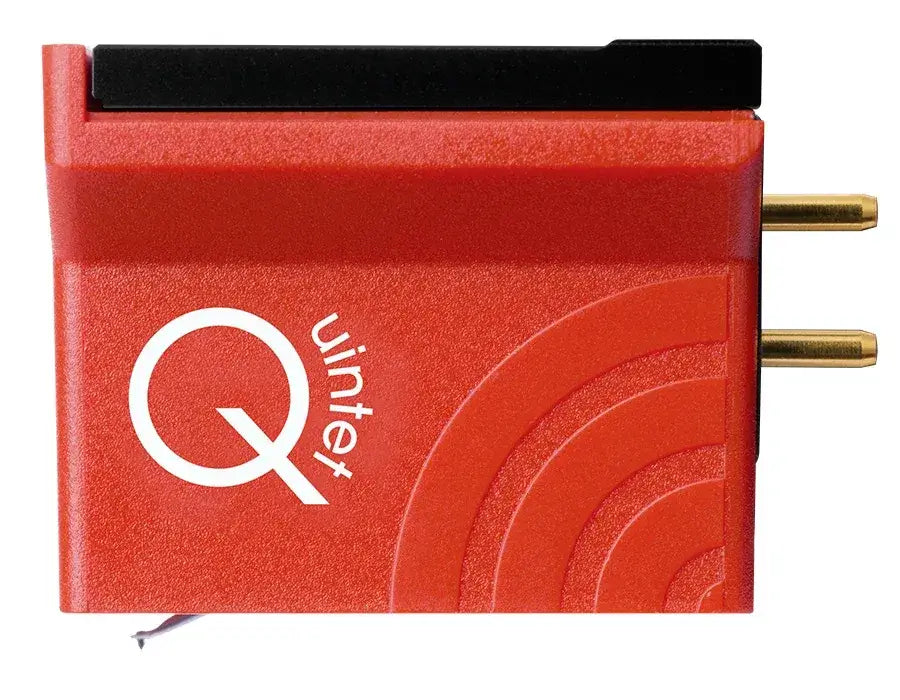

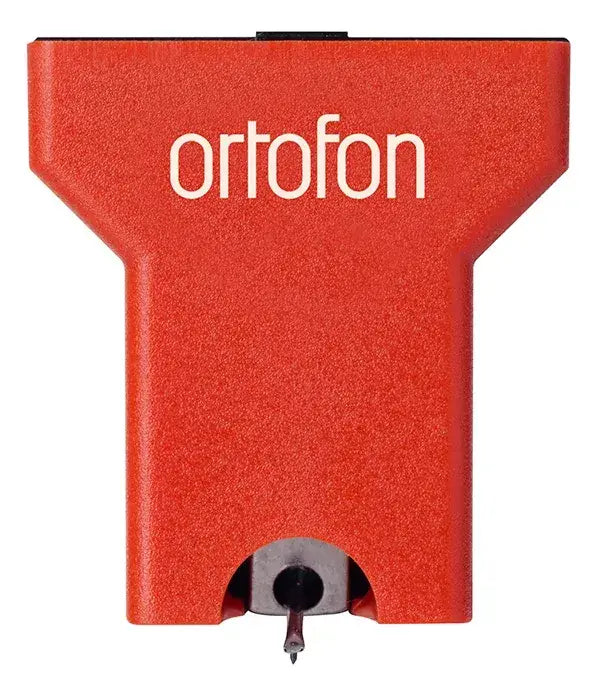

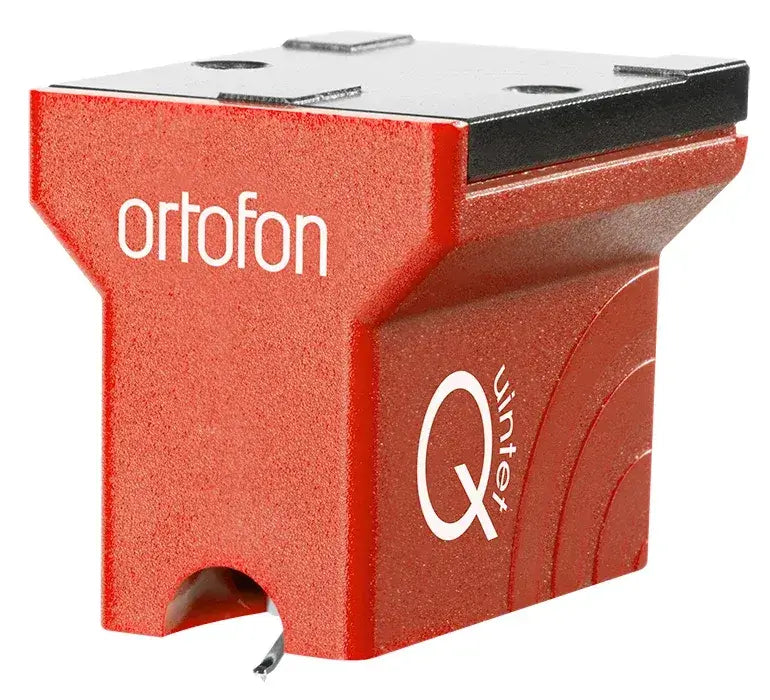

Ortofon MC Quintet Red Moving Coil Cartridge

Why choose the MC Quintet Red moving coil cartridge?

The MC Quintet Red is a moving coil cartridge built as the entry point into Ortofon's Quintet Series, aimed at vinyl listeners who've outgrown moving magnet cartridges and want to try moving coil without committing to a flagship price. It delivers an open, dynamic sound with a slight touch of warmth. Because it's a moving coil design, the stylus isn't user-replaceable; buyers who want the convenience of swapping styli later should look at a moving magnet cartridge instead, while those who want the moving coil presentation with room to upgrade can treat the Quintet Red as a stepping stone within the same series.

Who is this cartridge a good fit for?

The MC Quintet Red is suited to listeners moving into moving coil cartridges for the first time, rather than seasoned moving coil owners chasing maximum resolution. Its price-to-performance ratio is positioned as an all-rounder for newcomers, and its general-purpose tuning suits buyers who listen across a broad mix of genres rather than prioritising one type of music.

Will it suit your tonearm?

The MC Quintet Red is rated at 15 µm/mN dynamic lateral compliance, which falls into the moderate compliance band. Matching a cartridge to a tonearm depends on effective mass and compliance together, since the two determine the resonance frequency of the combined system. The Quintet Red pairs best with moderate mass tonearms, those with an effective mass roughly between 11 and 25 grams, such as the SME IV or Triplanar. Mounted correctly, this pairing aims to keep the system's resonance frequency within the 7 to 12 Hz range Ortofon considers optimal; frequencies that drift outside roughly 6.5 to 14 Hz become questionable and can affect tracking stability. A 7 Ohm internal DC resistance and a recommended load impedance above 20 Ohm mean the Quintet Red works with most phono stages built for moving coil cartridges, without requiring an unusually specific matching transformer.

How does the stylus affect tracking and detail?

The MC Quintet Red is fitted with an Elliptical diamond, cut and polished to Ortofon's own tolerances. An elliptical profile follows the groove more closely than a simple spherical tip, improving contact with the groove walls and supporting more accurate tracking of fine detail than a basic conical stylus would manage. It's rated with a 65 µm tracking ability at 315 Hz at the recommended tracking force of 2.3 g, within a tracking force range of 2.1 to 2.5 g. This Elliptical tip sits a step below the Nude-mounted diamonds used on the Quintet Blue, Bronze and Black S, where a lighter nude-mounted diamond reduces moving mass further and tracks higher-frequency information with less distortion. The Red trades some of that resolution for a lower starting price within the same series, which is the main technical distinction buyers are choosing between when comparing it to the rest of the range.

What's inside the MC Quintet Red's generator system?

The MC Quintet Red is built with neodymium magnets in its generator, chosen to produce a stronger, more efficient magnetic field for the moving coil assembly than older magnet types typically allow, supporting its output voltage of 0.5 mV at 1 kHz. Internal impedance is kept low, a characteristic of the Quintet Series generator design, which makes the cartridge less sensitive to the load impedance of the connected phono stage and, as a result, compatible with a wider range of preamps and step-up transformers than a high-impedance design would be.

How easy is the MC Quintet Red to install?

The MC Quintet Red is top-mounted using the screws supplied, into threaded holes in its aluminium frame, which accepts either 5mm or 7mm screws depending on headshell thickness. Its right angles, straight lines and clear stylus visibility, combined with sufficient clearance between the record surface and the cartridge's underside, make it straightforward to align the cantilever correctly against the tonearm and cartridge protractor. Ortofon states the Quintet Series gives good results on most common tonearms, which, combined with the moderate compliance rating covered above, makes it a reasonably forgiving cartridge to set up for someone mounting a moving coil cartridge for the first time.

What's the MC Quintet Red cartridge body made from?

The MC Quintet Red is built with an impact-resistant thermoplastic body, chosen because it's lightweight, suited to precise injection-moulding, and produces a durable, scratch-resistant outer surface. That combination keeps the cartridge's mass low and consistent, which matters for the tonearm mass and compliance matching described above, while giving the body enough resilience to handle routine handling during mounting and headshell changes without the surface marking easily.

Where does it sit within the Quintet Series?

The MC Quintet Red is positioned as the entry point among five Quintet models, sitting above the mono-only Quintet Mono and below the Blue, Bronze and Black S. Buyers deciding between these models are mainly choosing a stylus tier and a price point, as covered above; the Red's Elliptical stylus and standard-price positioning make it the natural starting point, while the Blue, Bronze and Black S step up through progressively more advanced Nude-mounted diamonds for listeners who already know they want to stay in moving coil long-term. Buyers wanting the lowest-cost entry into genuine Ortofon moving coil sound, with the option to trade up within the same series later, are the clearest fit for the Red.
