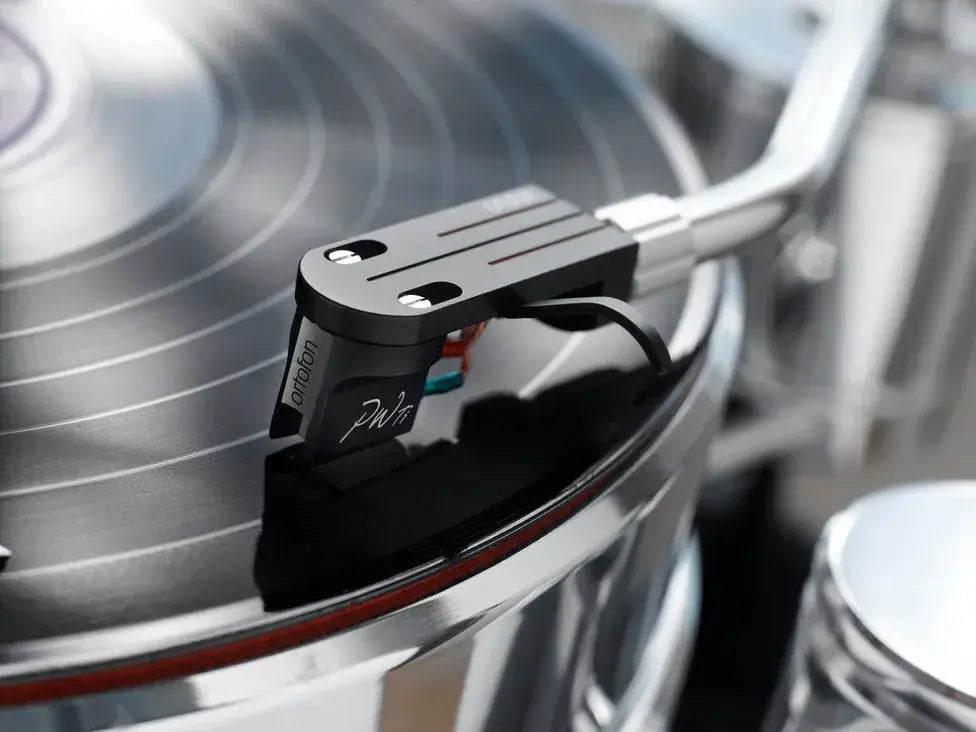

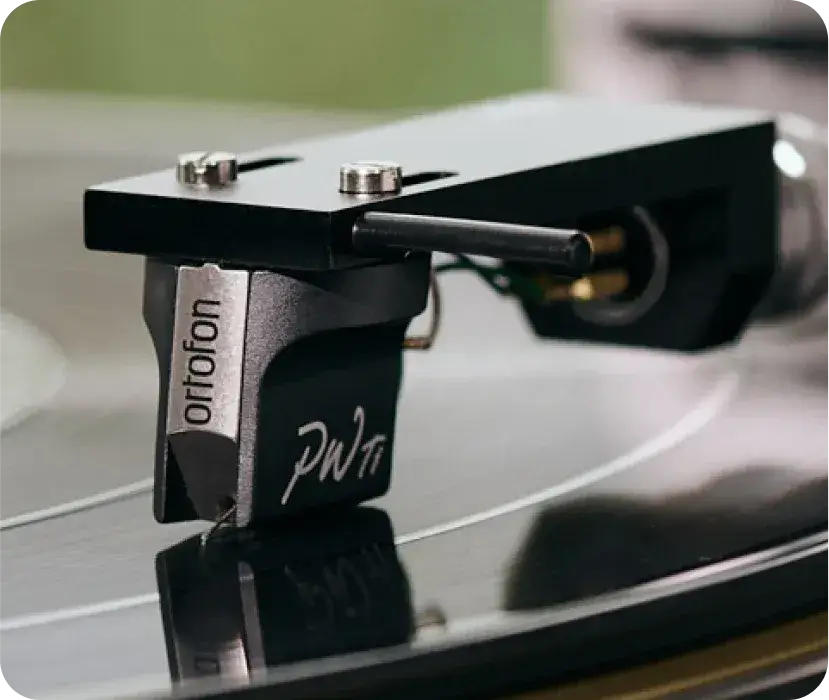

Ortofon MC Windfeld Ti Moving Coil Cartridge

What makes the Ortofon MC Windfeld Ti different from other Ortofon moving coil cartridges?

The Ortofon MC Windfeld Ti is a moving coil cartridge built to reduce unwanted vibrations and increase dynamic capability beyond the original Windfeld design. It's fitted with a nude Ortofon Replicant 100 diamond rather than a tipped or bonded stylus. A nude diamond weighs less than a tipped equivalent because the diamond itself forms the contact tip rather than being mounted on a separate metal shank, which lets the stylus respond more readily to groove modulation and pick up finer detail with less distortion. The Replicant 100 profile is a line contact shape, so it follows the record groove more closely than a spherical or elliptical stylus and traces a path nearer to that of the original cutting stylus. Ortofon reserves nude diamond construction for its most advanced hi-fi cartridges, and it's this stylus geometry, paired with a boron cantilever, that separates the Windfeld Ti from cartridges further down the range.

Which tonearms suit the Ortofon MC Windfeld Ti?

The Ortofon MC Windfeld Ti is a moderate compliance cartridge, rated at 13 μm/mN dynamic lateral compliance, and it needs a tonearm to match that figure rather than just fit physically. Moderate mass tonearms, rated between 11 and 25 grams of effective mass, are the right companions for cartridges in this range; examples include the SME IV, V and VI, the Triplanar and the Graham. The combined mass of the cartridge, headshell and tonearm, together with the cartridge's compliance, sets the resonance frequency of the system using the formula F = 1000 ÷ (2π√(M × C)). A resonance frequency between 7 Hz and 12 Hz is optimal, with 10 Hz recommended, while anything outside 6.5–14 Hz is likely to cause tracking problems. At 11 grams, the cartridge's own weight is one of the three mass components in that calculation, so it's worth checking against headshell and arm mass before committing to a pairing.

How do you set the tracking force and load impedance for the Ortofon MC Windfeld Ti?

The Ortofon MC Windfeld Ti tracks correctly within a force range of 2.0 to 2.5 grams, with 2.3 grams as the recommended setting, and it's specified at a tracking angle of 23 degrees. Its recommended load impedance is above 10 ohms, and its internal DC resistance is 7 ohms, so the phono stage or step-up device needs to accommodate these values for correct signal transfer. Output voltage at 1 kHz sits at 0.2 mV, and channel separation at 1 kHz exceeds 25 dB with a channel balance of 0.5 dB.

Who should choose a moving coil cartridge like the Ortofon MC Windfeld Ti over a moving magnet design?

The Ortofon MC Windfeld Ti doesn't offer the stylus-replacement convenience of a moving magnet design. Buyers who want the option to swap a worn stylus without replacing the whole cartridge are generally better served by a moving magnet cartridge, since that construction supports a user-replaceable stylus assembly. The Windfeld Ti instead suits owners who prioritise the performance gains of a nude diamond and a low-mass generator system over the convenience of stylus replacement, and who're prepared to have the cartridge serviced or retipped by the manufacturer once the stylus wears.

What engineering reduces vibration and increases dynamic capability in the Ortofon MC Windfeld Ti?

The Ortofon MC Windfeld Ti applies Ortofon's research into vibration properties across different shapes and materials, together with its work in magnetism and mechanical design, to the Windfeld platform. This combination of material science and structural optimisation is what Ortofon identifies as the basis for the model's reduced unwanted vibration and increased dynamic capability compared with the standard Windfeld. The practical result is a generator and body structure that resists the resonances that would otherwise colour or blur the signal the stylus picks up.

What materials make up the cartridge body and stylus assembly of the Ortofon MC Windfeld Ti?

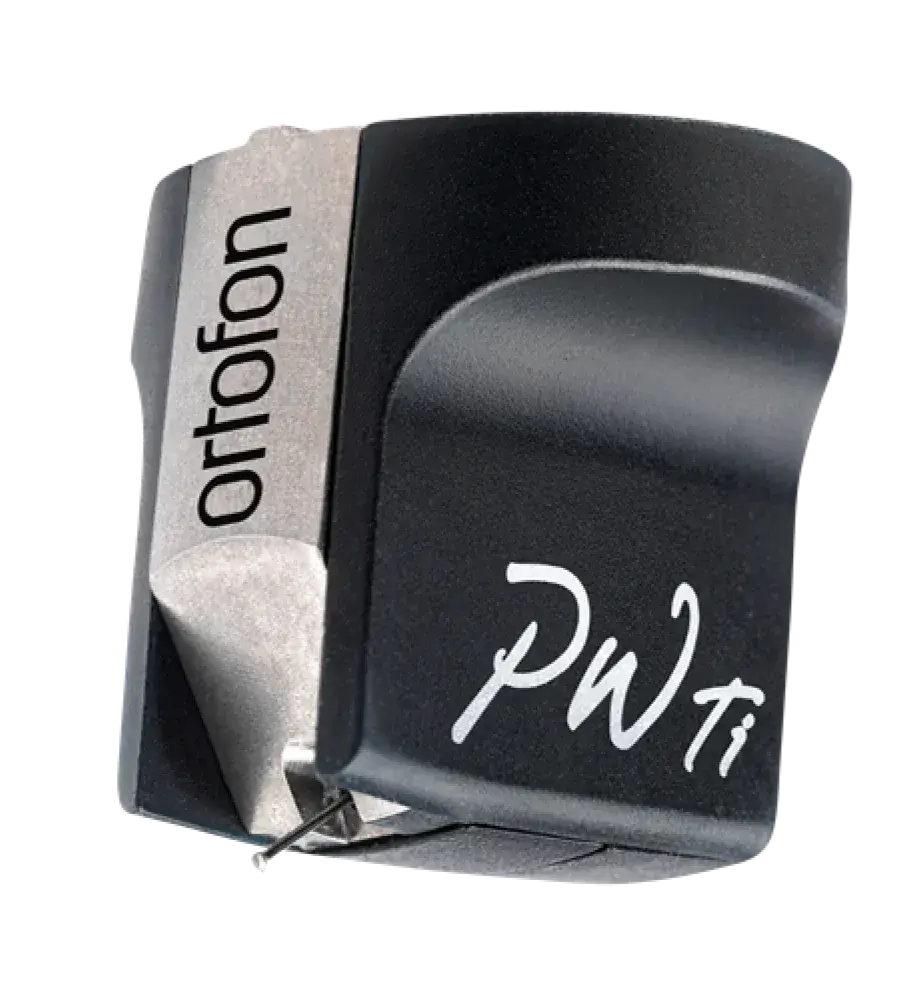

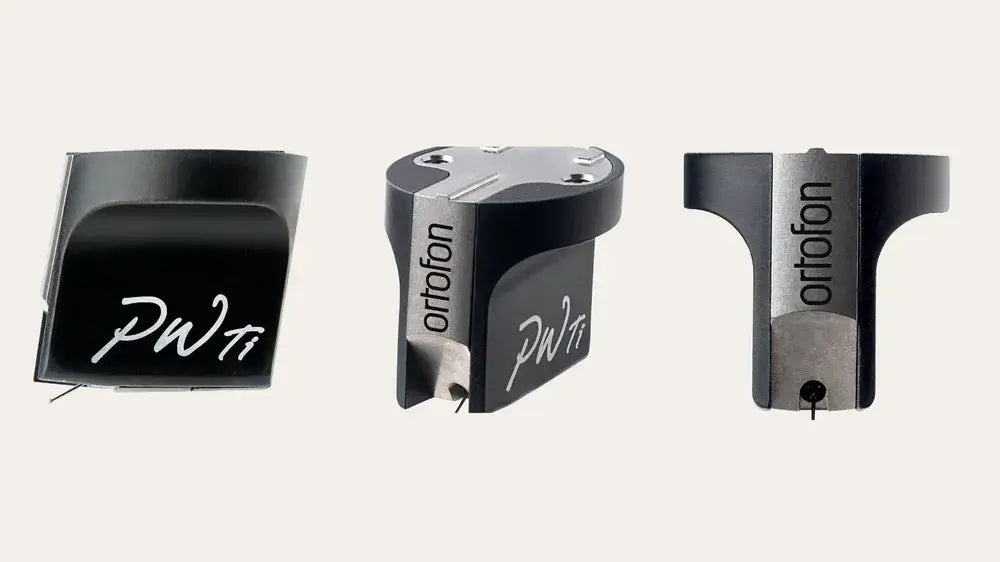

The Ortofon MC Windfeld Ti has a body built from SLM titanium and stainless steel, finished in titanium and black. Its coil system uses Aucurum coil wire for the windings, chosen alongside the boron cantilever already noted for carrying stylus movement through to the coil with minimal flex. The stylus is the nude Ortofon Replicant 100 diamond described above, with a tip radius of 5/100 μm, and the assembled cartridge weighs 11 grams.

Where does the Ortofon MC Windfeld Ti sit within Ortofon's cartridge range?

The Ortofon MC Windfeld Ti sits above the moving magnet 2M series, which runs from the 2M Red through to the 2M Black LVB 250 and is built around the replaceable-stylus format aimed at buyers who value straightforward stylus upgrades. It represents the moving coil path Ortofon recommends for listeners pursuing a more advanced stylus and generator design, built around a nude Replicant 100 diamond rather than a swappable stylus assembly. Buyers weighing the two should decide whether they want the upgrade flexibility of a moving magnet system or the stylus geometry and construction of a dedicated moving coil cartridge, and check that their tonearm's effective mass suits the Windfeld Ti's moderate compliance rating.
