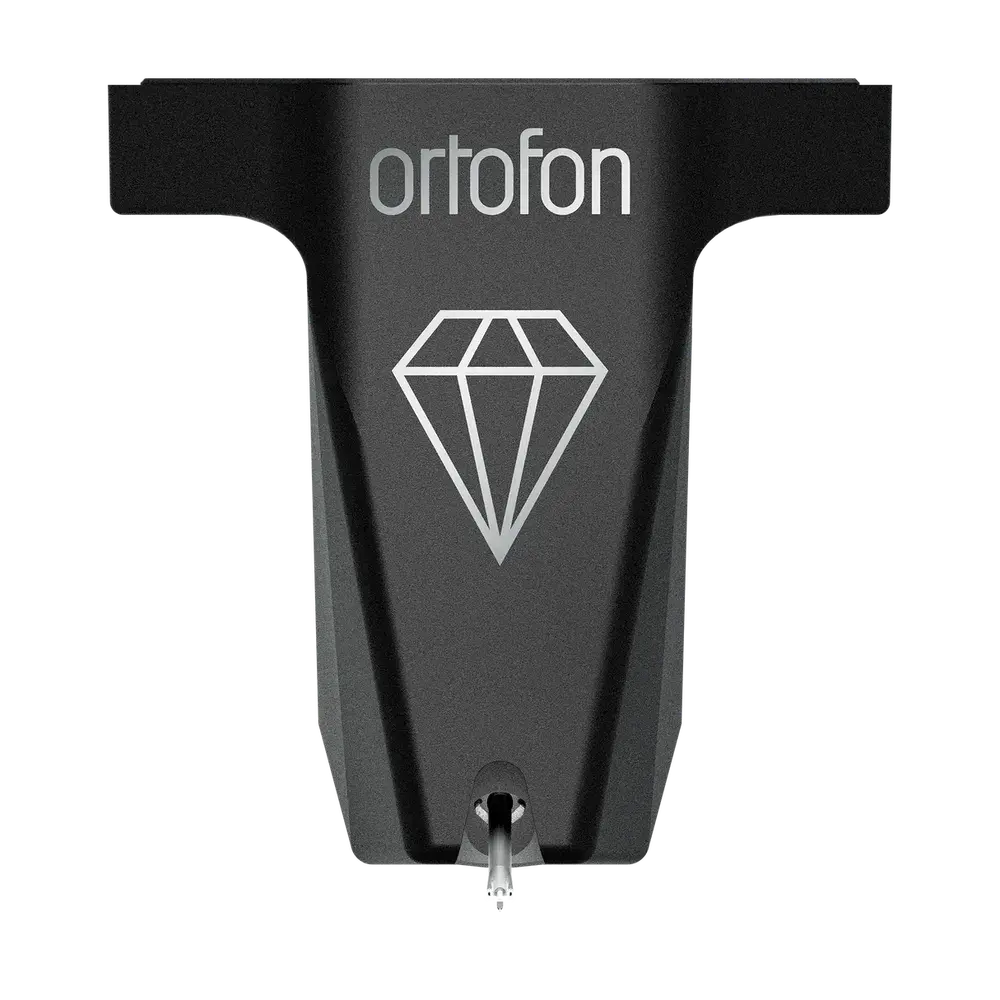

Ortofon MC X20 Moving Coil Cartridge

Is the Ortofon MC X20 the right moving coil cartridge for your turntable?

The Ortofon MC X20 is a moving coil cartridge from Ortofon's X series, offering a nude elliptical diamond stylus and a high-purity silver coil system inside a MIM stainless steel and honeycomb core body. It carries the Product of the Year 2025/26 title from LP Magazine, whose review described the X series as a ground-up design that sets new benchmarks within its class.

Buyers considering the MC X20 need to check three things before ordering it: whether their tonearm's mass and compliance suit a 15 μm/mN cartridge, whether their phono stage can handle a 0.4 mV moving coil signal, and whether they're ready to commit to moving coil ownership, which typically doesn't offer the user-replaceable stylus that moving magnet cartridges do.

What makes the MC X20 different from other moving coil cartridges?

The MC X20 is built around a nude elliptical diamond stylus and a coil system wound in high-purity silver wire. A nude diamond mounts directly to the cantilever with no metal shank in between, so it carries less moving mass at the point of contact and responds more precisely to rapid groove modulations than a tipped, or bonded, stylus would. Its elliptical profile also traces closer to the shape of the original cutting stylus than a spherical, or conical, diamond, which lets it pick up finer groove detail; the tip radius is 8/18 μm. The silver coil wire, meanwhile, keeps internal DC resistance down to 6 Ω, reducing electrical loss between the coil and the phono stage. Manufacturing tolerances reinforce this: channel balance holds to 0.5 dB, channel separation stays above 25 dB, and frequency response holds within ±1 dB across 20 Hz to 20 kHz, which is what keeps the left and right channels reproducing an equal signal for accurate stereo imaging.

Will your tonearm's mass and compliance match the MC X20?

Compliance on the MC X20 is 15 μm/mN dynamic lateral, which places it in the moderate compliance band of 10 to 20 μm/mN. Cartridges in this band pair best with low mass tonearms, meaning an effective mass of 10 grams or below, such as early SME arms or the Grace 747. You can check your own system's match by calculating the resonance frequency: F = 1000 ÷ (2π√(M × C)), where M is the combined mass of the cartridge, the headshell and its screws, and the tonearm's effective mass, and C is the cartridge's compliance. The MC X20 weighs 8.6 grams, so that figure feeds into M alongside your headshell and tonearm specifications. Aim for a result between 7 and 12 Hz, with 10 Hz as the target; a result between 6.5 and 7 Hz or between 12 and 14 Hz can still work, but anything outside that wider range risks tracking problems.

Does your phono stage support the MC X20's output?

The MC X20 outputs 0.4 mV at 1 kHz, 5 cm/sec, which is a low signal level typical of moving coil design and well below what a moving magnet phono input expects. Its DC resistance of 6 Ω and recommended load resistance above 50 Ω mean it needs a phono stage, or a step-up transformer feeding a moving magnet stage, set up for moving coil loading. Check your amplifier's phono input or outboard phono stage for an MC setting or adjustable loading before buying, since a standard MM-only input won't give the MC X20 enough gain.

How do you set the tracking force on the MC X20?

Tracking force on the MC X20 is set to 2.0 grams, using the tonearm's counterweight once the cartridge is mounted and aligned. The stylus suspension is Ortofon's own design, tuned to work within that recommended force, so tracking noticeably above or below 2.0 grams moves the cartridge away from the setup it was engineered for.

Who should choose the MC X20?

This cartridge suits owners moving from a moving magnet cartridge into moving coil for the first time, or replacing an existing entry-level MC cartridge. Moving coil cartridges generally don't offer a user-replaceable stylus in the way moving magnet cartridges do, so choosing the MC X20 means planning for a full cartridge replacement or a factory retip when the stylus wears, rather than swapping in a new stylus assembly at home.

What is the MC X20's body made from?

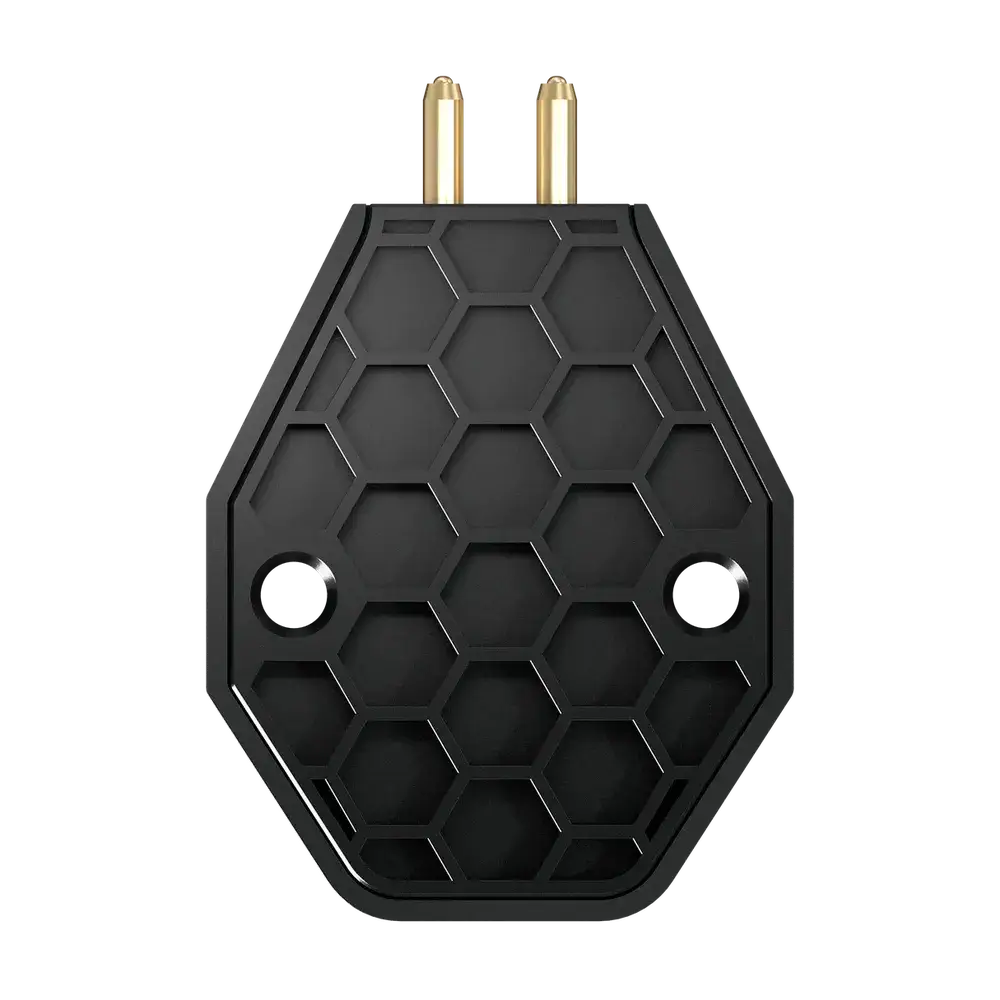

Body construction on the MC X20 combines MIM, metal injection moulded, stainless steel with a honeycomb core structure, finished in black and weighing 8.6 grams in total. A honeycomb core keeps the body rigid while limiting added mass, which matters directly for the tonearm mass and resonance frequency calculation covered above.

How does the MC X20 compare with other cartridges in Ortofon's range?
