Ortofon MC X40 Moving Coil Cartridge

Ortofon MC X40 Moving Coil Cartridge: Nude Shibata Stylus for Low- and Moderate-Mass Tonearms

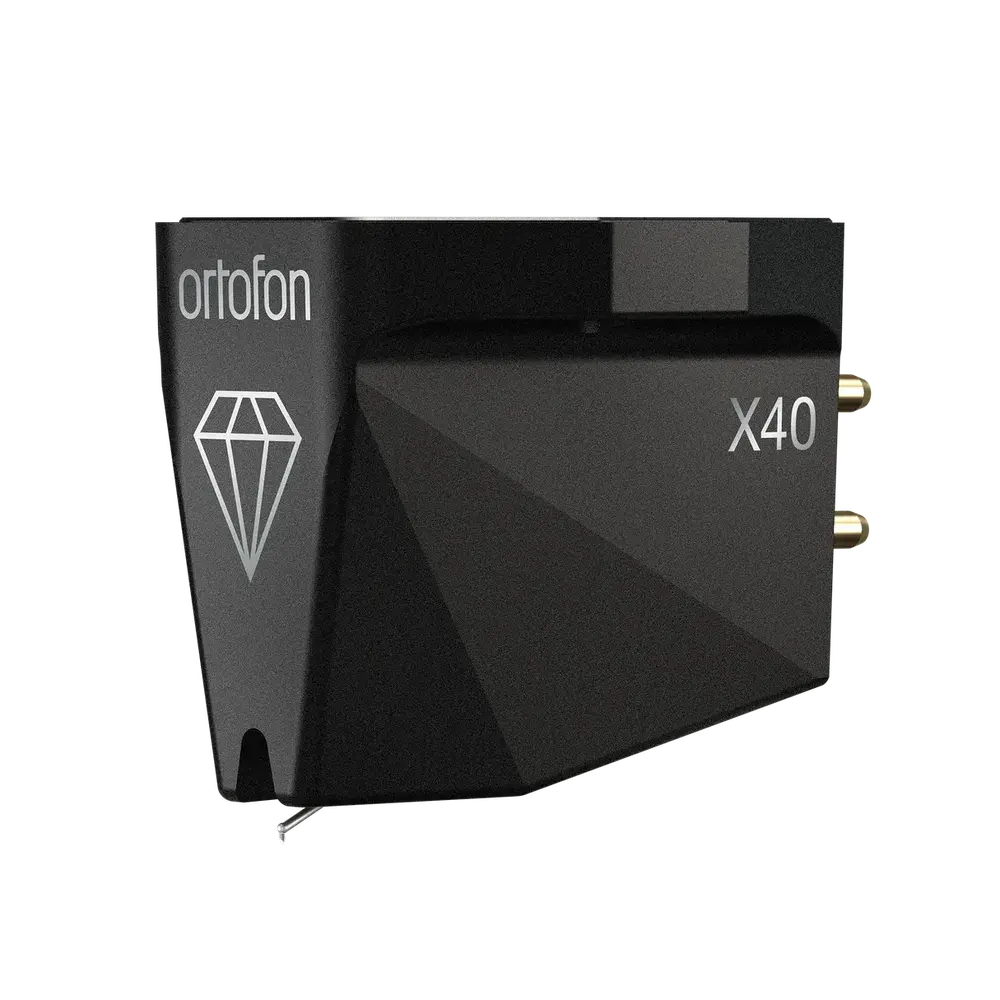

Ortofon MC X40 is a low-output moving coil cartridge from Ortofon’s MC X Series, made for audiophiles moving into dedicated MC playback. It mounts a nude Shibata diamond on a boron cantilever. Ortofon uses nude diamonds in its most advanced hi-fi cartridges. Its 15 µm/mN compliance suits both low- and moderate-mass tonearms. Buy the MC X40 if you want line-contact tracing and a lightweight stylus assembly, and your phono stage can amplify a moving coil signal.

What sets the Ortofon MC X40 apart from other moving coil cartridges?

The Ortofon MC X40 is defined by its stylus assembly. The diamond is the only part of a cartridge that touches the record, and its shape governs how accurately the groove is read.

The MC X40’s Shibata diamond is a line-contact profile, with a 6 µm minor radius and a 50 µm major radius. Ortofon places Shibata in the same line-contact family as its Replicant 100 and the Fritz Gyger 70. Spherical and elliptical shapes contact the groove over a smaller area. Finer line-contact cuts touch a larger area and follow the groove more precisely, so the stylus stays closer to the profile of the cutting stylus that made the record.

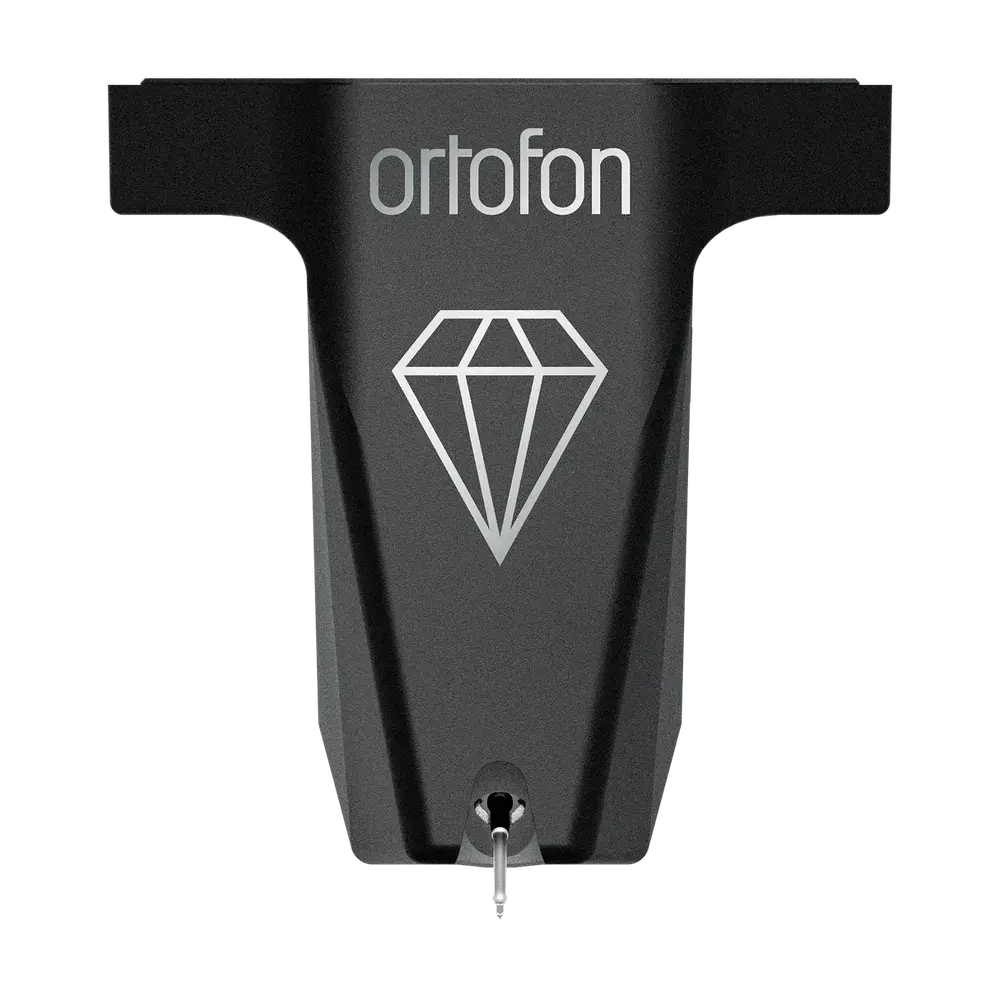

This Ortofon moving coil cartridge mounts the diamond nude, with no metal shank. A tipped diamond is bonded to a shank, which adds weight at the cantilever’s tip. A nude diamond weighs less, and Ortofon links that lower mass to faster stylus response and reduced distortion.

The boron cantilever carrying the diamond is rigid and lightweight, so it adds little to the moving mass the nude diamond has already reduced. Ortofon’s own stylus suspension supports the assembly, and the coils are wound from high-purity silver wire.

Which tonearms suit its 15 µm/mN compliance?

The MC X40 cartridge is a moderate-compliance design, inside the 10–20 µm/mN band Ortofon classes as moderate. Ortofon pairs moderate-compliance cartridges with low-mass arms (10 g effective mass or below, such as early SME arms and the Grace 747). It pairs them with moderate-mass arms too (11–25 g, such as the SME IV, V and VI, Triplanar and Graham).

Ortofon calculates arm matching with F = 1000 ÷ (2π × √(M × C)). C is compliance, and M is the total system mass: the cartridge, the headshell and screws, and the arm’s effective mass. Ortofon recommends a resonance of 10 Hz and treats 7–12 Hz as optimal.

The cartridge weighs 8.6 g. Applying the formula to that weight and its compliance gives these limits for the arm, headshell and screws combined:

• Around 8 g puts resonance close to Ortofon’s 10 Hz target.
• 12 g gives a total system mass of 20.6 g and a resonance of roughly 9 Hz.
• Up to about 26 g keeps resonance at or above 7 Hz.
• Between about 26 g and 31 g, resonance falls to 6.5–7 Hz, which Ortofon rates as usable.
• Beyond about 31 g, resonance drops below 6.5 Hz, which Ortofon describes as questionable.

High-mass arms rated above 25 g, such as Eminent Technology and Dynavector designs, sit at or past the edge of that range. Check your arm’s effective mass before you order.

What phono stage does the Ortofon MC X40 need?

The Ortofon MC X40 is a low-output cartridge, delivering 0.4 mV at 1 kHz and 5 cm/sec. A signal that small needs a phono stage with a moving coil input or a step-up transformer ahead of a moving magnet input. Set the load above 50 Ω, as Ortofon recommends. The cartridge’s internal impedance is 6 Ω.

What should you check before installing it?

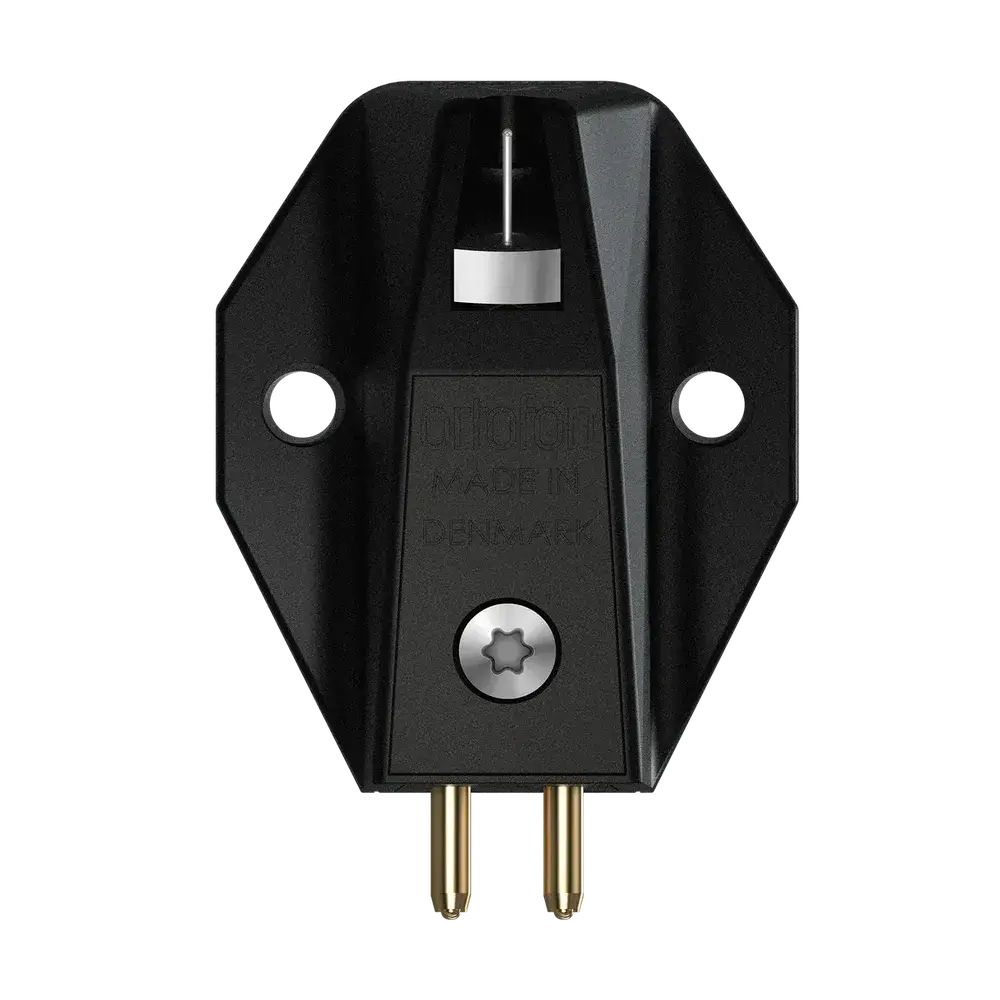

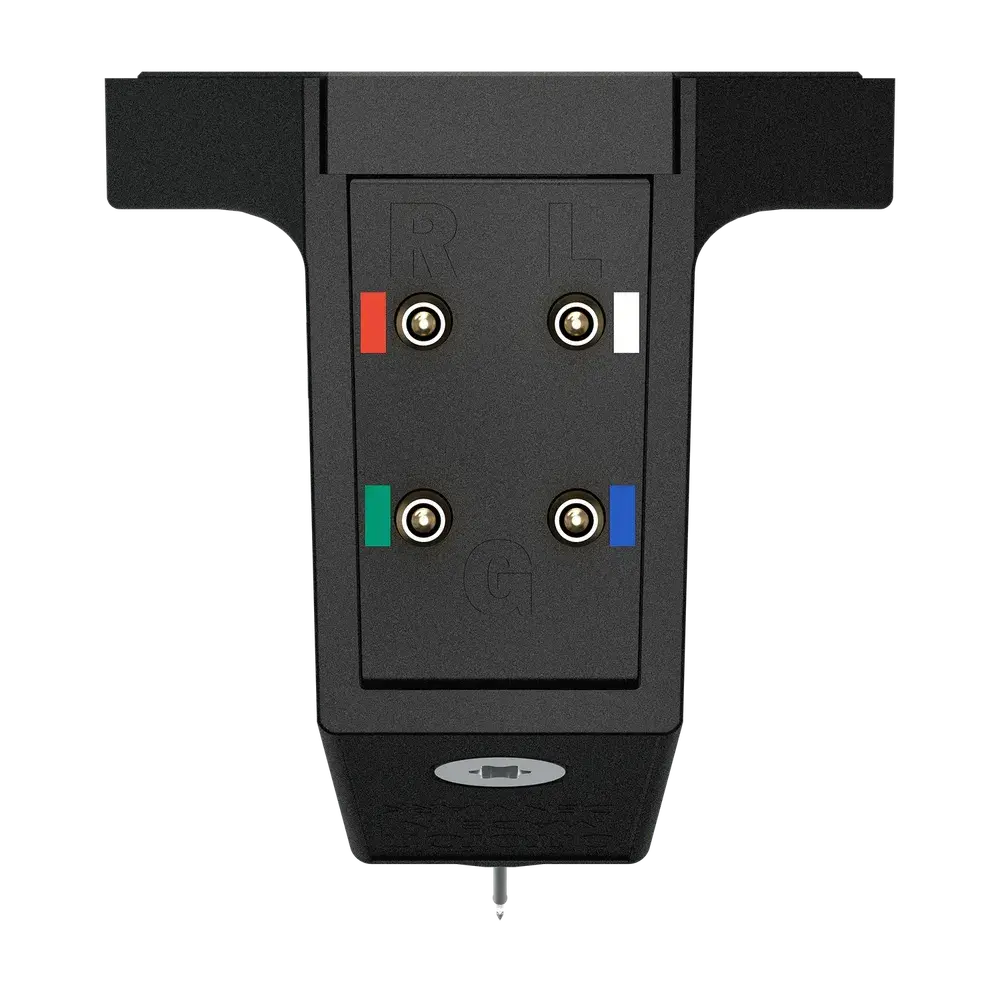

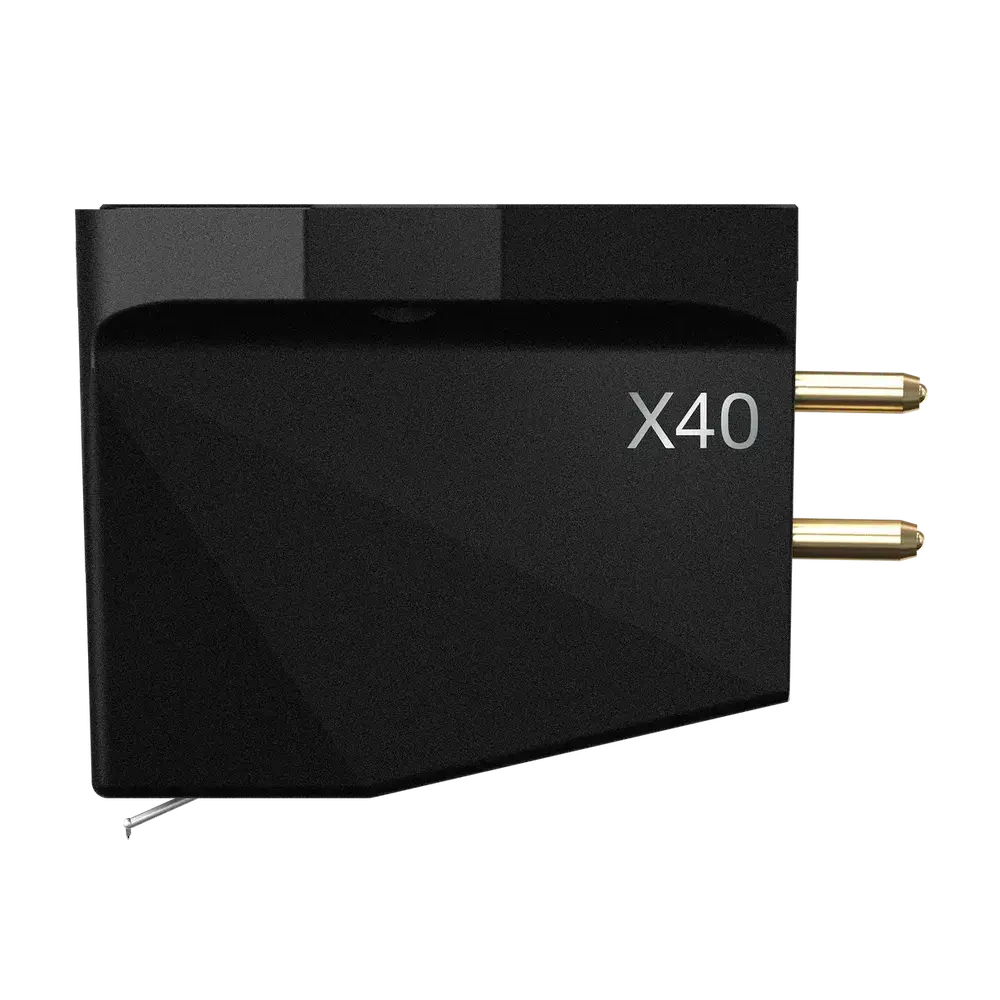

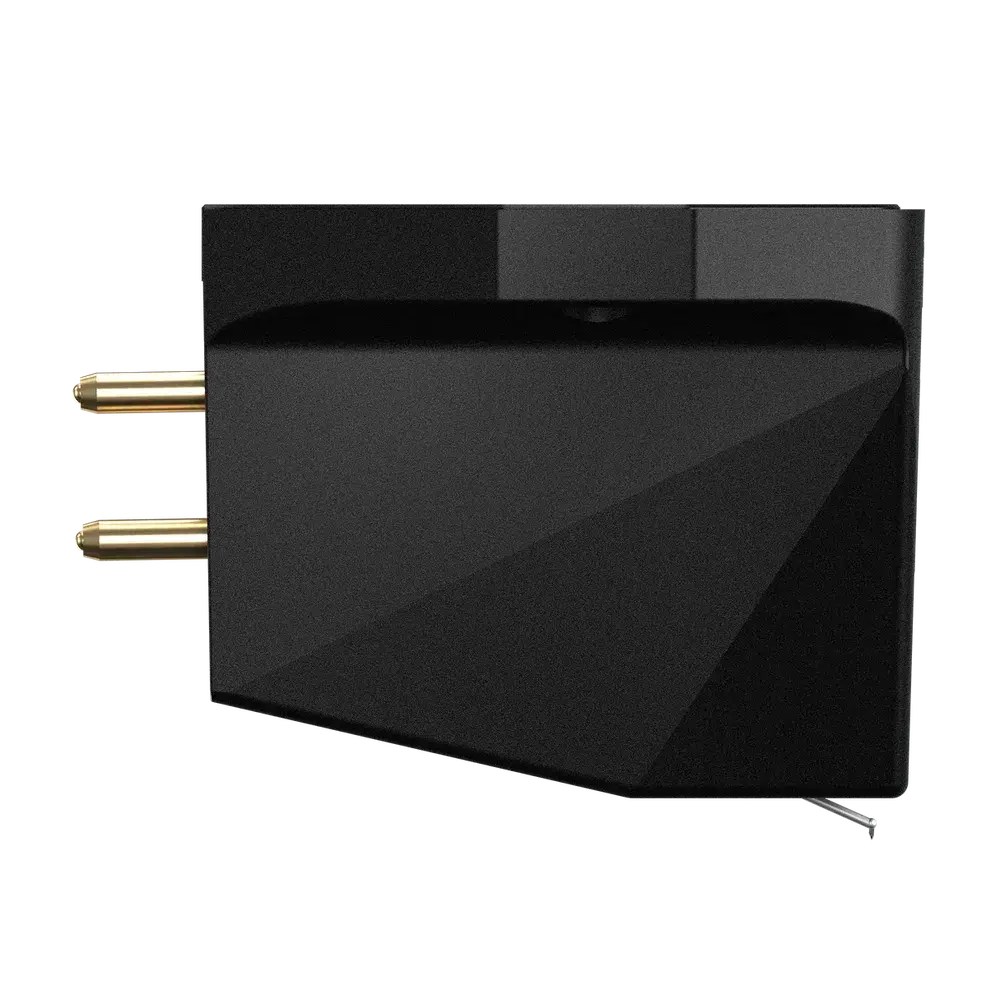

This MC X Series cartridge is set to a recommended tracking force of 2.0 grams. Before buying, confirm that your tonearm accepts its mounting format. Half-inch mount cartridges connect four pins to the arm’s wires and fix with two screws spaced 1/2" apart. Direct bayonet cartridges plug into the arm’s end and fix with a single screw. Ortofon advises checking your turntable manual or manufacturer specifications for cartridge type, mounting style and tonearm compatibility. The MC X40 product page lists cartridge dimensions and compatible turntables, and a user guide is available to download.

Should you choose the Ortofon MC X40 or an Ortofon 2M moving magnet cartridge?

The Ortofon MC X40 is the choice for buyers committing to moving coil playback. Its closest alternatives in the Ortofon range are the 2M moving magnet models, from the 2M Red to the 2M Black LVB 250.

Choose a 2M model if you want to replace or upgrade the stylus easily later. Ortofon recommends moving magnet cartridges for that reason.

Choose the MC X40 if you want its nude Shibata and boron stylus assembly, and your system has the moving coil gain covered above. It fits owners running a low- or moderate-mass tonearm, where its compliance keeps resonance within Ortofon’s recommended window.

What do its channel balance and frequency response figures mean for your system?

The MC X40 is specified for channel balance within 0.5 dB at 1 kHz. Its left and right outputs closely match, so a sound recorded in the centre of the mix stays centred between the speakers. Channel separation exceeds 26 dB at 1 kHz, so leakage between channels stays at least 26 dB below the wanted signal. Frequency response holds within ±1 dB from 20 Hz to 20 kHz, so the cartridge adds no significant bass or treble emphasis of its own.

What is the cartridge body made from?

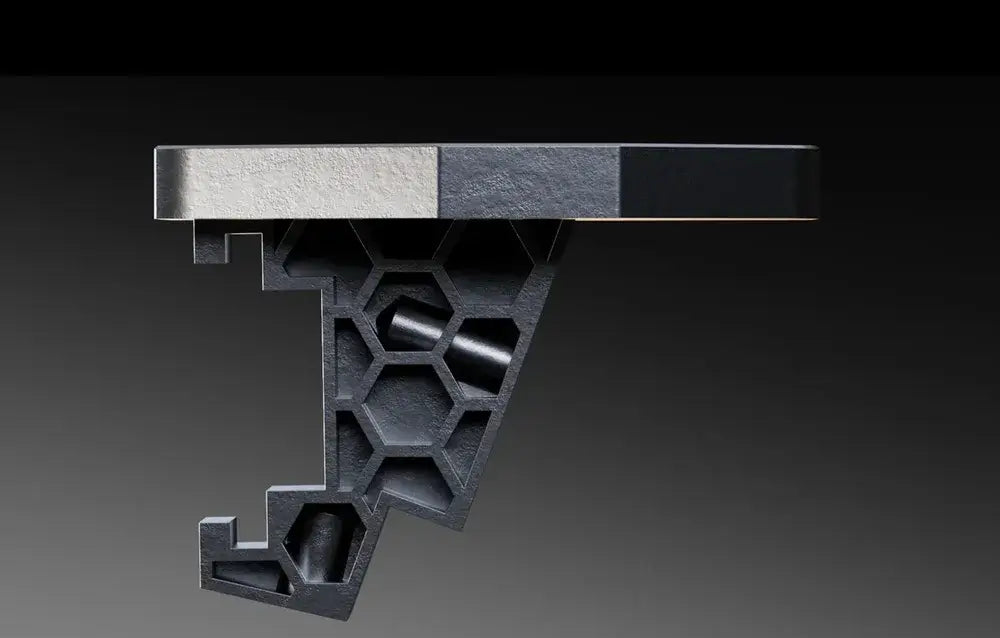

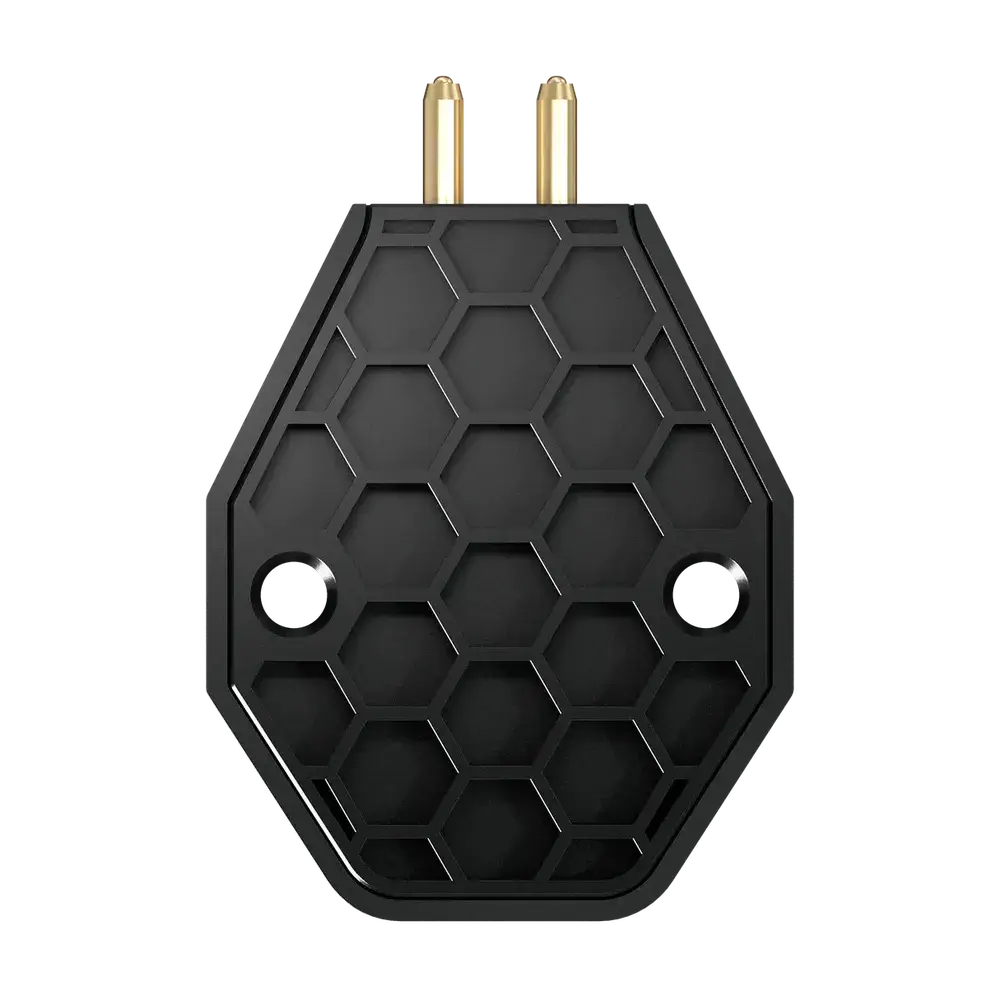

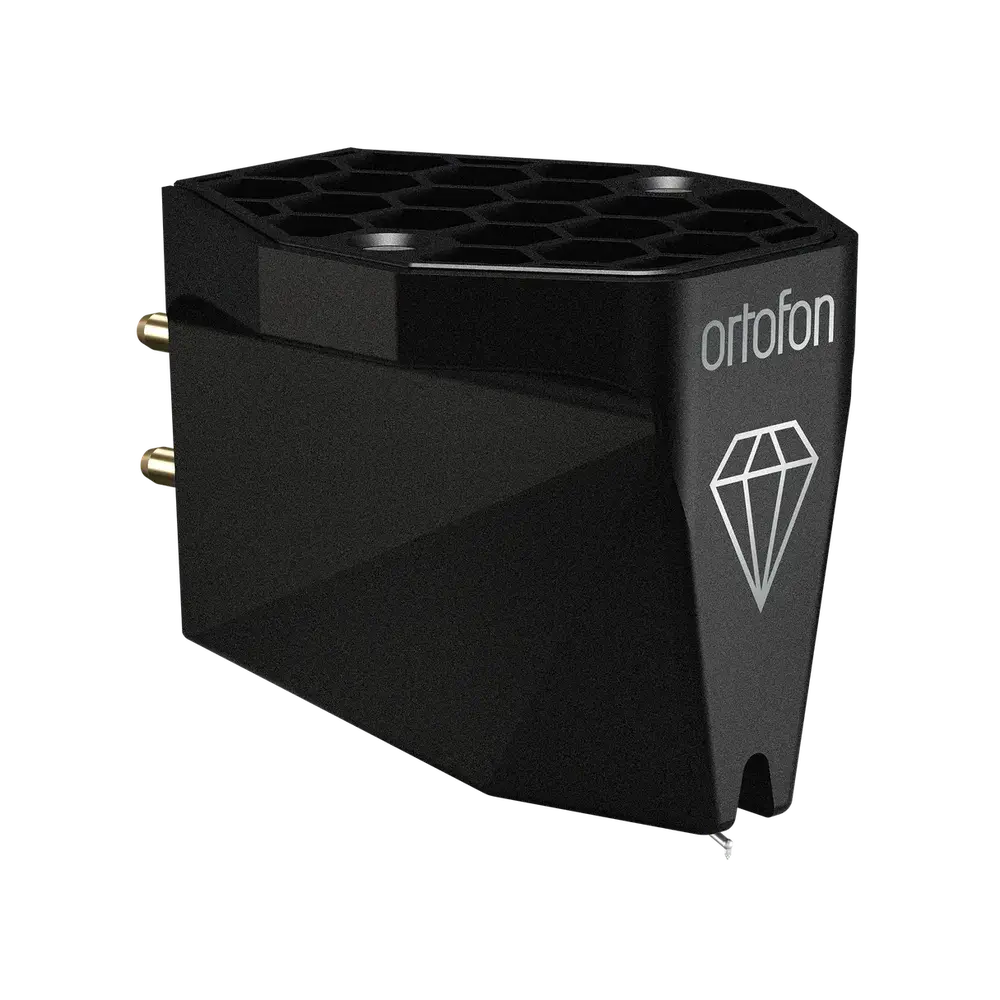

The MC X40 is housed in a black metal injection moulded (MIM) stainless steel body with a honeycomb core structure. This metal body accounts for the cartridge weight used in the tonearm calculations above.
