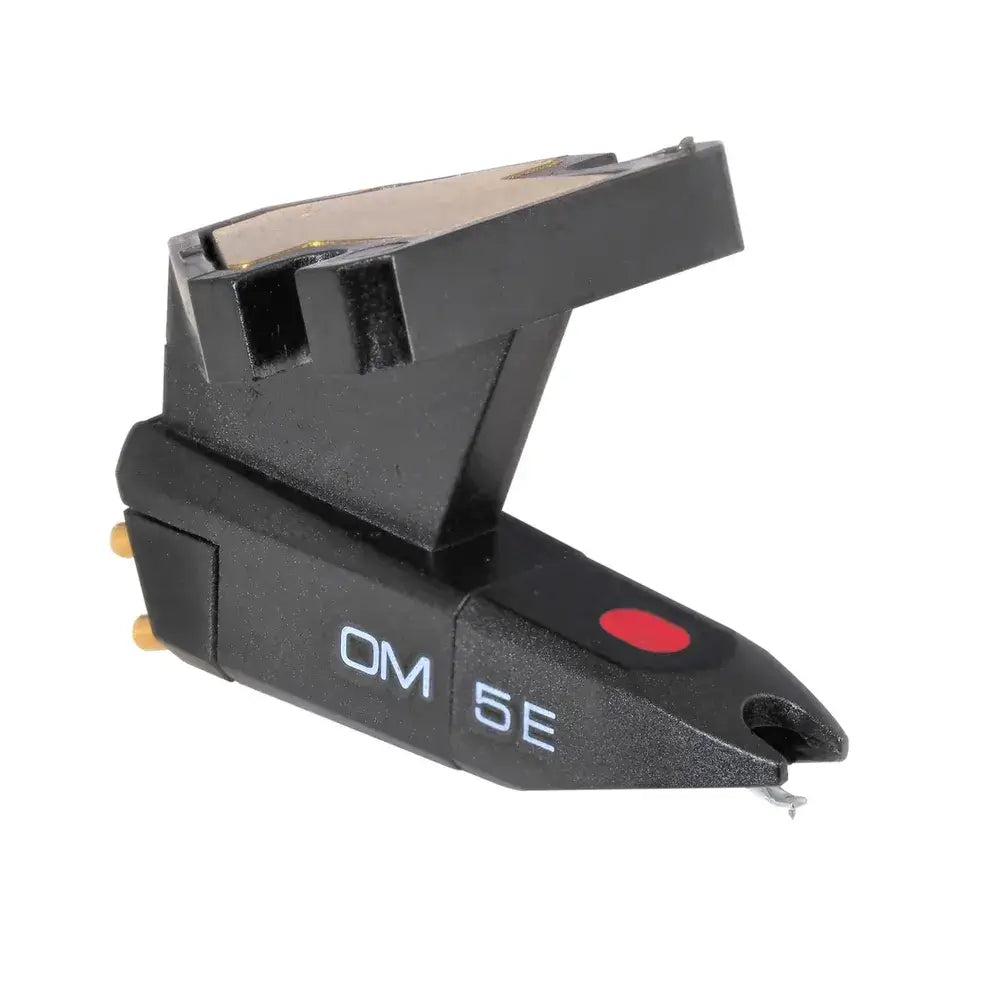

Ortofon OM 5E Cartridge

Why the Ortofon OM 5E Suits Your Turntable Setup

The Ortofon OM 5E is a moving magnet cartridge built around an elliptical stylus, and this stylus profile is what defines its purpose on a turntable. An elliptical tip contacts the groove wall across a shaped area rather than a single point, so the OM 5E tracks the modulations cut into a record with balanced left and right channel response and without the distortion that a mismatched or worn profile introduces. Buyers choosing the OM 5E are typically looking for a cartridge that fits a standard headshell or tonearm mount and that can be matched precisely to the tonearm's mass, rather than a cartridge tied to one narrow class of turntable. The sections below work through the questions that matter before fitting the OM 5E: which tonearms it suits, how it installs, what happens once the stylus wears, how it sits against the Super OM 5E, and what the electrical specification means for your phono stage.

Which stylus type does the Ortofon OM 5E use?

The OM 5E uses an elliptical stylus. An elliptical tip follows the groove modulation more closely than a simple conical tip because it presents a smaller, shaped contact area to the groove wall, which is what allows the OM 5E to reproduce both channels with balanced level and reduced tracing distortion. This stylus type is the entry point into the OM 5 range: Ortofon builds the OM 5 body to accept a family of replacement styli, so the elliptical tip fitted to the OM 5E is a starting configuration rather than a fixed limitation of the cartridge body.

Is the OM 5E compatible with your tonearm?

The OM 5E is compatible with tonearms that use either a standard headshell or a fixed cartridge mount, because Ortofon designs the OM body specifically to match tonearm mass. A removable weight plate is built into the top of the mounting bracket. Leave the plate fitted and the cartridge weighs 5 g, which suits a standard-mass tonearm. Remove the plate and the OM 5E drops to 2.5 g, matching it to a low-mass tonearm instead. This single design choice means one cartridge body covers two distinct tonearm categories, so you don't need to select a different OM model purely on the basis of arm mass.

How do you set the correct mounting weight during installation?

Installation on the OM 5E starts with identifying your tonearm type before fitting the cartridge to the headshell. If your tonearm is a standard-mass design, leave the weight plate in the mounting bracket so the cartridge sits at its full 5 g. If your tonearm is a low-mass design, remove the plate so the cartridge sits at 2.5 g; leaving it fitted on a low-mass arm would push the effective tracking mass outside the arm's intended range. Once the weight is set correctly for your arm, the OM 5E should be set to its recommended tracking force of 1.8 g and a tracking angle of 20°, the parameters the stylus assembly is designed around for correct groove contact.

Can you upgrade the cartridge later without buying a new one?

The OM 5E belongs to the OM 5 Series, and Ortofon designed this series around stylus interchangeability rather than around the cartridge body alone. The replacement stylus for the OM 5E is the Stylus 5E, and the same body also accepts styli 3E, 5E, 10, 20, 30, 40 and 78, along with the D 25 M. This matters at the point of ownership as much as at the point of purchase: when the fitted stylus wears down, or when you want to raise sound quality without replacing the whole cartridge, you swap the stylus assembly rather than the body. The OM 5 platform was built around this idea deliberately, so the stylus choice can be matched to your system, application and budget at any point after the initial purchase, not just at the time of fitting.

How does the OM 5E compare to the Super OM 5E?

The OM 5E sits at the entry point of the OM 5 Series, which Ortofon positions as its lowest-mass range of moving magnet cartridges, alongside the OM 5S and the Super OM 5E. The Super OM 5E differs in three respects that a buyer weighing the two should understand. Ortofon uses computer simulation to define the Super OM 5E's pivot point with greater accuracy, which improves oscillation balance and delivers better linearity, higher channel separation and lower distortion than the standard geometry. The Super OM 5E also uses split-pole pins, a construction that reduces magnetic losses at the treble end and extends frequency range while improving phase linearity. Its body is manufactured from Noryl, a plastic and glass compound chosen for rigidity and freedom from resonance. A buyer who wants the standard OM mounting system, the same stylus interchangeability, and a lower-mass cartridge for a simpler system should choose the OM 5E; a buyer prioritising channel separation and extended treble performance within the same OM 5 mounting and upgrade path should look to the Super OM 5E instead.

What load resistance and capacitance does your phono stage need to support?

The OM 5E is a moving magnet design, which means it needs a phono stage set up for MM inputs rather than a moving coil stage. Ortofon specifies a recommended load resistance of 47 kOhm and a recommended load capacitance of 200 to 500 pF for the OM 5E. These figures describe the electrical loading your phono preamplifier or turntable's built-in phono stage should present to the cartridge; loading outside this range can alter the cartridge's frequency response, so checking that your phono stage's input capacitance and resistance sit within these values is part of confirming system compatibility before you buy.

How is the OM cartridge body designed for headshell mounting?

Ortofon designs OM cartridge bodies for easy mounting and alignment on both top-mount and bottom-mount headshells, which is what gives the OM 5E its broad compatibility across different tonearm and headshell arrangements rather than a single mounting standard. Combined with the removable weight plate that adjusts the cartridge between 2.5 g and 5 g, this body design is what lets the OM 5E work across an assortment of playback systems and a wide variety of phono preamps, rather than being restricted to one specific turntable platform.
