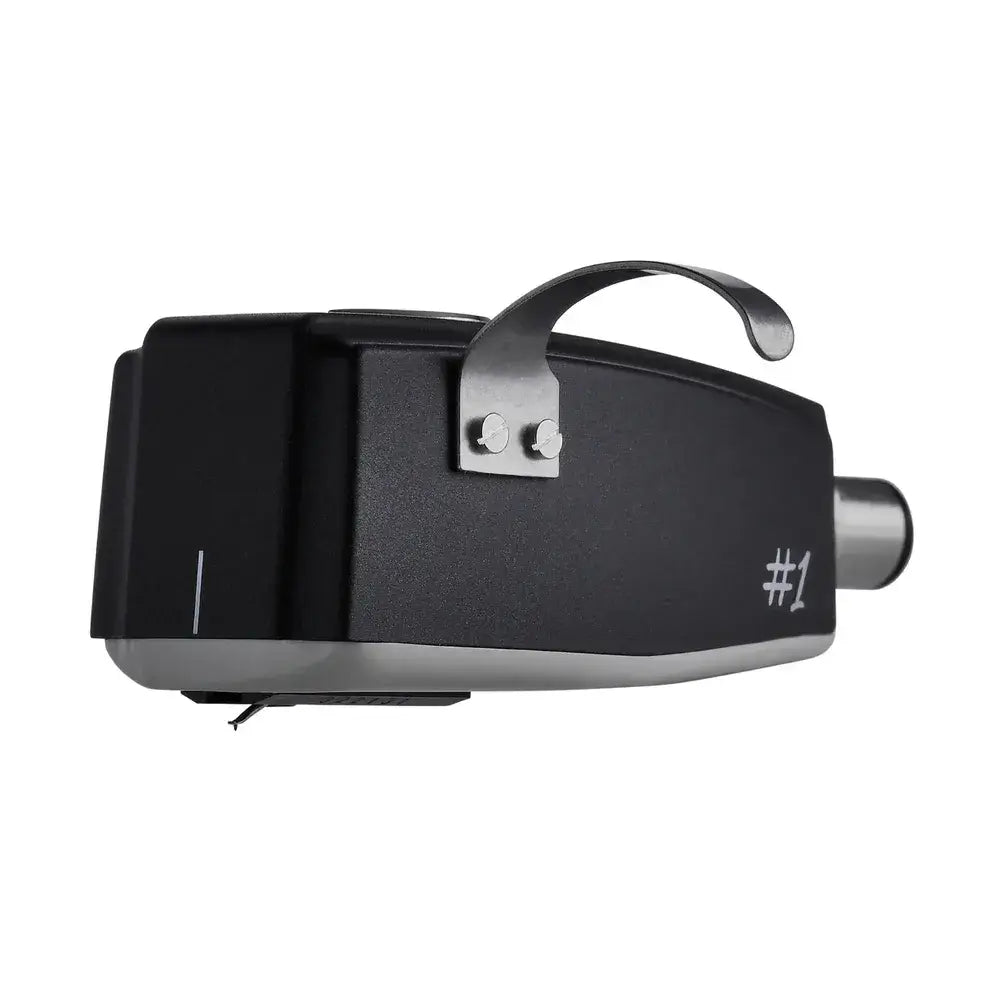

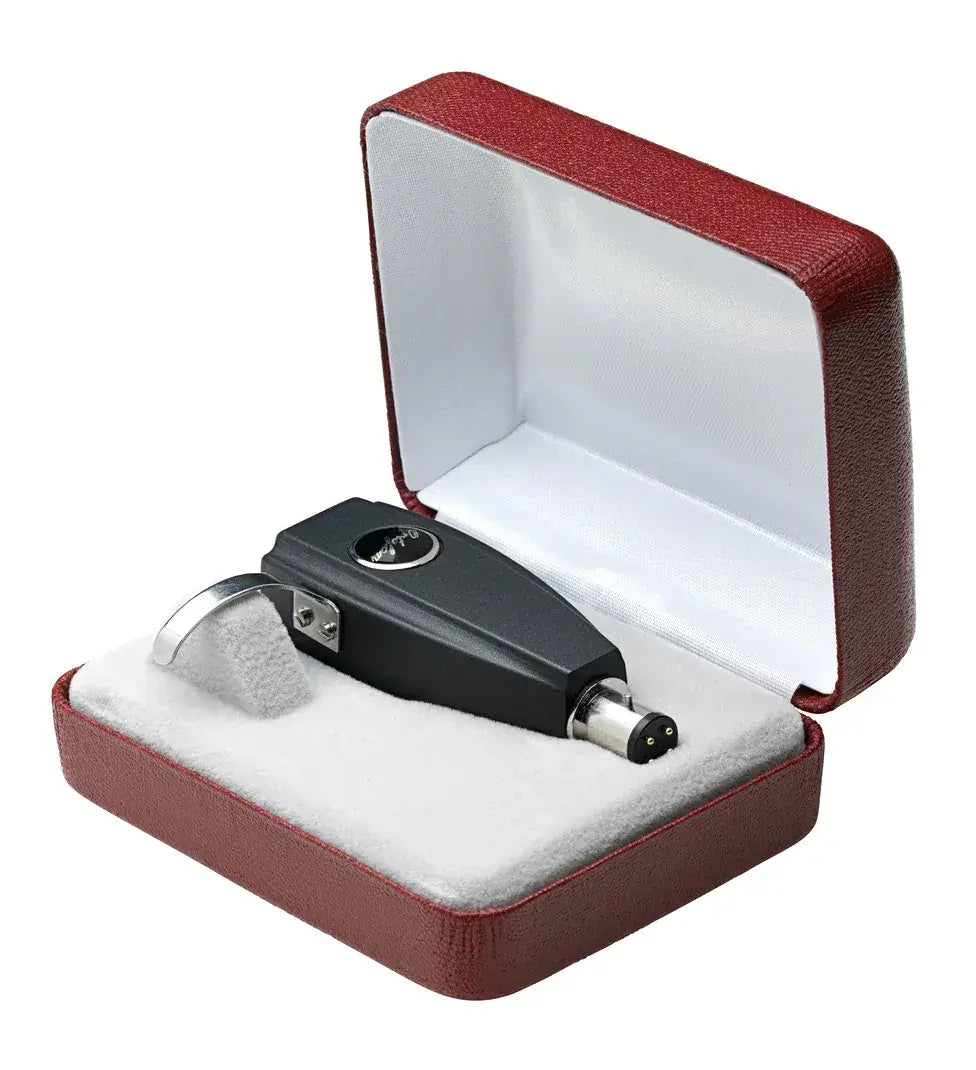

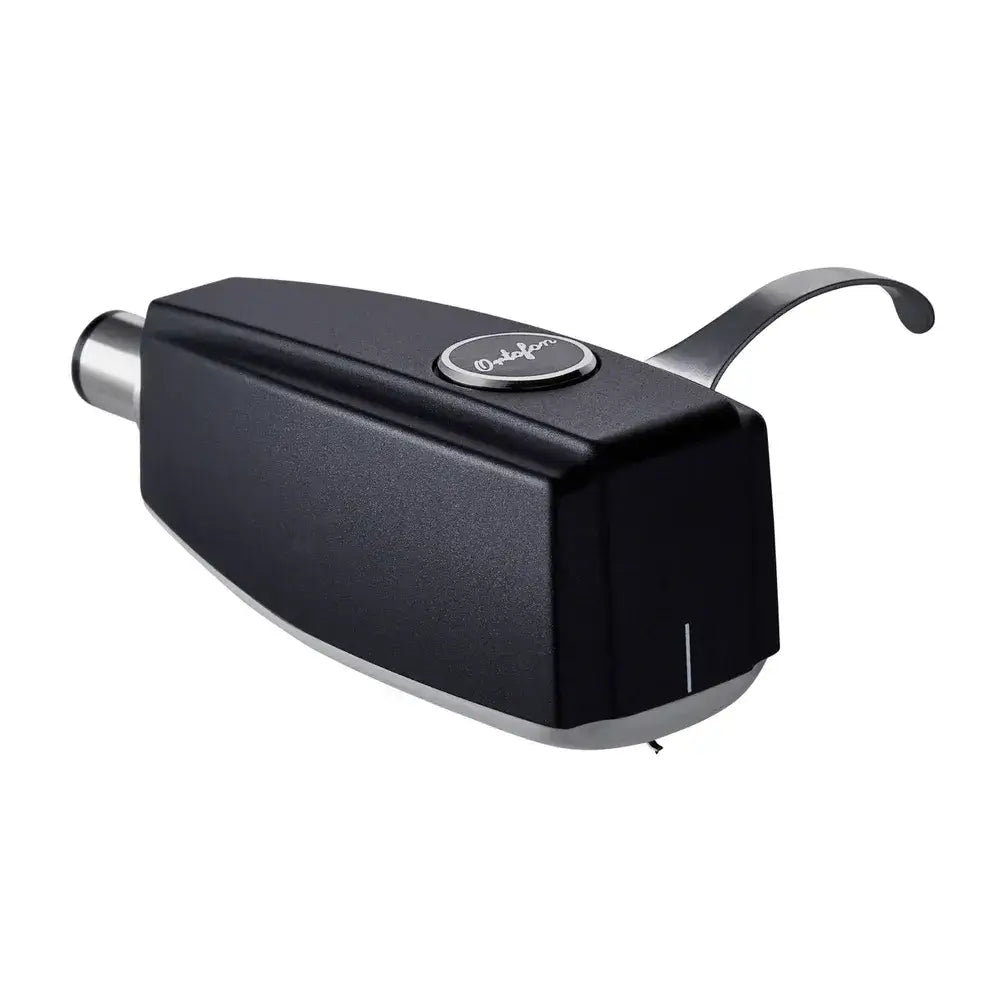

Ortofon SPU #1 E Moving Coil Cartridge

What makes the Ortofon SPU #1 E the right entry point into SPU cartridges?

The Ortofon SPU #1 E is one of two entry-level models in the SPU line, built to bring newcomers into Moving Coil SPU ownership without departing from the coil-and-generator design Robert Gudmandsen developed for the original 1958 SPU. Every SPU model shares this ancestry: two low-impedance coils, wound with fine copper wire and crossed so the two walls of a stereo microgroove generate two discrete channel signals with maximum separation. That shared generator layout is why the SPU #1 E delivers the same full-bodied, powerful music image, low intermodulation distortion and strong channel separation associated with the wider SPU family, at a lower purchase step than the Classic, Meister Silver, Synergy or Royal models above it.

Will the SPU #1 E fit an existing tonearm?

Fitting the SPU #1 E depends on the tonearm's headshell mount rather than any separate cartridge-to-headshell wiring, because the SPU #1 E carries Ortofon's integrated headshell design built into the cartridge body. This construction is made for classic tonearms with a universal SME-type detachable headshell mount, such as the SME 3009 and 3012 and Ortofon's own Reference tonearms, and it removes the step of sourcing and wiring a separate headshell that a conventional half-inch cartridge would require. Buyers should confirm their tonearm accepts a universal SME-type mount before ordering, since fixed-headshell and unipivot tonearms without this fitting are not compatible with the SPU #1 E's integrated design.

Does the SPU #1 E need a step-up transformer or MC phono stage?

At 0.18 mV output and 2 ohm internal DC resistance, this cartridge needs a Moving Coil step-up transformer or an MC-capable phono stage to reach line level, and Ortofon builds the SPU #1 E around its ST-7 Moving Coil transformer for this purpose. Recommended load impedance is 10 ohm, so a transformer or phono stage should be matched to that figure rather than to the higher values suited to Moving Magnet cartridges. This is a lower output than the SPU Synergy GM's 0.5 mV, a model Ortofon designed specifically to relax the requirement for a dedicated transformer or high-gain pre-amplification, so buyers without an existing MC transformer or MC-capable phono stage should weigh that added cost against the SPU #1 E's lower entry price.

How should the SPU #1 E be matched to a tonearm for stable tracking?

Correct tracking on the SPU #1 E depends on matching its 10 µm/mN dynamic lateral compliance to a tonearm of suitable effective mass, since compliance and total system mass together set the resonance frequency of the cartridge/tonearm pairing. A compliance of 10 µm/mN sits at the upper edge of the low-compliance band (5–10 µm/mN) and the lower edge of the moderate band (10–20 µm/mN), so the SPU #1 E pairs best with a moderate-mass tonearm, rated between 11 and 25 grams of effective mass, rather than a low-mass arm built for high-compliance cartridges. The target resonance frequency is 7–12 Hz, with 10 Hz recommended, and buyers should check their tonearm's effective mass, including headshell and screws, against this figure before mounting. Recommended tracking force is 4.0 g (40 mN), within a working range of 3.0 to 5.0 g (30 to 50 mN), with a tracking angle of 20°; the tonearm should be adjusted parallel to the record surface at this recommended force to bring the cartridge to its intended performance.

What ongoing care does the SPU #1 E require?

Routine care on this cartridge centres on the stylus and the electrical contacts rather than any adjustable component. Dust should be removed from the stylus regularly with a stylus brush, guided forward in the direction of the diamond tip, to sustain sound reproduction over time. The gold-plated contact points on the cartridge and the corresponding contacts inside the tonearm should also be cleaned periodically with a small amount of propyl alcohol, which prevents dust or sticky residue from causing a poor electrical connection. Because the stylus is not part of a replaceable assembly on SPU moving coil cartridges, a worn or damaged stylus on the SPU #1 E cannot be swapped by the owner; Ortofon instead offers a Special Repair Service through its webshop and authorised dealers. The cartridge is built for tonearm mounting only and should not be used for any other purpose.

What does the elliptical stylus contribute to the SPU #1 E's sound reproduction?

Detail retrieval is the practical difference between the SPU #1 E and its spherical-tipped sibling, the SPU #1 S, and it comes from the elliptical diamond fitted to the #1 E, with a tip radius of r/R 8/18 µm. An elliptical profile presents a narrower effective contact radius along the direction of stylus movement than a spherical stylus of comparable size, letting it follow finer modulation cut into the groove wall. This is why Ortofon specifies more detailed sound reproduction and more expansive imaging for the elliptical #1 E against the spherical #1 S, while both models share the same generator, body and electrical specification.

What is the SPU #1 E built from, and how does that compare with higher SPU models?

Construction on the SPU #1 E centres on a ground wood and resin composite body, the housing material Ortofon has carried across the SPU range since the original design. Coil winding and terminal leads throughout use High Purity Copper (OFC), specified for signal transmission from the generator to the tonearm cabling. Buyers weighing the #1 E against costlier SPU models should note that the Meister Silver GM MkII uses 6-nines silver coil wire and the Royal uses gold-plated silver, both aimed at lowering coil resistance or moving mass further than copper allows; the #1 E keeps copper wiring and an elliptical rather than nude-cut diamond, which places it in the accessible tier of the range while retaining the same body material and generator architecture as every other SPU model.

Where does the SPU #1 E sit against the rest of Ortofon's SPU range?

Positioned below the SPU Classic, Meister Silver, Synergy and Royal models, the SPU #1 E is aimed at buyers who want the standard SPU sound signature, an elliptical stylus and universal SME-type mounting without moving to silver coil wire or a nude-cut diamond. Buyers wanting higher output for a wider choice of MC transformers, or lower moving mass from a nude stylus, are better served by the SPU Meister Silver GM MkII or SPU Synergy GM. Against the SPU #1 S specifically, the decision comes down to stylus profile alone, since the two share body, coil material and electrical specification; buyers prioritising detail retrieval from the entry tier should choose the #1 E, while those wanting a more forgiving stylus can choose the #1 S instead.
