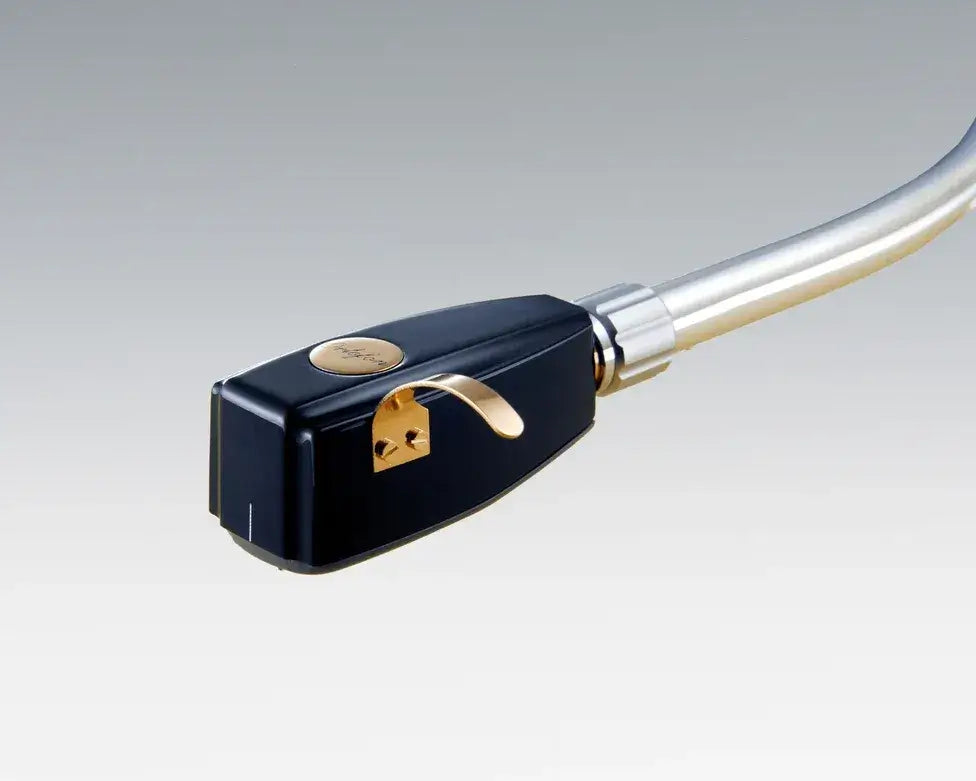

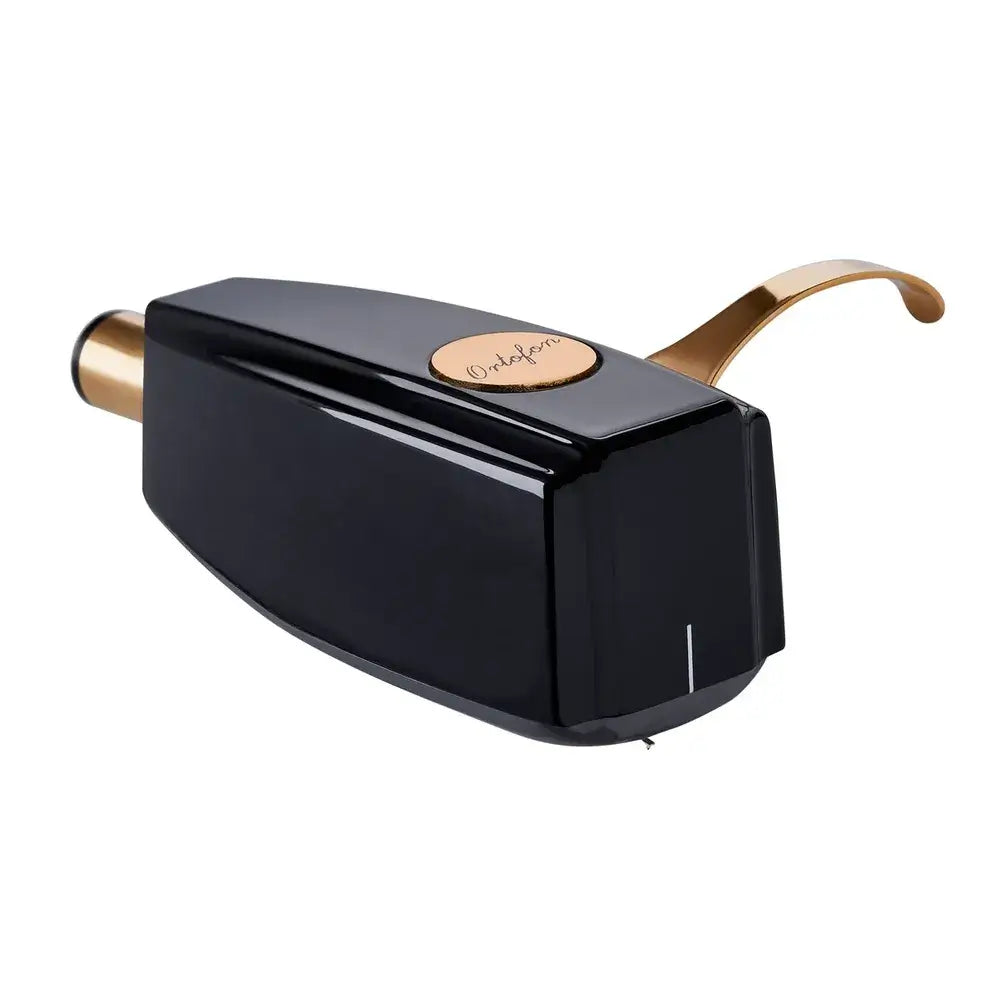

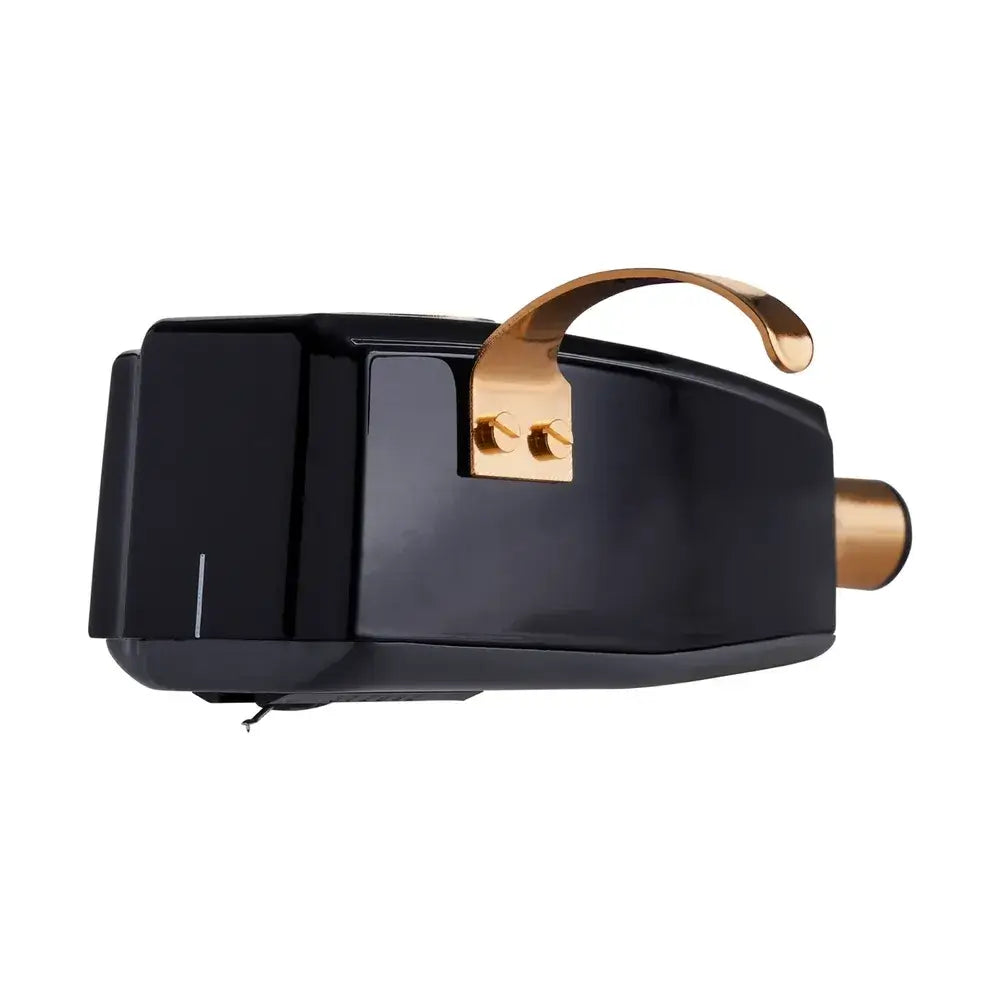

Ortofon SPU Synergy GM Moving Coil Cartridge: Higher-Output SPU for Classic Detachable-Headshell Tonearms
The Ortofon SPU Synergy GM is a moving coil cartridge with an integrated G-shell headshell. It’s built for owners of classic tonearms with detachable headshells who want the SPU format without needing a very high-gain step-up stage. Ortofon’s product page lists it as the SPU Synergy G, and its repair listing covers both the G and GM names. The Synergy GM’s 0.5 mV output is the highest of any stereo model in Ortofon’s SPU brochure line-up, and that’s its main differentiator. A revised generator, a lower-mass Nude Elliptical stylus and a wood-based housing update a design Ortofon first launched in 1958, with the original SPU magnetic circuit concept kept intact. Ortofon notes that the SPU has a strong following among listeners who run vintage valve amplification with horn or reflex loudspeakers.
Why does the SPU Synergy GM’s 0.5 mV output matter for your phono stage?
The SPU Synergy GM is a 0.5 mV moving coil design, and that figure sets how much gain your system needs. Other stereo SPU models produce between 0.18 mV and 0.3 mV. Against the 0.2 mV SPU Classic G MkII, the Synergy GM sends roughly 8 dB more signal into the same input. Ortofon’s stated aim is to relax the need for a high-gain transformer or high-gain active preamplification. That makes a medium-gain MC input or step-up transformer a more realistic partner than it would be with a 0.2 mV SPU.
Ortofon reaches this output with neodymium magnets in a revised generator, keeping coil resistance very low at 2 ohms. Ortofon calls that combination of low resistance and high output decisive for the cartridge’s high signal-to-noise ratio. For an active MC phono stage, set the loading within Ortofon’s recommended 10–50 ohm window.
Which tonearms will it mount on?
This G-shell cartridge is a one-piece assembly with its headshell built in, so it doesn’t fit a standard half-inch mount. It plugs straight into classic tonearms with detachable headshells, such as the SME 3009 and SME 3012, and other arms with the same universal-style mount. There’s no separate headshell to buy. Arms with fixed headshells or half-inch-only mounting can’t take it. The complete assembly weighs approximately 28–30 g, depending on which Ortofon source you consult.
Is the Ortofon SPU Synergy GM a good match for your tonearm’s effective mass?
That general rule doesn’t settle the match on its own, because the SPU carries its headshell with it. Ortofon defines total system mass (M) as the cartridge, the headshell and its screws, and the arm’s effective mass combined. It targets a resonance between 7 and 12 Hz, with 10 Hz recommended, using F = 1000 ÷ (2π × √(M × C)), where C is compliance in µm/mN. The Synergy GM’s 28–30 g assembly alone gives a resonance of about 10.3–10.6 Hz. Adding 12 g of arm mass brings that to roughly 8.7–8.9 Hz, 20 g to about 8.0–8.1 Hz, and 30 g to about 7.3–7.4 Hz. Resonance stays above 7 Hz until total mass passes roughly 65 g, leaving room for about 35 g of arm mass. So a light classic arm can still land inside Ortofon’s target range, because most of the moving mass sits in the cartridge itself.
What tracking force does it need?
This SPU cartridge is set up for a recommended tracking force of 3.5 g, within a 3.0–4.0 g range. That’s lighter than the 4.0 g most stereo SPUs call for. The reason is the stylus. It’s a highly polished Nude Elliptical diamond with an r/R 8/18 µm profile, mounted directly on the cantilever without the metal shank of a tipped stylus. Ortofon has reduced its tip mass significantly and credits that change with the lower tracking force and higher tracking ability. The Synergy GM tracks 60 µm at 315 Hz.
The SPU Classic G E MkII uses the same Nude Elliptical profile but needs 4.0 g within a 3.0–5.0 g range. Ortofon’s guide explains that a slim profile like the 8 µm side radius follows the groove more precisely than a spherical tip and comes closer to the shape of the stylus that cut the record.
How does the SPU Synergy GM compare with other SPU cartridges?
The SPU Synergy GM is the output-focused model in a family that runs from entry-level stereo designs to dedicated mono cartridges. Its closest sibling is the SPU Classic G E MkII, which shares its high-purity copper (OFC) coil wire and ground wood and resin composite body. The output and tracking-force differences covered above are the real dividing line between them. The Synergy suits limited-gain systems and buyers who want a lighter tracking force.
The SPU Meister Silver G MkII uses multi-conductor 6-nines silver coil wire and produces 0.3 mV. Pick it if silver coil windings matter most to you, and the Synergy if gain margin matters more. The SPU Royal G MkII pairs a Replicant 100 line-contact stylus with Electrum gold-and-silver alloy coils and a modified damping system. It produces 0.2 mV, wants a load above 100 ohms, and its channel separation of over 25 dB at 1 kHz is the widest in the range.
The SPU #1 S and #1 E are Ortofon’s entry points for newcomers to SPU, producing 0.18 mV. The SPU Wood A has a Japanese beech housing with a dark maroon Urushi finish and produces 0.18 mV. Its shorter A-shell needs Ortofon’s APJ-1 adaptor to reach standard GM length. For mono LPs and 78s, the SPU Mono G MkII and Mono CG models produce a single signal and are essentially unaffected by vertical stylus movement, which a stereo cartridge like the Synergy GM can’t match on mono records.
Should you choose it over a half-inch-mount moving coil or moving magnet cartridge?
This cartridge is a system-specific purchase rather than a universal upgrade. A half-inch-mount moving coil cartridge fits almost any standard headshell, while the Synergy GM needs an SPU-compatible detachable headshell mount. If your arm doesn’t have one, Ortofon’s Classic N and Royal N use a half-inch adaptor so they can mount on standard headshells.
Ortofon suggests a moving magnet cartridge to buyers who want a replaceable stylus and easy upgrades later. The Synergy GM suits a different buyer: someone who already owns a classic detachable-headshell arm, wants the SPU format, and needs more output than a traditional SPU provides.
What does the wood-based body and generator design contribute?
The Synergy GM is housed in a ground wood and resin composite body, finished in black polished Urushi lacquer that Ortofon chose for its jewel-like appearance. Over the decades, Ortofon has changed SPU housing materials, diamonds, and magnetic and damping systems, while keeping the original elements of the magnetic circuit. The Synergy follows that pattern. Its updates sit around the established SPU architecture rather than replacing it.
Its published figures show what the revised generator delivers. Channel separation is above 23 dB at 1 kHz and above 15 dB at 15 kHz, compared with above 20 dB and above 10 dB for the Classic models. Frequency response is 20 Hz to 20 kHz within ±2 dB, against ±3 dB for the Classic G MkII and #1 models and +3/−2 dB for the Classic G E MkII. Channel balance at 1 kHz is within 1.5 dB.
What does long-term ownership involve?
The Synergy GM is backed by a dedicated Ortofon repair service listed for the SPU Synergy G and GM. Ortofon sells a Stylus Guard for SPU GM models and lists it alongside the Synergy, giving the exposed Nude Elliptical tip a protective cover. The SPU format itself has stayed in continuous production since 1958, so the classic arms it was designed for remain a supported platform.
