Ortofon Stylus 2M Mono

Ortofon Stylus 2M Mono Replacement Stylus

What is the Ortofon Stylus 2M Mono designed for?

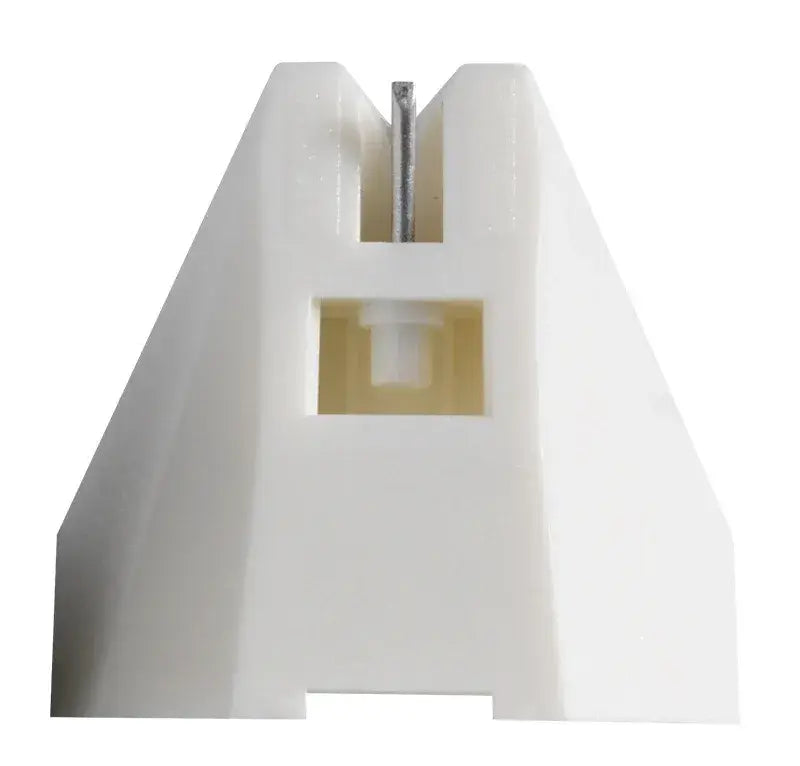

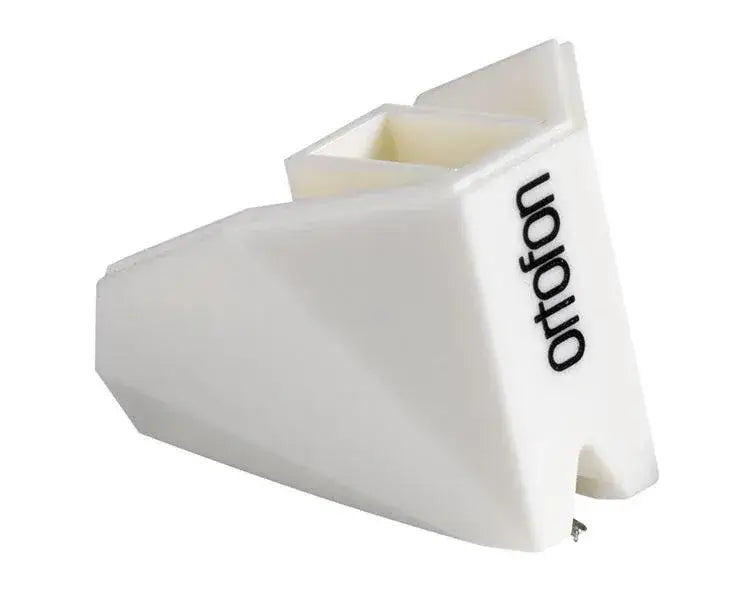

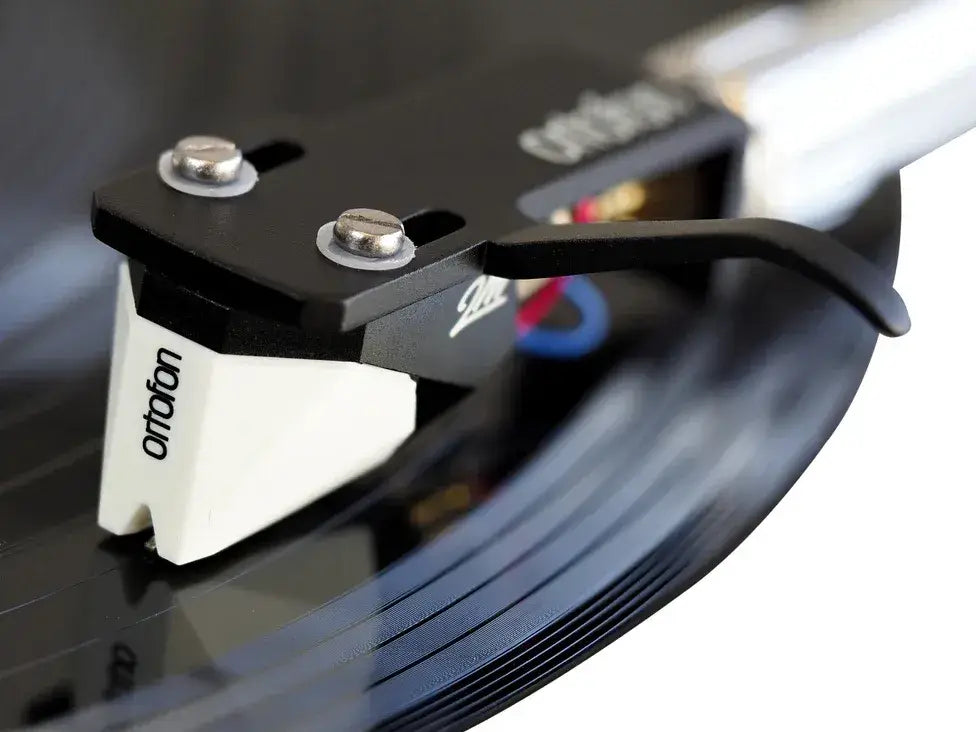

The Ortofon Stylus 2M Mono is a replacement diamond assembly built for the 2M Mono cartridge body, intended for playback of mono pressings rather than stereo records. It carries a Nude Spherical diamond with an 18 µm tip radius, a stylus profile suited to the wider, simpler groove geometry of mono cuts rather than the fine lateral-vertical modulation found on stereo discs. Buyers replacing a worn mono stylus, or fitting a dedicated mono front end alongside an existing stereo setup, use this part to restore or establish accurate mono tracing without altering the cartridge body itself.

Which cartridges can use this replacement stylus?

This stylus only fits within Ortofon's defined 2M interchangeability groups, and for the Mono variant that group is limited to the 2M Mono and 2M 78 cartridges. It is not interchangeable with the 2M Red, Blue, Silver, Bronze, Black or Black LVB 250 bodies, so buyers running any of those cartridges need a stylus from within their own group rather than this one. Anyone building a dedicated mono playback chain, or switching between 78 rpm and standard mono records on the same cartridge body, can move this stylus between a 2M Mono and a 2M 78 body without needing a separate cartridge for each format.

What tracking force and angle does the Stylus 2M Mono require?

The Stylus 2M Mono operates within a tracking force range of 1.6–2.0 g (16–20 mN), with Ortofon's recommended setting at 1.8 g (18 mN), and a tracking angle of 20 degrees. Setting the tonearm counterweight and anti-skate to this range keeps the spherical tip seated consistently in the groove, which matters for mono playback since the stylus only needs to follow lateral modulation; force outside this range risks either excess record wear or mistracking on louder passages. The 20-degree tracking angle is a setup reference for arm height (VTA) adjustment, helping the stylus sit at the angle the cutting head used when the groove was originally cut.

How does compliance affect tonearm matching?

The Stylus 2M Mono has a dynamic lateral compliance of 18 µm/mN, a figure buyers use alongside their tonearm's effective mass to judge whether the combination will track records cleanly. A compliance in this range works with tonearms of low to medium effective mass; pairing it with an unsuitable arm mass can push the resonant frequency of the arm-cartridge system outside the range needed for stable tracking. This is a key compatibility check before purchase, separate from the cartridge body's electrical or physical mounting compatibility.

What does the 70 µm tracking ability figure mean for record wear?

Ortofon rates the Stylus 2M Mono at 70 µm tracking ability at 315 Hz, meaning the stylus can follow groove modulations up to that amplitude at the recommended tracking force without mistracking. A higher tracking ability figure generally indicates the stylus can handle more heavily modulated grooves cleanly, which reduces the risk of distortion or accelerated wear on both the stylus and the record during playback.

Where does the Stylus 2M Mono fit within Ortofon's 2M range?

Within Ortofon's 2M range, the Mono and 78 styli form a separate group from the stereo-focused Red, Blue, Silver, Bronze, Black and Black LVB 250 line-up, so this stylus serves buyers with a specific mono or 78 rpm playback need rather than general stereo listening. Ortofon's own upgrade path for the stereo group runs from Red through Silver and Blue, driven by differences such as silver-plated copper coil wire and a Nude Elliptical diamond on the Blue, but none of that path applies to mono buyers, since mono cartridges are not interchangeable with that stereo group. Anyone choosing between this stylus and a stereo 2M stylus should base the decision on the format of the records being played: stereo styli for stereo pressings, and the Mono or 78 stylus for mono and 78 rpm discs respectively, with the choice between 2M Mono and 2M 78 itself coming down to whether the records in use are standard mono LPs or 78 rpm pressings, since both share the same cartridge body and stylus interchangeability group.
