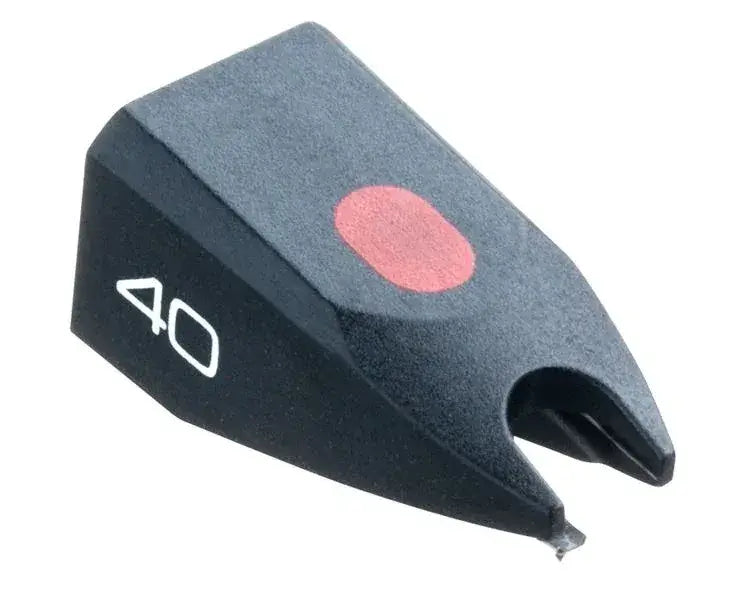

Ortofon Stylus 40 Replacement Stylus

Ortofon Stylus 40

The Ortofon Stylus 40 is a replacement diamond stylus built for owners of the OM 40 and OM 40 Gold cartridges who need to restore original tracing performance without buying a new cartridge. It exists because the diamond and cantilever assembly wears with use while the cartridge generator underneath typically keeps working correctly, so Ortofon separates the two parts and lets buyers renew only the component that wears. The Stylus 40 carries a Nude FG 70 diamond and the compliance and tracking figures the OM 40 and OM 40 Gold were originally designed around, which is why it's specified as a direct match rather than a general-purpose stylus.

Which cartridges accept the Ortofon Stylus 40?

The Ortofon Stylus 40 is designed specifically for the OM 40 and OM 40 Gold cartridges, and Ortofon doesn't list it as compatible with any other model in the OM range. Fitting it to a different OM cartridge would mismatch the stylus geometry and tracking force specification to a generator body it wasn't engineered for, so buyers need to confirm their cartridge's model number before ordering. The OM 40 and OM 40 Gold share the same cartridge body and electrical generator, which is why one stylus number covers both variants.

What does the Nude FG 70 diamond profile do for tracking?

This stylus is fitted with a Nude FG 70 diamond, meaning the diamond is bonded directly to the cantilever rather than set into a metal shank, which keeps the moving mass at the tip low. A lighter moving mass responds faster to groove modulation, particularly at high frequencies, and this is reflected in the stylus's frequency response of 20 Hz to 20 kHz at 2/-3 dB. The FG 70 designation refers to Ortofon's Fritz Gyger 70 grind, giving the diamond an asymmetric radius of 5 µm in the vertical plane and 70 µm in the horizontal plane rather than a simple spherical tip. The narrower vertical radius contacts more of the groove wall, which improves high-frequency tracing and helps the stylus follow closely packed modulations without mistracking at the recommended tracking force.

How does compliance affect which tonearm the stylus suits?

This stylus is rated at 22 µm/mN dynamic lateral compliance, a figure that describes how readily the cantilever moves in response to groove modulation. Combined with a tonearm's effective mass, compliance sets the resonant frequency of the arm-and-cartridge system, and keeping that resonance roughly between 8 Hz and 12 Hz avoids audible interference from record warps or footfall. A compliance of 22 µm/mN suits low to medium mass tonearms rather than high mass designs. Buyers replacing a stylus on an existing OM 40 cartridge don't need to reassess this, since compliance is a property of the stylus and cantilever and matches the cartridge's original specification; buyers building a system around this stylus for the first time should check it against their tonearm's effective mass before ordering.

What tracking force should you set during installation?

This stylus is specified with a tracking force range of 1.25 to 1.75 g, with a recommended setting of 1.5 g, equivalent to 15 mN. Setting the tonearm counterweight to this figure after fitting the stylus keeps the diamond seated correctly in the groove, since too little downward force lets the stylus skate across modulations while too much accelerates record and stylus wear. Its tracking ability of 80 µm at 315 Hz indicates the largest groove modulation the stylus can follow cleanly at the recommended force, a useful reference for buyers playing records cut at higher levels.

Why does tracking angle matter when fitting a replacement stylus?

This stylus is set to a tracking angle of 20 degrees, matching the vertical tracking angle the OM 40 cartridge body was designed around. Replacing the stylus rather than the whole cartridge preserves this angle automatically, because the cantilever geometry that sets it is built into the stylus assembly itself rather than the cartridge body. Getting this angle wrong relative to the record's cutting angle increases distortion, so a stylus engineered to match the existing cartridge exactly has an advantage over a generic replacement.

Where does the Ortofon Stylus 40 fit in Ortofon's stylus range?

The Ortofon Stylus 40 is part of Ortofon's numbered OM stylus range, in which each stylus is designed as a direct replacement for a specific OM cartridge model rather than as a universal fit. Buyers with an OM 40 or OM 40 Gold cartridge choose this stylus because it restores the original Nude FG 70 diamond, tracking force and compliance specification of their cartridge, while owners of other OM models need the stylus numbered to match their own cartridge to keep the same figures. This one-stylus-per-model approach means the choice is determined by the cartridge already owned rather than by comparing features across the range, and it lets buyers keep their existing cartridge body, alignment and generator in service by renewing only the part that wears.
