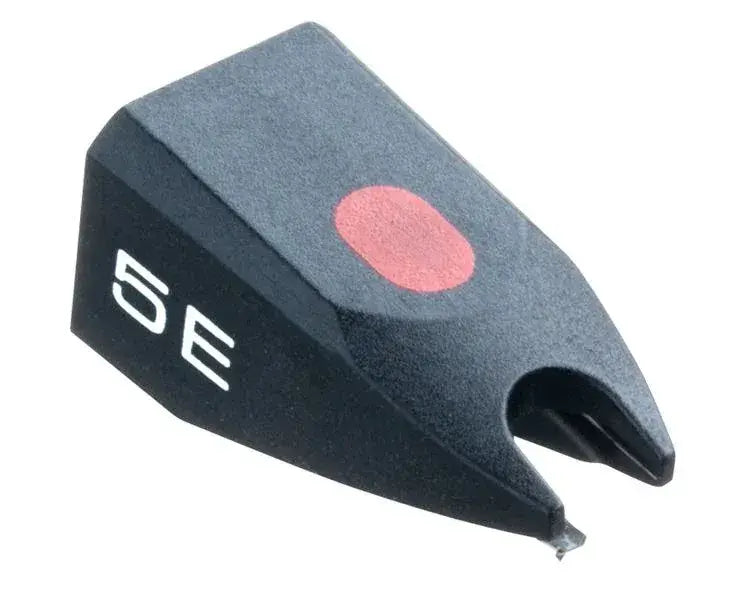

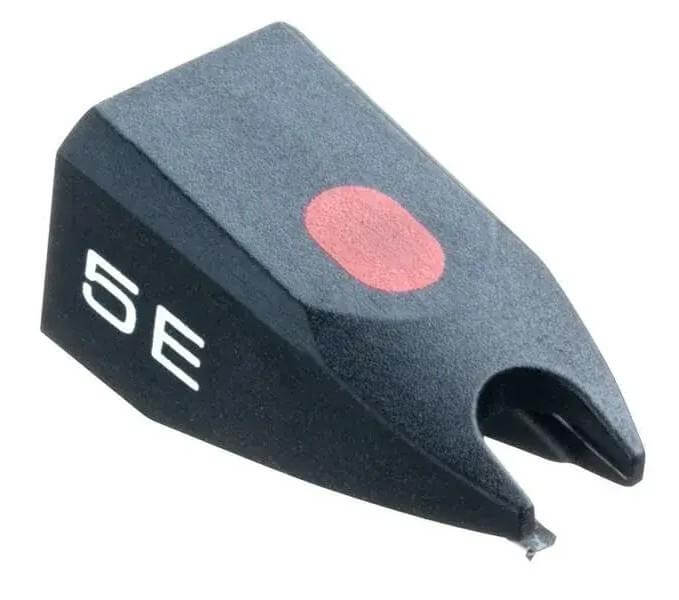

Ortofon Stylus 5E Replacement Stylus

Ortofon Stylus 5E

The Ortofon Stylus 5E is a replacement stylus built for Ortofon's OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E cartridges, letting owners of these moving magnet cartridges restore stylus performance without buying a new cartridge body.

Which Ortofon cartridges is the Stylus 5E compatible with?

The Ortofon Stylus 5E is compatible with five specific cartridge bodies: OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E. Because the stylus and cartridge body are sold as separate components in the OM series, buyers need to match the stylus code to their existing cartridge body rather than assume any OM-series stylus fits interchangeably. Someone replacing a worn stylus on one of these five cartridges can order the 5E directly, while owners of other OM-series variants need a stylus matched to their own cartridge code instead.

How does the elliptical stylus tip affect tracking and channel separation?

The Ortofon Stylus 5E uses an elliptical stylus tip with a tip radius of r/R 8/18 µm. An elliptical tip contacts the groove wall along a narrower area than a spherical tip of comparable size, which lets it follow higher-frequency groove modulations more closely and supports the cartridge's rated frequency response of 20 Hz to 20 kHz within 3 dB. This tip shape also underpins the stylus's tracking ability of 60 µm at 315 Hz, a figure that shows how large a groove modulation the stylus can follow before it starts to mistrack.

What tracking force and compliance settings does it require?

The Ortofon Stylus 5E is specified with a tracking force range of 1.5 to 2.0 g (15-20 mN), with 1.75 g (17.5 mN) recommended by Ortofon as the setting point for most tonearms. Combined with a dynamic lateral compliance of 20 µm/mN, this range determines how the stylus responds to a tonearm's effective mass; a compliance in this range suits tonearms of low to medium effective mass, since pairing a high-compliance stylus with a heavy tonearm can produce poor low-frequency tracking and resonance issues. Setting tracking force at the recommended 1.75 g, rather than at either extreme of the range, keeps the stylus tip seated correctly in the groove without exerting unnecessary pressure on the vinyl.

How easy is it to install the Ortofon Stylus 5E as a replacement?

The Ortofon Stylus 5E is designed to be user-replaceable, sliding into the existing cartridge body without removing or rewiring the cartridge from the headshell. The stylus itself weighs 1 g, a figure buyers can use alongside the recommended 1.75 g tracking force when checking their tonearm setup after fitting it. Ortofon also provides a downloadable user guide to support buyers who install the replacement stylus themselves.

What does the tracking angle mean for playback accuracy?

The Ortofon Stylus 5E is set to track at a 20° angle, matching the vertical tracking angle used when most vinyl records were originally cut. Keeping the stylus tracking angle close to this figure reduces distortion caused by the tip sitting at a different angle in the groove than the cutting stylus did, which is why owners are advised to check cartridge alignment when fitting a replacement stylus rather than assume the previous geometry still applies.

Who should choose the Ortofon Stylus 5E over other stylus options?

The Ortofon Stylus 5E is the right choice for buyers who already own an OM 5E, Super OM 5, OMP 5E, OMB 5E, or OMT 5E cartridge body and need a like-for-like replacement stylus, since it matches the original elliptical tip type and specification the cartridge was designed around. Buyers looking to change tip geometry or tracking performance, rather than restore the original specification, would need a different stylus within the OM range, such as the Pro S or SS variants, since these use tip designs different from the 5E's elliptical profile. The 5E suits owners who prioritise continuity of sound and setup over changing their cartridge's playback characteristics.
