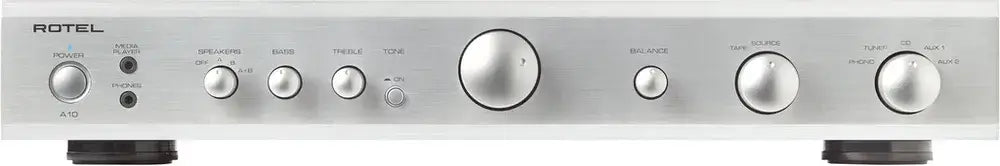

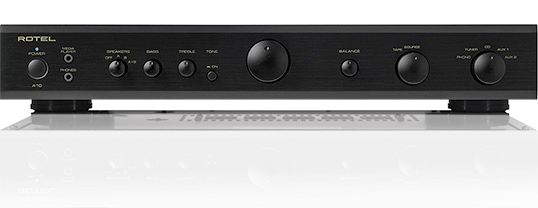

Rotel A10 Integrated Amplifier
Rotel A10 Integrated Amplifier is a Class AB stereo amplifier designed to deliver pure analogue hi-fi performance for music lovers. Built on Rotel’s long-standing amplifier expertise, the A10 processes audio entirely in the analogue domain, producing a natural, detailed and engaging sound that allows recordings to retain their original character. Its streamlined design focuses on musical performance rather than unnecessary features, making it an excellent choice for anyone building their first serious hi-fi system or upgrading a compact stereo setup.

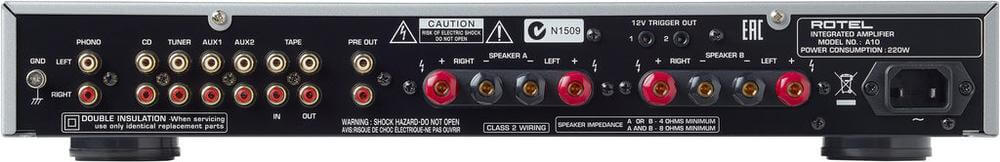

The Rotel A10 Integrated Amplifier offers versatile connectivity for a wide range of analogue sources, including a dedicated moving magnet (MM) phono input for turntables, alongside connections for CD players, tuners and other audio components. Easy to operate and engineered for long-term listening enjoyment, the A10 combines refined Class AB amplification, flexible source connectivity and renowned Rotel craftsmanship in a compact, space-saving design.
Specifications
Rotel A10 Integrated Amplifier
| Specification | Value |
|---|---|
| Product |
Rotel A10 Integrated Amplifier |
| Dimensions (w × h × d) |
430 × 72 × 342mm / 17 × 2.9 × 13.5in |
| Front panel height |
60mm (2.36in) |
| Power requirements |
230V, 50Hz |
| Power consumption |
220W |
| Net weight |
5.9kg (13lbs.) |
| Btu rating (4ω, 1/8th power) |
311 BTU/h |
| Continuous power output |
40W/Ch (All channels driven, 8Ω) |
| Total harmonic distortion (thd) (20hz–20khz) |
<0.03% |
| Frequency response line level inputs |
10Hz - 40kHz ±1dB |
| Frequency response phono input |
20Hz - 15kHz ±0.3dB |
| S/n ratio (ihf a weighted) line level inputs |
100dB |
| S/n ratio (ihf a weighted) phono input |
80dB |
