Brand: Rotel

Rotel C8 Custom Installation Amplifier

EAN: 672563276217

$3,799.00 AUD

Rotel C8 Custom Installation Amplifier combines more than 60 years of Rotel audio engineering expertise with the flexibility required for modern multi-room installations. Designed for residential and commercial environments, it delivers premium Class AB amplification, versatile source distribution, and intuitive zone control, while seamless integration with custom AV systems makes it a reliable and high-performance solution for distributed audio applications.

Quantity:

Limited Availability - Contact Us Before Purchasing.

✓ Australian Retailer
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support

Specifications

Rotel C8 Custom Installation Amplifier

Specification	Value
Brand	Rotel
Model	C8
Product type	Custom Installation Amplifier
Amplification	Class AB
Channels	8
Maximum power output	8 x 70 W @ 4 ohms (all channels driven), bridgeable to 140 W/ch
Continuous power output	8 x 50 W @ 8 ohms
Thd	<0.1%
Intermodulation distortion	<0.1% (60 Hz:7 kHz, 4:1)
Frequency response	10 Hz-100 kHz ±0.5 dB
Bass control	±10 dB @ 100 Hz
Treble control	±10 dB @ 10 kHz
Damping factor	80
Input sensitivity/impedance	0.3 V / 31k ohms
Input overload	2.8 V
Signal to noise ratio	100 dB
Crosstalk/separation	>50 dB
Analog inputs	4
Matrix switching	Yes
Priority pa override	Yes
Control interfaces	IP, RS232, 12V Trigger
Speaker terminals	Detachable Phoenix
Transformer	Custom engineered toroidal transformer
Rack mount	2U, rack ears included
Power consumption	570 W
Standby power	<0.5 W (Normal), <2 W (Network Standby)
Btu	1537 BTU/h
Dimensions	430 x 97 x 414 mm
Front panel height	2U / 88.1 mm
Weight	16.7 kg
Finish	Black

Product Details

Rotel C8 Custom Installation Amplifier delivers flexible multi-room audio

Rotel C8 Custom Installation Amplifier is designed to provide premium Class AB performance for multi-room audio systems in residential and commercial environments. Built on Rotel’s long-standing heritage of engineering and audio excellence, this custom installation amplifier delivers the control, reliability, and sound quality expected from a high-performance distributed audio solution.

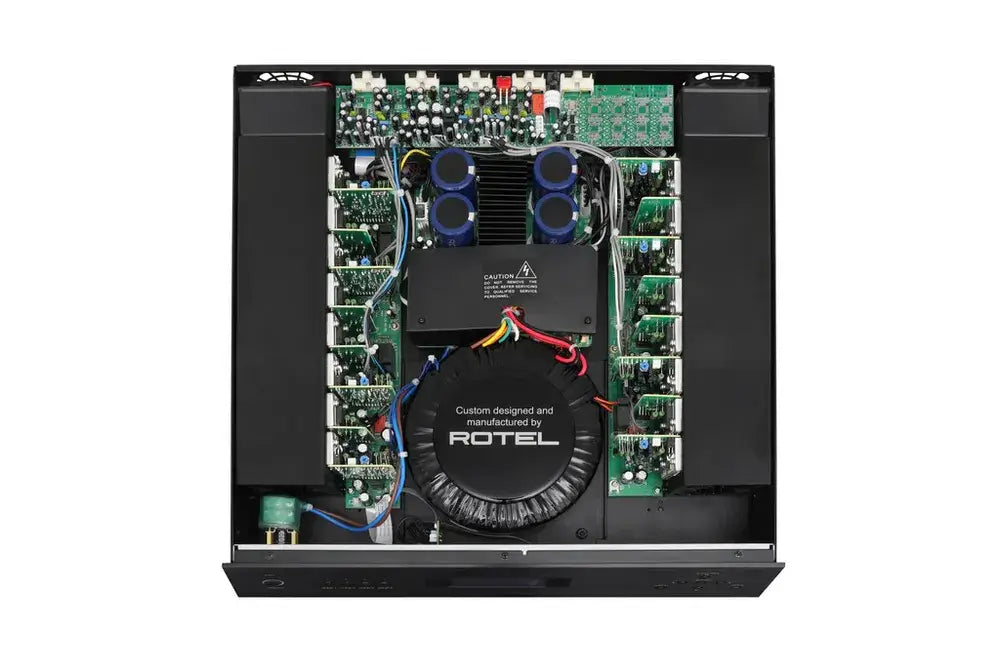

Rotel C8 Class AB Amplifier produces engaging and controlled sound

Rotel C8 Class AB Amplifier is built around a custom-engineered toroidal transformer and a robust power supply designed to deliver clean, dynamic, and controlled audio. Its carefully engineered amplification maintains musical detail, rhythm, and balance, creating an engaging listening experience whether reproducing background music or more demanding recordings.

Rotel C8 Matrix Switching enhances installation versatility

Rotel C8 Matrix Switching allows analogue audio sources to be shared flexibly across multiple listening zones, giving installers greater freedom when designing whole-home and commercial audio systems. A Priority Zone PA Override function also enables important announcements to be distributed instantly across all zones, making the amplifier well suited to hospitality, retail, and business environments as well as residential projects.

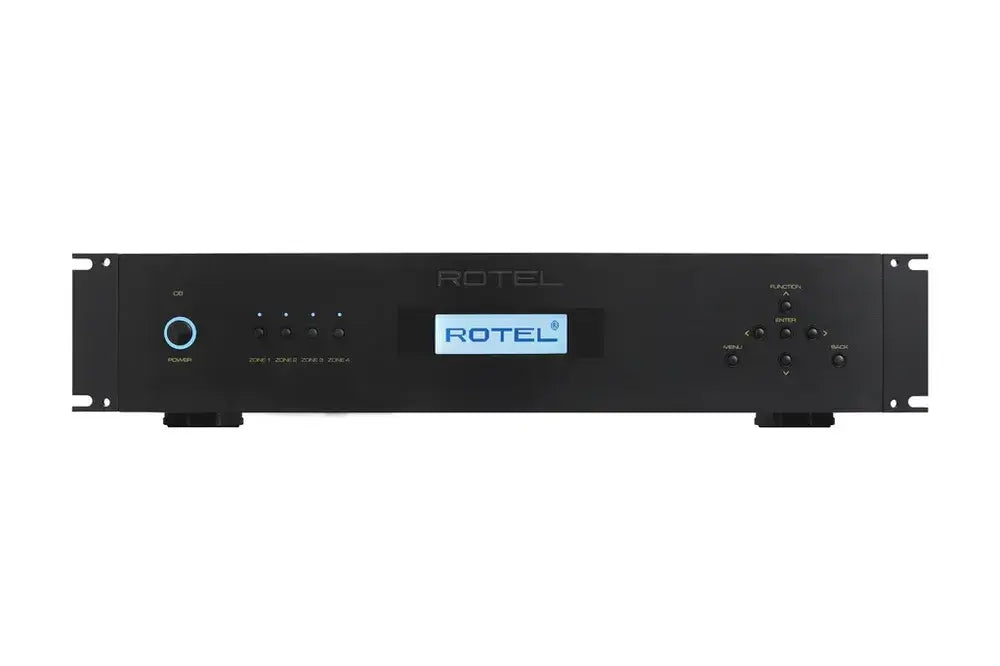

Rotel C8 Front Panel Controls simplify system customisation

Rotel C8 Front Panel Controls are designed to make everyday operation and system setup straightforward. The integrated display allows users and installers to select sources and adjust audio settings for individual zones, enabling the system to be tailored to room acoustics, speaker characteristics, and personal listening preferences without unnecessary complexity.

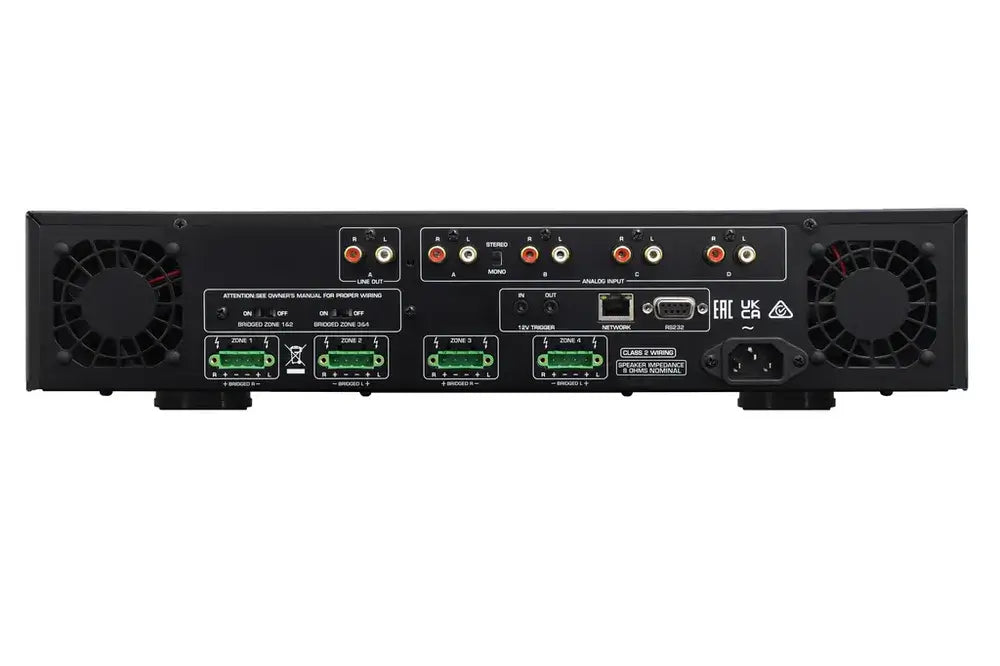

Rotel C8 Control Integration supports professional installations

Rotel C8 Control Integration is compatible with modern automation and control systems through IP and RS232 connectivity, while a 12-volt trigger input enables convenient power management within integrated AV systems. Detachable Phoenix speaker terminals also simplify installation by supporting secure and organised wiring for custom projects.

Rotel C8 Chassis Design maximises rack efficiency

Rotel C8 Chassis Design is engineered for space-conscious installations, allowing efficient rack integration without requiring additional clearance above or below the unit. This compact custom installation amplifier is an ideal choice for equipment racks where flexibility, accessibility, and efficient use of space are essential.
