Brand: Rotel

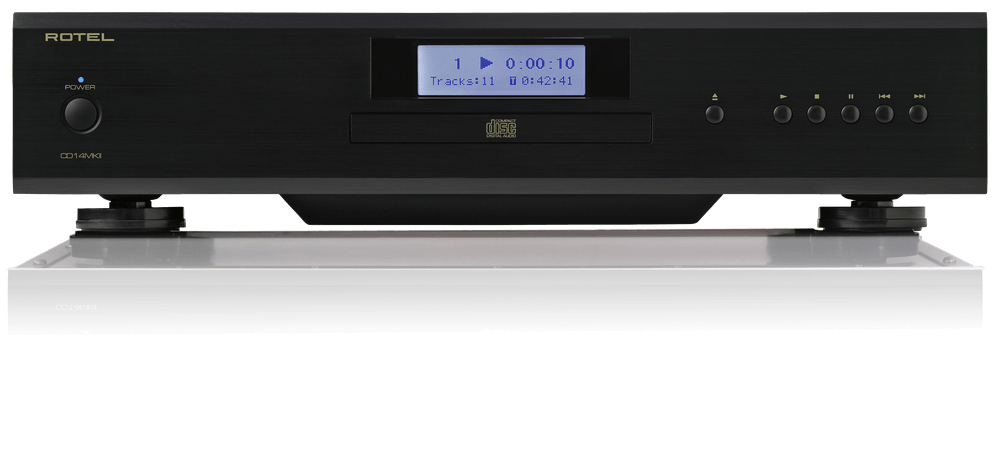

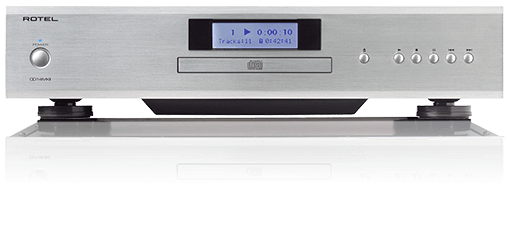

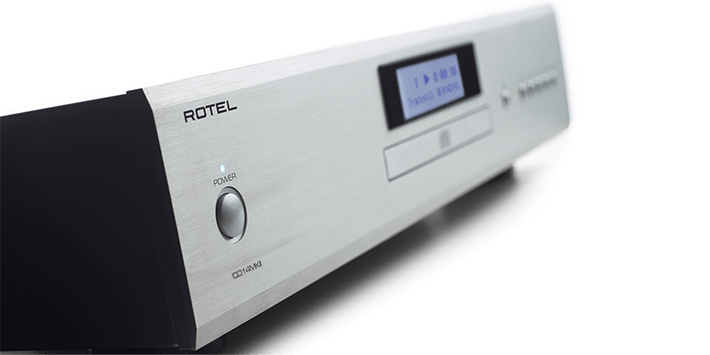

Rotel CD14 MKII CD Player

EAN: 672563274213

$1,099.00 AUD

The Rotel CD14 MKII is a high-performance CD player designed to deliver accurate, detailed audio with exceptional clarity. Featuring a premium Texas Instruments 32-bit DAC and independent power supplies that isolate sensitive audio circuits from motor controls, it reduces noise and distortion for a more natural and dynamic listening experience. Enhanced power supply and circuit design further improve sonic performance, while support for MP3 CDs, analogue RCA outputs, and a coaxial digital output allow it to integrate seamlessly into both traditional hi-fi systems and setups using an external DAC.

Finish: Black

Black Silver

Quantity:

✓ Australian Retailer
✓ Full Australian Warranty
✓ Fast Australia-Wide Shipping
✓ Local Expert Support

Specifications

Rotel CD14 MKII CD Player

Specification	Value
Product	Rotel CD14MKII
Category	CD Player
Description	Award-winning CD player with MKII acoustic and performance upgrades including enhanced power supply, PCB layout isolation techniques and acoustically tuned audio components
Dac	Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
Cd mechanism	Smooth tray loading CD mechanism
Analog output	RCA
Digital output	Coaxial 0.5 Volt Peak to Peak 75 Ohms
Remote control	Included
12v trigger input	Yes
Rs232	Yes
Ir remote input	Yes
Total harmonic distortion + noise	0.0035% @ 1kHz
Intermodulation distortion	0.0035% @ 1kHz
Frequency response	20Hz-20kHz ±0.5dB
Channel balance	±0.5dB
Phase linearity	±0.5 degree
Channel separation	>118dB @ 10kHz
Signal to noise ratio	>118dB (A-weighted)
Dynamic range	>99dB
Analog output impedance	100 Ohms
Power requirements europe	230V 50Hz
Power requirements usa	120V 60Hz
Power consumption	15 Watts
Standby power consumption	<0.5 Watts
Dimensions	430 x 98 x 314mm (17 x 3 7/8 x 12 3/8in)
Front panel height	80mm (3 1/8in)
Weight	6.51kg (14.35lbs)
Finishes	Silver and Black

Product Details

CD14 MKII CD Player Delivers Precise Digital Audio

CD14 MKII is a premium CD player engineered to reproduce your music collection with exceptional accuracy, clarity, and detail. Built on Rotel’s heritage of award-winning CD player design, the Rotel CD14 MKII combines refined acoustic engineering with advanced digital processing to reveal the subtle nuances of every recording, from orchestral works to modern studio productions.

CD14 MKII DAC Enhances High-Fidelity Playback

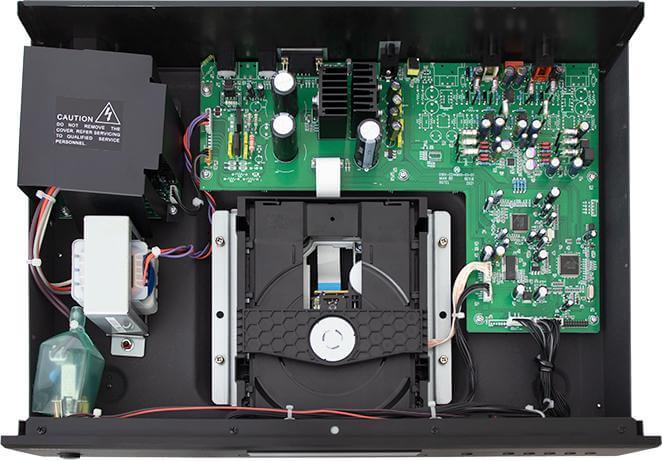

CD14 MKII features a premium Texas Instruments 32-bit digital-to-analogue converter supported by custom-tuned analogue output filters. Independent voltage and current power supplies feed the DAC’s digital and analogue circuits while isolating motor controls from sensitive audio stages. This carefully engineered architecture reduces unwanted noise and distortion, allowing vocals, instruments, and dynamics to be reproduced with impressive realism.

CD14 MKII Engineering Improves Musical Detail

CD14 MKII incorporates upgrades to the power supply, printed circuit board, layout design, isolation techniques, and acoustically tuned audio components. These enhancements work together to deliver richer tonal character and more genuine detail, helping listeners experience recordings with greater transparency and precision.

CD14 MKII Connectivity Expands System Flexibility

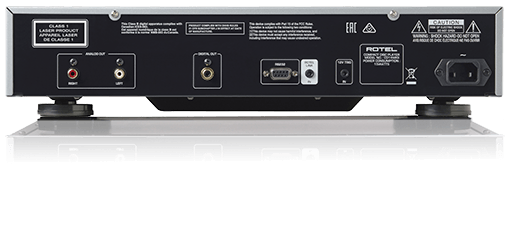

CD14 MKII supports both RCA analogue and coaxial digital outputs, making it suitable for use as a standalone CD player or as a dedicated transport with an external DAC. This flexibility allows the Rotel CD14 MKII CD player to integrate easily into a wide range of hi-fi systems while supporting future upgrades.

CD14 MKII Operation Simplifies Everyday Listening

CD14 MKII uses a smooth tray-loading mechanism for reliable disc handling and supports playback of standard CDs, including discs containing MP3 files. Front-panel controls, a graphic display, and the supplied IR remote provide intuitive operation, while RS232, 12V trigger, and IR remote input offer convenient integration with custom installation and control systems. Bring your CD collection and let the CD14 MKII showcase every album with stunning clarity and exceptional accuracy.
